The combination of infrared thermal imaging technology and unmanned aerial vehicles has important practical significance. At present, infrared thermal imaging unmanned aerial vehicles have a wide range of application examples in industrial, military, civil and other fields.
What is an infrared thermal imaging drone?
An infrared thermal imaging drone is a drone that uses infrared thermal imaging technology to acquire infrared images and data. Its working principle is to capture the infrared radiation emitted by the subject through the infrared camera, and then convert these data into images to show the temperature distribution of the target object. These images can be used to detect the temperature difference on the surface of the object, and then determine the position, size, shape and other information of the object.
The necessity of infrared thermal imaging drone:
Monitoring and detection capabilities: Infrared thermal imaging technology can detect the temperature distribution on the surface of the target object without touching the object itself, and can be used to monitor and detect various scenarios, such as fire, energy pipeline leakage, heat loss of buildings, etc.
Improve safety: Infrared thermal imaging drones can work in dangerous environments, such as areas with high temperature, toxic gases or radioactive materials, which can improve the safety of personnel.
Improve efficiency: Traditional inspection methods require manual inspection or use manual equipment for inspection, which is time-consuming and labor-intensive. The infrared thermal imaging drone can quickly acquire a large amount of data, which can improve efficiency and reduce human error.
Improve accuracy: Infrared thermal imaging drones can accurately determine the location, size, shape and other information of target objects, which helps to accurately diagnose and solve problems.

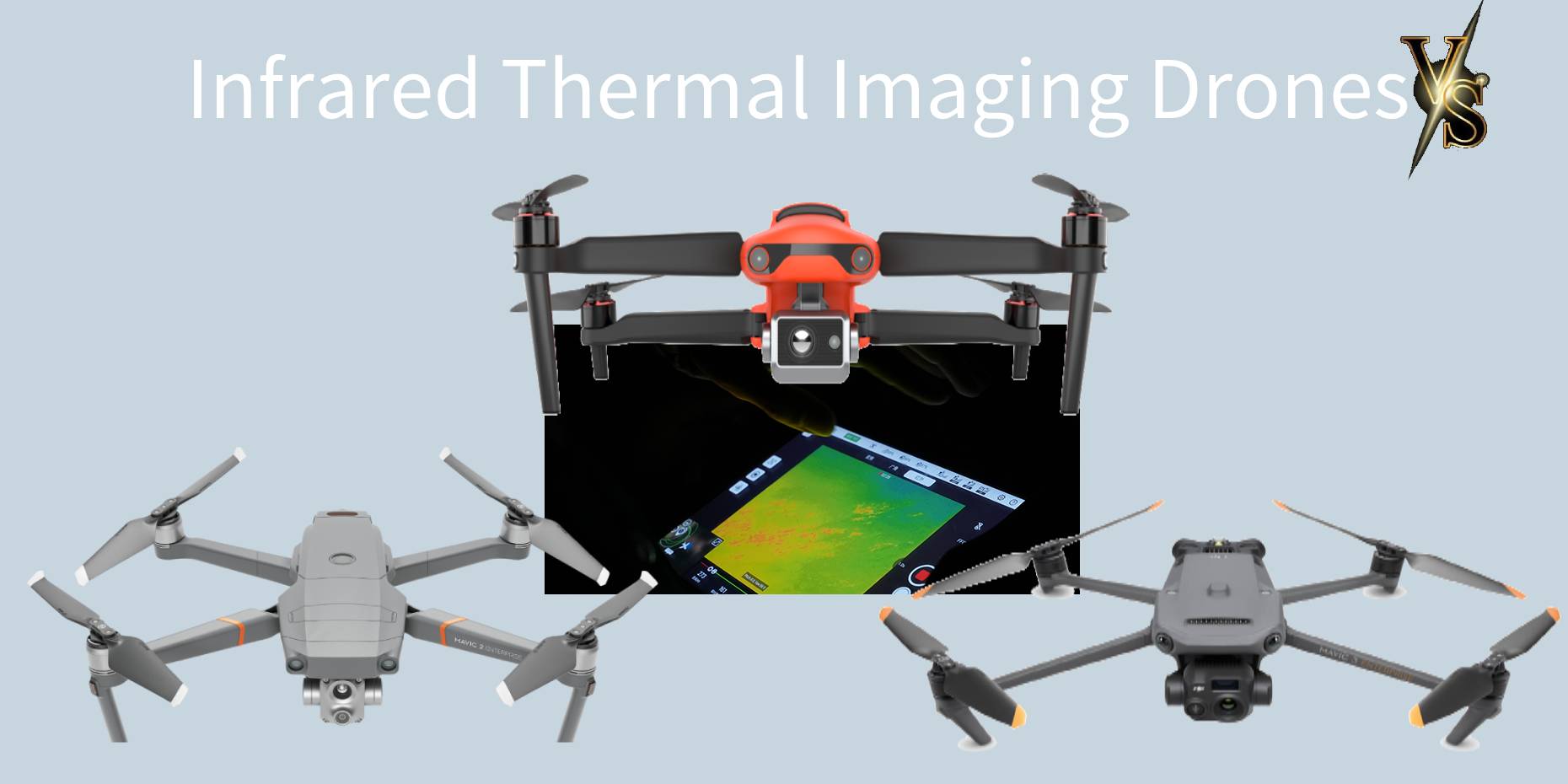

The Best Drone With Infrared Thermal Imaging
 |
 |
 |
|
| Thermal camera | |||
| Camera stills resolution |
|||
| Video Resolution | |||
| Sensor | |||
| Zoom | |||
| Flight Time | |||
| RTK | |||
| Smart Flight Modes |
DJI Mavic 2 Enterprise Advanced
The Mavic 2 Enterprise series consists of 3 drones; Zoom, Dual and Advanced. Among them, the Mavic 2 Enterprise Dual and Mavic 2 Enterprise Advanced versions have thermal imaging capabilities.
The thermal imager resolution of Mavic 2 Enterprise Advanced can reach 640×512 pixels. Dual-camera drone, the RGB camera takes 48MP photos, supports 32x digital zoom, 4x lossless zoom, and the temperature measurement accuracy is ±2°.
The Mavic 2 Enterprise Advanced drone supports 10 km HD Transmission, centimeter-level precision positioning, open SDK, and also has replaceable payloads, including RTK modules, speakers, spotlights or strobes.
DJI Mavic 3T
The Mavic 3 Enterprise series will be released in September 2022, including 3E and 3T versions. The difference between the two is that the 3E has a mechanical shutter and the 3T has a thermal imager.
Mavic 3T has a high-performance camera, including a 640Ă—512 pixel radiometric camera, a 48MP wide-angle camera, a 12 MP RGB zoom sensor, and a maximum zoom of 56 times. The resolution of the thermal imager is also 640Ă—512, and the refresh rate is 30Hz, RGB The camera adopts 4/3 CMOS, and the shooting effect is better.
The Mavic 3T features a smart controller that supports a maximum range of 9.5 miles (15 kilometers). Battery life was rated at 38 minutes while hovering and 45 minutes when fully flying under test conditions. It is the leader in infrared thermal imaging drones.
Autel Evo II Dual 640T
Autel infrared thermal imaging drones include 640T series and EVO MAX 4T. The 640T series includes 640T V2 and 640T V3. Due to different loads, they are divided into 640T Rugged Bundle, 640T Enterprise Bundle and 640T RTK.
The 640T is a dual camera sensor with an 8K RGB camera and a thermal imaging camera with a resolution of 640*512. Compared with the 640T V2 drone, the 640T V3 drone has enhanced camera performance, thermal energy display, image transmission distance, etc.
EVO II Dual 640T V2 adopts 1/2-inch CMOS, takes 8K 48MP photos, 10 kinds of thermal palettes, multiple temperature modes, and the image transmission distance can reach 9 kilometers. EVO II Dual 640T V3 uses 1/1.28-inch CMOS, shoots 8K 50MP photos, adds RYYB mode, 10 kinds of hot color palette, multiple temperature modes, transparency can be adjusted, equipped with smart remote control V3, image transmission distance can reach 15 kilometer.
Autel EVO II Dual 640T has no geo-fence restrictions and has greater flexibility. The infrared thermal imaging drone also has a manual camera function, an intelligent flight mode, a flight time of 38 minutes, and an open SDK.
Infrared Thermal Imaging drone Summary
Overall, the Autel Thermal Imaging Drone and the DJI Thermal Imaging Drone are very competitive. Choosing the best thermal imaging drone to buy can be a difficult task, and here are our recommendations for the best thermal imaging drones.
As a big fan of Autel thermal imaging drones, we have prepared a $200 coupon for everyone who is interested in the 640T Enterprise thermal drone. Get here fast and buy an infrared thermal imaging drone right now.
