Autel Robotics Alpha
Autel Robotics Alpha
- Only accept bank transfers. Please contact us for a quote and further details.
- 4K 35x Optical Zoom
- Anti-GPS Interference and Spoofing
- Anti-Image Transmission Interference
- 12.4 Miles Image transmission
- Dual Thermal Camera
- Hot-swappable Battery
- IP55 Protection level
Fast Delivered by Sat, Jan 25 - Mon, Jan 27 Free Ship from USA
Fast, Free Shipping & No Extra Tax
30-Day Return or Replacement
12-Month Free Warranty
Lifetime Customer Support
- Overview
- Specification
- In the Box
-

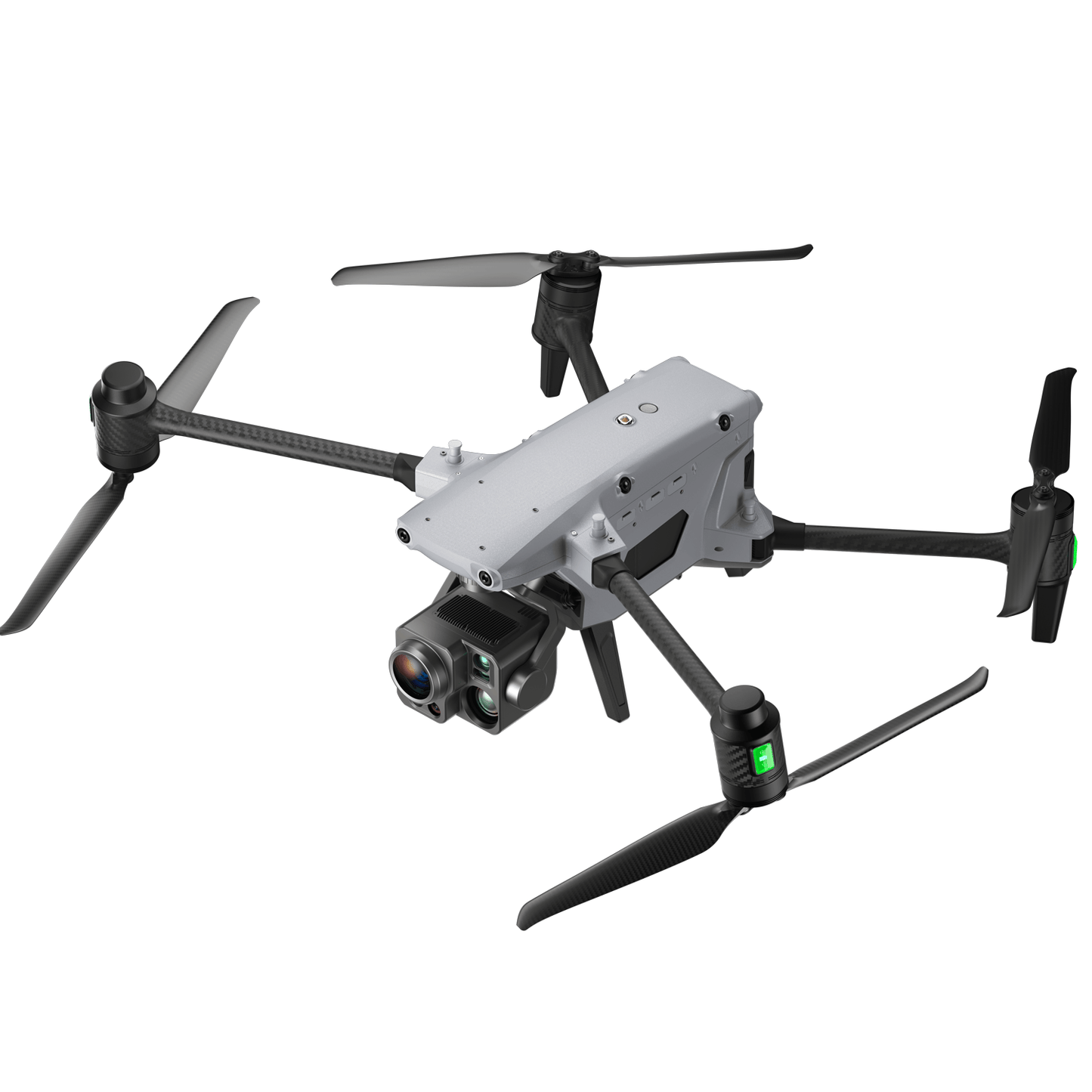

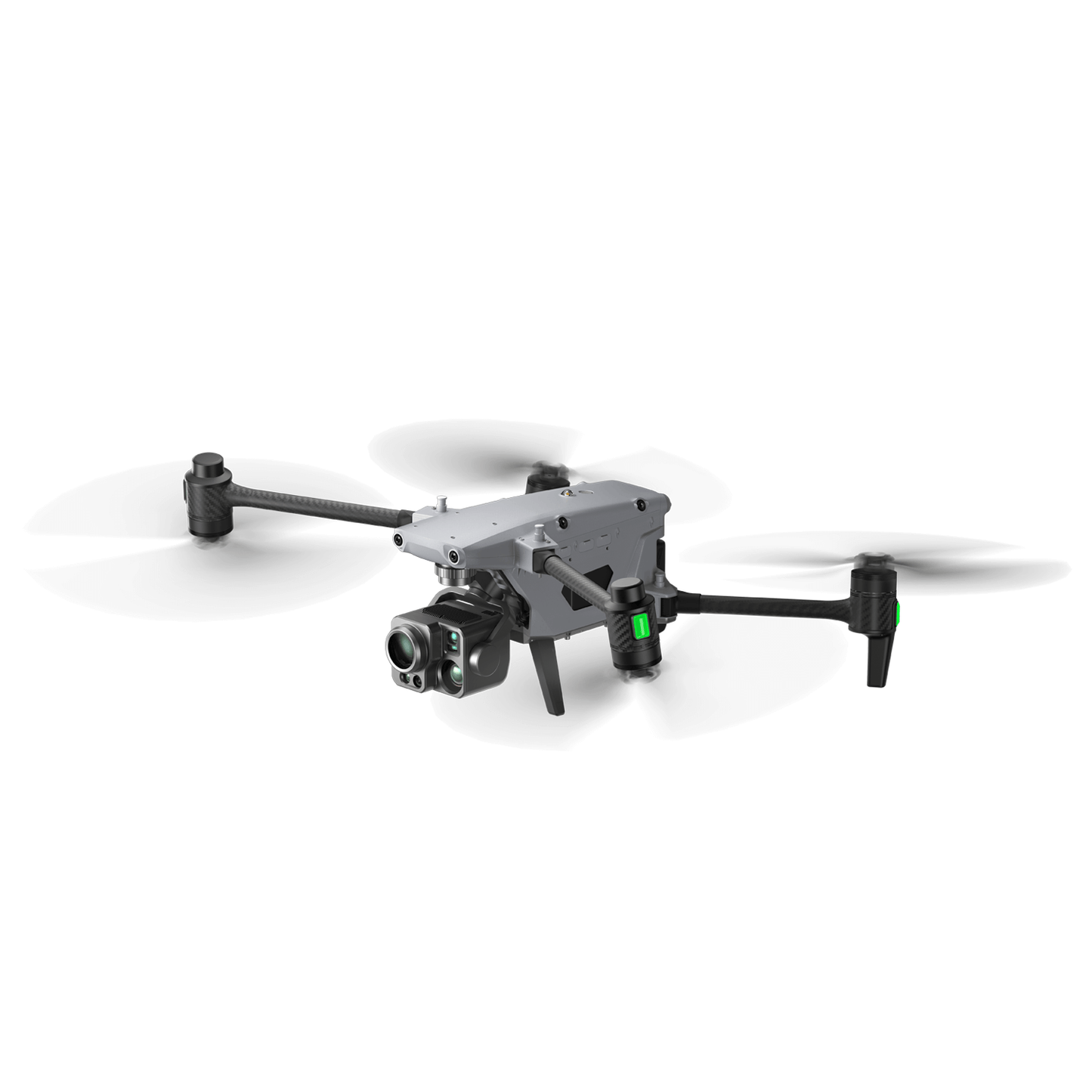

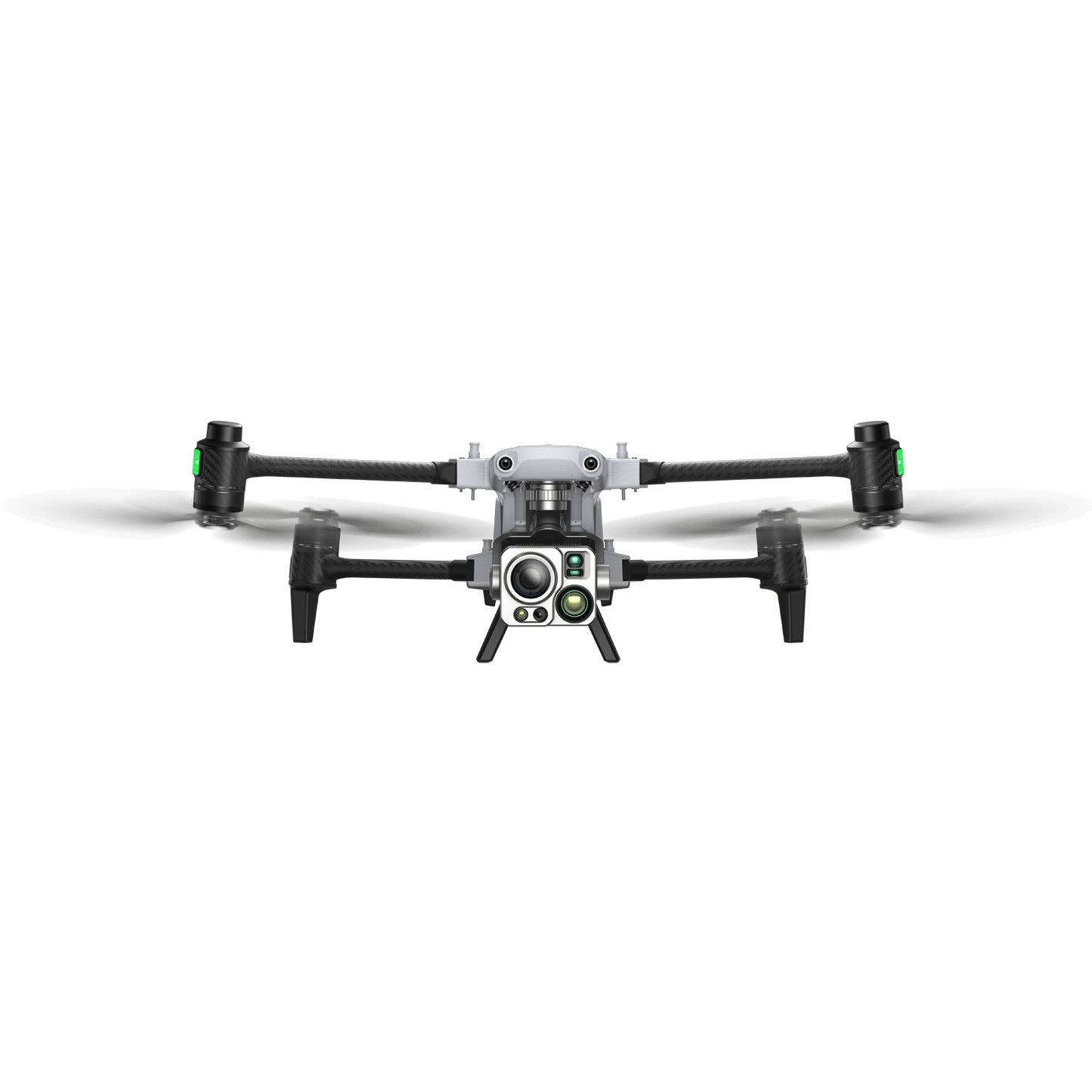

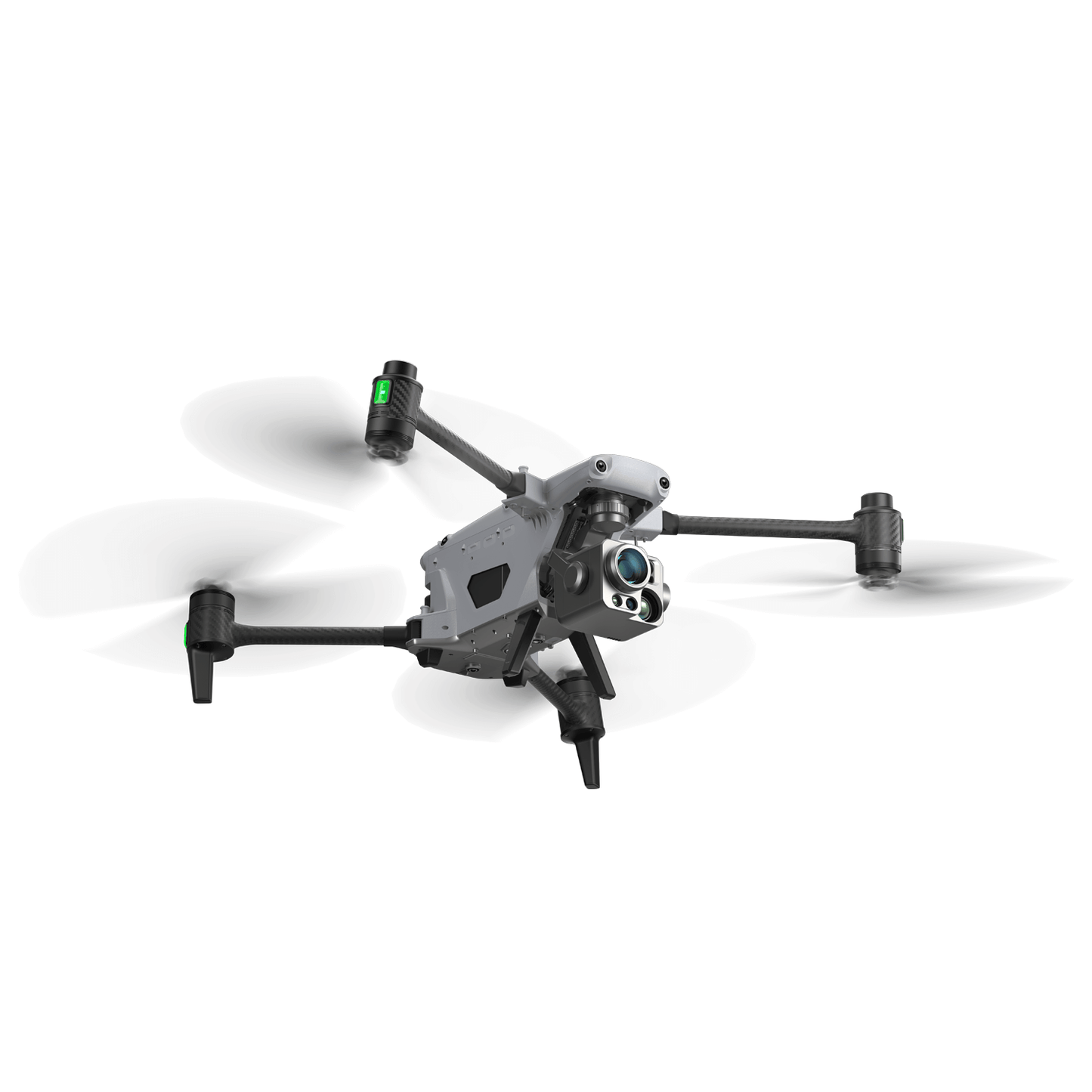

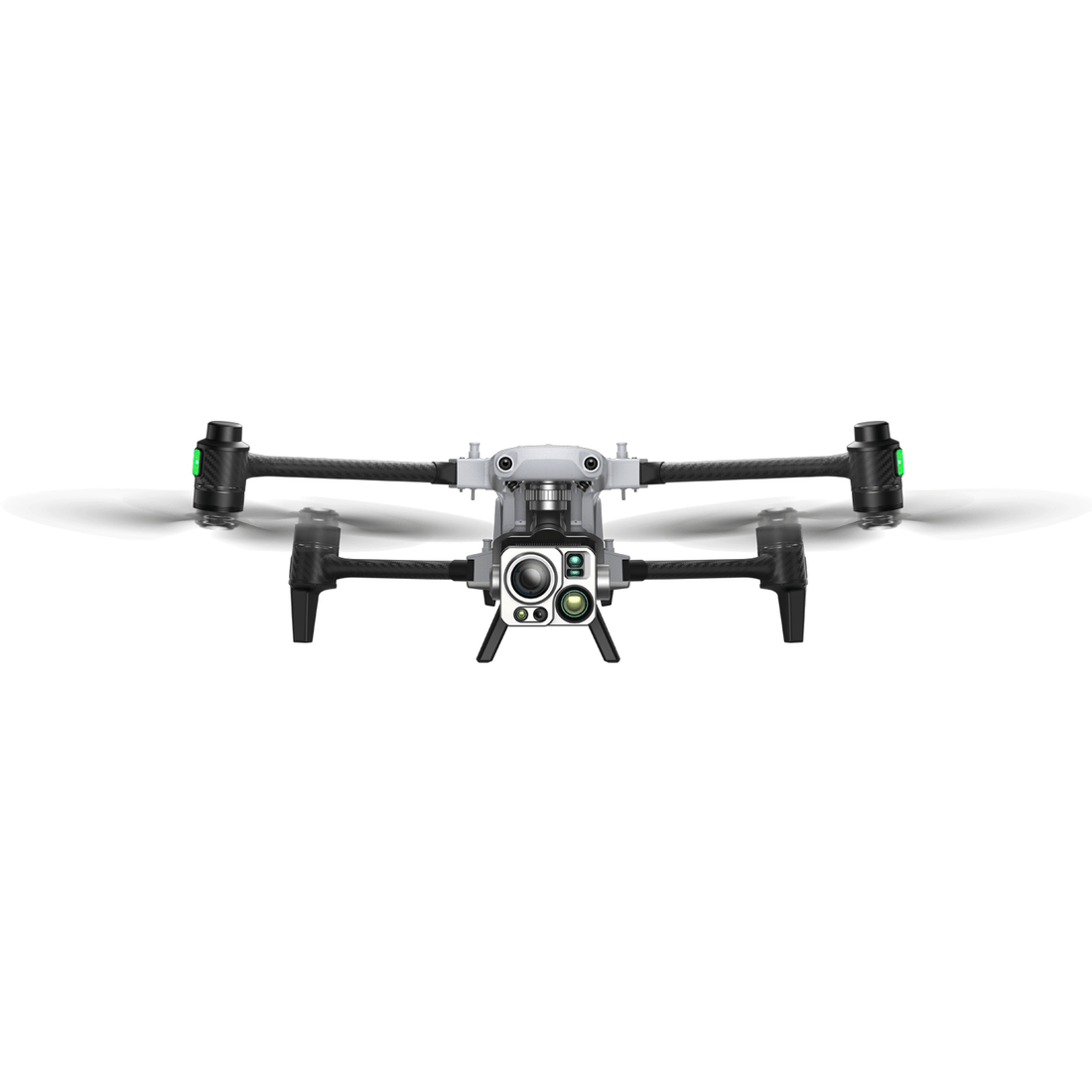

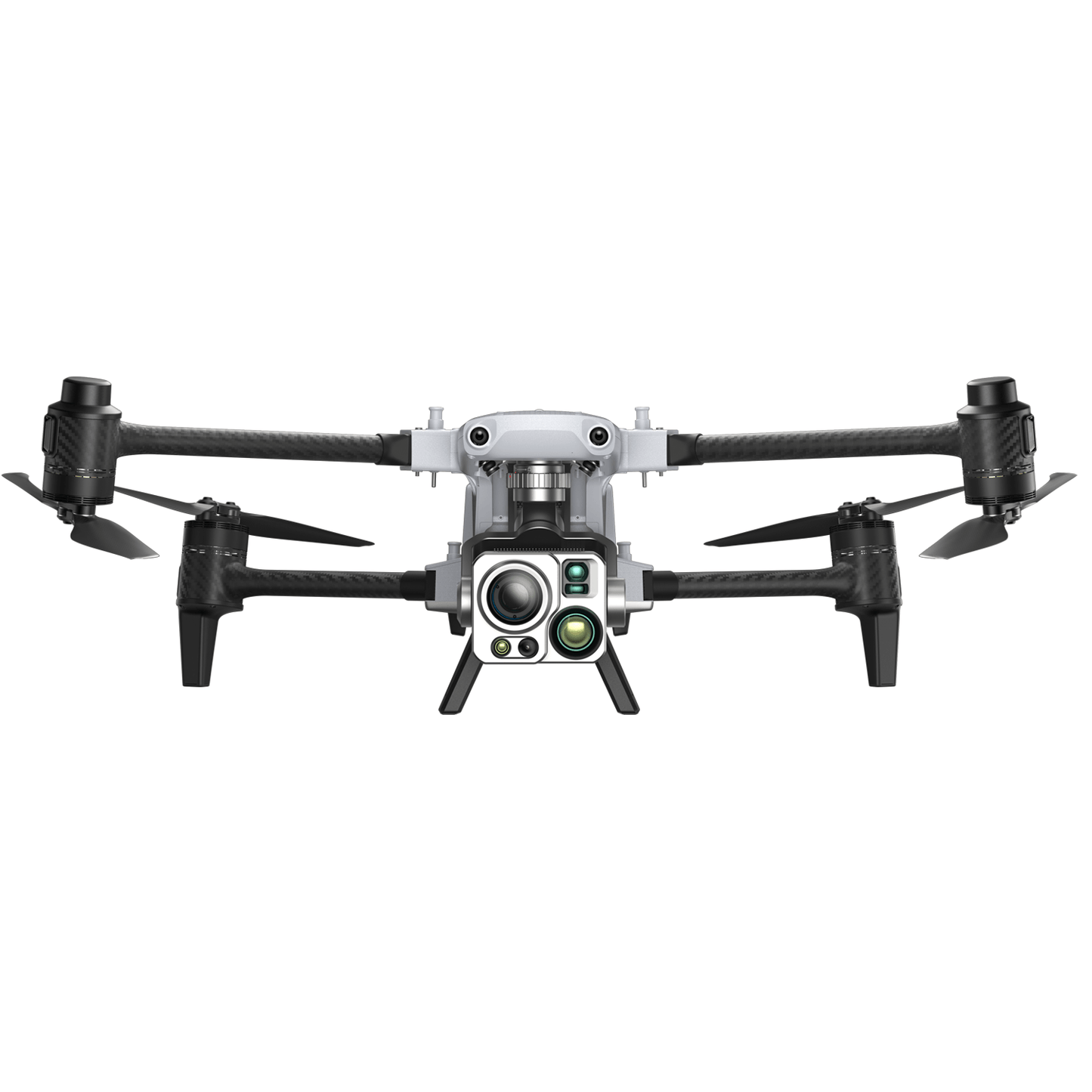

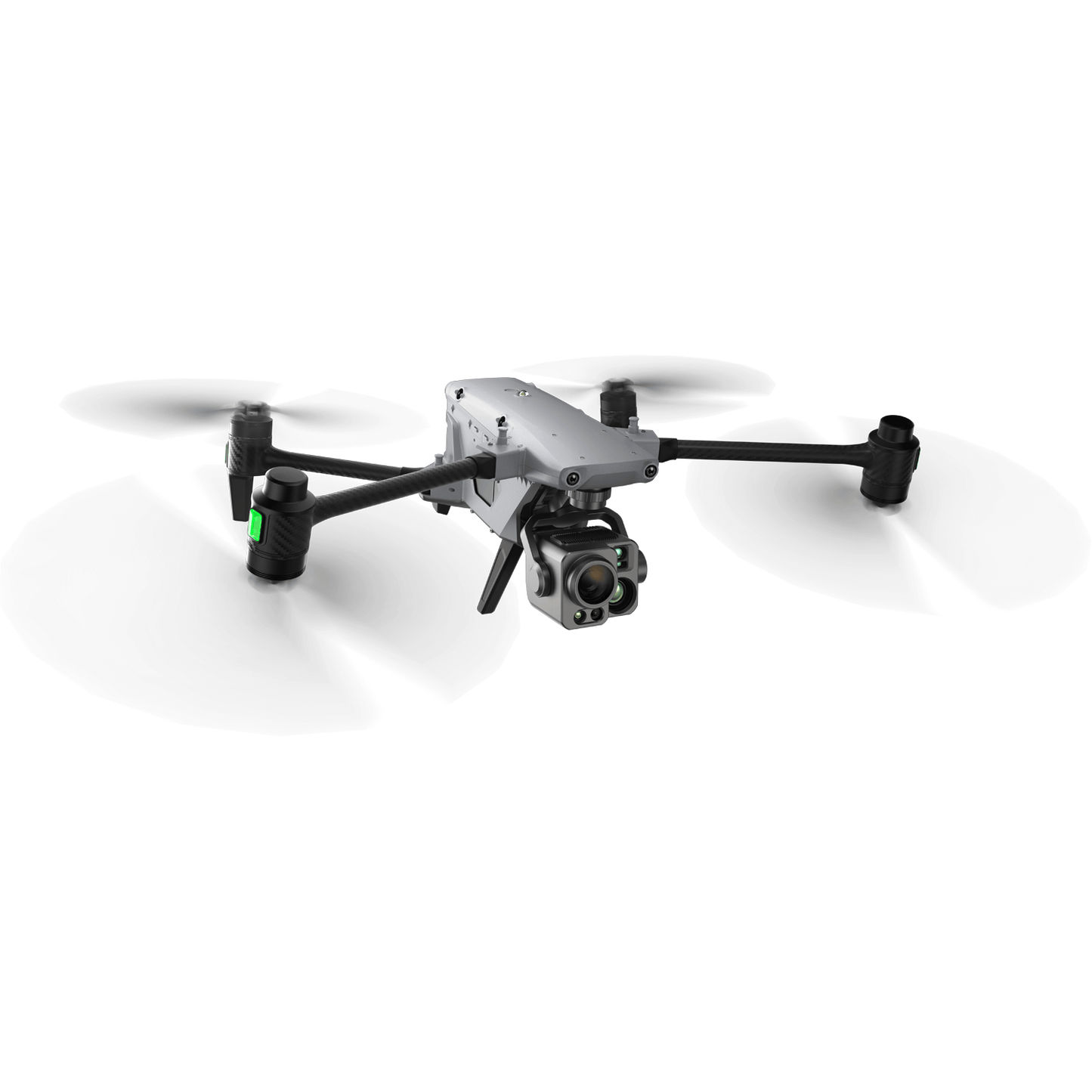

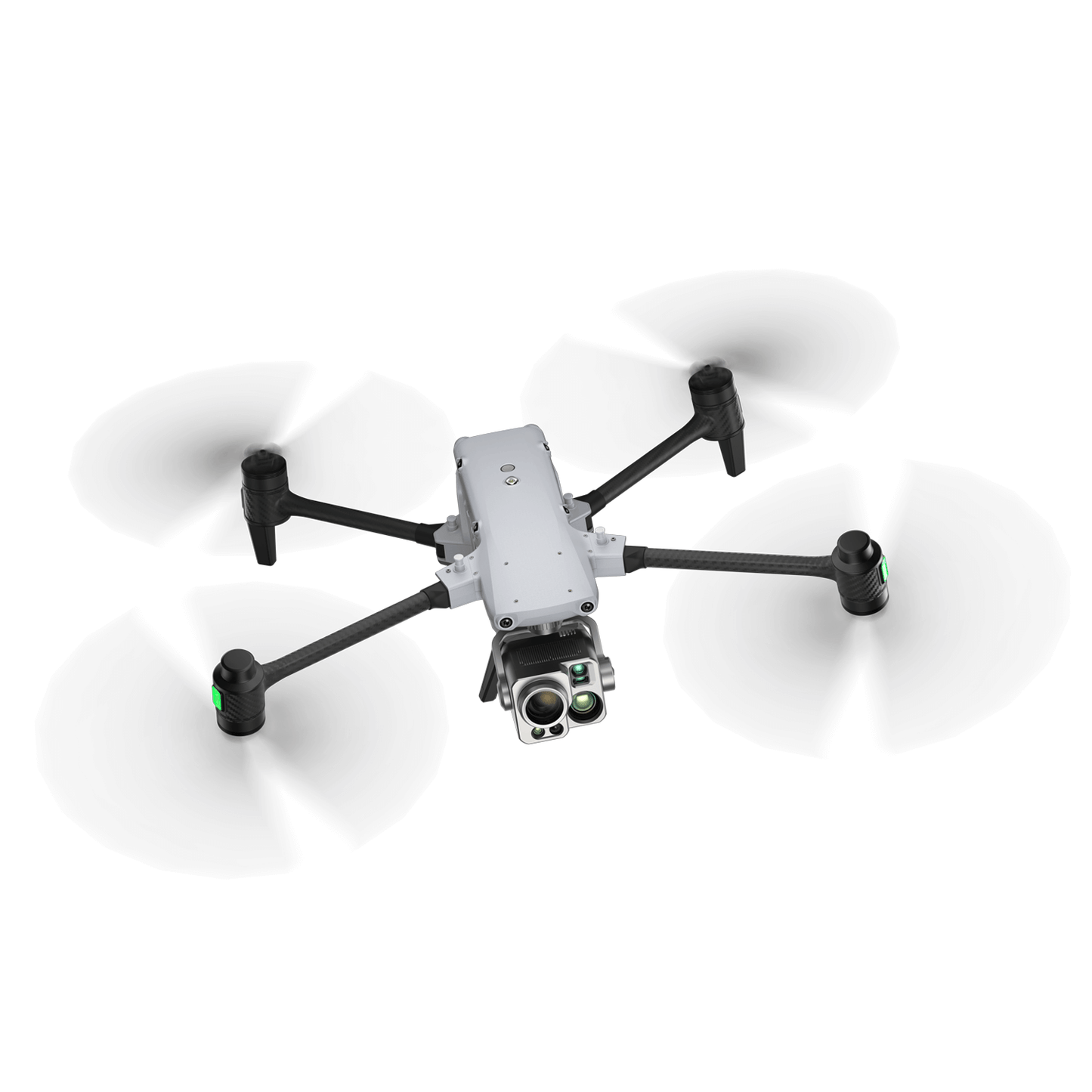

Autel Alpha
Newest Autel Alpha is an inteligent multi-purpose industrial drone,continuously enhance Autel's autonomous fight capabilities, anti-in- terference capabilities, obstacle avoidance capabilities,transmission cechnology, and battery systems,injecting impressive performance into the flight platform.With its IP55 rated foldable design,itfeariessly tackles chalenging environments, while the built-in RTK dual-antenna system ensures precise control within millimeters Paired with the flagship Autel DG-L35T gimbal,it integrates a 560x super hybrid zoom camera,dual thermal imaging cameras,uitra-sensitive staright night vision camera, and laser rangefinder into a single unit,proviing more professional and comprehensive solutions for public safety,energy inspec- tions,emergency management.
-
Superior
Anti-interference -
High-precision
Visual Navigation -
A-Mesh
Network* -
56x
Dual Thermal Camera -
4K 35x
Optical Zoom -
IP55
Rating -
Hot-swappable
Battery -
720°
Obstacle Avoidance -
15 km
Transmission Range -
Flexible
Payload Expansion
-
Superior
Anti-interference -
High-precision
Visual Navigation -
A-Mesh
Network* -
56x
Dual Thermal Camera -
4K 35x
Optical Zoom -
IP55
Rating -
Hot-swappable
Battery -
720°
Obstacle Avoidance -
15 km
Transmission Range -
Flexible
Payload Expansion
Insight Beyond Limits

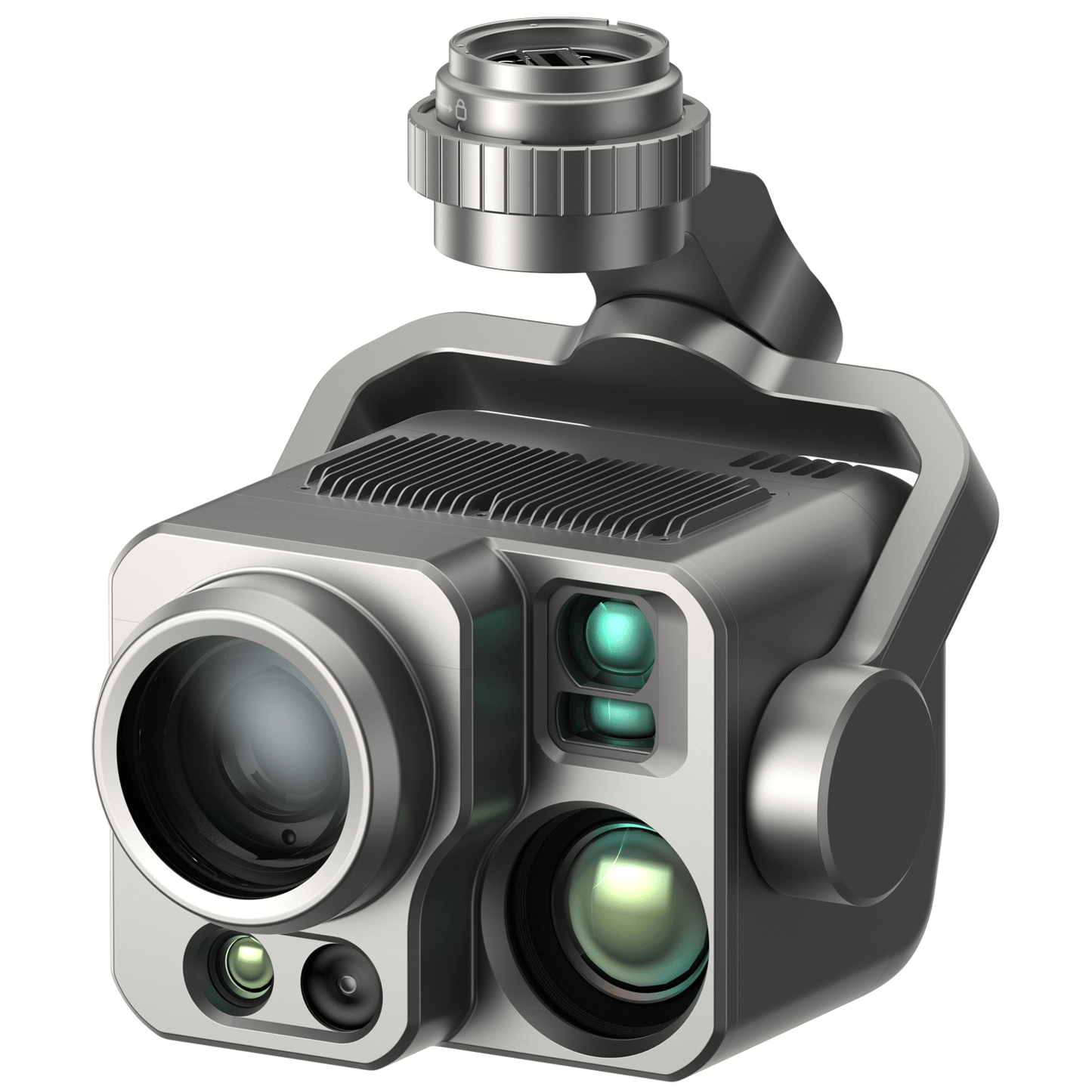

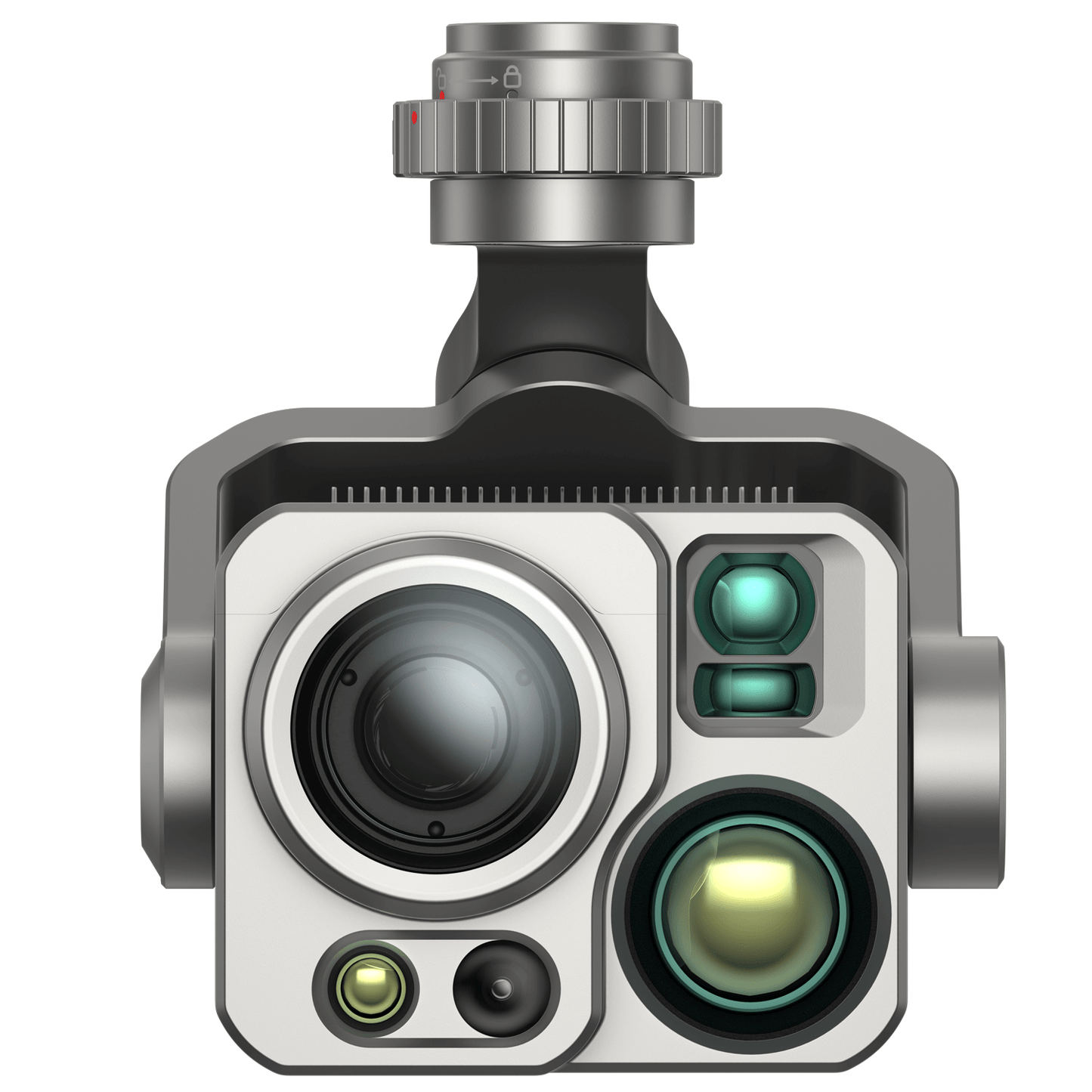

Autel Alpha DG-L35T Gimbal integrates dual thermal imaging cameras (short/long focal length), a 4K 35x optical Zoom camera, a wide-angle camera and a laser rangefinder.
- 640*512 resolution
- 56x hybrid zoom
- 13mm focal length wide-angle thermal imaging
- 45mm focal length long-range thermal imaging
- Measurement range: 10-2000 meters
- Measurement accuracy: <400m: +1m; >400m: D×0.3%
- * where D represents the distance from the vertical reecting surface
- 48 MP
- Equivalent: 24mm
- Aperture: f/2.8
- DFOV: 84°
- 8 MP
- 4K 35x optical zoom
- 560x hybrid zoom
- Ultra-sensitive ISO supports up to a maximum of 160,000
-
Exceptional Anti-Interference Capability
Autel Alpha's high-precision visual positioning capabilities, adaptive frequency-hopping and SLAM navigation technology empowers resistance from interference and enables the drone to fly confidently near powerlines, critical structures and in complex areas.
-
A-Mesh Networking*
With integrated A-Mesh networking technology, Autel alpha, all drones and controllers establish a private network, supporting various working modes such as "single-controller multiple drones" and "master-slave dual control". Even in scenarios with long distances and obstacles, such as mountains, buildings, or areas without public network, the drones can achieve multi-device networking, enabling drone-to-drone autonomous communication, connection, and collaboration.
* This feature is pending future updates.
-
Autonomous Flight
Autel's Autonomy Engine is continuously improving, enabling functions such as global path planning and 3D scene reconstruction in complex environments. It ofers various obstacle avoidance capabilities, including return-to-home, manual contro, and mision planning, providing a more professional solution for industries such as security, inspection, and surveying.
-
No Blind Spots,
Ultimate Obstacle AvoidanceBy integrating multi-source sensor fusion technology, including 5-direction dual fisheye vision + 6-direction millimeter-wave radar, Autel Robotics Alpha is equipped with wire-level obstacle avoidance and pathfinding capabilities. It can detect minor obstacles like glass, poles, and powerlines. Additionally, it supports nighttime obstacle avoidance for flight safety.
-
Exceptional Anti-Interference Capability
Autel Alpha's high-precision visual positioning capabilities, adaptive frequency-hopping and SLAM navigation technology empowers resistance from interference and enables the drone to fly confidently near powerlines, critical structures and in complex areas.
-
A-Mesh Networking*
With integrated A-Mesh networking technology, all drones and controllers establish a private network, supporting various working modes such as "single-controller multiple drones" and "master-slave dual control". Even in scenarios with long distances and obstacles, such as mountains, buildings, or areas without public network, the drones can achieve multi-device networking, enabling drone-to-drone autonomous communication, connection, and collaboration.
* This feature is pending future updates.
-
Autonomous Flight
Autel's Autonomy Engine is continuously improving, enabling functions such as global path planning and 3D scene reconstruction in complex environments. Autel Alpha drone ofers various obstacle avoidance capabilities, including return-to-home, manual contro, and mision planning, providing a more professional solution for industries such as security, inspection, and surveying.
-
No Blind Spots,
Ultimate Obstacle AvoidanceBy integrating multi-source sensor fusion technology, including 5-direction dual fisheye vision + 6-direction millimeter-wave radar, Autel Alpha is equipped with wire-level obstacle avoidance and pathfinding capabilities. It can detect minor obstacles like glass, poles, and powerlines. Additionally, it supports nighttime obstacle avoidance for flight safety.

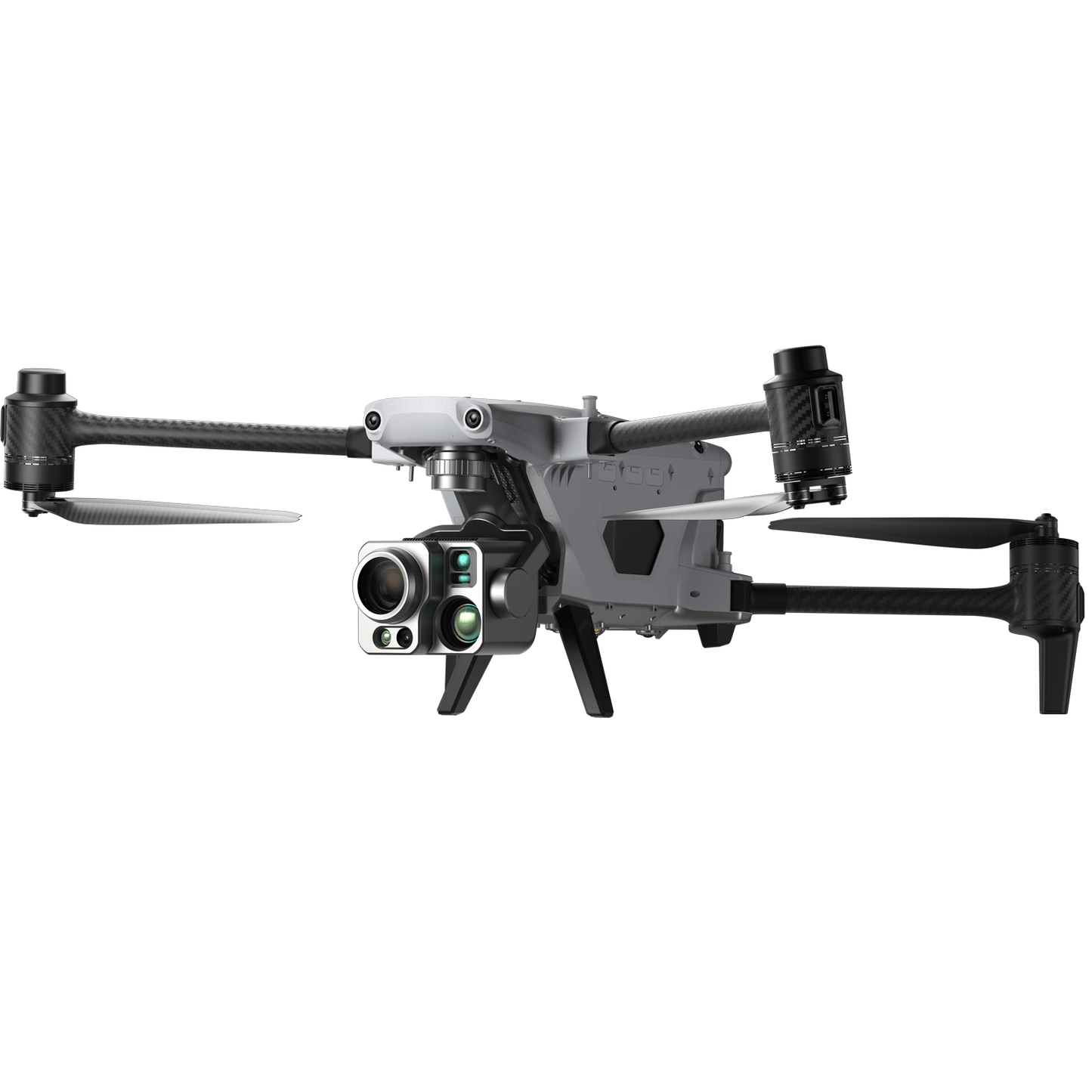

Platform Capabilities
Redefines proficiency with its robust platform and all weather design. Protection Rating: IP55 Wind Resistance: 12m/s Maximum Flying Altitude:4500 meters Operation Temperature: -20℃ to 50℃ *With high-altitude propeller

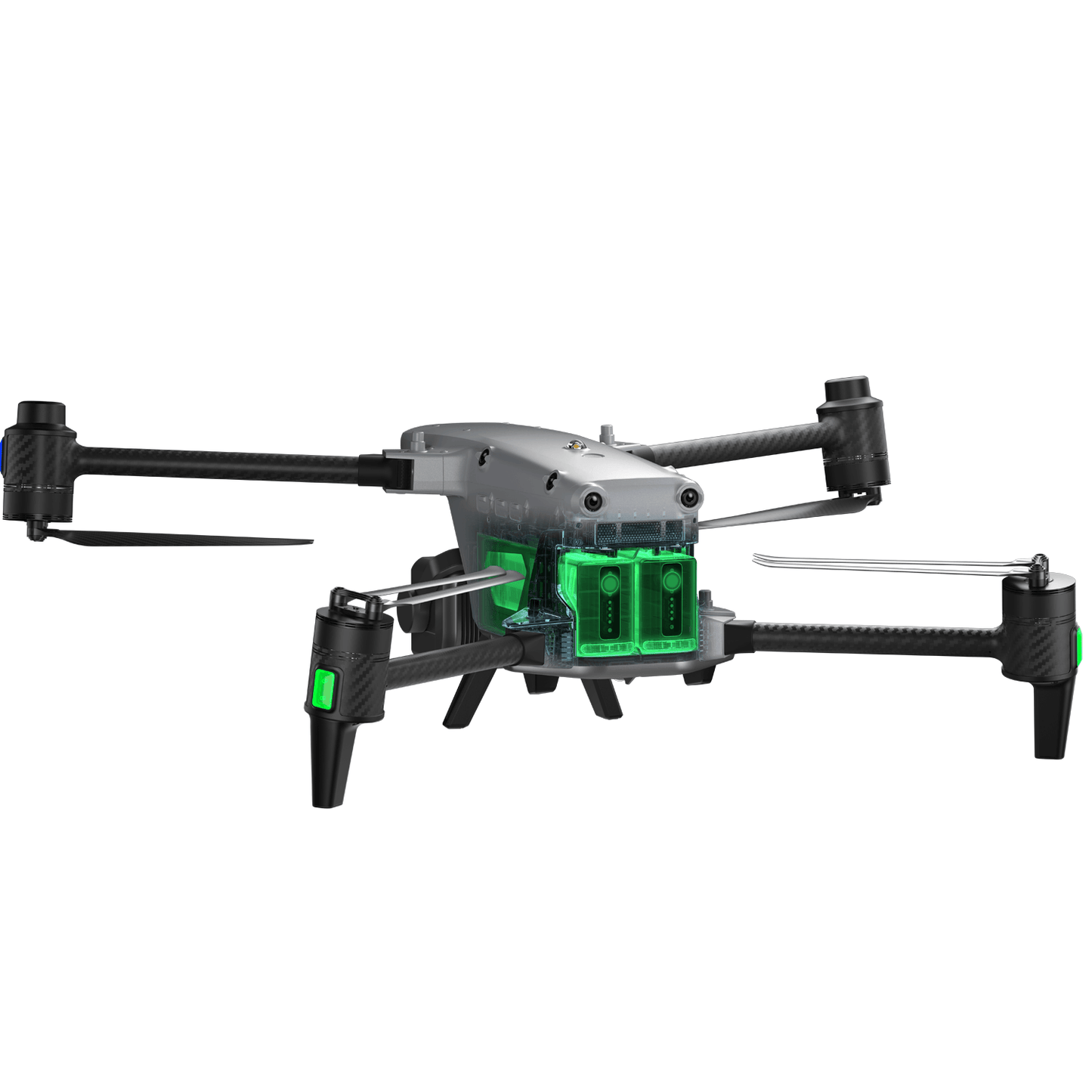

Hot-Swappable Batteries
Adopting a dual-battery redundant design, the Autel Alpha offers a flight time of up to 40 minutes, supporting hot-swappable batteries for seamless, efficient operations. This feature ensures that Autel Robotics Alpha remains ready for continuous use, maximizing productivity and minimizing downtime."
Multiple Payload Capability
The Autel Alpha aircraft features multiple mounting interfaces, offering versatile customization options. Additionally, Autel Robotics Alpha supports the open Autel PSDK developer platform, enabling the creation of new industry ecosystems, such as searchlights, loudspeakers, and more.
High-definition Transmission
With Autel Skylink 3.0, Autel Alpha system is equipped with 4 antennas and 4 frequency bands, enabling a transmission distance of up to 15 kilometers. It supports auto frequency hopping across 900M/2.4GHz/5.2GHz/5.8GHz*, automatically selecting the optimal channel based on electromagnetic interference for robust anti-interference capabilities. Featuring a high transmission speed of 64Mbps and low transmission latency, the Autel Robotics Alpha ensures reliable and efficient communication in various environments.
-
15 kilometers Image Transmission Distance -
1080p/60fps Real-Time Image Quality -
900MHz/2.4GHz/5.2GHz/5.8GHz** Frequency Bands
-
15 kilometers Image Transmission Distance -
1080p/60fps Real-Time Image Quality -
900MHz/2.4GHz/5.2GHz
5.8GHz**Frequency Bands
Autel Enterprise App Platform
The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the Autel Alpha' mission capability.
Multiple Mission Types
-
-
Waypoint Mission Users can add waypoints for flexible, non-structured flight paths.
-
-
Polygon Mission Supports one-click automatic generation of polygon flight areas
-
-
Quick Mission Temporary quick missions can be created while executing other missions.
-
-
Waypoint Mission Users can add waypoints for flexible, non-structured flight paths.
-
-
Polygon Mission Supports one-click automatic generation of polygon flight areas
-
-
Quick Mission Temporary quick missions can be created while executing other missions.
Smart Assistive Features
-
-
AI Target Recognition Autel Alpha can automatically identify and lock onto different types of targets such as human, boat or vehicles through zoom, wide.
-
-
Laser Ranging Click on the remote controller screen, it will show the target latitude, longitude, height, and other information swiftly.
-
-
Tripod The gimbal locks onto the target, and follows the target's movement whilehovering, ensuring the target remains at the center of the frame.
-
-
AI Target Recognition Autel Alpha can automatically identify and lock onto different types of targets such as human, boat or vehicles through zoom, wide.
-
-
Laser Ranging Click on the remote controller screen, it will show the target latitude, longitude, height, and other information swiftly.
-
-
Tripod The gimbal locks onto the target, and follows the target's movement whilehovering, ensuring the target remains at the center of the frame.
Data Security
Privacy protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.
Encrypted Data Storage: Autel Alpha supports AES encryption for photos, videos, and flight logs, requiring a password input for access.
Autel SDK
Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.
-
-
Mobile SDK Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.
-
Payload SDK Unified interface standards support access to third-party mounts such as loudspeakers and 4G/5G modules.
-
-
-
Mobile SDK Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.
-
Payload SDK Unified interface standards support access to third-party mounts such as loudspeakers and 4G/5G modules.
-

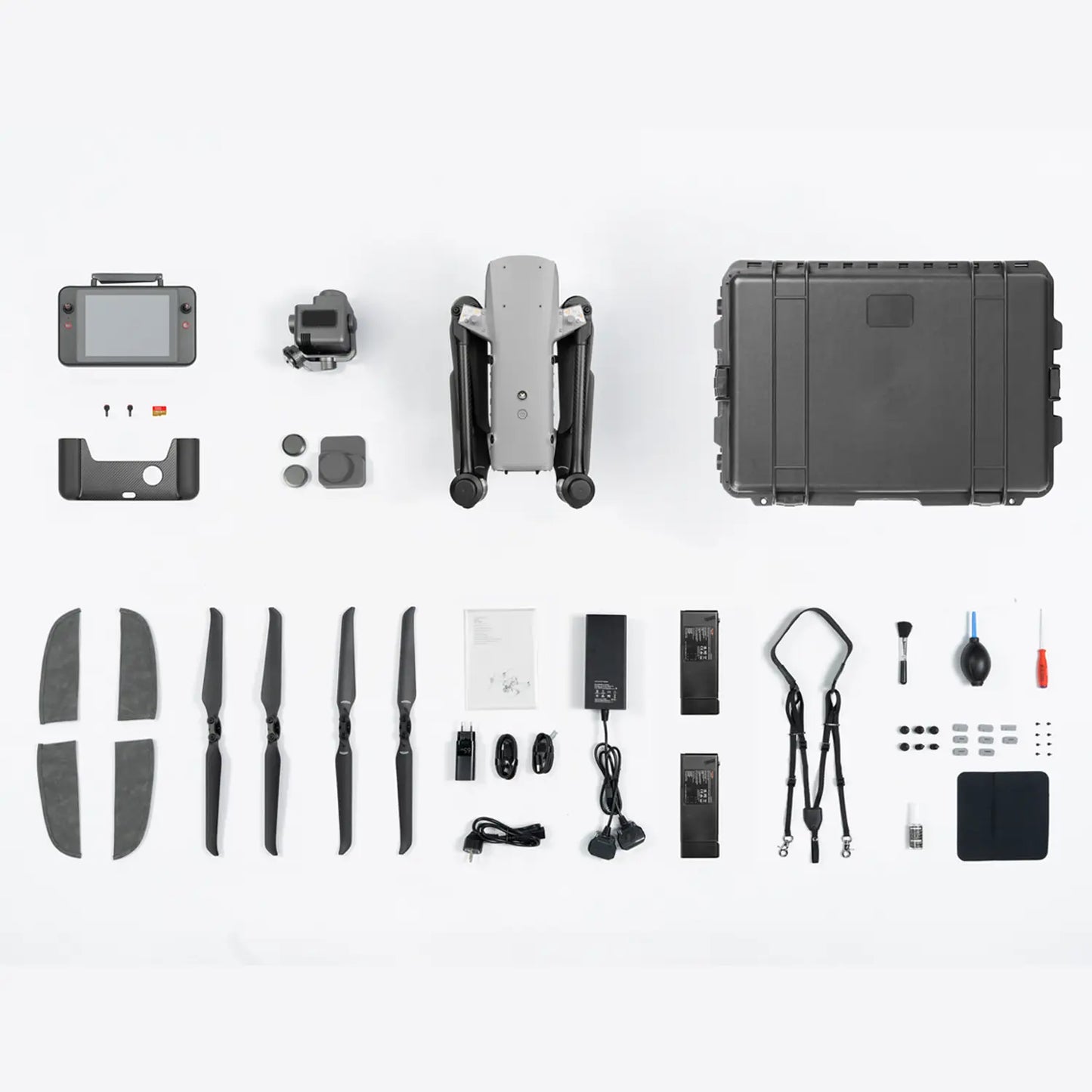

Autel Robotics Alpha Package list
Name
Download Autel Alpha Package List - US.pdf
-
-
Aircraft Weight （Battery and gimbal included) 6100g Max. Payload 3000g Dimensions 1185*942*262mm (unfolded, incl. propellers)
788*551*255mm (unfolded, excl. propellers)
453*262*245mm (folded, excl. propellers)Diagonal Wheelbase 810mm Max Flight Time (windless) 40mins Max Hovering Time (windless) 38mins Max Horizontal Speed (windless near sea level) 24m/s Max Wind Resistance 15m/s Hovering Accuracy Vertically:
±0.1 m (when vision systems working normally);
±0.3 m (when GNSS working normally);
Horizontally:
±0.15 m (when vision systems working normally);
±0.3 m (when GNSS working normally)IP Rating IP55 Operating Temperature -20℃ to +50℃ GNSS GPS+GLONASS+BeiDou+Galileo DG-L35T Autel Alpha Wide Camera Sensor 1/2 CMOS, Effective pixels: 48M Lens DFOV: 84° Equivalent Focal Length: 24 mm Aperture: f/2.8 Focusing Distance: 1m ~ ∞ ISO Range Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO256000) Autel Alpha Zoom Camera Sensor 1/1.8" CMOS Lens FOV: 66.7-34.6° Focal Length: 34.7~838mm Aperture: f/1.61~f/5.19 Zoom Range Optical Zoom: 1~35 times Digital Zoom: 35~560 times ISO Range Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO320000) Photo Format: 8bit JPG，12bit DNG Resolution: 3840*2160 Video Format: MP4/MOV Max Resolution: 3840*2160 P30 Autel Alpha Thermal Camera (Wide) Sensor Uncooled VOx Microbolometer Lens FOV：42° Focal length: 13mm Aperture: f/1.2 Resolution 640*512 P25 Temperature Measurement Range -20℃ to +150℃，0℃ to +550℃ Temperature Measurement Accuracy 3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃) Autel Alpha Thermal Camera (Tele) Sensor Uncooled VOx Microbolometer Lens FOV：12.3° Focal length: 45mm Aperture: f/1.2 Zoom Range Wide Digital Zoom: 1~3.5 times Tele Digital Zoom: 3.5~56 times Resolution 640*512 P25 Temperature Measurement Range -20℃ to +150℃，0℃ to +550℃ Temperature Measurement Accuracy 3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃) Autel Alpha Laser Rangefinder Measuring Range 10-2000m Measurement Accuracy ± (1m + D×0.15%) *D is the distance to a vertical surface -

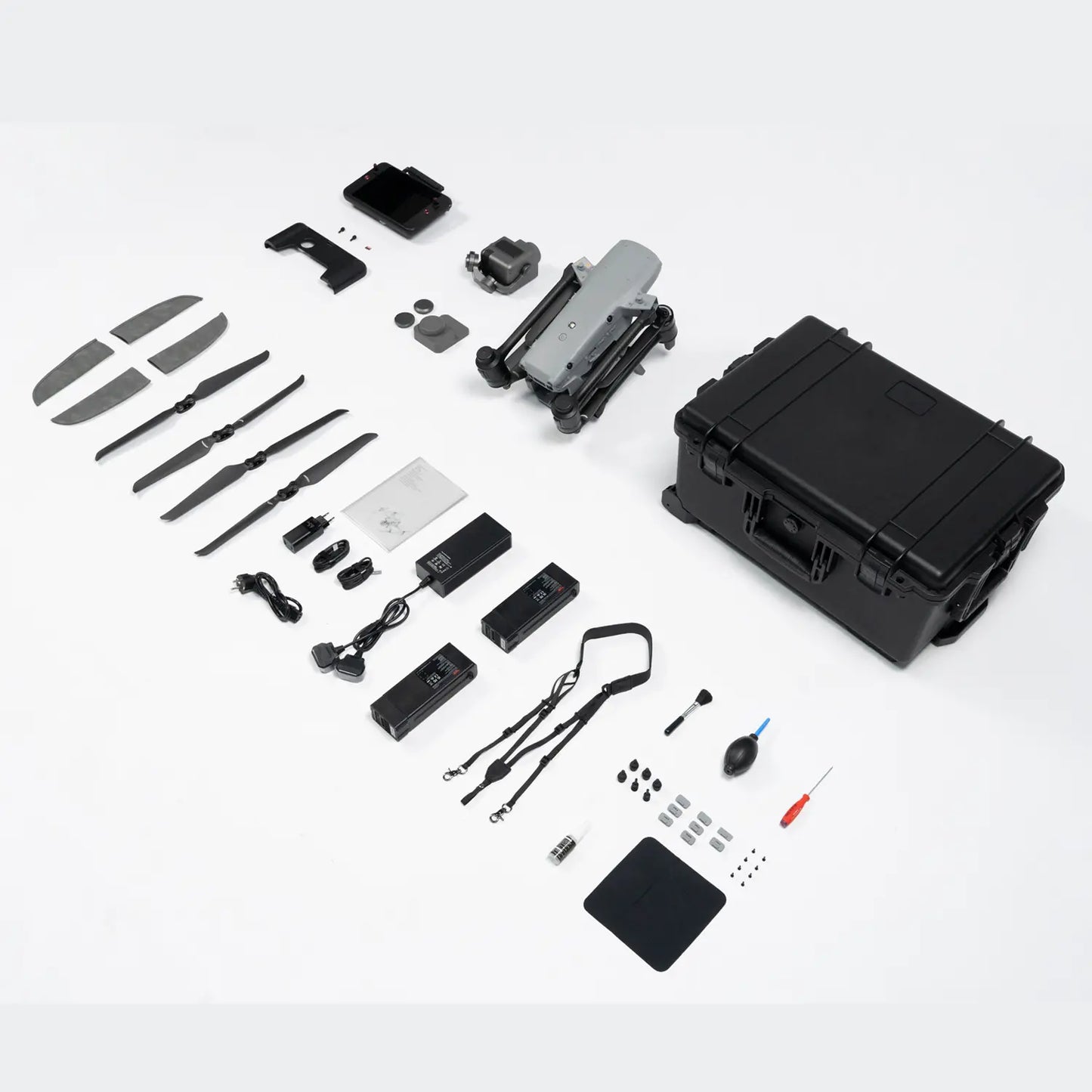

Autel Robotics Alpha Package list
