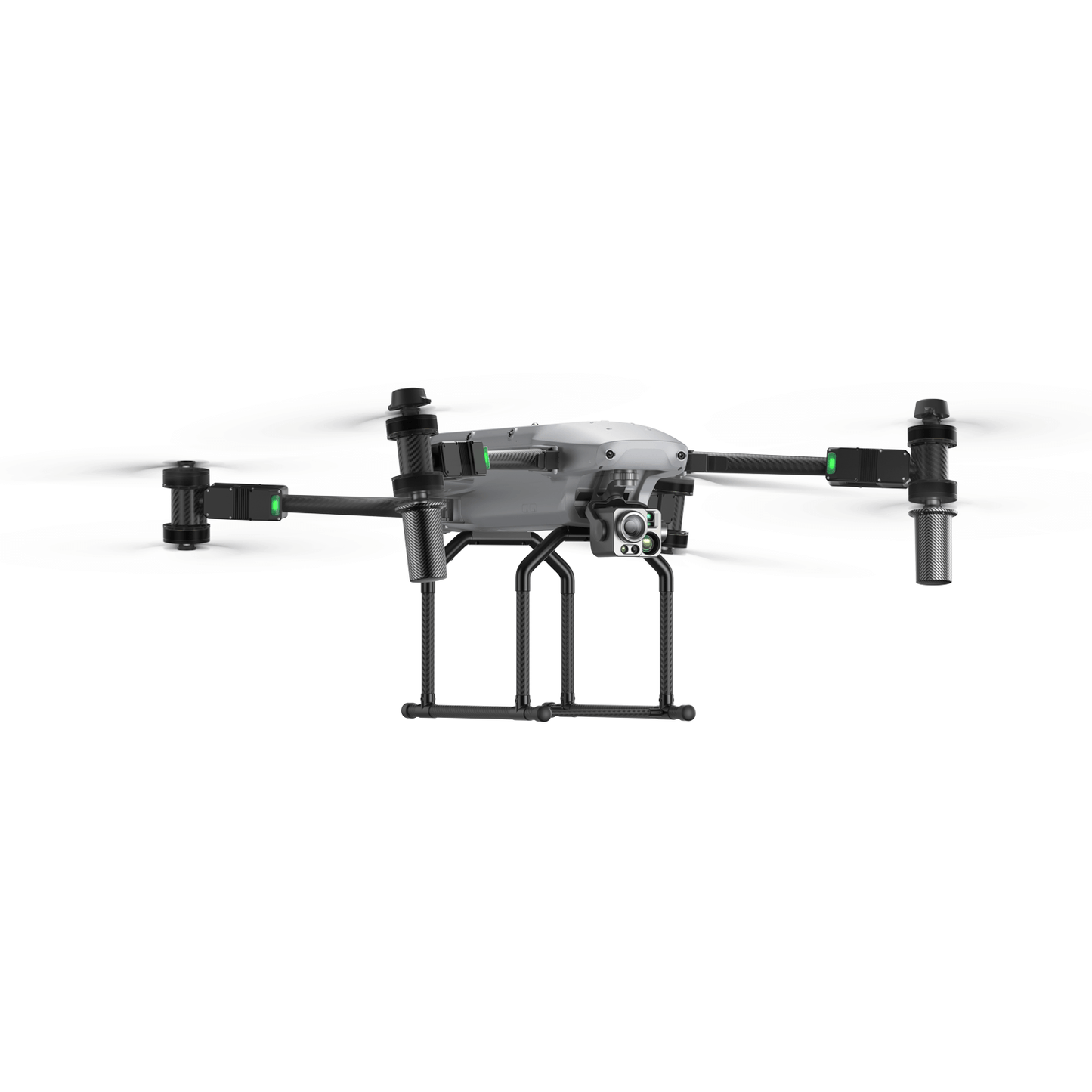

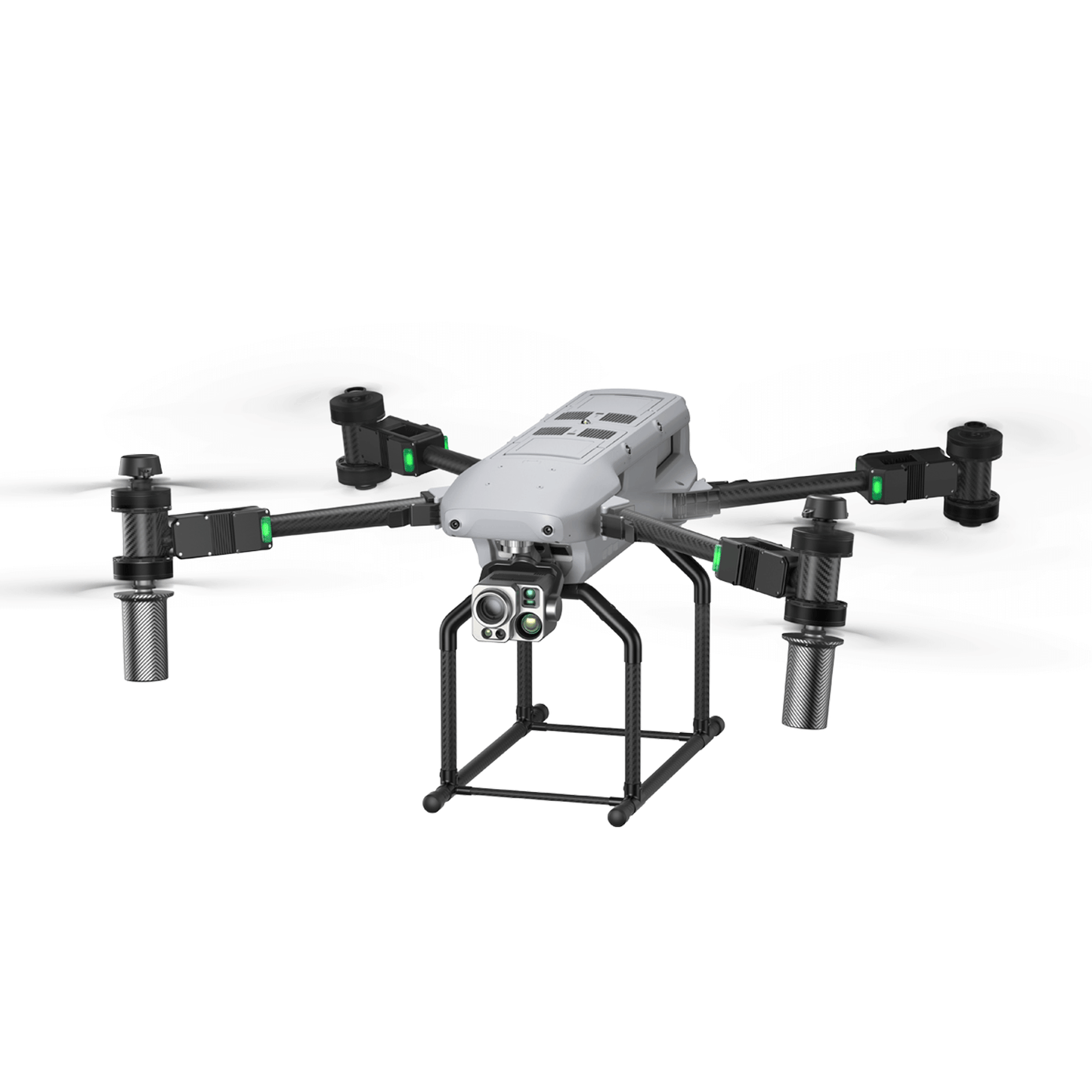

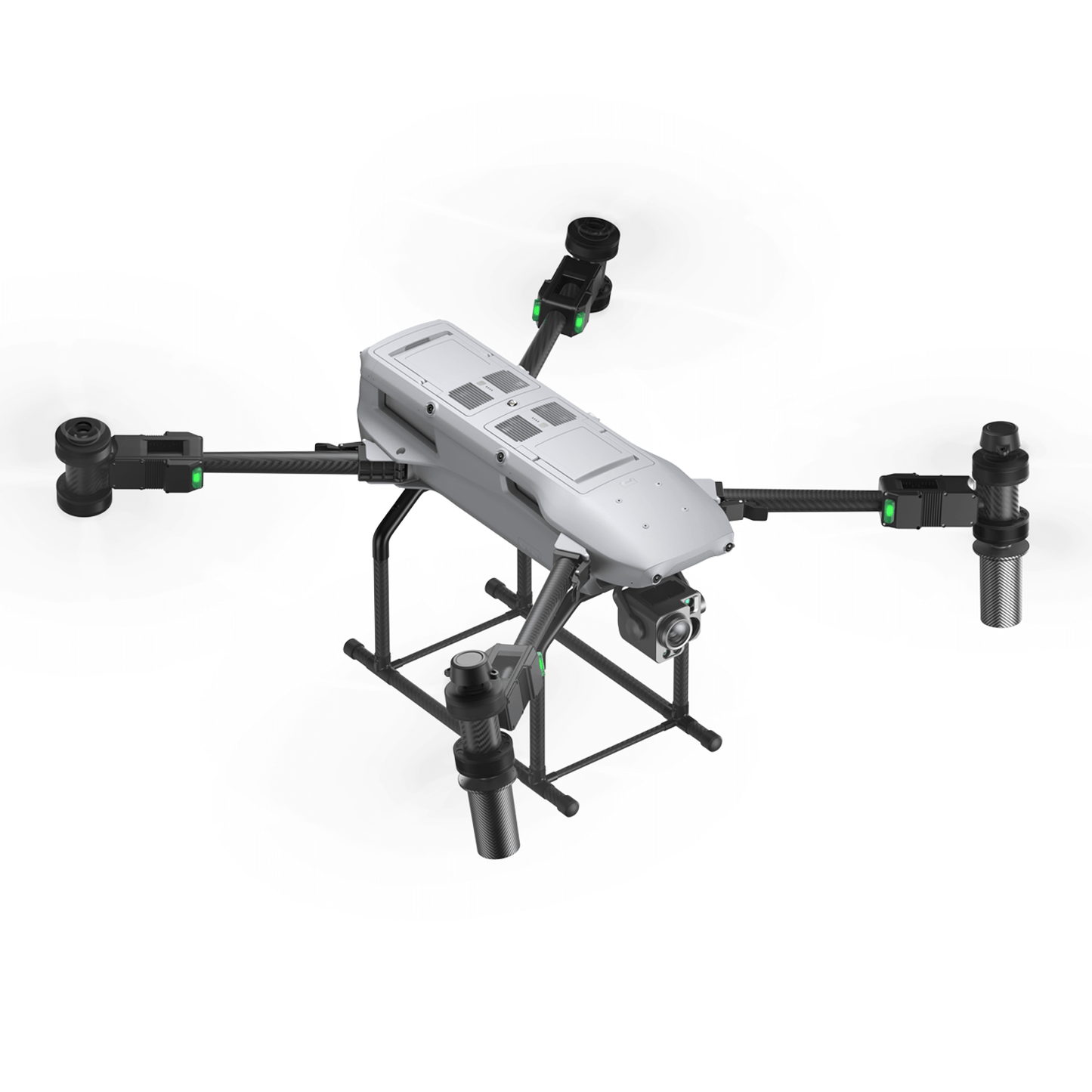

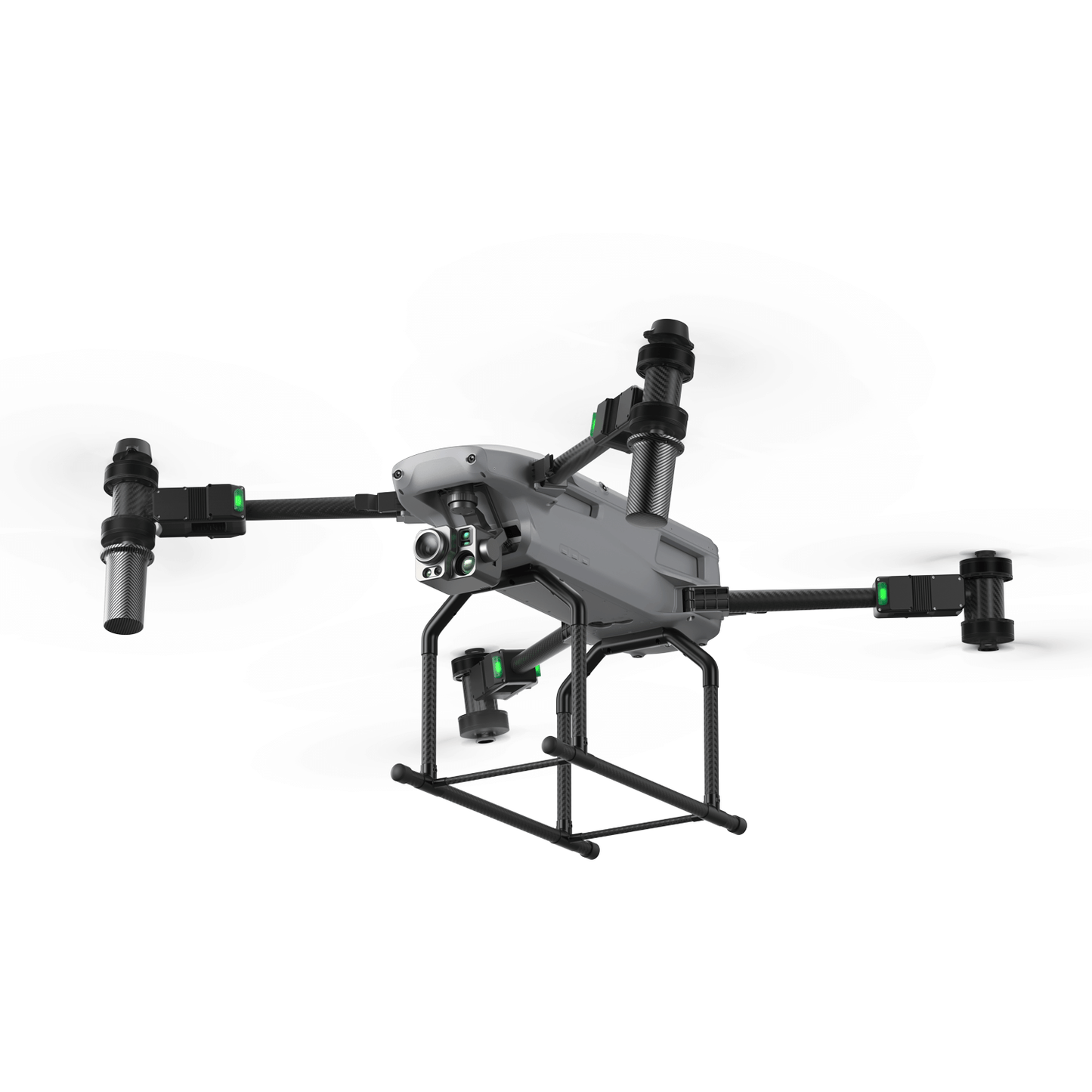

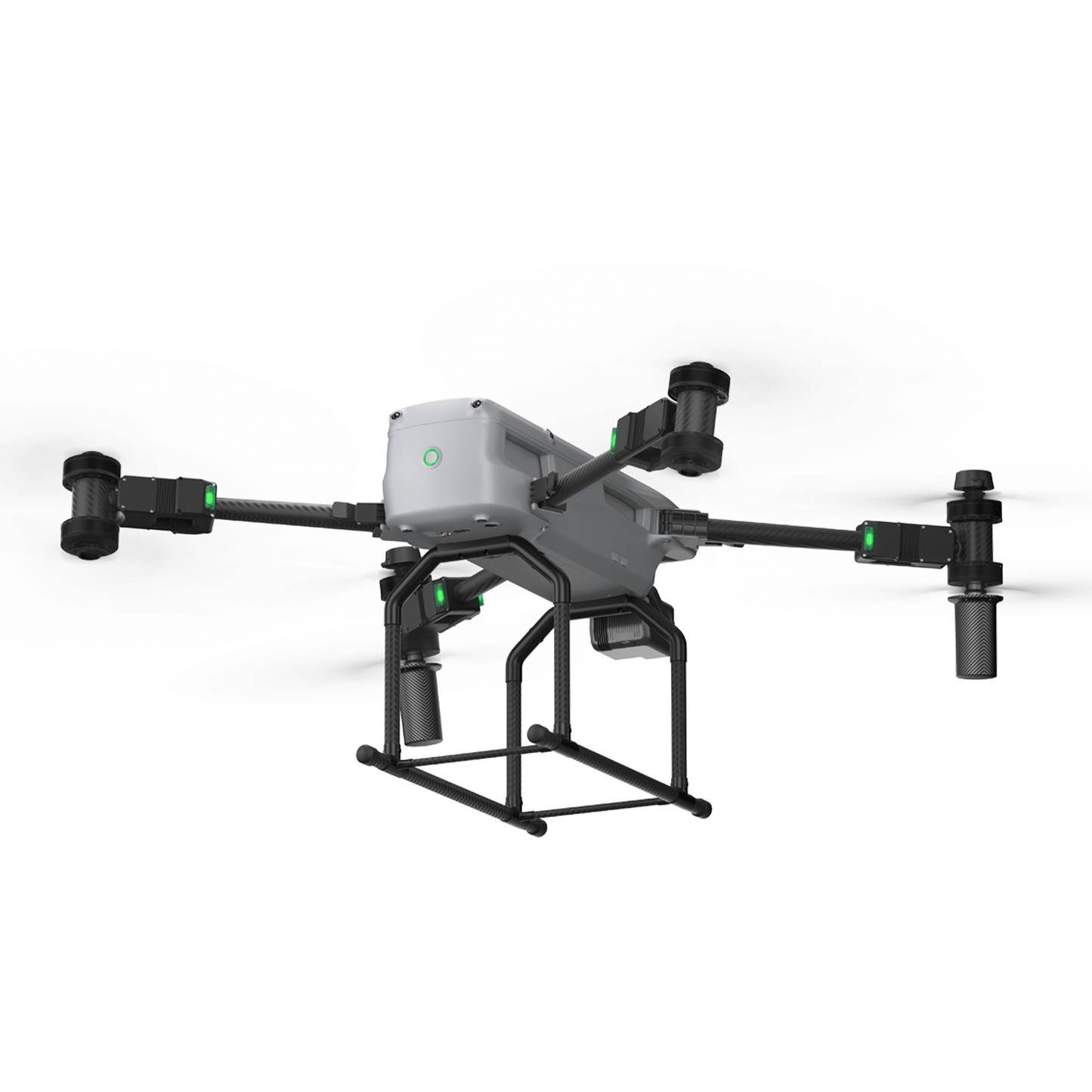

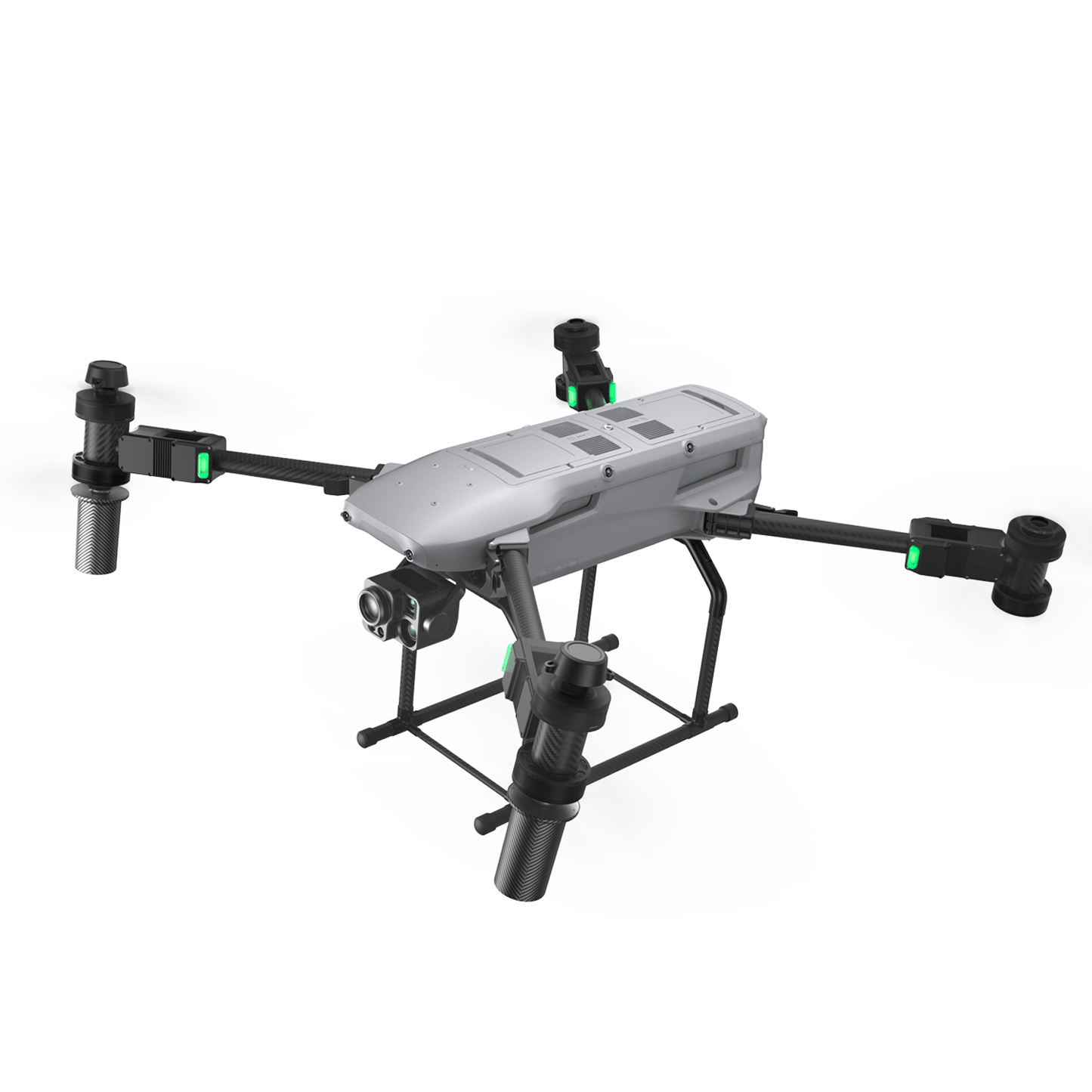

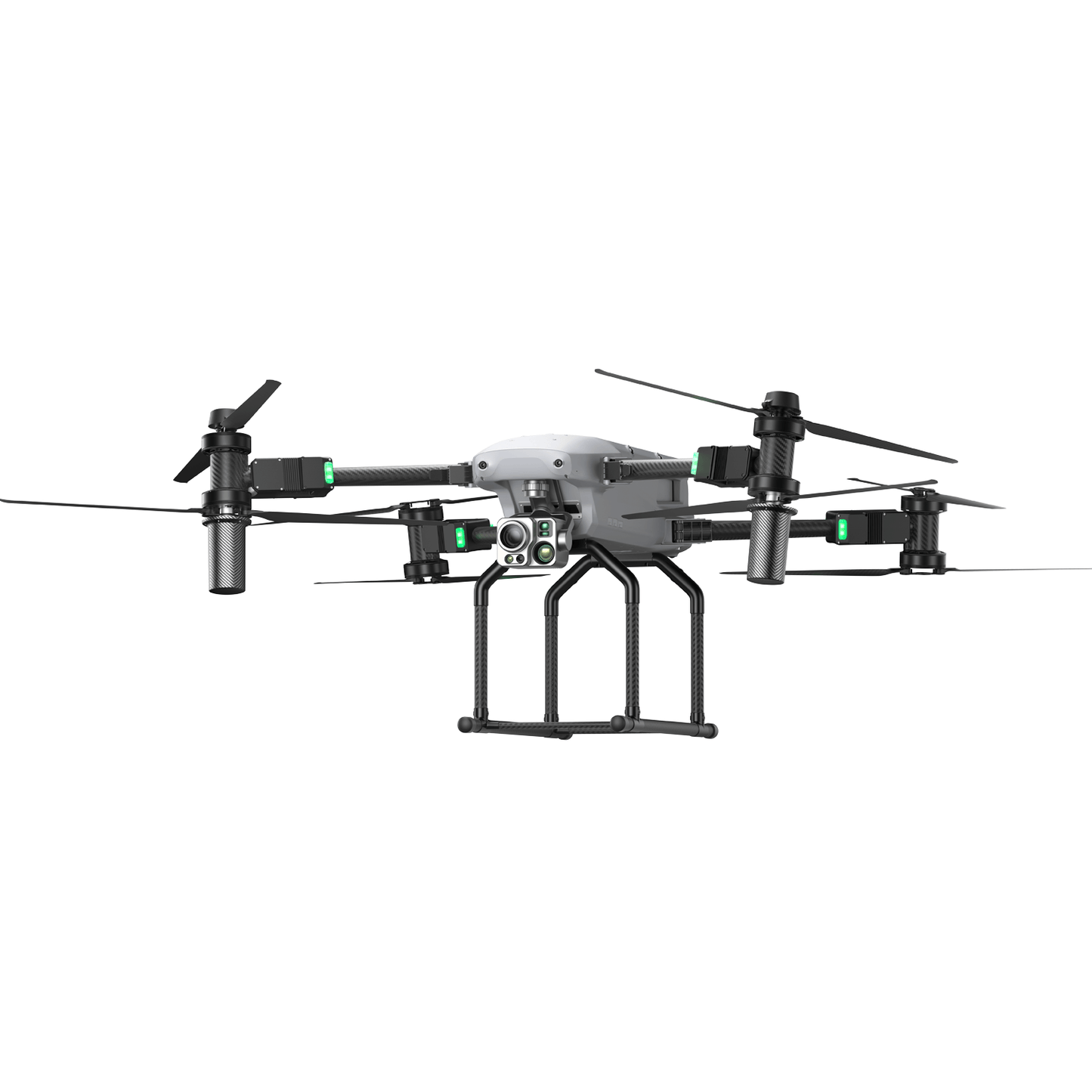

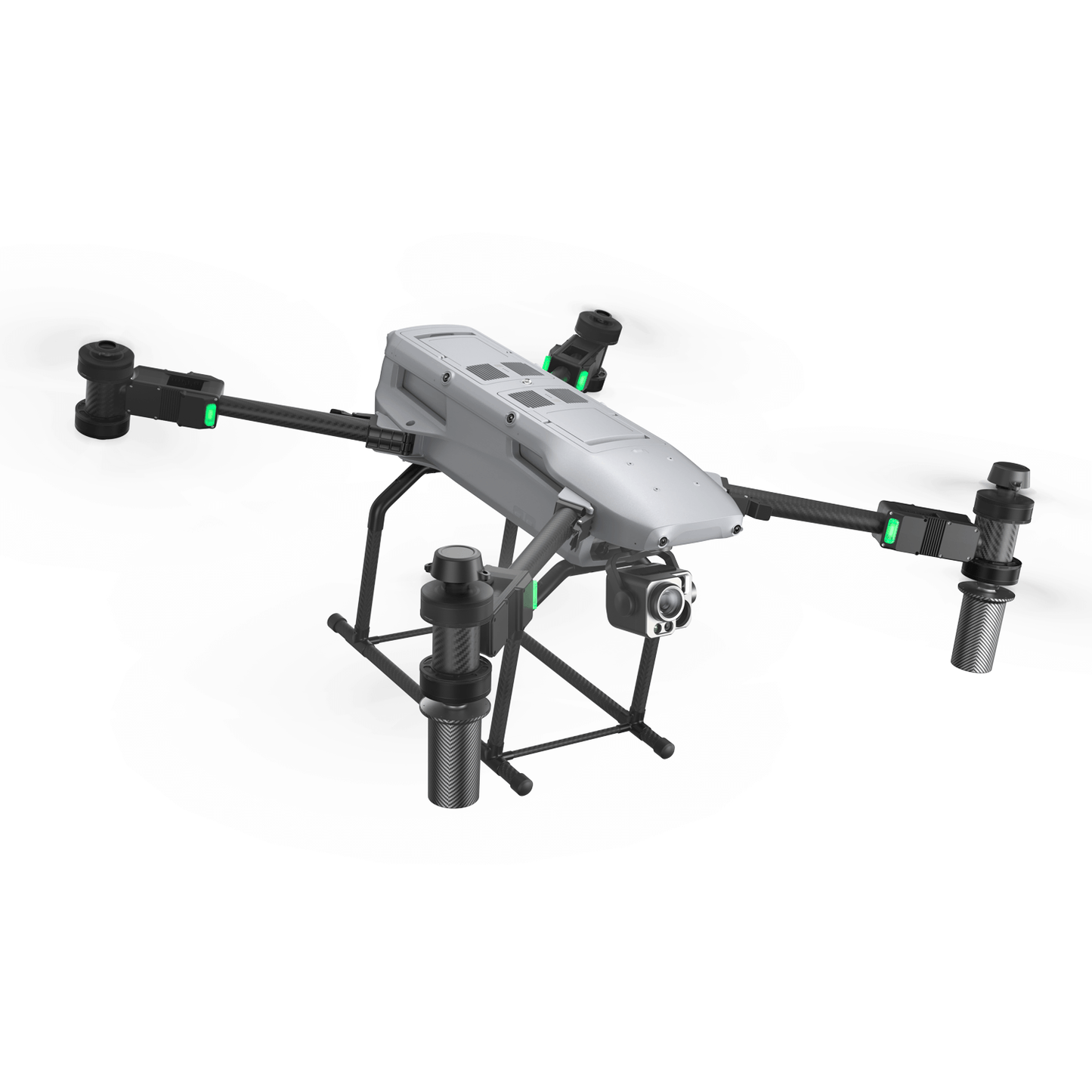

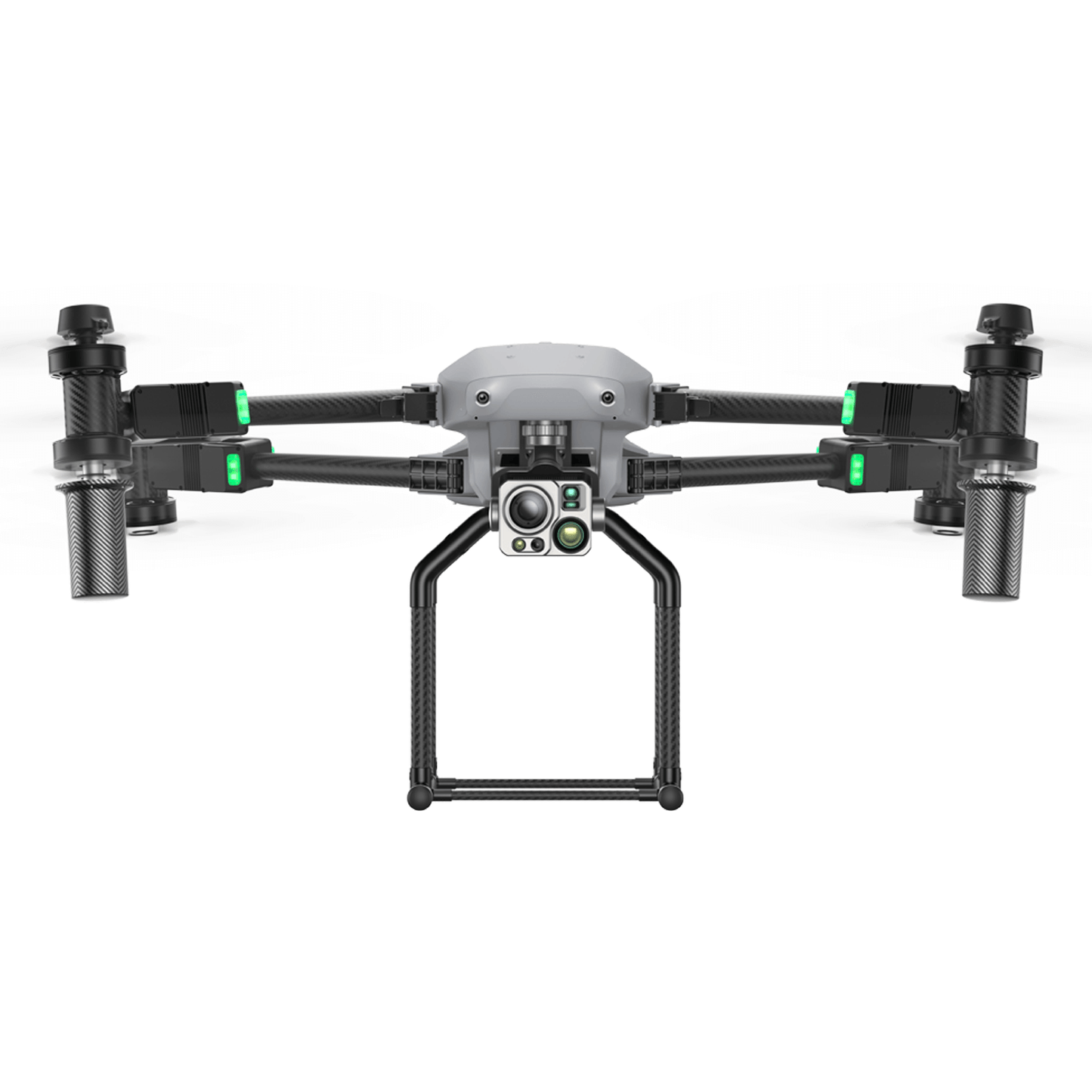

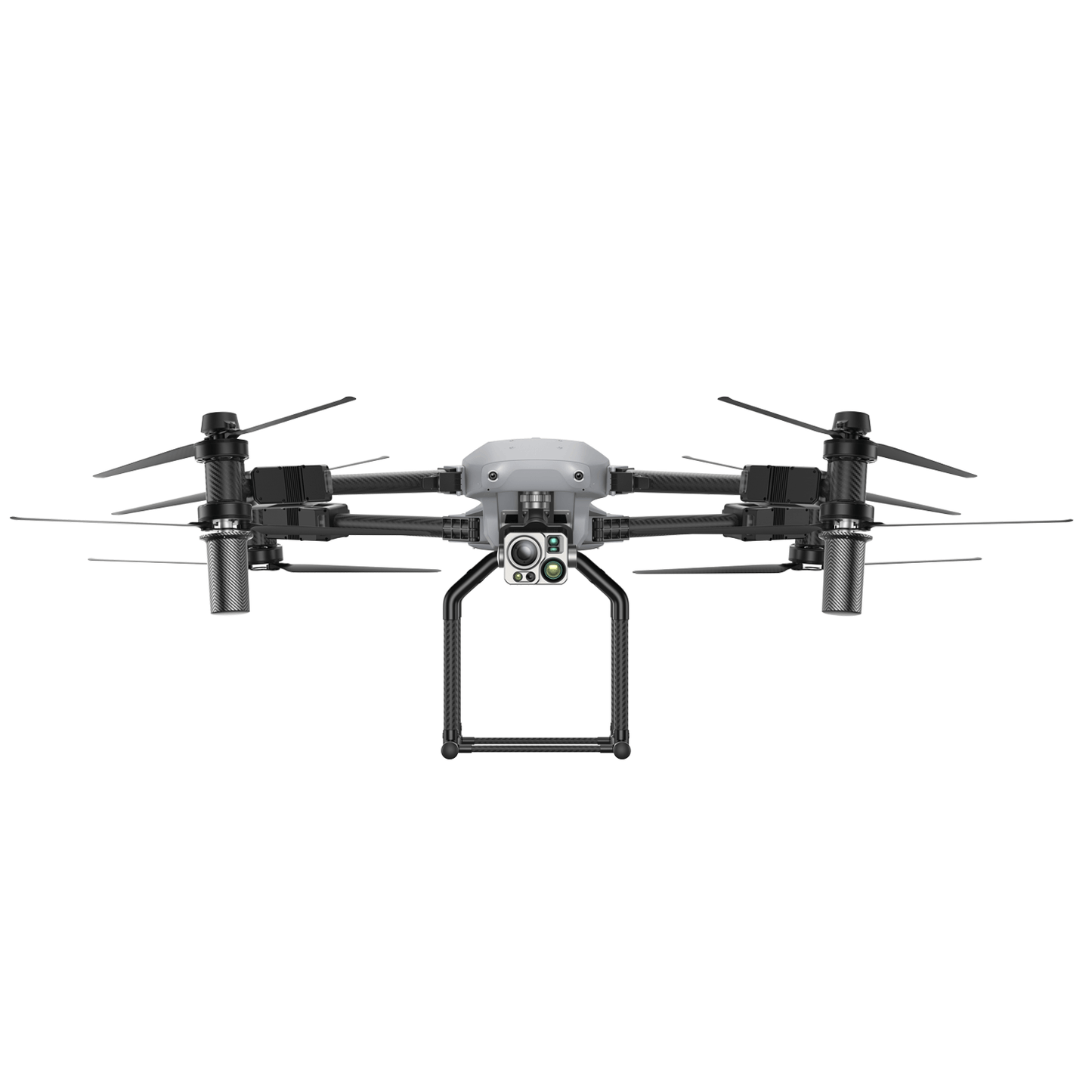

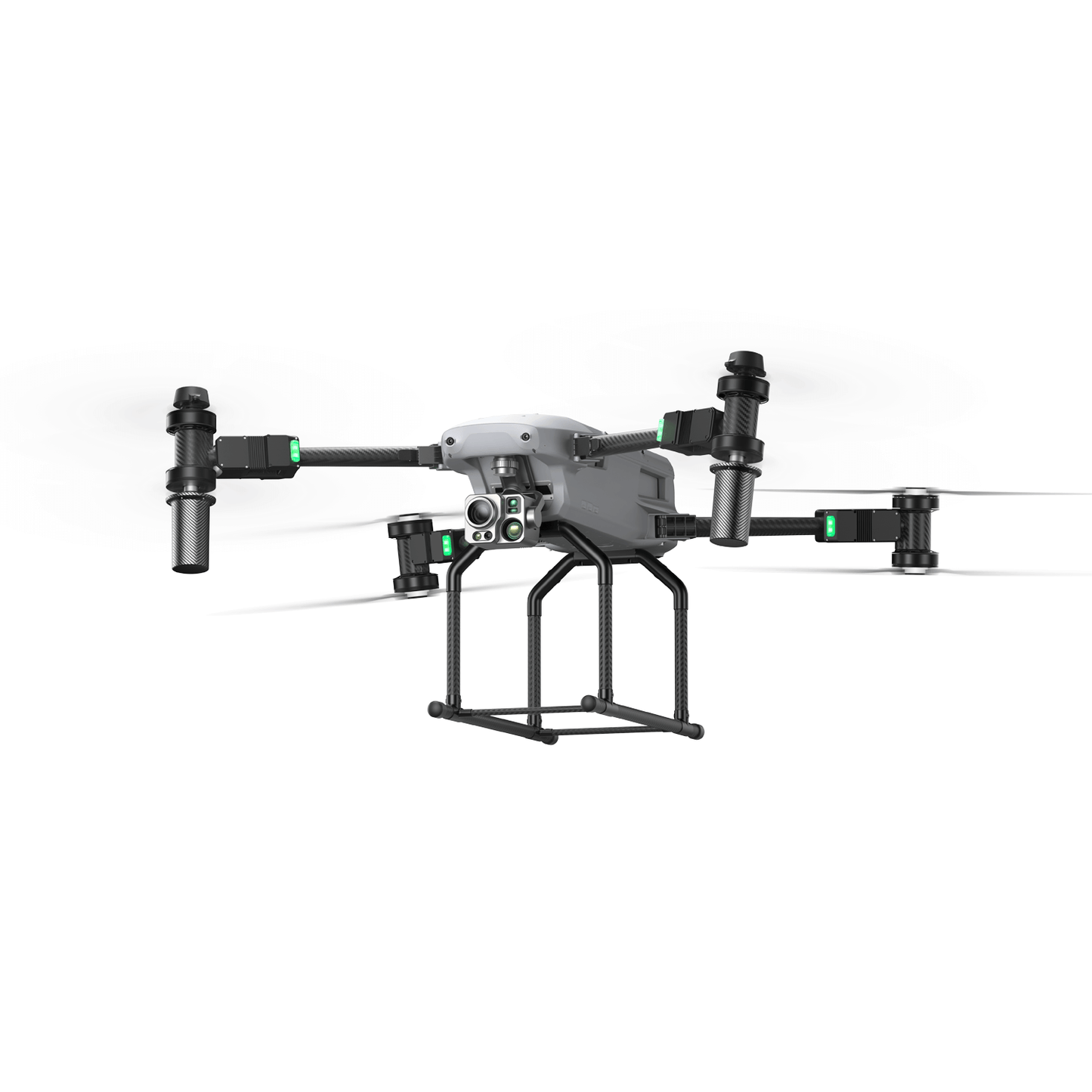

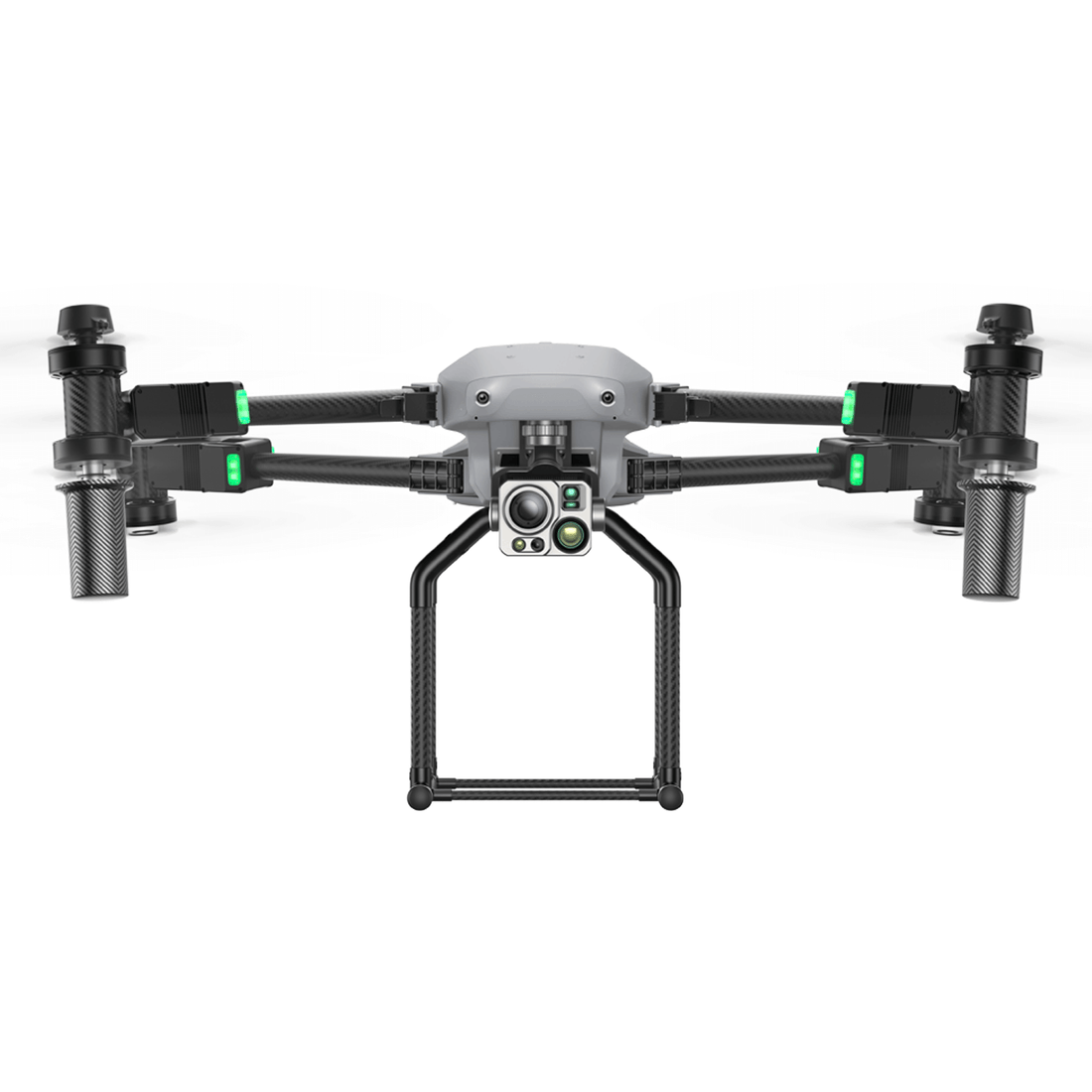

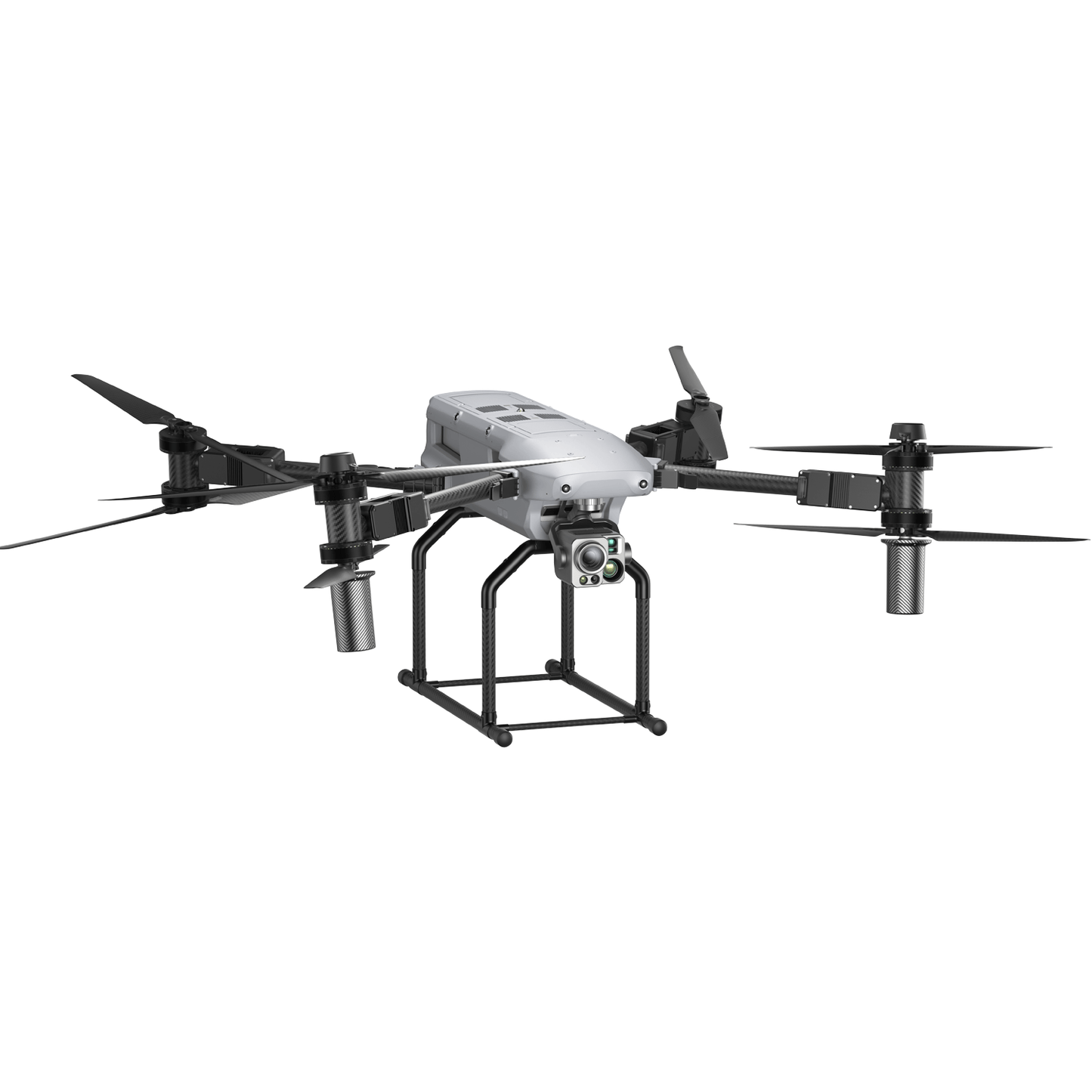

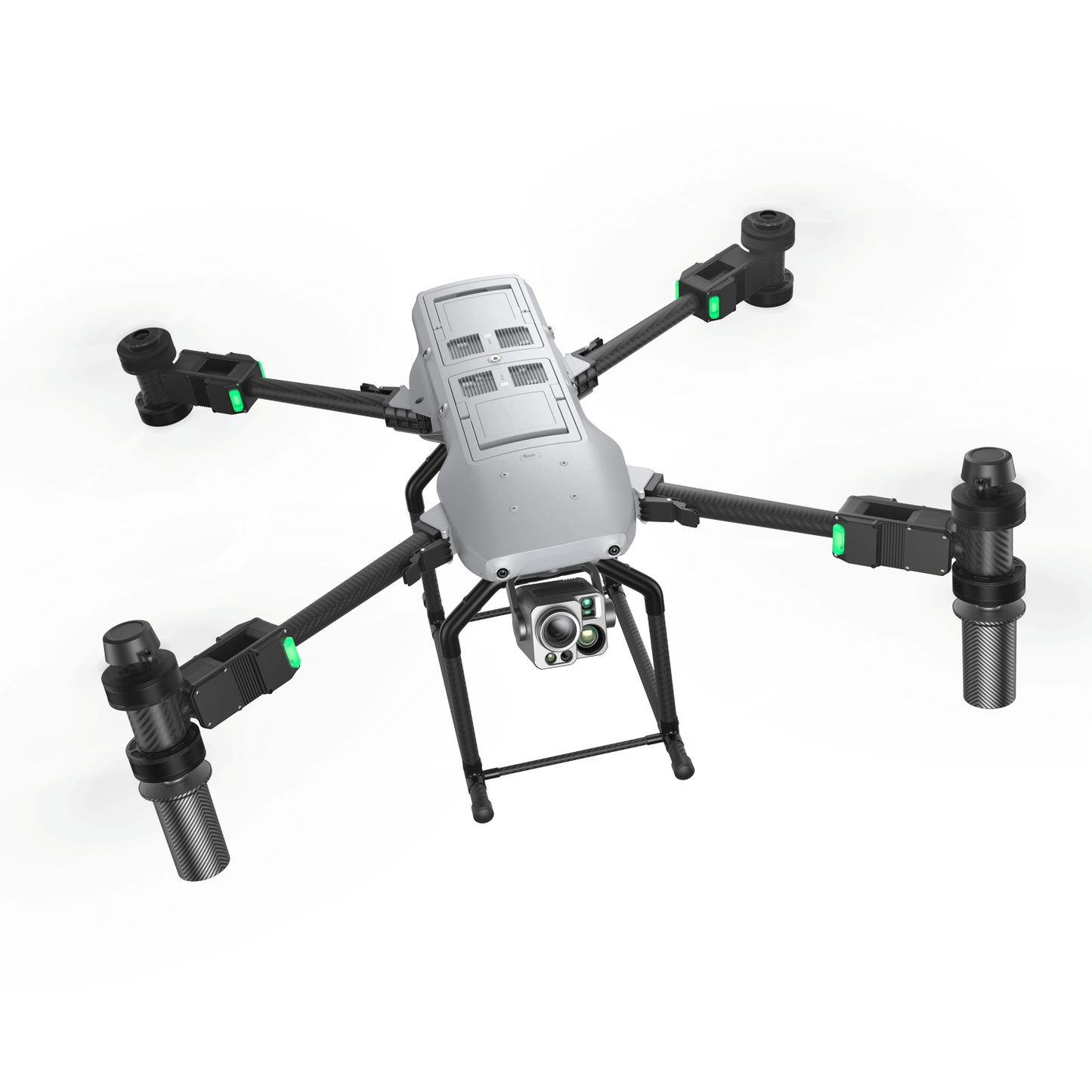

Autel Titan

Autel Titan is the first four-rotor,eight-propeller heavy-lift multi-rotor drone boasts formidable anti-interference and payload capabilities,allowing safe and efficient transportation of up to 10 kilograms in complex environments.With a dual-battery redun- dancy desig. it offers up to 60 minutes of flight time with a standard 4-kilogrampayload.Its IP55 protection rating equips it to handle adverse environmental conditions and unexpected situations effectively.The integration of a binocular vision system and millimeter-wave radar enhances environmental perception and nightime obstade avoidance. Coupled with a dual thermal imaging gimbal camera, it covers both long and short-range operations, making it suitable for day and night, all-weather use. lt easily adapts to multiple scenarios,providing efficient support for transportation and emergency response in various fields.
- RF
  Anti-jamming
- GNSS Anti-jamming &
  Anti-spoofing
- Non-GNSS Visual
  Positioning
- A-Mesh
  Network
- Maximum Payload:
  10 kg
- Max. Flight Time:
  60 minutes
- Max. Range:
  50 km
- Hot-swappable
  Battery
- 720° Omnidirectional
  Obstacle Avoidance
- Supports Multiple
  Payloads
- RF
  Anti-jamming
- GNSS Anti-jamming &
  Anti-spoofing
- Non-GNSS Visual
  Positioning
- A-Mesh
  Network
- Maximum Payload:
  10 kg
- Max. Flight Time:
  60 minutes
- Max. Range:
  50 km
- Hot-swappable
  Battery
- 720° Omnidirectional
  Obstacle Avoidance
- Supports Multiple
  Payloads
- - Exceptional Anti-Interference Capability

    Utilizes adaptive frequency-hopping technolo- gy across multiple frequency bands to resist radio frequency interference, and includes GNSS visual navigation capability and a variety of breakthrough anti-drone systems.

    *When flying at a distance of <6 kilometers and an altitude of >300 meters, it can suppress interference from 200W jamming guns: when flying at a distance of <12 kilometers and an altitude of >300 meters, it can suppress interference from 500W vehicle-mounted jamming devices.
- - A-Mesh Networking

    With integrated A-Mesh networking technolo- gy,the drone can establish networks between drones and controllers,supporting various working modes such as "single-controller multiple drones" and "master-slave dual control." Even in scenarios with long distances and obstacles, such as mountains, buildings, or areas without network,it can achieve multi-device networking, enabling drone-to-drone autonomous communica- tion,connection,and collaboration.

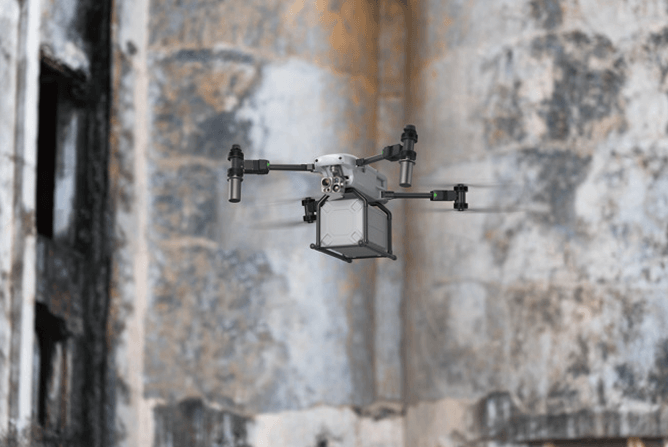

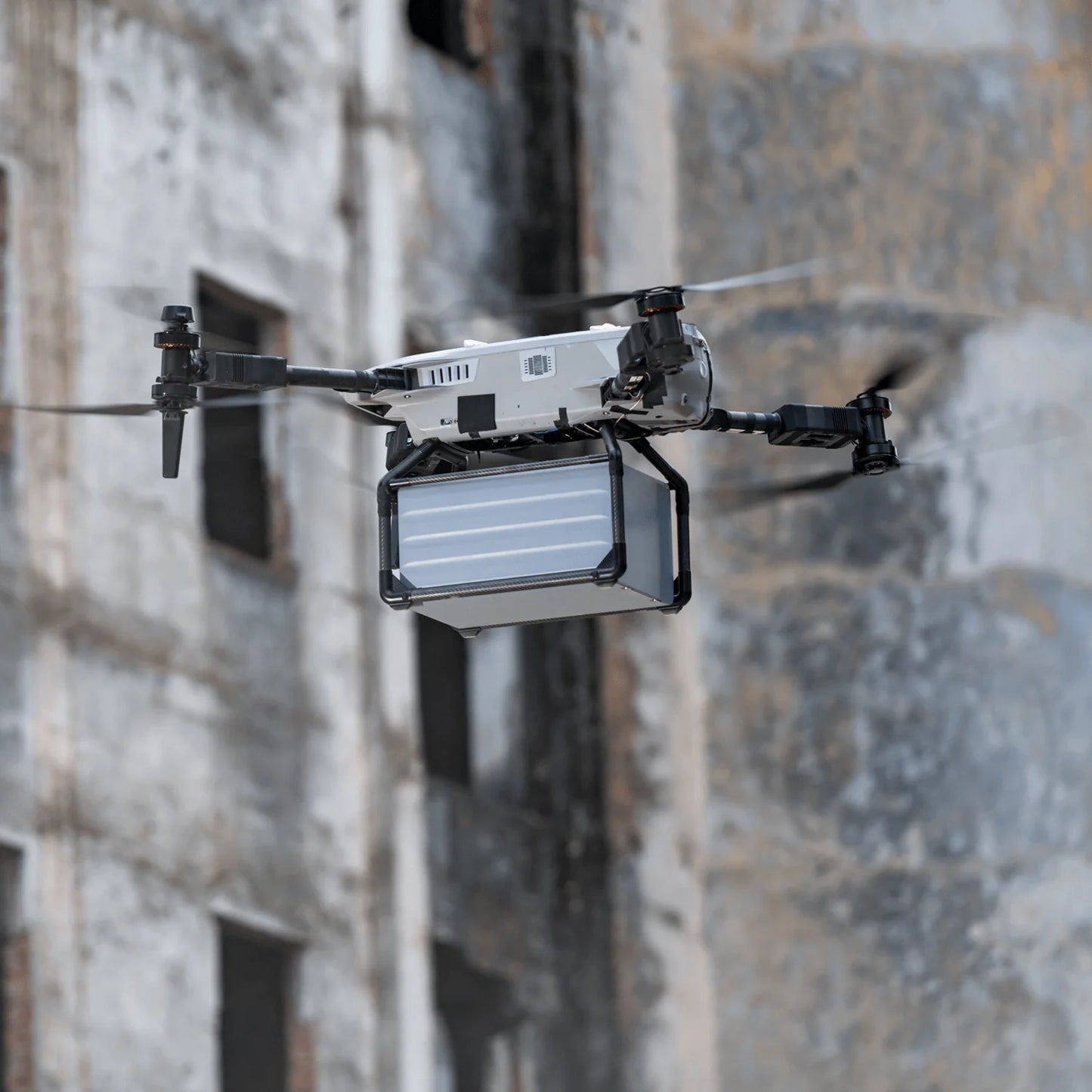

- - Extended Endurance,Superb Payload Capacity

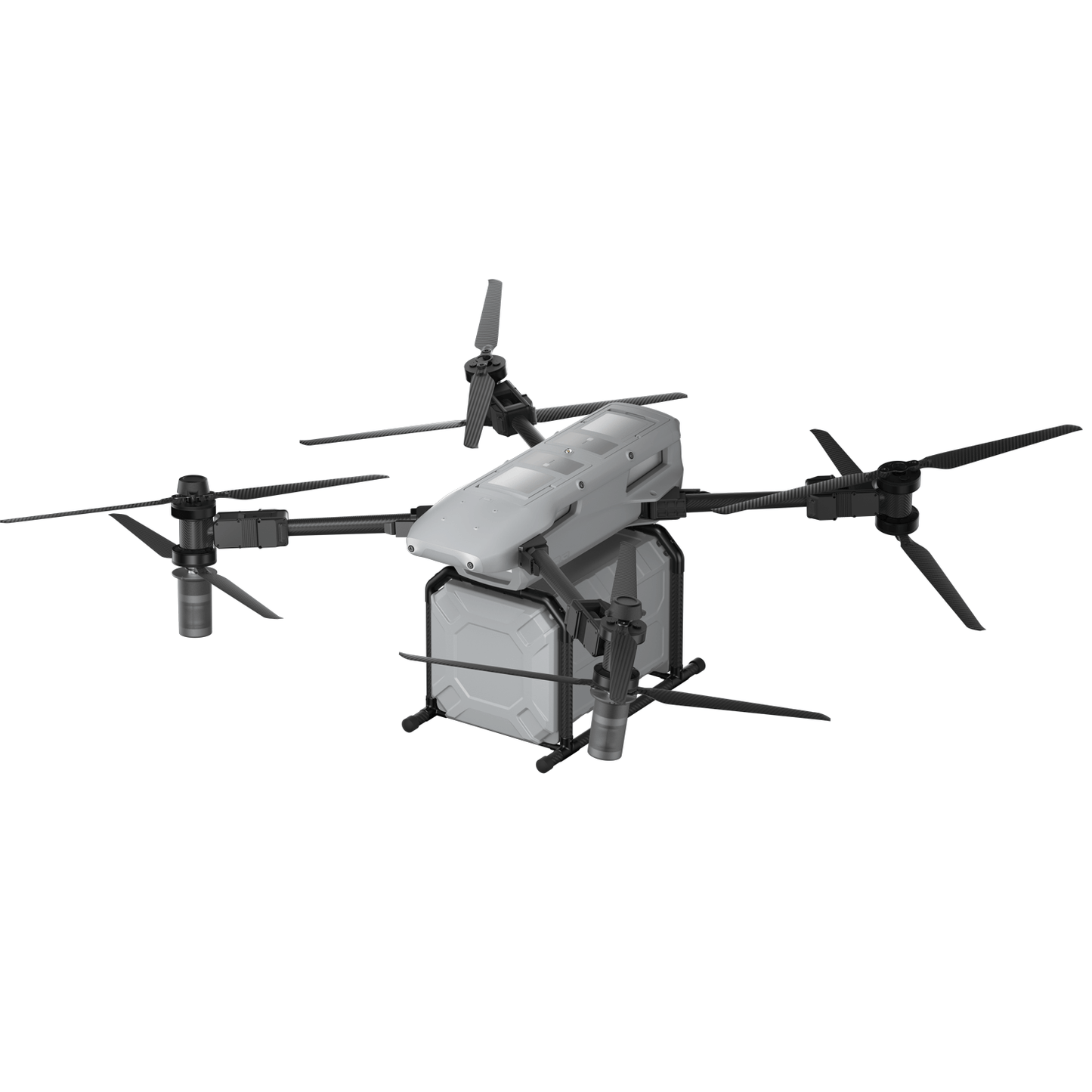

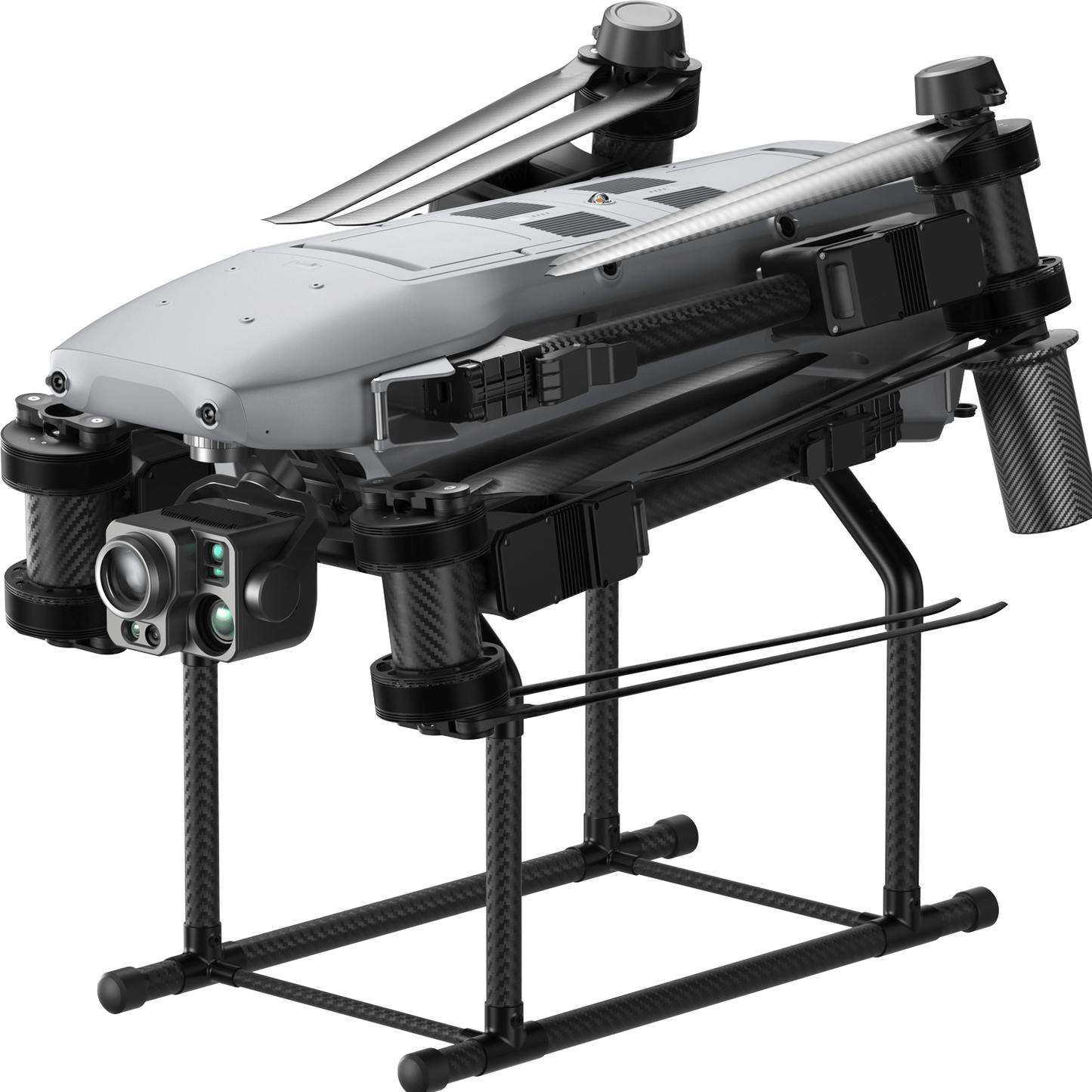

    The four-rotor, eight-propeller foldable design is lightweight yet sturdy and reliable. This design enhances lifting capabilities,with a dual-battery redundancy design, it can achieve up to 60 minutes of maximum flight time with a standard payload and cover distances of up to 50 km, effectively accommodating payloads to 10 kg to meet diverse transportation needs.
- - Omnidirectional Obstacle Avoidance,All-Weather Operations

    By fusing multiple sensors, indluding a binocular fisheye vision system and millime- ter-wave radar, it provides 720° all-around perception and obstacle avoidance capabili- ties. It also supports nighttime obstacle avoidance,ensuring safeflights.
- - Exceptional Anti-Interference Capability

    Utilizes adaptive frequency-hopping technolo- gy across multiple frequency bands to resist radio frequency interference, and includes GNSS visual navigation capability and a variety of breakthrough anti-drone systems.

    *When flying at a distance of <6 kilometers and an altitude of >300 meters, it can suppress interference from 200W jamming guns: when flying at a distance of <12 kilometers and an altitude of >300 meters, it can suppress interference from 500W vehicle-mounted jamming devices.
- - A-Mesh Networking

    With integrated A-Mesh networking technolo- gy,the drone can establish networks between drones and controllers,supporting various working modes such as "single-controller multiple drones" and "master-slave dual control." Even in scenarios with long distances and obstacles, such as mountains, buildings, or areas without network,it can achieve multi-device networking, enabling drone-to-drone autonomous communica- tion,connection,and collaboration.
- - Extended Endurance,Superb Payload Capacity

    The four-rotor, eight-propeller foldable design is lightweight yet sturdy and reliable. This design enhances lifting capabilities,with a dual-battery redundancy design, it can achieve up to 60 minutes of maximum flight time with a standard payload and cover distances of up to 50 km, effectively accommodating payloads to 10 kg to meet diverse transportation needs.
- - Omnidirectional Obstacle Avoidance,All-Weather Operations

    By fusing multiple sensors, indluding a binocular fisheye vision system and millime- ter-wave radar, it provides 720° all-around perception and obstacle avoidance capabili- ties. It also supports nighttime obstacle avoidance,ensuring safeflights.
Accessory

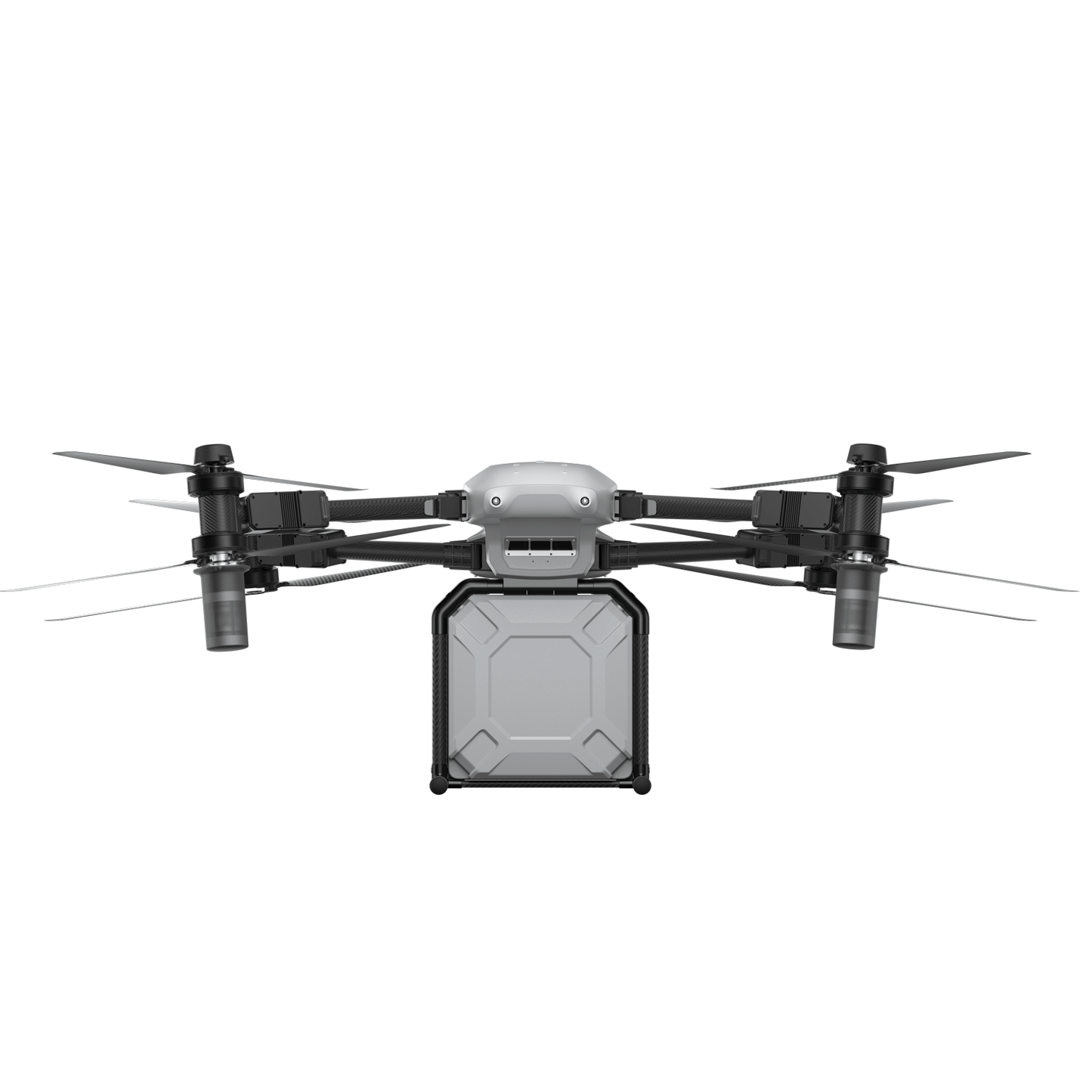

- Transportation Case

  Efficiently Empowering Long-Distance Transportation Operations

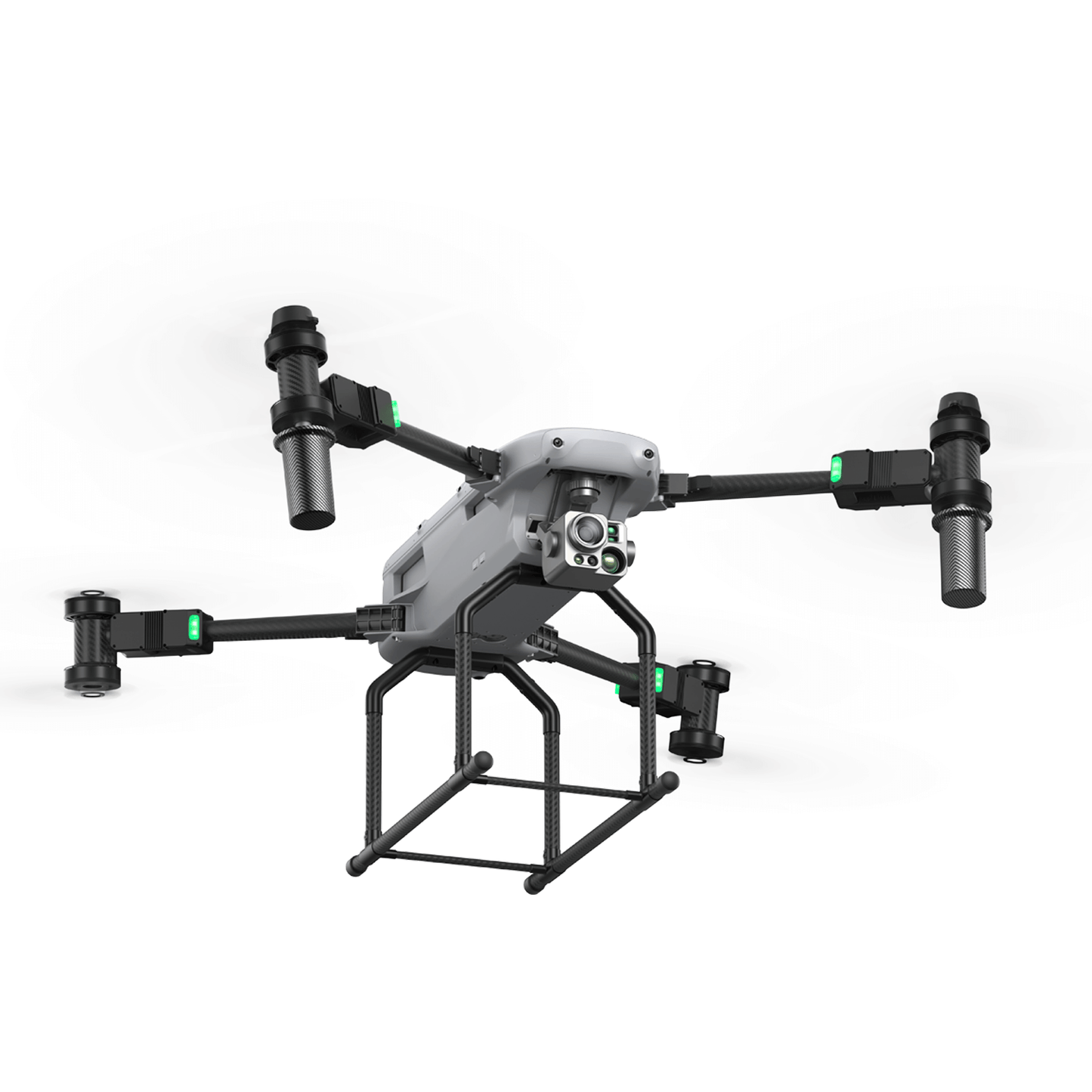

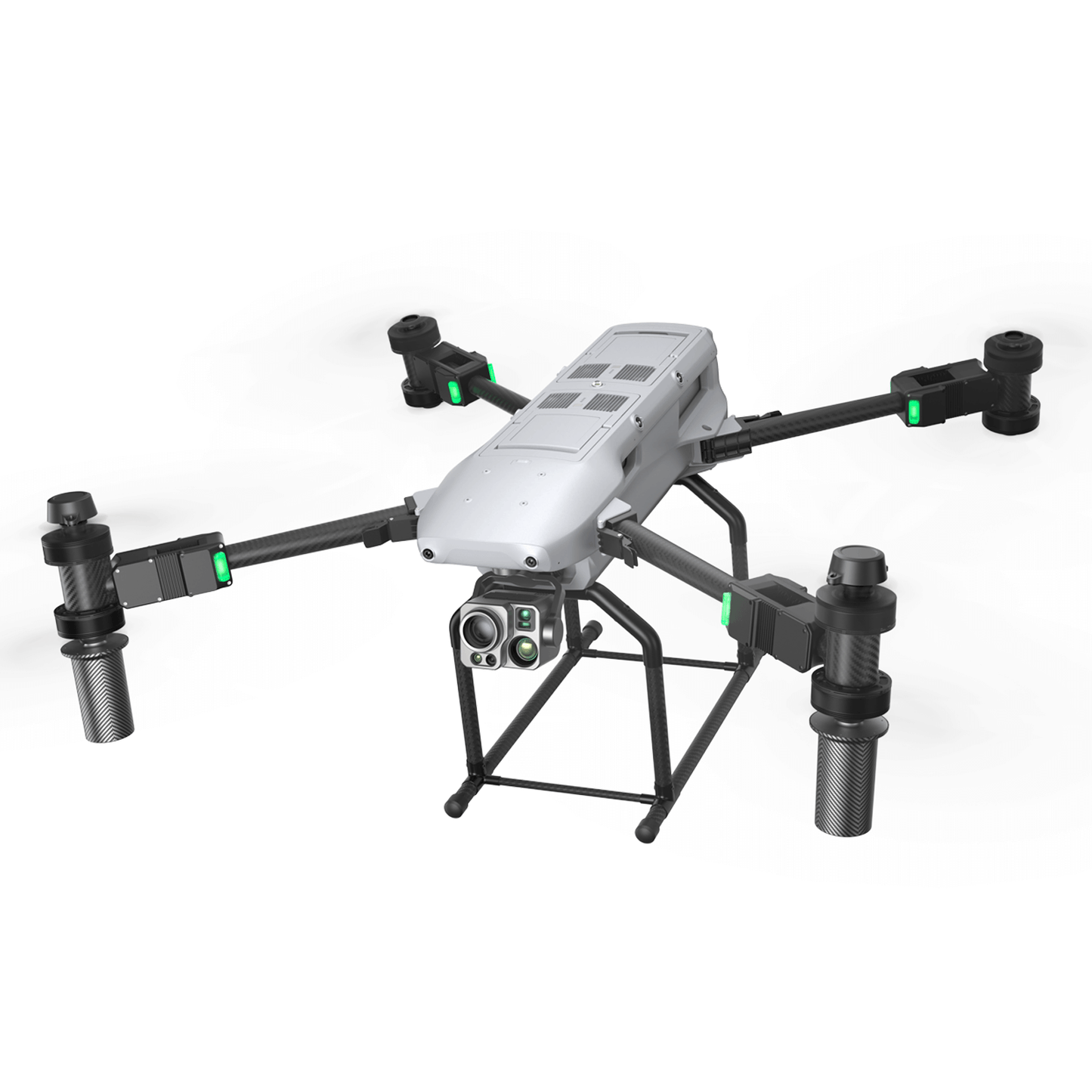

- DG-L35T Gimbal Camera

  Providing support for long-distance and nighttime reconnaissance operations
- Ground Station Pro

  Extending the transmission range Transportation by 90%
- Transportation Case

  Efficiently Empowering Long-Distance Transportation Operations
- DG-L35T Gimbal Camera

  Providing support for long-distance and nighttime reconnaissance operations
- Ground Station Pro

  Extending the transmission range Transportation by 90%
Scenarios

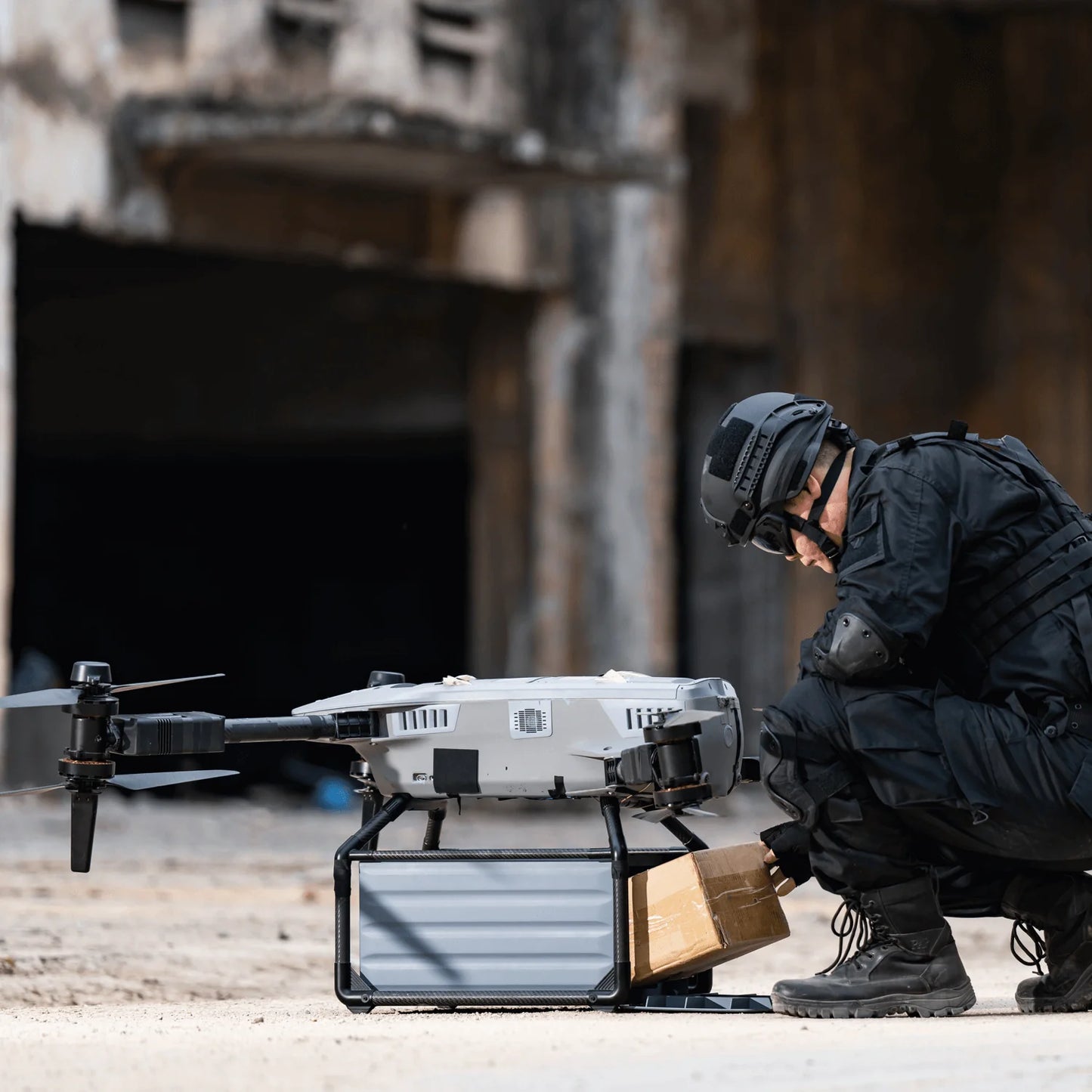

- Logistics Transportation
- Emergency Rescue
- Public Safety
- Public Safety
- Search & Rescue
- Inspection

Aircraft
Weight	23kg
Max. Payload	10kg
Dimensions	18791866584mm (incl. propellers and mount.) 11411120563mm (excl. propellers) 752328526mm (folded, excl. mount)
Diagonal Wheelbase	1440mm
Max Flight Time (windless)	65mins (without payload)
Max Horizontal Speed (windless near sea level)	25m/s
Max Wind Resistance	Level 8
Hovering Accuracy	Vertically: ±0.1 m (when vision systems working normally); ±0.3 m (when GNSS working normally); Horizontally: ±0.15 m (when vision systems working normally); ±0.3 m (when GNSS working normally)
IP Rating	IP55
Operating Temperature	-20℃ to +50℃
GNSS	GPS+GLONASS+BeiDou+Galileo
Visual Sensing Systems	5-way binocular vision OA, detection range >50m
Radar	6-way millimeter-wave radar, supporting nighttime OA, detecting small metal objects at a distance >60m, buildings at a distance >100m
