Autel Smart Controller SE and Autel Smart Controller V3 are the remote control options for the new generation of Autel EVO II V3 series drones. Drone pilots should fully understand their controllers to ensure a perfect flight every time.
Applicability of Autel Smart Remote Control
Autel EVO II V3 series drones include: Autel EVO II Pro V3, Autel EVO II 640T V3, Autel EVO II Pro RTK V3, Autel EVO II 640T RTK V3, Autel EVO II Pro Enterprise V3, Autel EVO II 640T Enterprise V3.
Autel smart remote is specially prepared for EVO II V3 series drones. As a fixed combination of drones, only Autel EVO II Pro V3 is combined with Autel Smart Controller SE, and other V3 drones are combined with Autel Smart Controller V3. Of course, Autel Smart Controller V3 can also control Autel EVO II Pro V3.
By the way, Autel smart remote control V3 is a combination of the latest Autel MAX 4T in 2023.

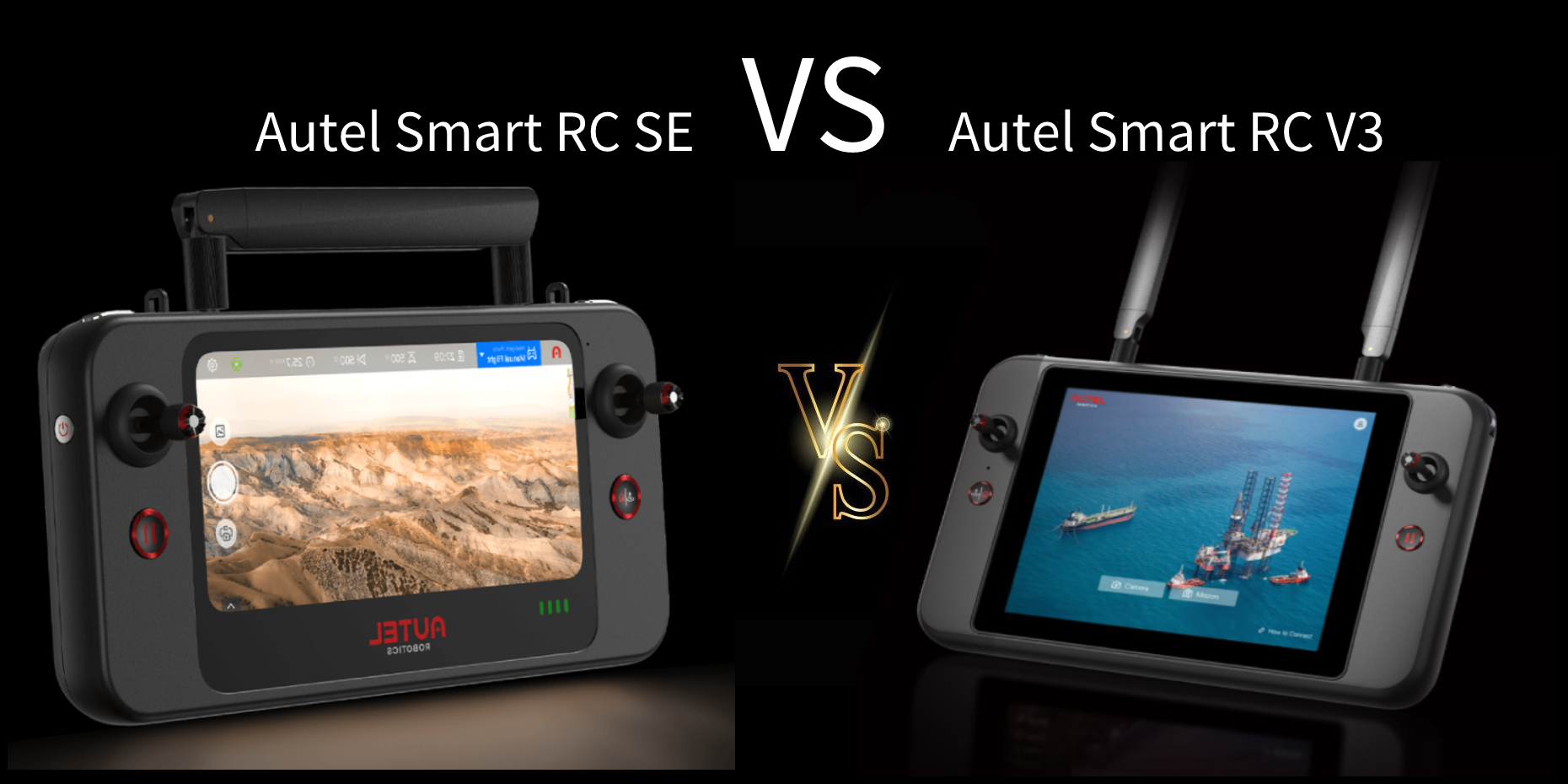

Autel Smart Controller SE vs Autel Smart Controller : Specifications
Autel Smart Controller |
Autel Smart Controller SE
|
Autel Smart Controller V3
|
| Compatible Autel Drones |
EVO II V3 Series |
EVO II V3 Series, EVO MAX 4T |
| Built-in screen | Yes | Yes |
| Screen Size (inches) | 6.4"Â | 7.9" |
| Screen Brightness and Resolution |
800nit 2340×1080 resolution |
2000nit 2048×1536 resolution |
| Controller Weight | 617 g | 1150 g |
| Dimensions (Width x Height x Depth) | 226.3×137.7×31.5mm (antennas folded, controllers not mounted); 226.3×215.4×31.5mm (antennas unfolded, controllers mounted) |
303×190×87mm (without control sticks); 303×273×87mm (with control sticks) |
| Transmission Range (CE) | 15km | 15km |
| Operation Frequency |
|
|
| Frame Rate | 60fps | 60fps |
| Video Image Transmission Version | Autel SkyLink 2.0 | Autel SkyLink 2.0, Autel SkyLink 3.0 |
| Operation Time | ~2 hours (Max. Brightness) ~3 hours (50% Brightness) |
~3 hours (Max. Brightness) |
| Operating Temperature | -10°C to 40°C | -10°C to 40°C |
| Storage Capacity | ROM 128GB | ROM 128GB + expandable storage via micro-SD card |
| GNSS |
GPS/GLONASS/Galileo/BeiDou/NavIC/QZSS |
GPS/GLONASS/Galileo/BeiDou/NavIC/QZSS |
| Weatherproof | IP43 | IP43 |
| Available Separately | Yes | Yes |

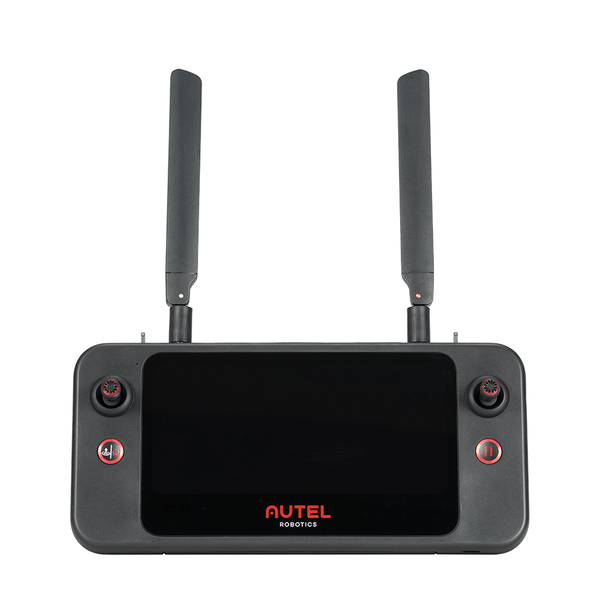

![Autel Robotics Smart Controller V3 [Only Supported Aircrafts EVO II V3 Series]](https://cdn.shopify.com/s/files/1/0047/0247/0190/products/8d62567f3976a249cabee9308f1d71fa_600x600.jpg?v=1666074458)
Autel Smart Controller Frequently Asked Questions
Can the Autel Smart Controller be purchased separately?
Autel Smart Controller SE can be purchased separately. It currently sells for $749.
Autel Smart Controller V3 can be purchased separately. Its current price is $1299.
What ports, dials and buttons does the Autel Smart Controller have?
The Autel Smart Controller is a sophisticated controller with plenty of buttons and ports to simplify drone operation.
In terms of interfaces, 1 mini-HDMI interface (supports 4K video output), 1 microSD card slot, 1 USB Type-C interface (supports video output, external microSD card, charging).
How bright is the screen of the Autel Smart Controller?
Autel Smart Controller SE is equipped with a 6.4-inch touch screen and can provide up to 800 nits of brightness. Autel Smart Controller V3 is equipped with a 7.9-inch touch screen and can provide up to 2000 nits of brightness, which is 4 times brighter than traditional mobile phones, even under direct sunlight Can show clear details.
Can Autel Smart Controller be used with third-party apps?
Yes. Both smart controllers support third-party apps. You can download third-party apps through the built-in browser or install APK files from the microSD card.
What is the transmission distance of Autel Smart Controller?
Autel Smart Controller has a completely improved transmission system. Support the new skylink transmission with a frame rate of 60fps. FCC: 15km CE/SRRC: 8km.
How much does Autel Smart Controller weigh?
The weight of Autel Smart Controller SE is about 617g, and the weight of Autel Smart Controller is about 1150g.
What is the battery life?
Autel Smart Controller SE can run for about 2 hours at maximum brightness, and it takes 90 minutes to fully charge. Autel Smart Controller V3 can run for about 3 hours at maximum brightness, and it takes 120 minutes to fully charge.
