As a large unmanned aerial vehicle, the Autel Dragonfish series has long endurance and the ability to coordinate multiple tasks, providing support and assistance for patrol, inspection, firefighting, search and rescue, and other industries. Here, we will introduce the Autel Dragonfish ground control station.
What is a ground control station?
A ground control station (GCS) is a set of ground hardware and software that allows drone operators to communicate and control the drone and its payload by setting parameters for autonomous operation or directly controlling the drone.
Generally, GCS is dedicated to a specific model of drone, and there are also universal ground control stations on the market that are compatible with many drone brands, models and payloads.
The Autel Dragonfish ground control station can only be used for the Autel Dragonfish series, including Autel Dragonfish Lite, Autel Dragonfish Standard, Autel Dragonfish Pro and its compatible camera payloads and other accessories.
What is the Autel Dragonfish ground control station?

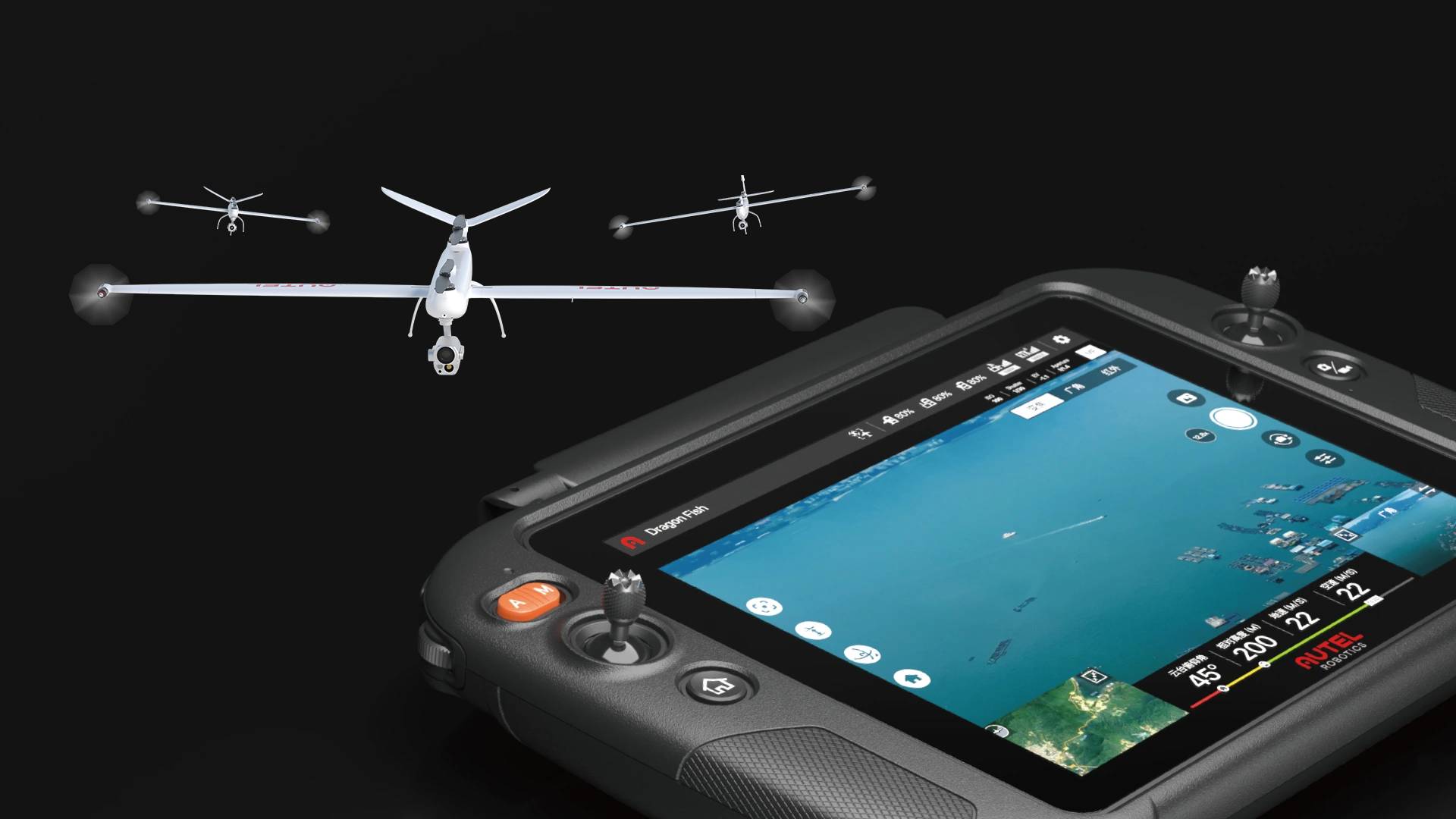

The Autel Dragonfish ground control station is the controller of the Autel Dragonfish drone. The ground control station is equipped with a 9.7-inch touch screen, a battery life of 4.5 hours, and 256GB of built-in storage space.
Autel Dragonfish Ground Control Station Features:
- 9.7-inch ultra-bright touch screen
- 1000 nits
- 4.5 hours of battery life
- 2048x1536 HD resolution
- 256GB of internal storage
- Octa-core processor (Samsung EXYNOS)
- Transmission distance 29.9 kilometers (18.6 miles)
Note: 18.6 miles is the image transmission distance when the base station is used. If there is no base station, the image transmission distance is 6.2 miles.
Autel Dragonfish Ground Control Station is a portable ground control station with a rope that you can hang around your neck for easy carrying.
The ground control station is also equipped with an HDMI interface that can be connected to a third-party display device for multiple members to watch and achieve maximum situational awareness.
Autel Dragonfish Ground Control Station Specifications
| Video Transmission | Operating frequency: 902-928 MHz (Only for FCC/ISED); 2.4000-2.4835 GHz; 5.150-5.250 GHz (Only for FCC/ISED); 5.725-5.850 GHz Max Transmitting Distance (unobstructed, free of interference): FCC: 10 km CE: 5 km |
| Data Transmission | Operating frequency: 5.729-5.771 GHz |
| Wi-Fi |
Protocol: Operating frequency: |
| Battery | Type: Li-Po Capacity: 8200mAh Voltage:11.4 V Type: Li-Po Energy:93 Wh Charging time:120 min |
| Run Time | ~3 hrs (Max brightness) ~4.5 hrs (Half brightness) |
| Storage Capacity | ROM 256GB + scalable (TF) |
| Video Output Port | HDMI Port |
| Power Supply Current / Voltage (USB-A port) | 5V / 500mA |
| Operating Temperature Range | -20℃ ~ 40℃ |
| Charging Temperature Range | 0℃ ~ 45℃ |
| Storage Temperature Range | < 1 month: -4° to 140° F (-20° to 60° C) 1-3 months: -4° to 113° F (-20° to 45° C) 3-12 months: -4° to 86° F (-20° to 30° C) |
| GNSS | GPS+GLONASS+Galileo |
| Dimensions | 319 × 233 × 74 mm（antennas folded） 319 × 398 × 74 mm（antennas unfolded |
| Weight | 1987g |
