Skyfend Defender | Compact and cost-effective K-band FMCW radar
Skyfend Defender | Compact and cost-effective K-band FMCW radar
- Tracking Qty: 5~20 (TAS) | 200 (TWS)
- Identification Capabilities: Rotor UAV / Fixed Wing UAV / Birds
- Lightweight Deployment
- Modular Integrable Design
- Omnidirectional Protection
- Low False Alerts
- Easy Setup
- Data-Rich C2 System
Contact Us For A Quote
- Overview
- Specs
- Videos
- Brochure
-
Skyfend Defender

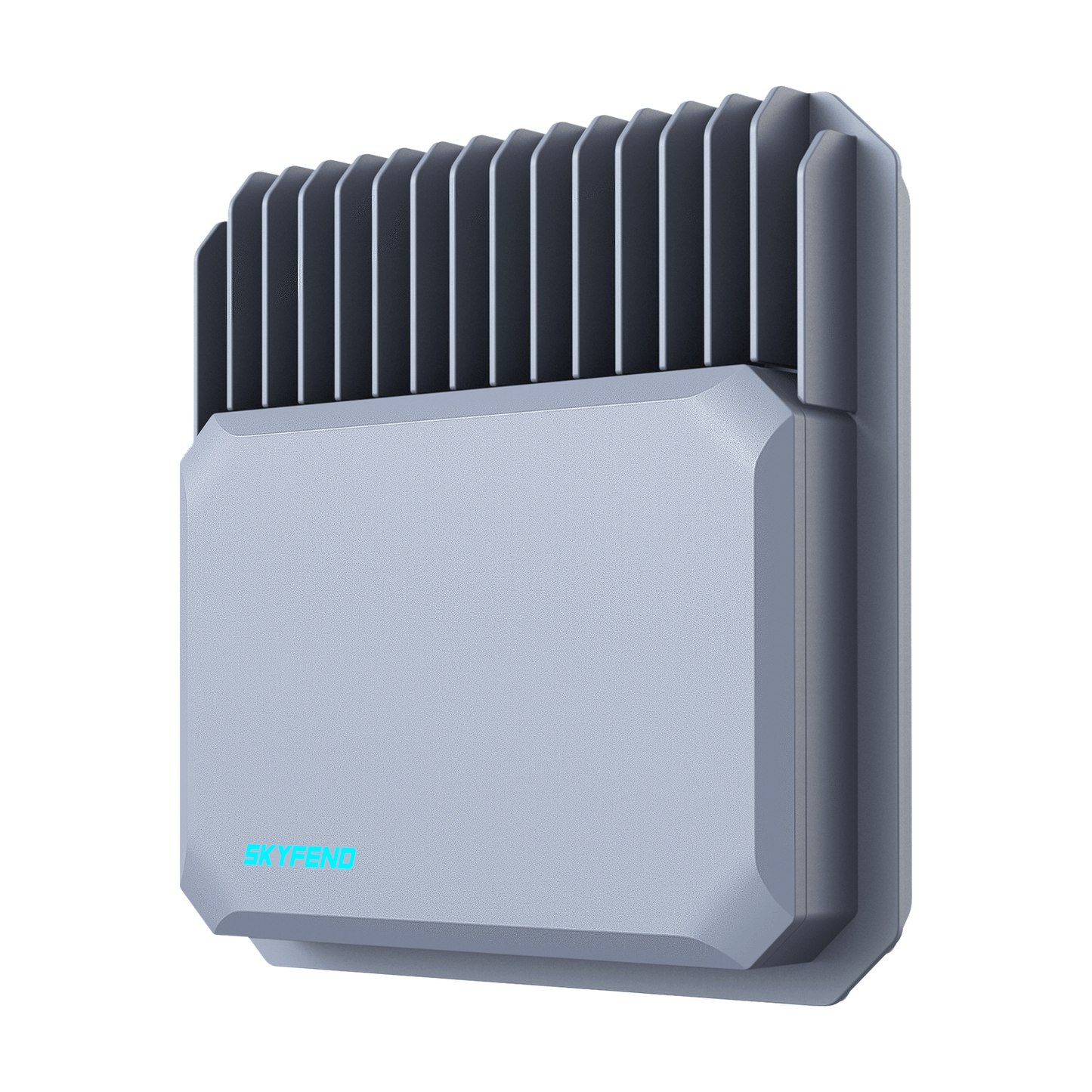

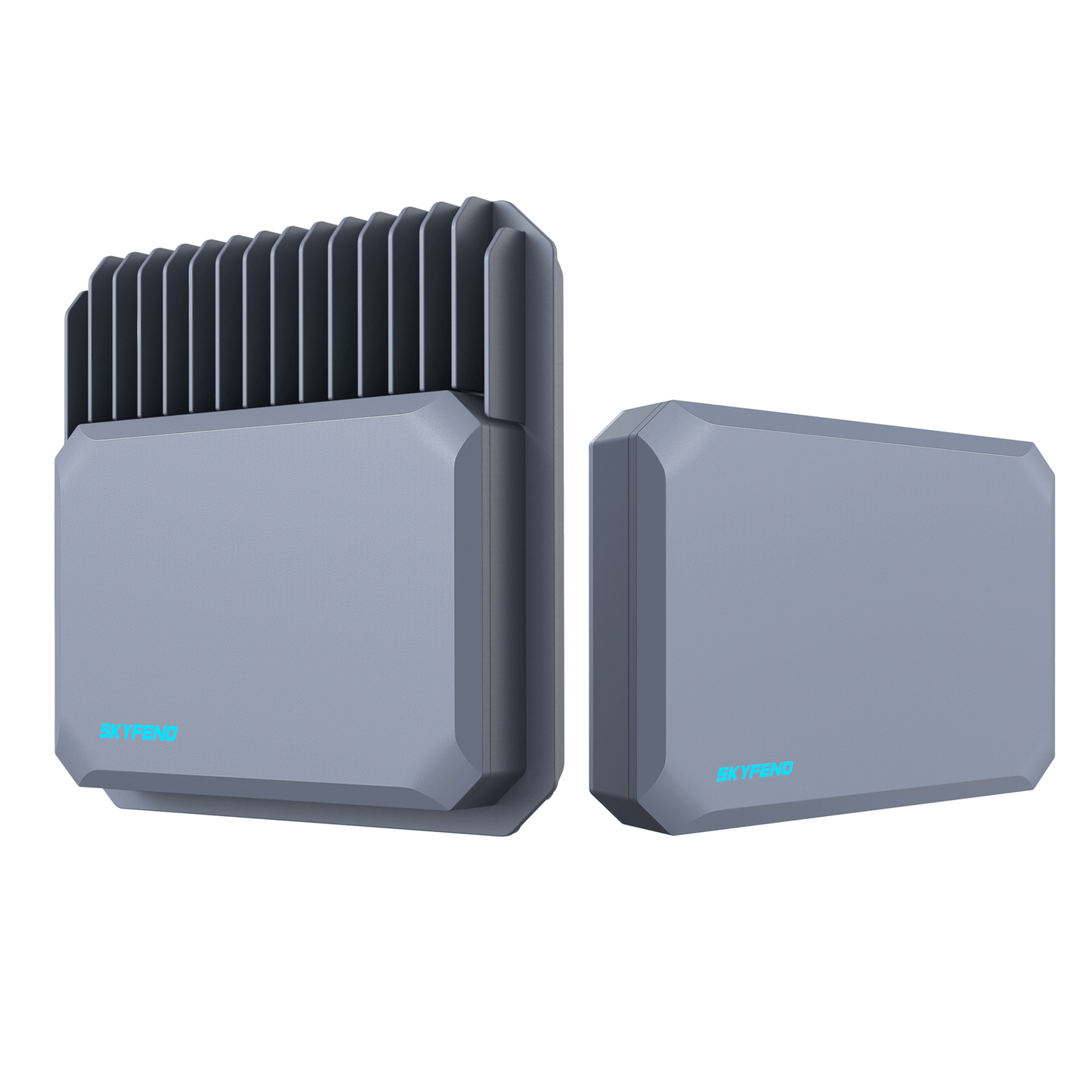

Defender is a compact and cost-effective K-band FMCW radar that provides close-range surveillance for land, sea and air applications. It's ideal for portable scenarios and high-value target defense, such as government buildings, official residences and prisons. It utilizes advanced environmental perception and target recognition algorithms to deliver rapid target detection and deployment capabilities.
Low SWaP-C Design
Defender is characterized by its small size, light weight, and low cost, making it currently the industry's smallest active phased array radar capable of detecting micro unmanned aerial vehicles at the 1 km level.
-
Environmental
Perception
AI RecognitionMicro-Doppler Identification
With the integration of clutter suppression technology and Micro-Doppler technology, Defender can accurately identify small unmanned aerial vehicles (SUAVs) from other flying objects to reduce missed and false alarms. At the same time, with the support of Micro-Doppler technology, the Defender is also able to identify hovering drones.
-
Environmental
Perception
AI RecognitionMicro-Doppler Identification
With the integration of clutter suppression technology and Micro-Doppler technology, Defender can accurately identify small unmanned aerial vehicles (SUAVs) from other flying objects to reduce missed and false alarms. At the same time, with the support of Micro-Doppler technology, the Defender is also able to identify hovering drones.
-
-
Over-the-Horizon Detection
Despite the low SWaP-C, Defender can still achieve long-range detection, with a range of 1km for SUAVs.
-
Unattended Protection
Defender can achieve real-time wireless communication with C2 software, allowing seamless data exchange. C2 software collects data from all SkyFend devices to analyze the threat level and autonomously deploy countermeasures to eliminate the identified threats.
-
-
-
Over-the-Horizon Detection
Despite the low SWaP-C, Defender can still achieve long-range detection, with a range of 1km for SUAVs.
-
Unattended Protection
Defender can achieve real-time wireless communication with C2 software, allowing seamless data exchange. C2 software collects data from all SkyFend devices to analyze the threat level and autonomously deploy countermeasures to eliminate the identified threats.
-
High-Reliable Wireless Connection
Omni-Directional Monitoring

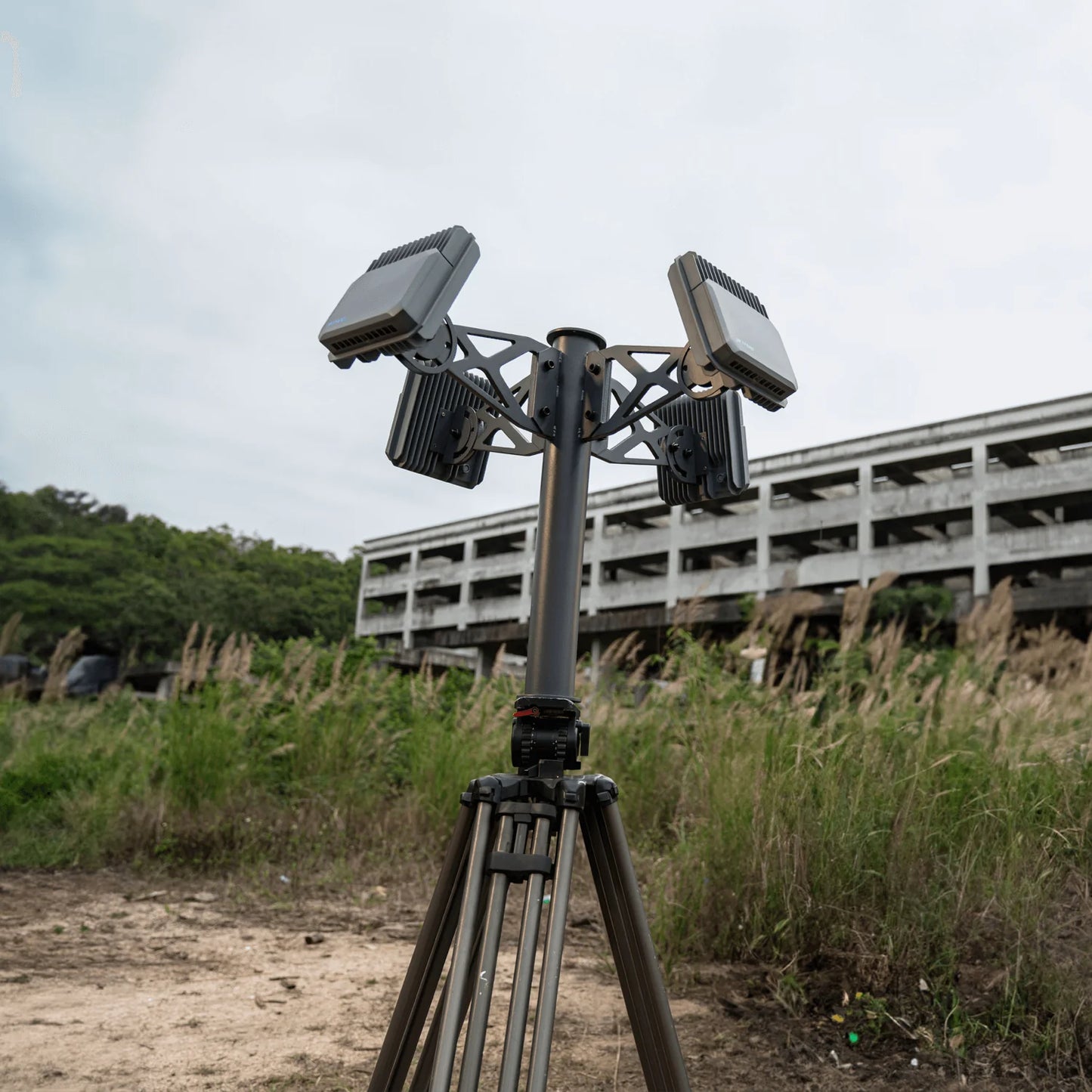

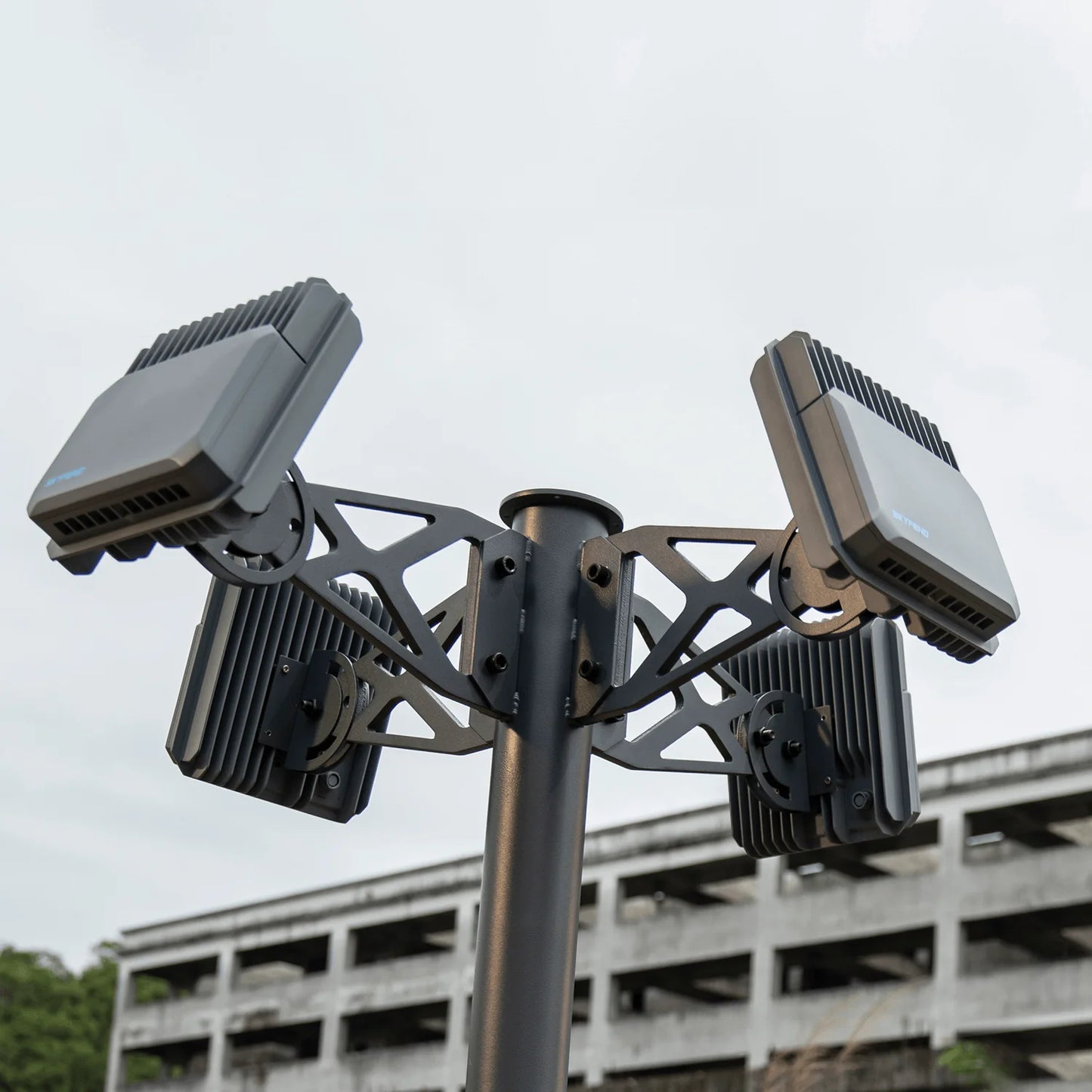

Defender can be used individually or via a wireless connection, with just four radars capable of providing 360°coverage in the area.
High-Reliable Wireless Connection
Omni-Directional Monitoring
Defender can be used individually or via a wireless connection, with just four radars capable of providing 360°coverage in the area.
-
Rapid Deployment
When connecting Defender in a group, there is no need for cables, resulting in saved installation time, simplified operating procedures and a direct reduction of installation costs.
-
Rapid Deployment
When connecting Defender in a group, there is no need for cables, resulting in saved installation time, simplified operating procedures and a direct reduction of installation costs.
High Stability
The self-developed data transmission module of Defender incorporates private communication protocols, ensuring a high-performance, reliable, and stable wireless connection for the radar array.
-
Anti-drone System Solutions
Peter He
Sales Manager
- Shenzhen Skyfend Technology Co., Ltd
-
-
I am committed to providing effective and cutting-edge solutions to address the evolving challenges posed by unmanned aerial systems.
-
Anti-drone System Solutions
Peter He
Sales Manager
- Shenzhen Skyfend Technology Co., Ltd
-
-
I am committed to providing effective and cutting-edge solutions to address the evolving challenges posed by unmanned aerial systems.
-
-
Specifications
Detection Range (m) 10~6,000 / >1,000 (SUAV)
>2,600 (Human) / >4,600 (Vehicle)Distance Accuracy (m) 2 Distance Resolution (m) 3 FOV Azimuth: 120° Elevation: 40° Angular Accuracy Azimuth: ±1.0° Elevation: ±3.0° 120°Az x ±20°El Airspace Search Time (s) ≤1 Tracking Qty 5~20 (TAS) / 200 (TWS) Track Target Update Rate (Hz) 5~20 Speed Range (m/s) ±50 or 120（based pattern） Speed Accuracy (m/s) 0.6 Speed Resolution (m/s) ≤0.9 Identification Capabilities Rotor UAV / Fixed Wing UAV / Birds -
