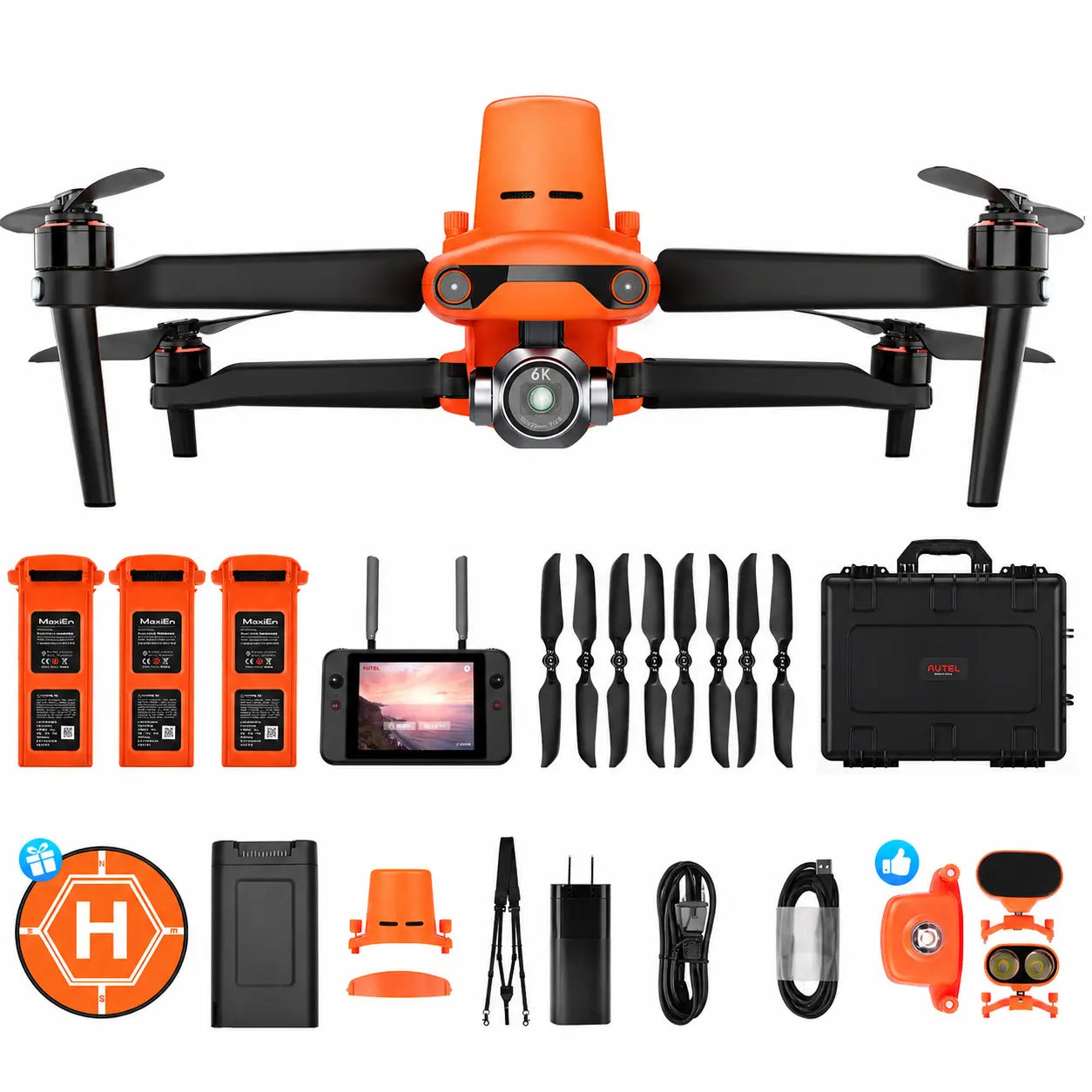

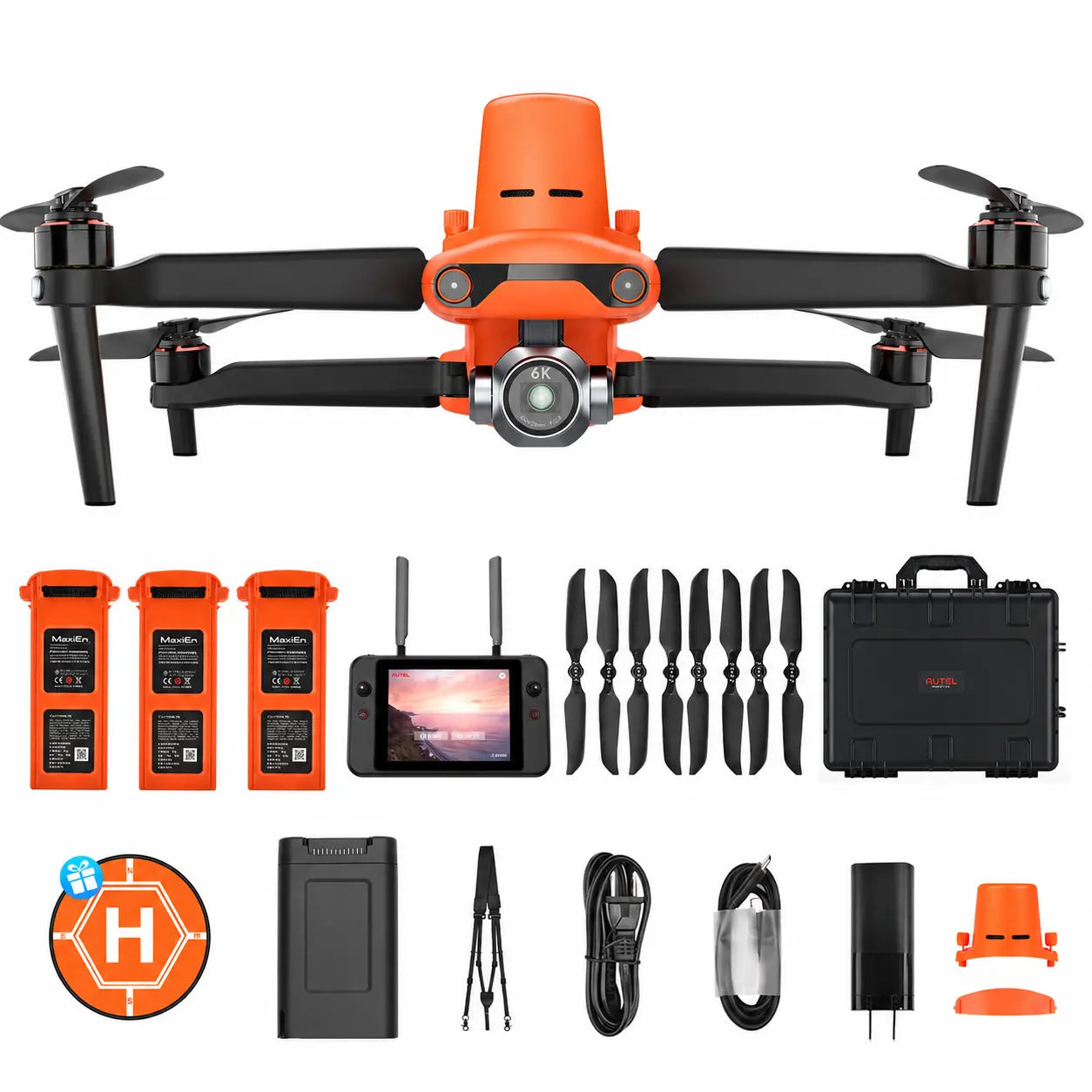

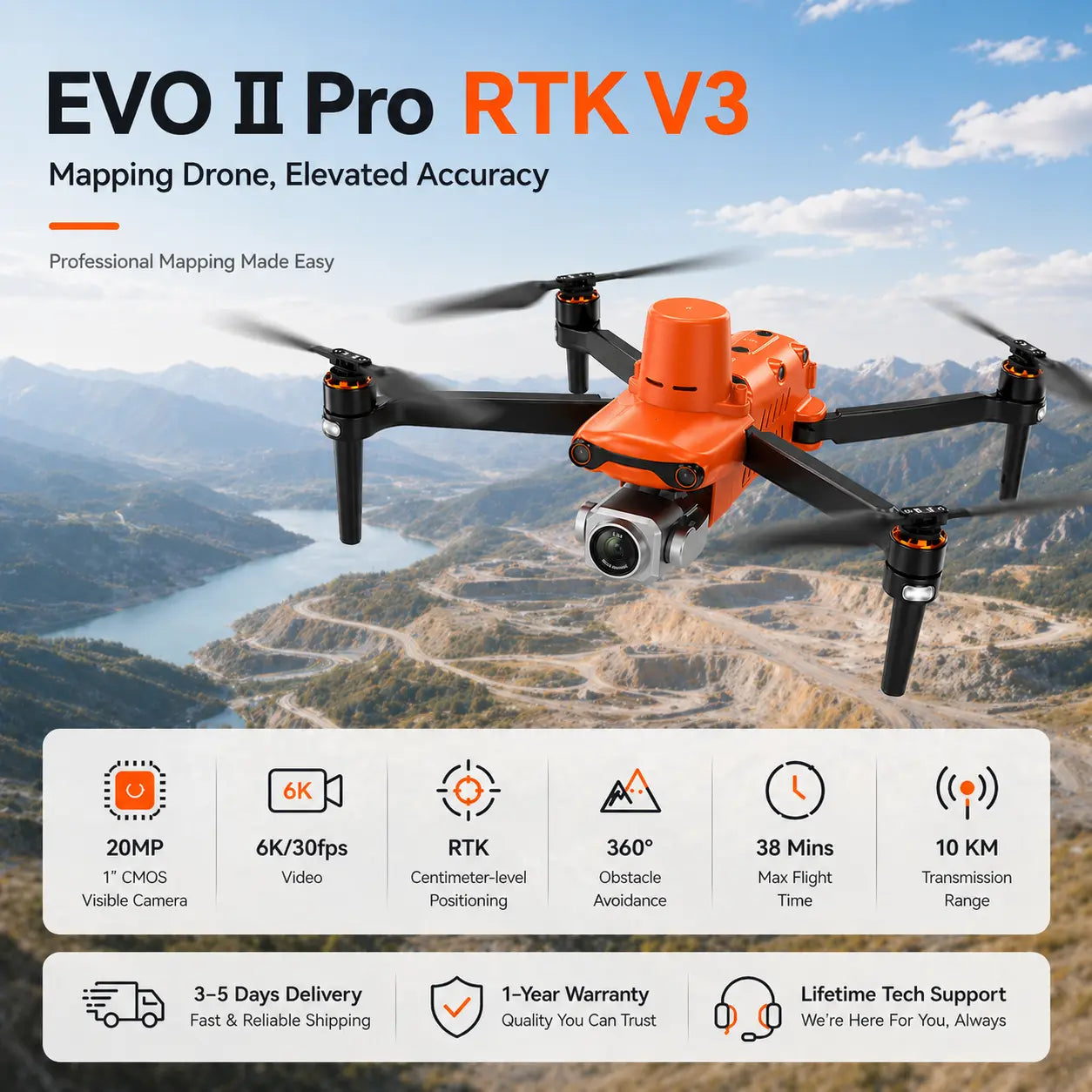

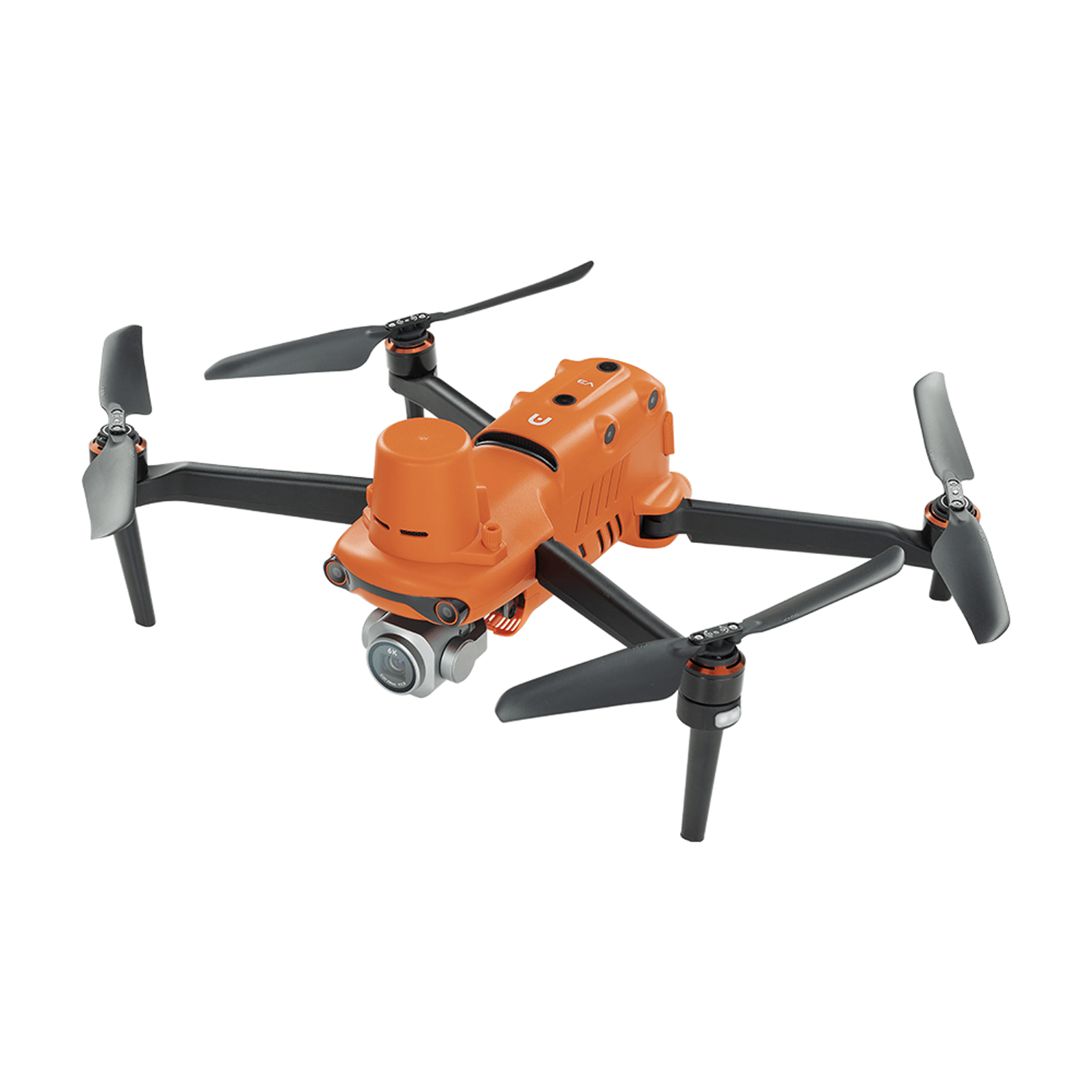

Autel Robotics EVO II Pro RTK V3 [Including RTK Module]
![Autel Robotics EVO II Pro RTK V3 [Including RTK Module]](http://www.autelpilot.com/cdn/shop/files/1022-EVO_II_Pro_RTK_V3_600x600.png?v=1729564199)
Autel Robotics EVO II Pro RTK V3 [Including RTK Module]
11.11 Sales Offer: Get it now for $2,799.00
Discount automatically applied!
- Remote ID Updated
-
Free landing pad and a pair of propeller guards
- Centimeter-Level Positioning
- Support PPK
- RTK Base Station
- NTRIP RTK Network
- Flight Profiles Save
- Rectangular or Polygon Missions
- 1" CMOS Sensor Gimbal Camera
- 360° Obstacle Avoidance
- 38 Minutes Flight Time
- 15km Video Transmission Range
Fast Delivered by Sun, Nov 17 - Tue, Nov 19 Free Ship from USA
Fast, Free Shipping & No Extra Tax
30-Day Return or Replacement
12-Month Free Warranty
Lifetime Customer Support
- Overview
- Specification
- Package
- Documents
- Faqs
-
Autel EVO II Pro RTK V3
Autel EVO II Pro RTK V3 is an advanced drone model that offers an impressive range of features designed for surveying and mapping applications. This drone is equipped with advanced RTK technology that allows it to achieve highly accurate positioning with an accuracy of up to 1cm+1ppm (1.5cm+1ppm). This makes it ideal for use in a wide range of industries, including construction, agriculture, and mining.
Overall, the Autel EVO II Pro RTK V3 is an outstanding drone that delivers exceptional performance and versatility for surveying and mapping applications. Whether you are working in construction, agriculture, or any other industry that requires highly accurate data and detailed maps, the Autel EVO II Pro RTK V3 is the ideal solution for your needs.
-
1 inch
CMOS Sensor -
6K/30fps
Videos -
Surverying
Mapping -
Multi-NTRIP
Profile Saving -
360°
Obstacle Avoidance -
15km
Transimission Range -
38 Minutes
Flight Time -
7.9
Smart Controller V3

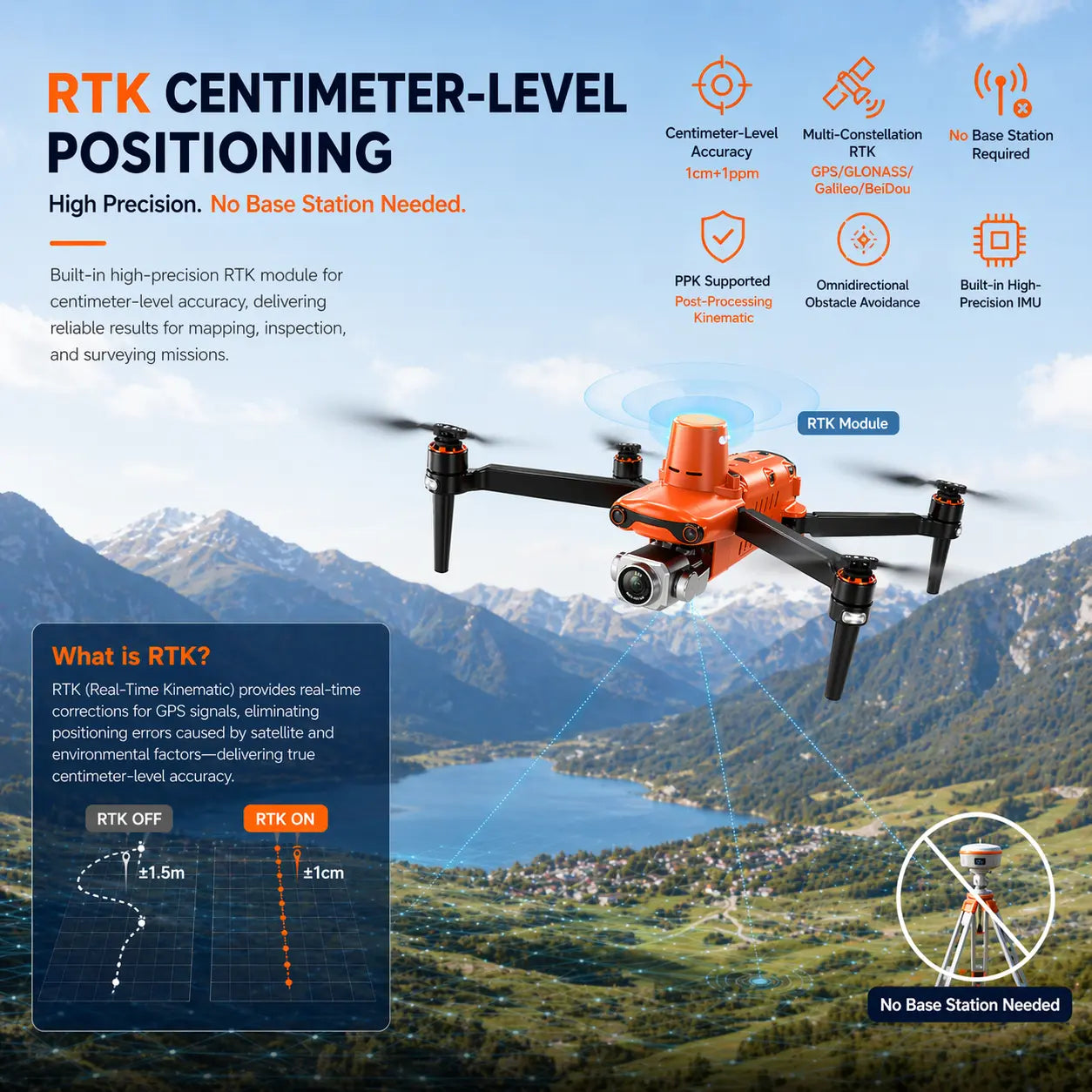

Centimeter-Level Positioning
Autel EVO II RTK Series V3 introduces a brand-new RTK module, which provides real-time centimeter-level positioning data, and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports an RTK base station and NTRIP RTK network, which help to achieve accurate and stable data acquisition in complex operation environments.
-
-
RTK Horizontal Positioning Accuracy: 1cm+1ppm
-
-
RTK Vertical Positioning Accuracy: 1.5cm+1ppm
-
-
RTK Horizontal Positioning Accuracy: 1cm+1ppm
-
-
RTK Vertical Positioning Accuracy: 1.5cm+1ppm
Autel EVO II RTK V3 introduces a brand-new RTK module, which provides real-time centimeter-level positioning data, and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports an RTK base station and NTRIP RTK network, which help to achieve accurate and stable data acquisition in complex operation environments.
-
-
No GCP Required
EVO II RTK Series V3 can connect to an NTRIP network and does not need GCPs to provide centimeter-grade accuracy.
-
-
-
3rd Party Base Station Support
EVO II RTK Series V3 supports all NTRIP-compatible base stations.
-
-
-
No GCP Required
EVO II RTK Series V3 can connect to an NTRIP network and does not need GCPs to provide centimeter-grade accuracy.
-
-
-
3rd Party Base Station Support
EVO II RTK Series V3 supports all NTRIP-compatible base stations.
-
Autel Explorer For Mapping
-
-
-
Multi-NTRIP Profile Saving
For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.
-
-
Photo Replication
For repeatable missions, you can record the drone's previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.
-
-
Multi-Battery Missions
The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don't have to manually input new a flight plan for every new location.
-
-
-
-
Multi-NTRIP Profile Saving
For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.
-
-
Photo Replication
For repeatable missions, you can record the drone's previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.
-
-
Multi-Battery Missions
The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don't have to manually input new a flight plan for every new location.
-
Advanced Feature Sets
-
Create Rectangular or Polygon Missions -
Supports Double grid mapping for additional angle customizable -
Have complete manual control over camera settings -
Non stop turning on corners saves time and battery life -
Customizable course headings to meet orientation requirements
Capture Every Detail-EVO II RTK V3
EVO II Pro RTK V3 has high dynamic range and powerful low light performance, enabling users to capture clear detail sets with minimal distortion and noise.
-
-
1-Inch Ultra-Sensitive Sensor
Autel EVO II Pro RTK V3 comes with a NEW updated 1-inch 6K CMOS image sensor with a maximum of 20 megapixels. Thanks to the ultra-sensitive algorithm, you can still shoot clean, detailed, low-noise data sets under twilight or night conditions.
-
f/2.8 ~ f/11 Adjustable Aperture
Adapt to lighting changes by adjusting the lens aperture size, giving the pilot more shutter speed control.
-
-
-
1-Inch Ultra-Sensitive Sensor
Autel EVO II Pro RTK V3 comes with a NEW updated 1-inch 6K CMOS image sensor with a maximum of 20 megapixels. Thanks to the ultra-sensitive algorithm, you can still shoot clean, detailed, low-noise data sets under twilight or night conditions.
-
f/2.8 ~ f/11 Adjustable Aperture
Adapt to lighting changes by adjusting the lens aperture size, giving the pilot more shutter speed control.
-
-
Zoom In For The Details
EVO II Pro RTK V3 has optimized its datasets to be easily adjusted with post processing software applications.
-
Optimized For Software Image Correction
EVO II Pro RTK V3 has optimized its datasets to be easily adjusted with post processing software applications.
-
Zoom In For The Details
EVO II Pro RTK V3 has optimized its datasets to be easily adjusted with post processing software applications.
-
Optimized For Software Image Correction
EVO II Pro RTK V3 has optimized its datasets to be easily adjusted with post processing software applications.
360° Obstacle Avoidance
Equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.
*Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting environments, under direct strong sunlight, or across thin tree branches or wires.
Mission Planner
Rectangular and Polygon mission planners - Those are going to be great for anybody that's dealing with photogrammetry. So anybody that needs to be able to capture a lot of images in a rectangular mission or polygon mission, you're going to be able to do that in an autonomous fashion. Then you're going to be able to take EVO II Pro RTK V3's images and upload them to your 3D mapping
-
Rectangular Mission
-
Polygon Mission
-
Rectangular Mission
-
Polygon Mission
Autel SkyLink 2.0 Video Transmission
SkyLink 2.0 is built into Autel EVO II RTK V3 chipset, expanding the possibilities for your most critical workflows.
-
9+ Miles
Do more because you can fly further away.
-
QHD
Incredible video resolution within a mile, meeting most common use cases.
-
2.4GHz / 5.8GHz / 900MHz
Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
-
* 900MHz is only applicable for FCC countries.
-
9+ Miles Do more because you can fly further away.
-
QHD Incredible video resolution within a mile, meeting most common use cases.
-
2.4GHz / 5.8GHz / 900MHz Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
-
* 900MHz is only applicable for FCC countries.
360° Obstacle Avoidance
Equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.
Portable and Easy to Use
-
-

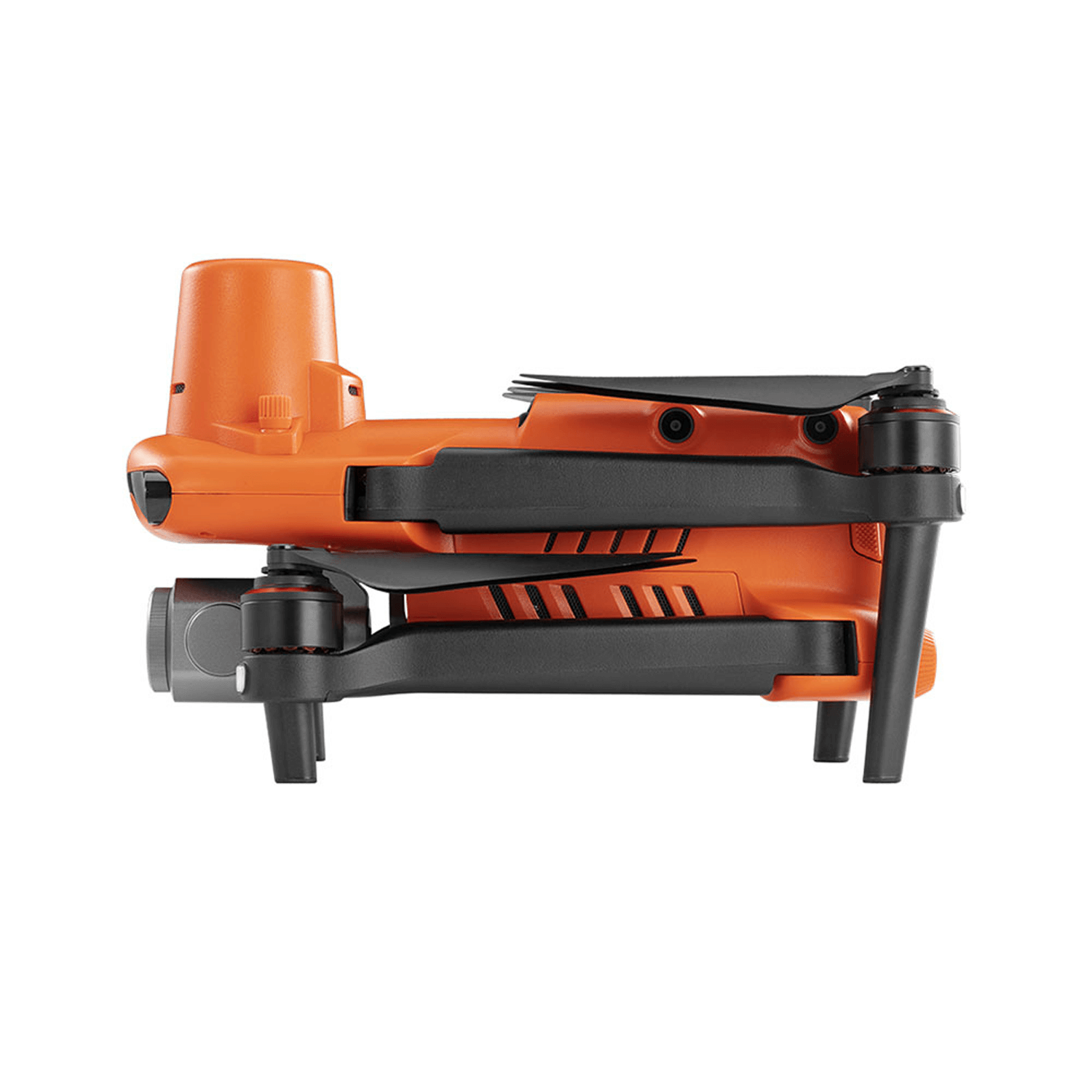

Compact Design
Autel EVO II RTK Series V3 folds up for ease of transport and deployment.
-
-
Trouble Free Daily Workflows
Autel EVO II RTK Series V3 only takes 45 seconds from setup to takeoff.
-
-
Compact Design Autel EVO II RTK Series V3 folds up for ease of transport and deployment.
-
-
Trouble Free Daily Workflows Autel EVO II RTK Series V3 only takes 45 seconds from setup to takeoff.
Safe and Sturdy
-
38minutes
Maximum Flight Time
-
9.3miles (15km)
Maximum Transmission Range
-
27mph (12m/s)
Maximum Wind Resistance
-
45mph (20m/s)
Maximum Flight Speed
-
38minutes
Maximum
Flight Time -
9.3miles (15km)
Maximum Transmission Range
-
27mph (12m/s)
Maximum Wind Resistance
-
45mph (20m/s)
Maximum Flight
Speed
*Please fly safely and consult your local laws and regulations. Autel Robotics is not liable for any unauthorized flights.
**It’s required to update the latest firmware and app to enjoy comprehensive warranty. More information please refer to warranty policy.
Failsafe & Automatically Return Home
EVO 2 Pro RTK V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2 V3’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.
-
ATH(Auto Reture Home) -
Hover -
Land Off
-
ATH(Auto Reture Home) -
Hover -
Land Off

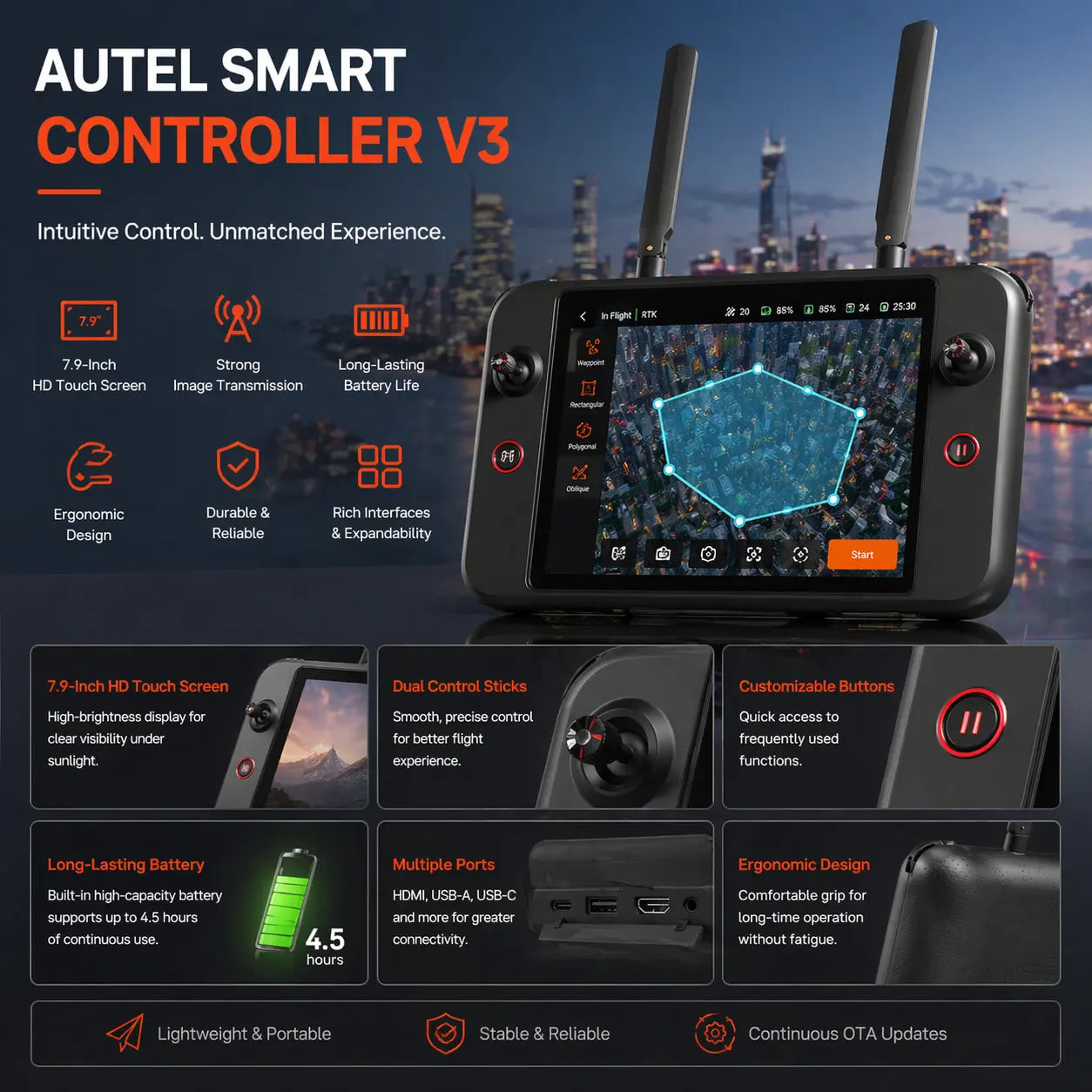

Autel Smart Controller V3
Smart Controller V3's 7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9 miles away and enhances anti-interference abilities with triple-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.
-
-
- 7.9-Inch HD Touch Screen
-
- -4 °F to 104 °F Temperature Range
-
- 2000 nits Maximum Brightness
-
- IP43 Resistance
-
-
-
7.9-Inch HD Touch Screen
-
-
-4 °F to 104 °F Temperature Range
-
-
2000 nits Maximum Brightness
-
-
IP43
Resistance

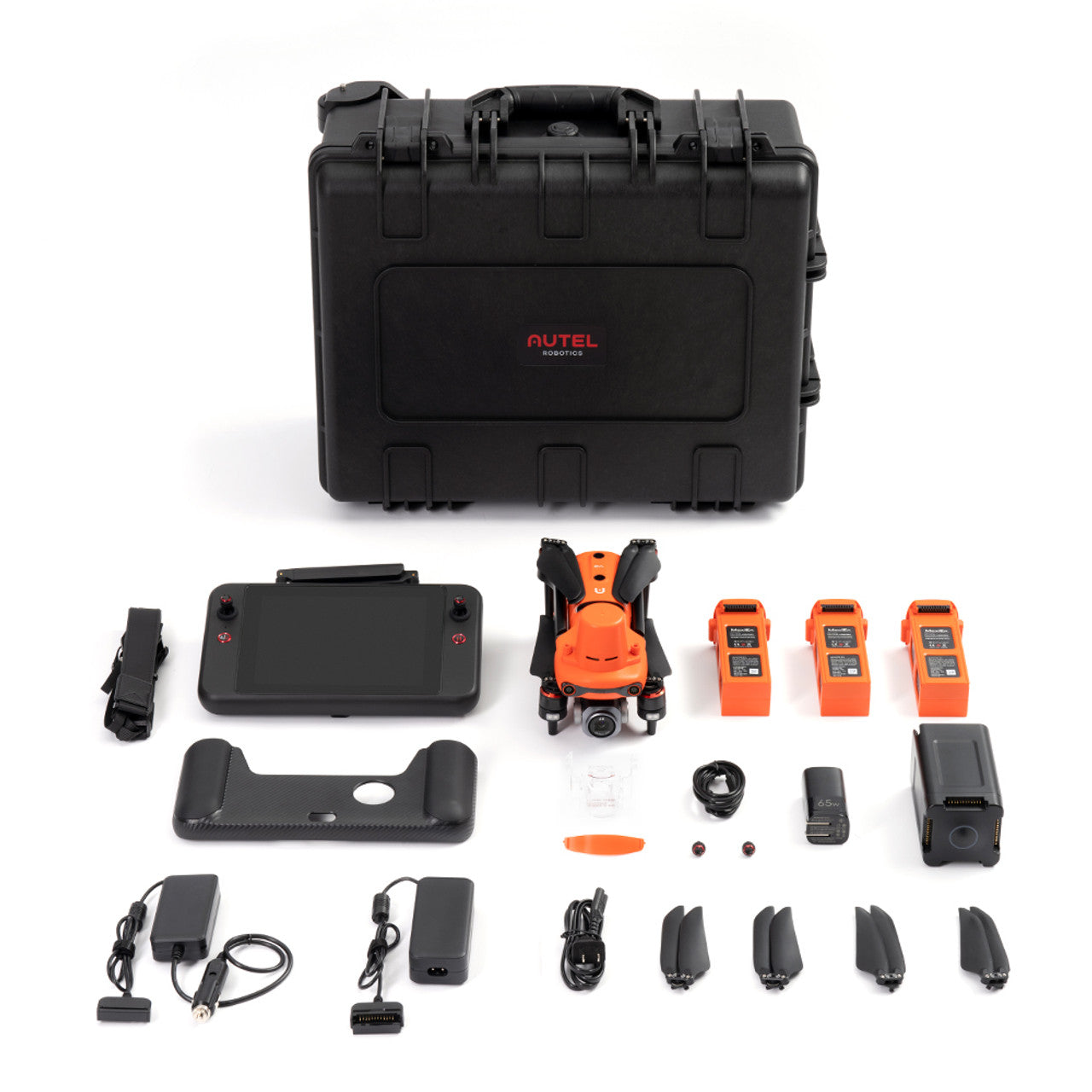

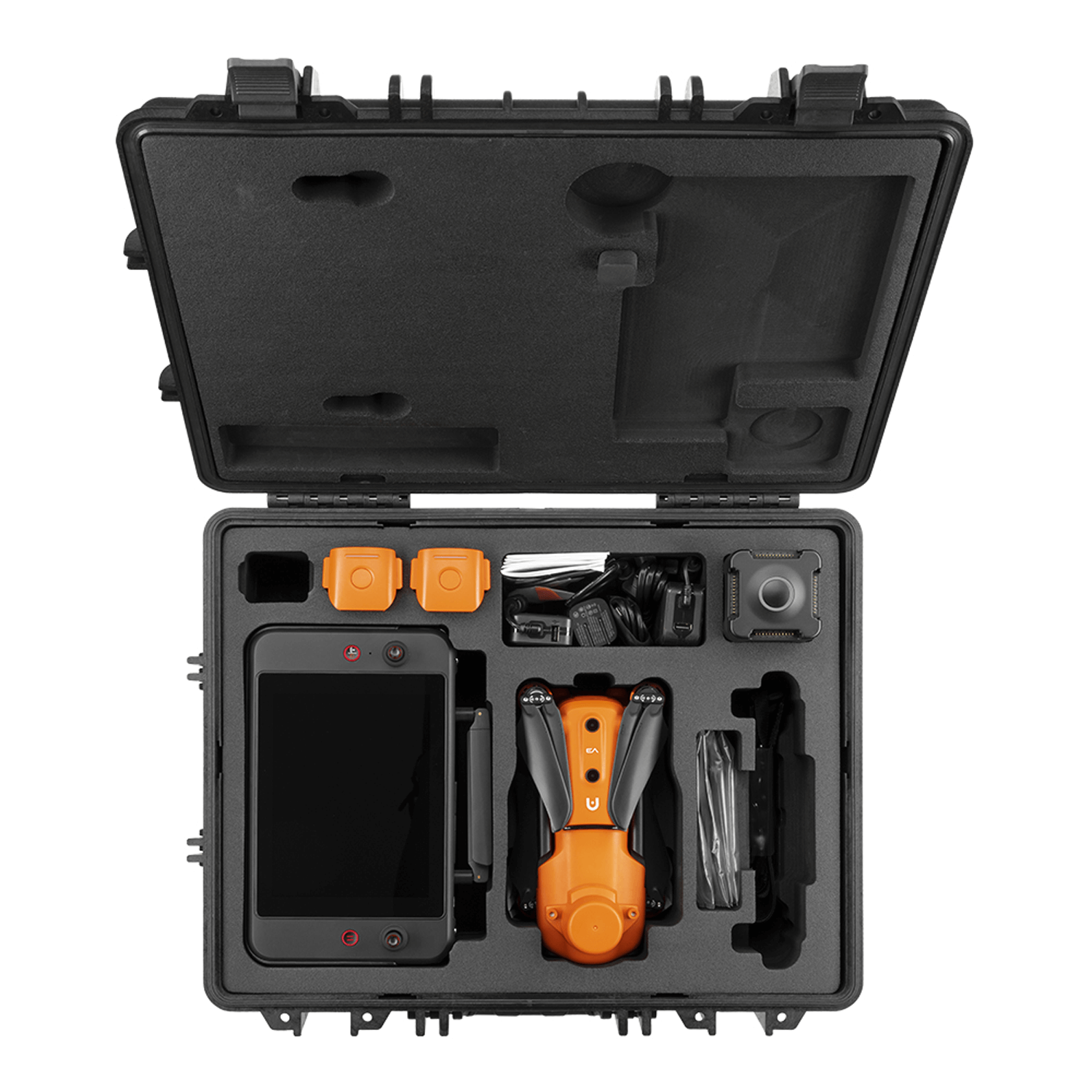

Autel EVO II Pro RTK V3 Package List
Autel EVO II Pro RTK V3 Enterprise Bundle Package List
-
-
Aircraft Camera Gimbal Obstacle Avoidance Remote Controller and Image Transmission Battery Charger Multi-Charger Aircraft Camera Gimbal Obstacle Avoidance Remote Controller and Image Transmission Battery Charger Multi-Charger Aircraft Takeoff Weight 1237g±0.5g（EVO II Pro RTK V3) Max takeoff weight 4.41 lbs (1999 g) Size(L*W*H) 9.1*5.1*5.6 inches; 230*130*143mm(folded);
18*22*4.3 inches 457*558*143 mm(unfolded)Wheelbase 15.63 inches (397 mm) Maximum Takeoff Altitude 7000 m Max ascent speed 8 m/s (Ludicrous) Max descent speed 4 m/s (Ludicrous) Max horizontal flight speed 20m/s (Ludicrous) Max flight distance (no wind) 21 km Max tilt angle 33° (Ludicrous) Max angular velocity 120°/s Max flight time (no wind) 36 min Max hovering time (no wind) 32 min Operating temperature range 14°F to 104°F (-10℃ ~ 40℃) Maximum resistance to wind 27mph, 12 m/s (Take-off and landing) Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHzTransmission power 900M FCC/ ISED：≤31dBm 2.4G
FCC/ ISED：≤32dBm
SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan)
FCC/ISED/SRRC/MIC：≤33dBm
CE/ RCM：≤14dBmHovering accuracy When RTK is enabled and working normally:
Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally);±0.5 m (when GNSS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)Image position compensation The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively. Internal storage 8GB SD storage max. support 256GB (UHS-3 or Class 10) Camera Sensor 1" CMOS
Effective Pixels: 20 MPLens FOV: 82°
35 mm format equivalent focal length: 29 mm
Aperture: f/2.8 - f/11
Focus range: 0.5 m to infinityISO Range Video: 100-44000
Photo: 100-6400Shutter Speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame ratesZoom 1 ~ 16x (Max. 3x lossless zoom) Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR Maximum photo size 5472*3648 (3:2)
5472*3076 (16:9)
3840*2160 (16:9)
Image Format JPG (default) / 12bits DNG / JPG+12bits DNG Photo mode 5472x3076P30/P25/P24
3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24Video format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) Max bitrate 80Mbps Supported file system FAT32/exFAT GNSS Single frequency high sensitivity GNSS GPS+BeiDou+Galileo（Asia）
GPS+GLONASS+Galileo（Other areas）Multi-frequency multi-system high-precision RTK GNSS Frequency points used：
GPS：L1/L2；
GLONASS：L1/L2；
BeiDou：B1/B2；
Galileo：E1/E5
First positioning time:<50 s
Positioning accuracy:
vertical 1.5 cm + 1 ppm (RMS);
Horizontal 1 cm + 1 ppm (RMS)
1 ppm means that the error increases by 1 mm for every 1 km the aircraft movesGimbal Gimbal 3-axis stabilization Mechanical range Tilt: -135° to +45°;
Pan: -100° to +100°Controllable rotation range Tilt: -90° to +30°;
Pan: -90° to +90°Max control speed (Tilt) 300°/s Angular Vibration Range ±0.005° Sensing System (Obstacle Avoidance) Sensing System Omnidirectional Obstacle Sensing Forward Precision Measurement Range: 0.5-18 m
Effective Sensing Speed: <12m/s
FOV: Horizontal: 60°, Vertical: 80°Backward Precision Measurement Range: 0.5-16 m
Effective Sensing Speed: <12m/s
FOV: Horizontal: 60°, Vertical: 80°Upward Precision Measurement Range: 0.5-10 m
Effective Sensing Speed: <5m/s
FOV: Horizontal: 65°, Vertical: 50°Downward Precision Measurement Range: 0.5-10 m
Effective Sensing Speed: <5m/s
FOV: Horizontal: 100°, Vertical: 80°Sides Precision Measurement Range: 0.5-10 m
Effective Sensing Speed: <5m/s
FOV: Horizontal: 65°, Vertical: 50°Operating Environment - Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15) - Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.) - Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Remote Controller and Image Transmission Operating Frequency 902-928MHz (FCC Only)
2.400-2.4835GHz 5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)Transmission power(E.I.R.P) FCC：≤33dBm
CE：≤20dBm@2.4G，≤14dBm@5.8G
SRRC：≤20dBm@2.4G
≤33dBm@5.8G/5.7GMax Transmission Distance (unobstructed, free of interference) FCC：15km CE：8km Display screen 2048x1536 60fps Battery 5800mAh Operating time ~3 hours (Max. Brightness) ~4.5 hours (50% Brightness) Charging time 120 minutes Internal Storage ROM 128GB Battery Capacity 7100 mAh Voltage 11.55 V Max Charging Voltage 13.2 V Battery Type LiPo 3S Energy 82 Wh Net Weight 0.81 lbs (365 grams) Charging Temperature Range 41°F to 104°F (5°C to 40°C) Storage Temperature and Humidity -10~30℃，65±20%RH Recommended Storage Temperature 22-28℃ Max Charging Power 93W Charging Time 90 minutes Charger Input 100-240 V, 50/60 Hz, 1.5A Output 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A Voltage 13.2±0.1V Rated power 66W Multi-Charger Voltage 13.2 V Charging temperature range 5℃ to 45℃ - Forward, Backward and Sides:
-
Autel EVO II Pro RTK V3 Package List
Autel EVO II Pro RTK V3 Enterprise Bundle Package List
-
Autel Robotics EVO II RTK Series Quick Questions & Quick Answers
Q: What is the main difference between RTK series products and other EVO II series products?
Q: What is the effective image transmission range of the RTK Series?
Q: In real-time mapping, can the aircraft continue mapping while the image transmission signal is lost?
Q: What is the screen size and resolution of the remote controller?
Q: Which RTK base station modes are currently supported?
Q: What is the RTK positioning accuracy?
Q: What is the difference between PPK and RTK mode and how to choose?
Q: Does Autel EVO II RTK series provide measurements in relative coordinates or absolute coordinates?
Q: Does the aircraft support lossless zoom?
