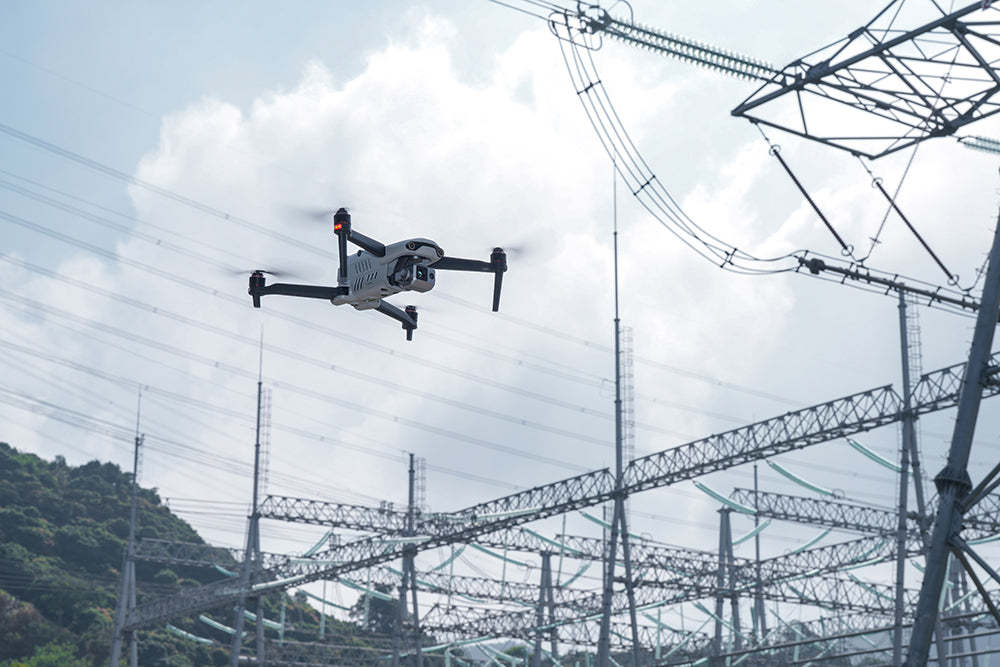

Drone technology is transforming the power industry, making operations to inspect and maintain critical infrastructure more efficient and cost-effective. Drone power inspection will cooperate with traditional power inspection to cover a more comprehensive power line area for regular inspection and maintenance.
What is power line inspection?
Electrical power companies usually perform regular visual inspection to check the status of their transmission lines mainly using helicopter equipped with external gimbals housing infrared and ultraviolet camera to detect hot spots and corona discharges.
What is drone power line inspection?
Drone power inspection is a process of using high-end aviation technology to detect power lines. By using drones for aerial power line inspections, work efficiency can be greatly improved and potential safety risks can be reduced. The use of drones for power inspections can also detect various faults and problems in electrical lines in a more precise manner.
Power inspection drones are specialized UAVs made to inspect powerlines, poles, and other electrical infrastructure.
What are the drones used for power line inspection?
In order to further strengthen the coverage of commercial drones, power line inspection drones are powerful and in high demand. For example, DJI Matrice 300 RTK, Yuneec H520G and Autel Robotics Evo II 640T V3 are professional commercial drones. These drones all come with high-definition cameras, as well as a host of other sensors and devices, including thermal imaging, optical zoom, laser ranging, and more.
Thermal imaging drone wire inspection can further reveal hidden problems. The detected heat changes can help drones detect various faults and problems on power lines, such as fallen wires, broken insulators, tilted towers, etc.
In addition, thermal monitoring of areas or points of the power structure can determine whether there are damaged wires, overheated components, structural weaknesses, etc.
Enterprise Drones Autel EVO II Drone series, EVO MAX series all have mission planning function, this function can generate ready-to-fly missions optimized for specific types of power lines, masts and transmission towers, ensuring that each mission is based on the Tailored to the unique requirements of the mission.
The high-definition camera and custom payload of the power line inspection drone can also be used to capture high-resolution images and videos for detailed analysis, further improving the efficiency and effectiveness of inspections.
Drone Power Line Inspection – Step-by-Step Instructions
Drone power line inspection is an efficient and safe method that can be fully utilized to detect faults, wear and hidden dangers in power line systems. Here are the step-by-step instructions for drone power line inspection:
1. Preparation
1.1 Equipment Check
Ensure that the drone is in good condition, including sufficient battery power and undamaged propellers.
Equip with high-resolution cameras (such as visible light cameras, thermal imagers) and suitable sensors (such as infrared sensors, LiDAR).
Calibrate the drone's GPS, compass and gyroscope to ensure flight stability.
1.2 Plan the flight mission
Obtain a topographic map and power line map of the target area.
Determine the drone's take-off and landing points, flight path and inspection points.
Ensure compliance with local drone flight regulations and obtain necessary flight permits.
1.3 Risk Assessment
Check whether weather conditions (such as wind speed, rain and snow, etc.) are suitable for drone flights.
Identify potential hazards such as high-voltage electromagnetic interference, trees or buildings blocking the way.
1.4 Team Coordination
Ensure that the operator and support personnel have clear division of tasks.
Prepare spare batteries and equipment to handle unexpected situations.
2. Performing the flight mission
2.1 Takeoff and initial testing
Take off in a safe area and test the stability and communication quality of the drone.
Check the camera view and the working status of the sensors.
2.2 Route flight
Fly along the preset flight path at a constant speed and altitude.
Use automated flight software (such as waypoint navigation) to achieve precise flight and avoid missing key areas.
According to the characteristics of the power line, adjust the flight altitude appropriately (generally keep a distance of 3–10 meters from the power line).
2.3 Data acquisition
Capture high-resolution images and videos covering power lines, insulators, towers and other key components.
Use thermal imagers to scan power line joints and insulators to detect overheating or abnormal temperature distribution.
If equipped with LiDAR, scan the environment around the power line and record obstacles (such as trees) that may threaten the safety of the power line.
UAVs with RTK technology can also perform precise navigation and data geotagging.
2.4 Real-time monitoring
The operator monitors the drone video in real time and marks suspected problem points.
Adjust the flight path as needed to ensure complete coverage.
3. Data processing and analysis
3.1 Data export
Export the captured videos, photos and sensor data to a computer or cloud platform.
Ensure that the data format is compatible with the analysis software.
3.2 Automated analysis
Use image processing software (such as AI image recognition tools) to detect common faults such as breakage, looseness, corrosion or wear.
Analyze thermal imaging data to locate abnormally high temperature points.
Combine LiDAR data to generate 3D models and analyze the relationship between the line and the surrounding environment.
3.3 Manual review
The power engineer will manually review the key points to confirm the severity and location of the problem.
4. Report generation and problem handling
4.1 Generate inspection report
Organize the photos and analysis results taken by the drone, and mark the specific location of each problem.
Prepare a detailed inspection report, including: problem description, fault type (such as broken wire, damaged insulator), GPS positioning information, and recommended maintenance measures.
4.2 Maintenance recommendations
Arrange a maintenance plan based on the urgency of the problem.
Provide possible preventive measures (such as pruning trees and adjusting the spacing of wires).
5. Next Steps
5.1 Data Archiving
Archive flight data as a benchmark for subsequent inspections.
Update power line maintenance records to optimize future inspection plans.
5.2 Effectiveness Evaluation
Check the effectiveness and efficiency of drone inspections and evaluate whether equipment or operating procedures need to be improved.
Optimize flight paths and data analysis methods based on feedback.
Notes
Flight safety first: Avoid direct contact between drones and power lines and maintain a safe distance.
Regulatory compliance: Comply with local flight altitude and area restrictions to avoid interfering with civil aviation and other activities.
Provide alternatives: Quickly start manual control or return procedures when signal interference or battery power is low.
UAV power line inspections not only save time and labor costs, but also greatly improve the safety and accuracy of inspections. This technology has become an important tool in modern power maintenance.
Summarize
Drones for power inspections have served electric utility professionals for many years. Using drones for power inspections can greatly improve work efficiency and greatly reduce the risk of operators.
At the same time, power inspection drones can also save a lot of cost and time for power companies, so as to achieve more efficient and safer power transmission. In the future, with the continuous development and innovation of drone technology, it is believed that drone power inspection technology will be more widely used and promoted.
