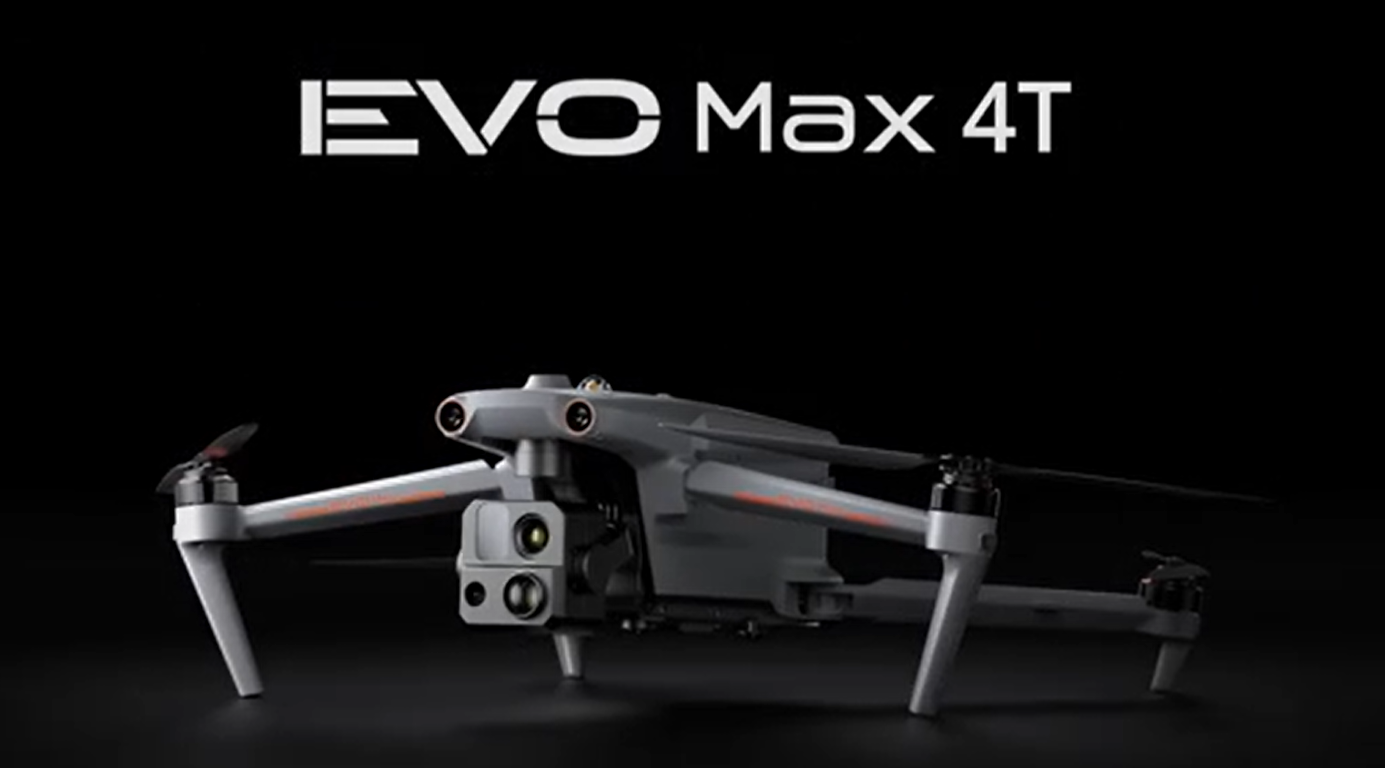

Autel EVO MAX 4T New Release

Meet MAX 4T, Arrive at New Frontiers

Dear Autel drone users, Autel Robotics will launch the EVO MAX 4T in the spring of 2023.

The first release date of EVO MAX 4T is January 5, 2023, and it will be present at CES2023 in Las Vegas at booth 18315 in the central hall of LVCC. The entire exhibition will last for three days, from January 5, 2023 to 2023 January 8th.

View More: Autel Robotics Announces EVO Max 4T, Dragonfish NEST and EVO NEST at CES 2023

EVO MAX 4T: A New Journey of Autel Enterprise Drones

Features of EVO MAX 4T

no blind spots
Anti-jamming
15 seconds to take off
8K 10x optical zoom
IP43 waterproof and dustproof
Support hot-swappable drone battery
Navigate in GPS-denied environments
12.4 miles transmission range
Up to 42 minutes flight time
720° obstacle avoidance

EVO Max 4T: the leader of drone intelligence

EVO Max 4T brings powerful technology and advanced autonomy to users. EVO Max 4T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance. Advanced sensors enable flying in areas where GPS is unavailable, and incredible new thermal payloads unlock new object recognition and tracking scenarios. With a foldable, weather-resistant design, the EVO Max 4T is as portable as possible.

Autonomous wayfinding
Autel's Autonomy Engine collects surrounding environmental data and plans a 3D flight path through complex environments such as mountains, forests and buildings. Use cases include fast 3D scene reconstruction, public safety surveillance, industrial inspection, and land surveying.

Navigate in a GPS denied environment
Advanced sensors allow the EVO Max 4T to navigate in hardened structures, underground or in environments without GPS.

Accurate object recognition and tracking
Based on Autel's AI recognition technology, EVO Max 4T can automatically identify and lock different types of targets such as heat sources, moving people, vehicles, etc., and realize high-altitude tracking and data collection for law enforcement.

EVO Max 4T: Ultimate Obstacle Avoidance

The EVO Max 4T is the only commercial drone that combines a traditional binocular vision system with mmWave radar technology. This enables the EVO Max 4T's onboard Autel Autonomy Engine to sense objects as small as 0.5 inches, eliminating blind spots and enabling operation in low-light or rainy conditions.

View More: Autel EVO Max 4T Millimeter-wave Radar Obstacle Avoidance

EVO Max 4T: Anti Jam, Anti Interference

EVO Max 4T uses advanced flight control modules and algorithms designed to combat RFI, EMI and GPS spoofing. This enables the EVO Max 4T to confidently fly near power lines, critical structures and complex areas.

EVO Max 4T: A-Mesh 1.0

A-Mesh 1.0 - the first mesh network technology in the drone industry

EVO Max 4T features new A-Mesh system for autonomy between drones
Communicate, connect and collaborate.

Strong anti-interference
Unlike traditional chain structures, the EVO Max 4T can communicate seamlessly with other nearby drones. If a single drone fails or exits unexpectedly, the entire system will self-organize independently and continue to deliver critical information.

Beyond line-of-sight applications
With A-Mesh, multiple nearby aircraft can act as relay points, greatly improving the efficiency of BVLOS operations.

Full Fleet Control
Multiple drones can be autonomously controlled simultaneously by a single pilot or a group of pilots, with or without LTE coverage.

Enhanced range
Communication nodes can be placed statically on hills or poles to provide comprehensive coverage of an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.

EVO Max 4T: Autel SkyLink 3.0

Autel Skylink3.0 for Autel MAX 4T

Equipped with 6 antennas, 4 frequency bands, AES-256 encryption* and optional 4G integration*, the EVO Max 4T SkyLink 3.0 system provides users with the most advanced flight capabilities EVO has ever seen. EVO Max 4T can reach an image transmission distance of 12.4 miles, the real-time image quality can reach 1080p/60fps, the transmission delay is less than 150 milliseconds, and the transmission frequency band reaches 900MHz, 2.4GHz, 5.2GHz, 5.8GHz 4 frequency bands can be automatically switched.

EVO Max 4T: Multi-mission Payload

The Autel EVO Max 4T payload integrates a wide-angle camera, zoom camera, thermal imager and laser rangefinder for all data collection needs and critical decision making.

Zoom Camera: Supports 8K 10x optical zoom and 160x max. Hybrid zoom that clearly shows details on targets as far as 1.24 miles away.

Wide Angle Lens: Moonlight Agorithm 2.0 enhances post-processing to enable pilots to capture clear, detailed images in low-light environments. Video: Support 4K 30fps, maximum ISO 64000. Photo: Moonlight mode reduces noise and enhances HDR.

Thermal imager: Equipped with 640*512 high-resolution thermal imager, 30fps, 16x digital zoom.

Laser Range Finder: Tap a target to quickly get coordinates and altitude up to 0.75 miles away.

Wide Camera

Zoom Camera

Thermal Camera

Laser Rangefinder

50MP

1/1.28" CMOS

Aperture: f/1.9

DFVO: 85°

Equivalent: 23mm

48MP

8K 10x Optical Zoom

160x Max. Hybrid Zoom

Aperture: f/2.8-f/4.8

640x512

Aperture: 13mm

16x Digital Zoom

Temperature Measurement
Range: -20°C to 550°C

Measuring Range: 5 - 1200m

Measurement Accuracy: +1m

EVO Max 4T: Autel Enterprise App

Autel Enterprise App is purpose-built for industrial applications and has a brand new interface for simple and efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4T's mission capabilities.

EVO Max 4T: Smart Features Plan

3D map planning
Plan, create and execute 3D waypoint mission plans on the 3D map.
Quick task
Temporary quick tasks can be created while other tasks are in progress, and multiple subtasks can be stacked for added flexibility.
Task reproduction
After activating this feature, perform manual or semi-automatic tasks, or string multiple tasks together. The EVO Max4T will automatically record the camera angle and replicate the mission you just flew.

*These features will be available in future updates.

EVO Max 4T: Multiple mission types

The Autel Enterprise App provides planning for various autonomous and semi-autonomous missions for public safety, inspection and surveying. Autel EVO Max 4T users can achieve polygonal missions, terrain following, and rectangular missions, which will continue to be used with firmware updates.

EVO Max 4T: Data Security

Privacy protection: data related to user and aircraft information, including flight logs, location
and account information can only be physically accessed locally through the aircraft.
Encrypted Data Storage: Supports AES-256 encryption for photos, videos and flight logs,
Password protected.

EVO Max 4T: Enhanced Live View

Autel EVO MAX 4T Enhanced Live View

Multi-channel projection screen*
Support simultaneous output of RGB, infrared, night vision, and wide-angle images.
Augmented reality scene*
The geographic location data detected by ADS-B and other aircraft location information can be superimposed on the real-time map, which is convenient for users to confirm the location of the drone and avoid aerial risks.
*This feature will be available in a future update.

EVO Max 4T: Automatic SDK

Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs, and jointly create a new industry ecosystem.

Mobile SDK
Open the UX SDK (iOS%26Android) to directly call out the existing interactive interface.
Payload SDK*
Unified interface standards, support access to third-party brackets such as microphones and gas detectors.
Cloud SDK*
Realize remote live broadcast and control of drones and Nest through third-party platforms or webpages.

*This feature will be available in a future update.

Autel EVO Max 4T: Accessories

Autel Smart Controller V3

Autel Robotics Smart Controller V3 [Only Supported Aircrafts EVO II V3 Series]
Autel Smart Controller V3 is a multifunctional remote control for large drones. Autel Smart Controller V3 is suitable for Autel EVO II V3 series and is the only designated remote control for Autel EVO Max 4T.

Autel Smart Controller V3 has a large 7.9-inch screen with a maximum brightness of 2000 nits, which can be read clearly even in daylight. The resolution of the remote control can reach 2048*1536. The remote control has multiple interfaces, supports HDMI for third-party connections, can run for 4.5 hours, and has a built-in 128G storage space, allowing the download of third-party applications.

Live Deck 2 (optional)

[Pre-Order] Autel Robotics Live Deck 2 (Only Supported EVO II V3 Series)
Broadcast real-time mission intelligence to others on the move for enhanced situational awareness and critical decision-making, without requiring an LTE connection. EVO Max 4T is compatible with Live Deck 2, which provides multi-port streaming for monitors and Wi-Fi support for multiple local smartphones.
