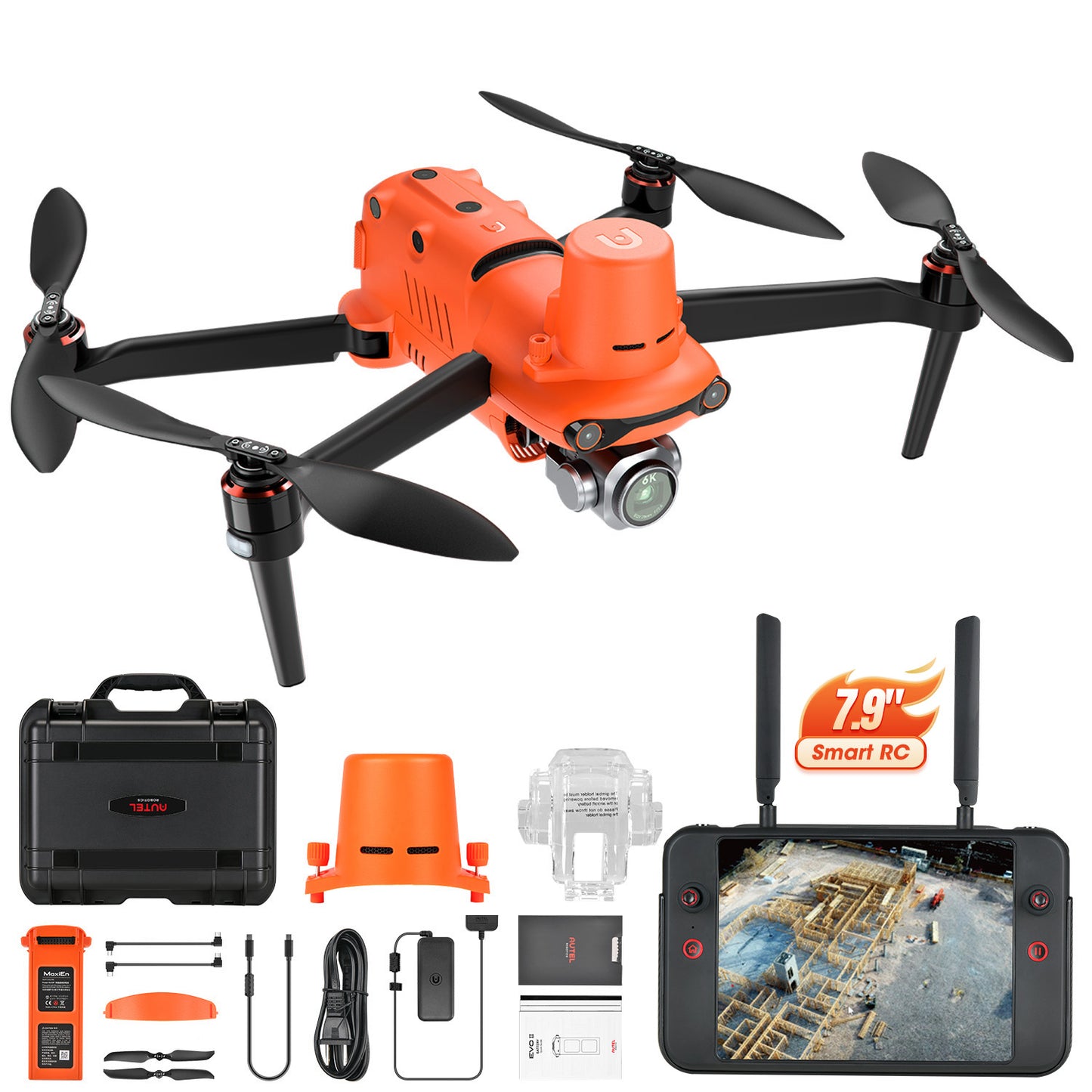

Autel Robotics EVO II Pro RTK 6K Drone Rugged Bundle With Autel 7.9" Smart Controller
Autel Robotics EVO II Pro RTK 6K Drone Rugged Bundle With Autel 7.9" Smart Controller
Fast Delivered by Mon, Dec 02 - Wed, Dec 04 Free Ship from USA
Fast, Free Shipping & No Extra Tax
30-Day Return or Replacement
12-Month Free Warranty
Lifetime Customer Support
- Overview
- Application
- Specs
- In the box
- Videos
-

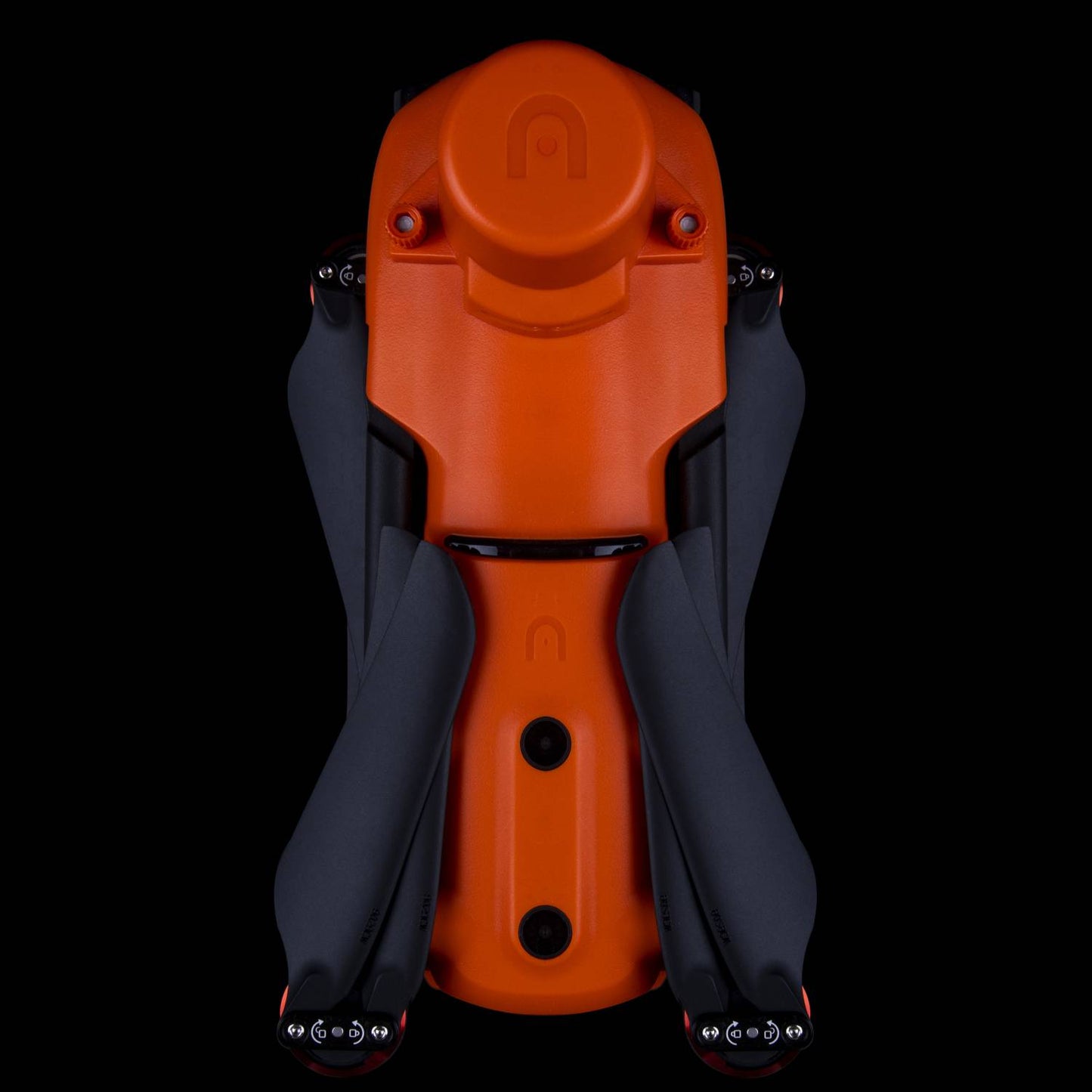

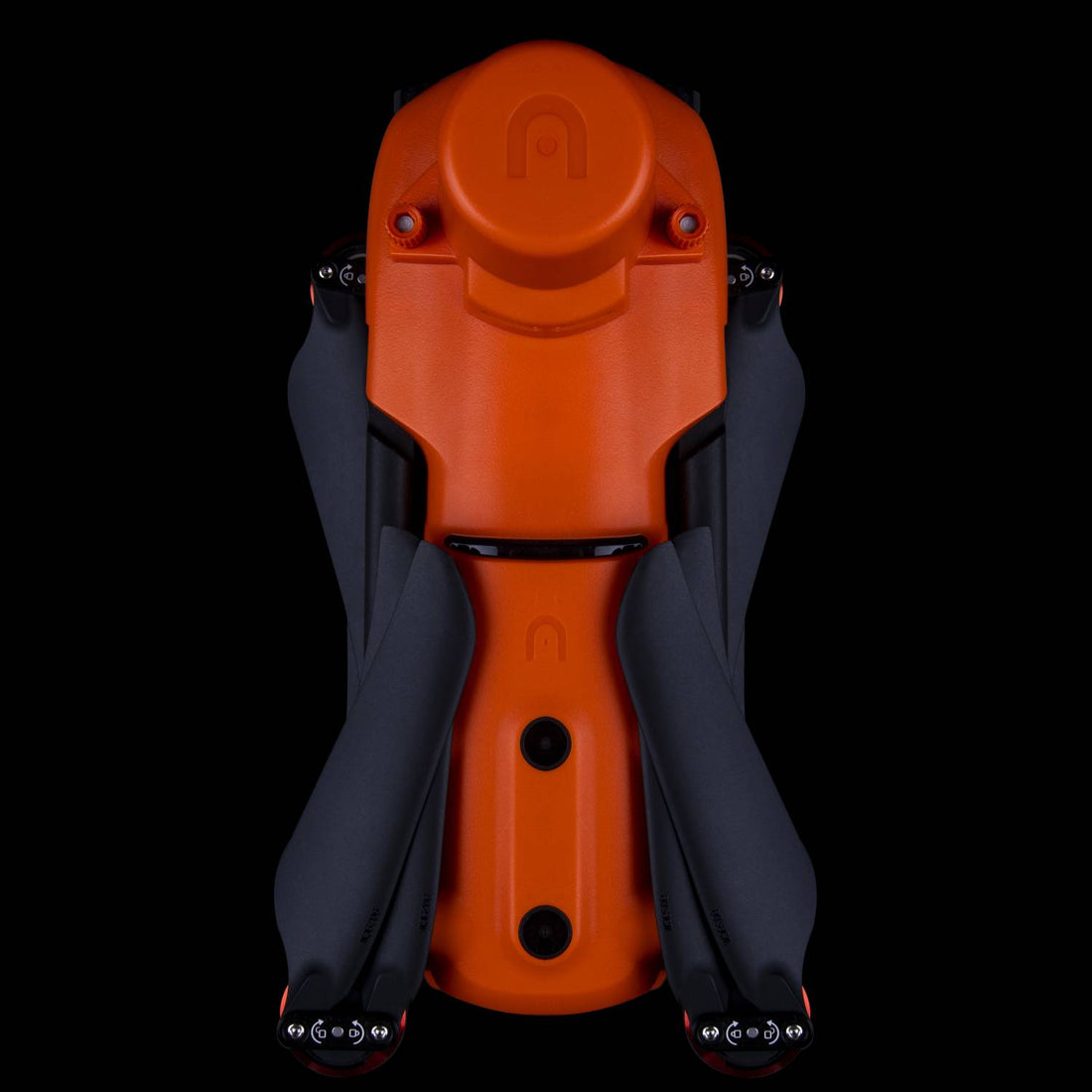

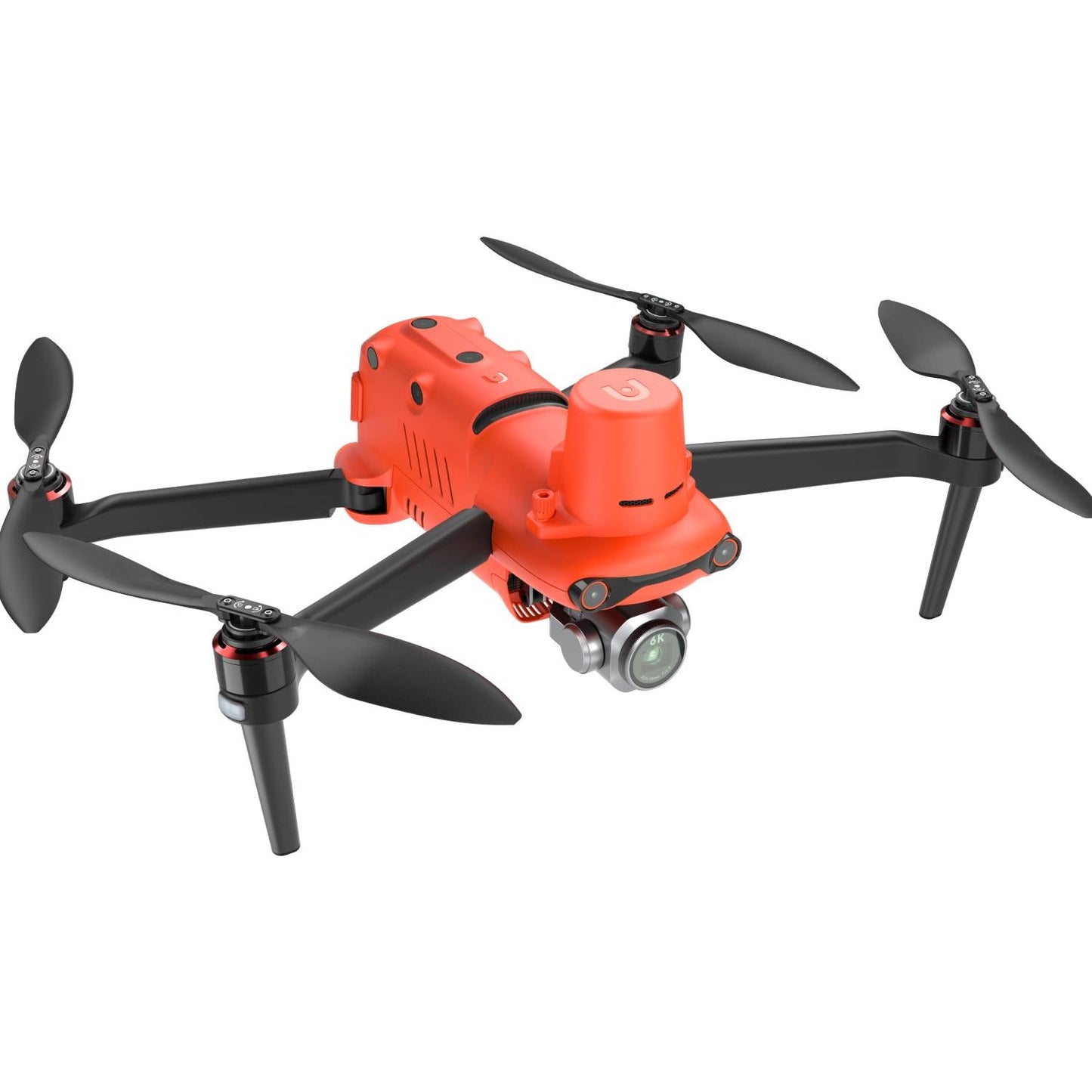

EVO II Pro RTK Drone
The Autel Robotics EVO II Pro RTK inherits all features of the original EVO II Pro drone and integrates an entirely new RTK module on top, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK).
Featured a 1-inch, 20-megapixel CMOS sensor F/2.8-F/11 aperture, and 8x zoom, EVO II Pro TRK gives you the versatility and ability to capture the best in a variety of mission scenarios.
Come with 720° omnidirectional obstacle avoidance and advanced Mission Planning, the EVO II RTK drones offer you a 9km maximum transmission range, 36 minutes flight time and can reach a top speed of up to 20m/s, making it the perfect flying companion for your daily missions.
Centimeter-Level Positioning System
The EVO II RTK series integrates an entirely new RTK module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The EVO II RTK aircraft can record the original satellite observation data, camera exposure parameters and various other data. The positioning system supports A-RTK base station and RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.
Mission Execution With Advanced Intelligence
EVO II RTK Series aircraft offer users a full range of intelligent features and solutions to suit a variety of mission needs. Using advanced flight control and the latest AI technology, the aircraft can significantly improve mission work flows and help reduce operating costs.
Creating Mission, Waypoint Flying, 720° Omnidirectional sensing & Obstacle avoidance, Photo Replication, No Need Ground Control Points, High Precision RTK/ PPK Positioning, Support A-RTK High Precision GNSS Base Station.
No Need for Ground Control Points
The EVO II RTK Series leverages a high precision RTK module, supports PPK and time synchronization, and is not limited by communication links or network coverage.
-
RTK / PPK
The Evo II RTK Series supports third party base stations with NTRIP capability
-
RTK High-precision GNSS Base Station
The EVO II RTK Series supports RTK high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point.
-
RTK / PPK
The Evo II RTK Series supports third party base stations with NTRIP capability
-
RTK High-precision GNSS Base Station
The EVO II RTK Series supports RTK high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point.
Photo Replication
For repeatable data acquisition missions, you can record the drone’s previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

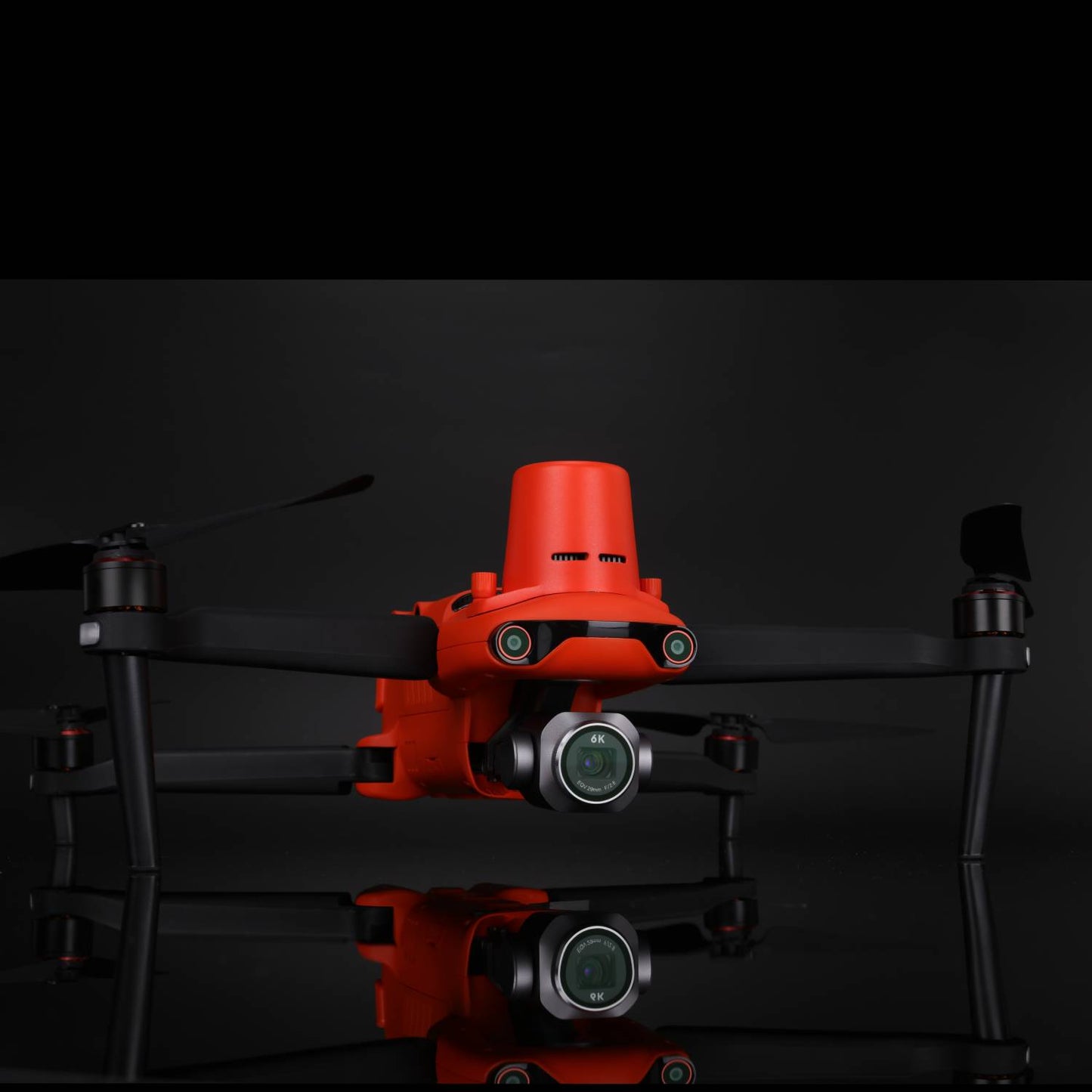

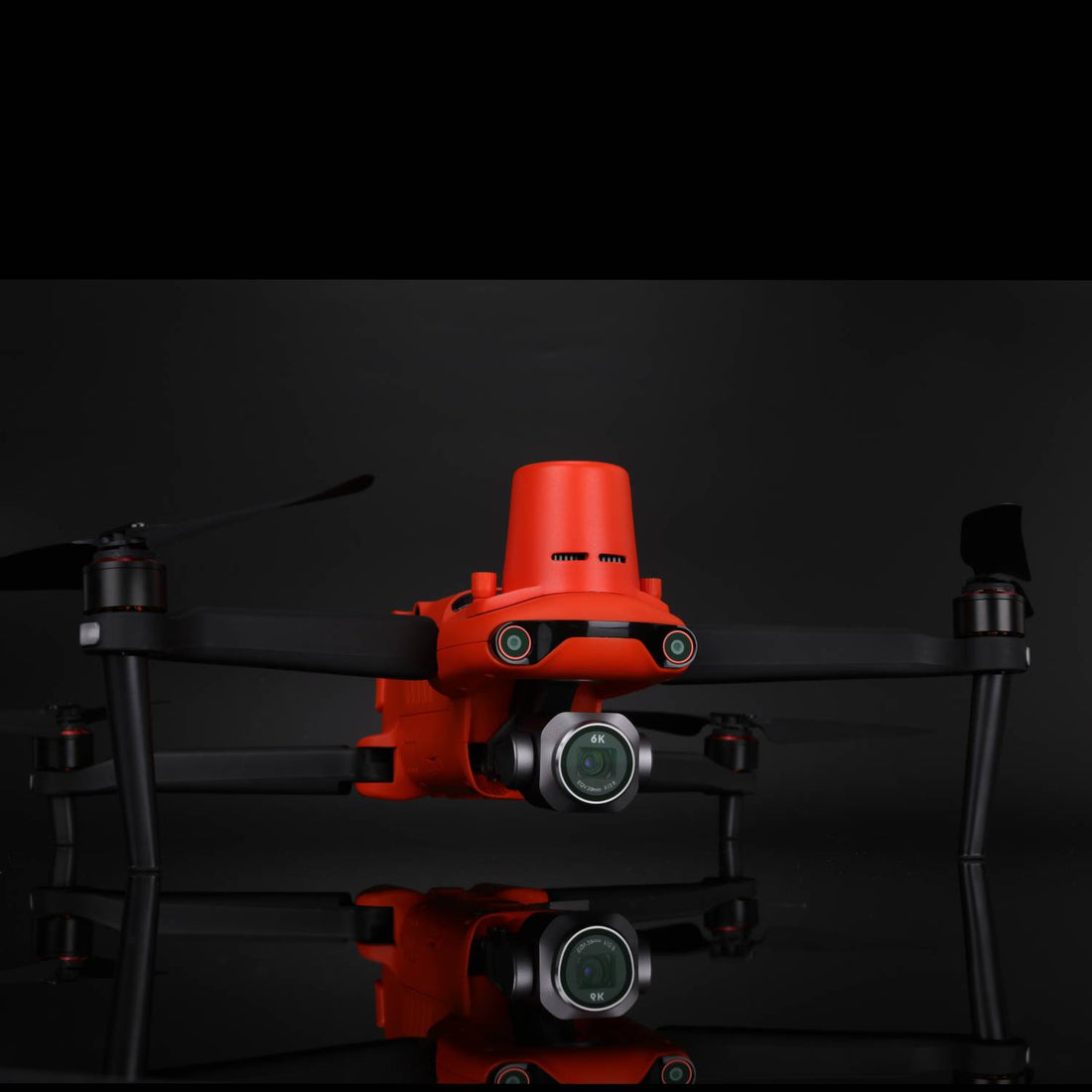

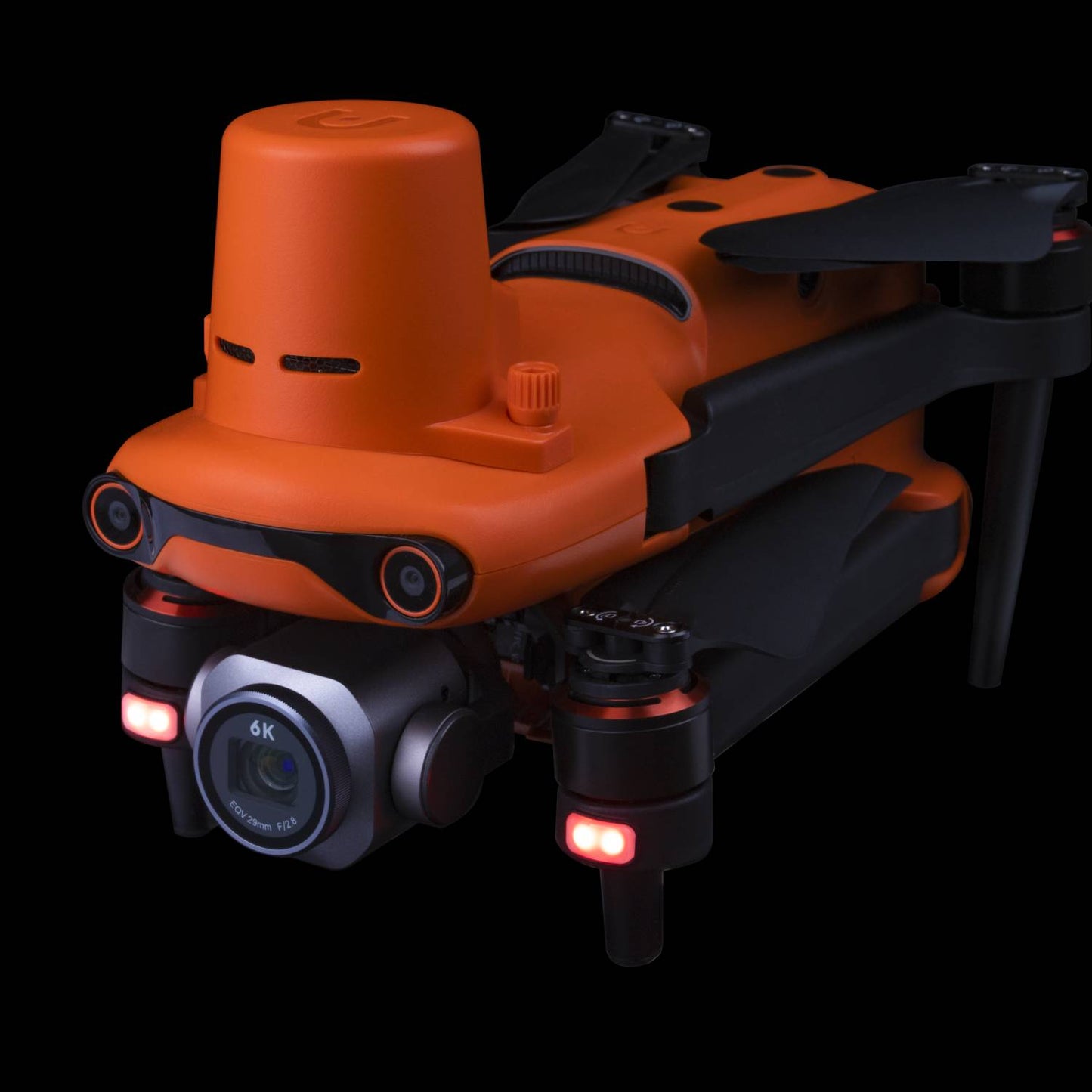

Autel EVO II Pro RTK 6K Camera
- 1″ CMOS Sensor & F/2.8-F/11 Adjustable Aperture
Autel Robotics EVO II Pro RTK 6K drone camera with 1-inch sensor captures incredibly smooth 6K Ultra HD video and 20MP photos. And An adjustable aperture from f/2.8 to f/11 giving you wide-ranging adjustment over how much light gets into the camera.
As for resolution, the 6K camera can achieve up to 5472 x 3648 in still and 6K/ 30fps, 4K/ 60fps in video. Also with a bit rate of up to 120 Mbps.
1" CMOS
Imaging Sensor
20MP
Photos Resolution
6K/30fps
HDR Video
- 6K Hyper-lapse photography and More Shooting Modes
The EVO II Pro RTK camera drone support a variety of shooting modes, including Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse (JPEG/RAW format); High-dynamic-range (HDR) imaging; HyperLight; Long exposure
- Capture the night time world
The EVO II Pro RTK camera featured Hyper-light mode for shooting in low-light conditions with 2D and 3D noise reduction smoothing motion blur and reducing noise.
- 10-bit A-Log Color Recording
This mode allows for greater flexibility in post-production for the professional photographer 10-bit allows the EVO II Pro to record up to 1 billion colors. The EVO II Pro retains rich detail in shadows and highlights, allowing greater flexibility in post-production.
- Connect Autel Live Deck to display live video from EVO II on any device
The live video from EVO 2 RTK drone can be displayed on your remote controller or connect with Autel Live Deck to display on any device including computer, TV, Ipad via USB, HDMI, Ethernet, to meet the requirements of projection monitoring and live streaming.
- Adjust field-of-view to any angle from 0° to 90° while flying
EVO II Pro RTK Drone contains a high-precision 3-axis gimbal that keeps the camera steady while the aircraft is flying, ensuring image stability and clarity. Also, You can use the remote control's gimbal pitch dial to adjust the pitch axis to any angle from 0° to 90° at any time.
- Cameras interchangeable
Autel EVO II Series Dones is one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!
EVO II - AI Enhanced Dynamic Track
EVO II Pro RTK can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.
360° Obstacle Avoidance
EVO 2 Pro RTK Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.
Multiple Intelligent Flight Modes
Autel EVO II Drone supports multiple smart Flight Modes includes Dynamic Track, Parallel Track, Tripod Track, Viewpoint, Orbit, Gesture control, VR Flight, Waypoint and more.

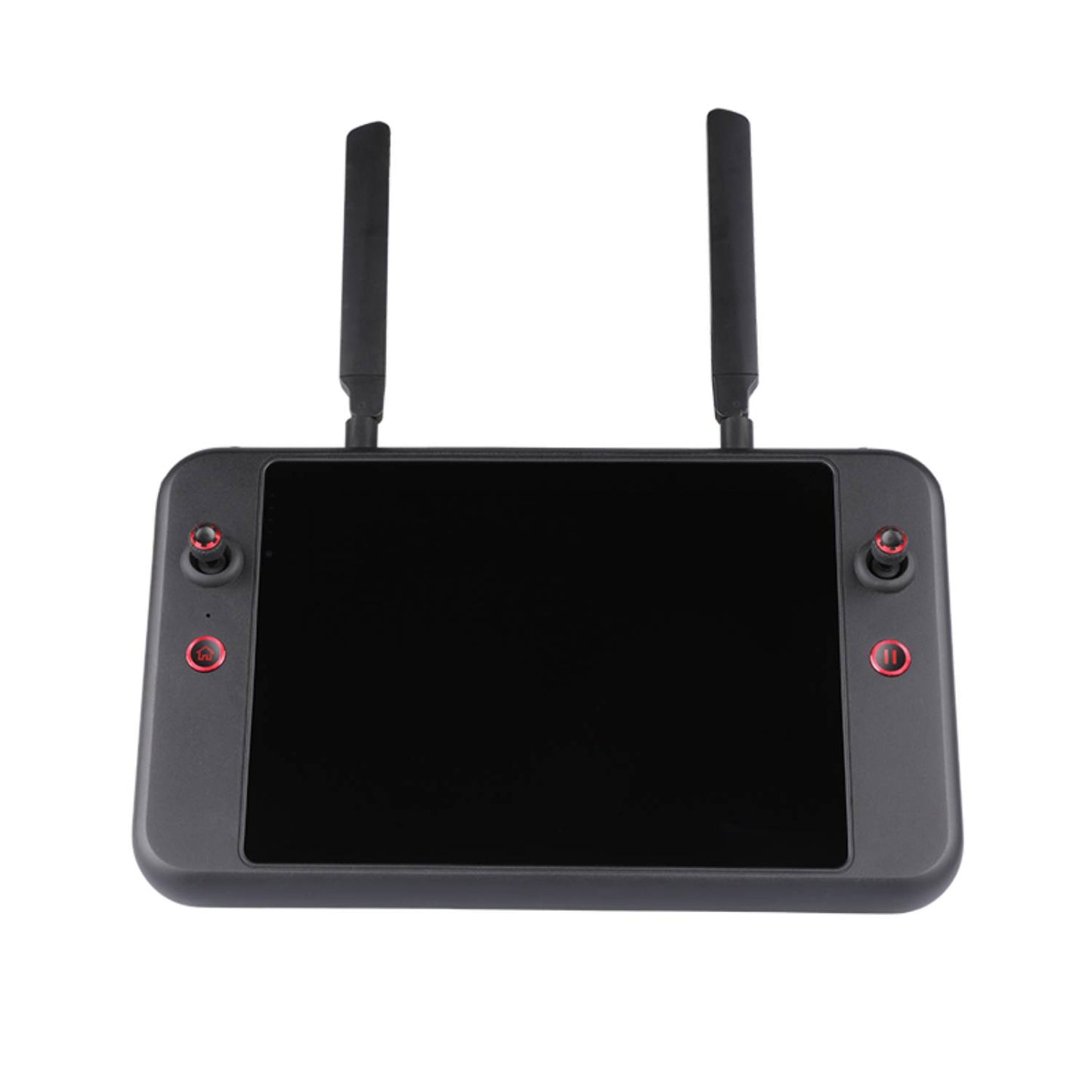

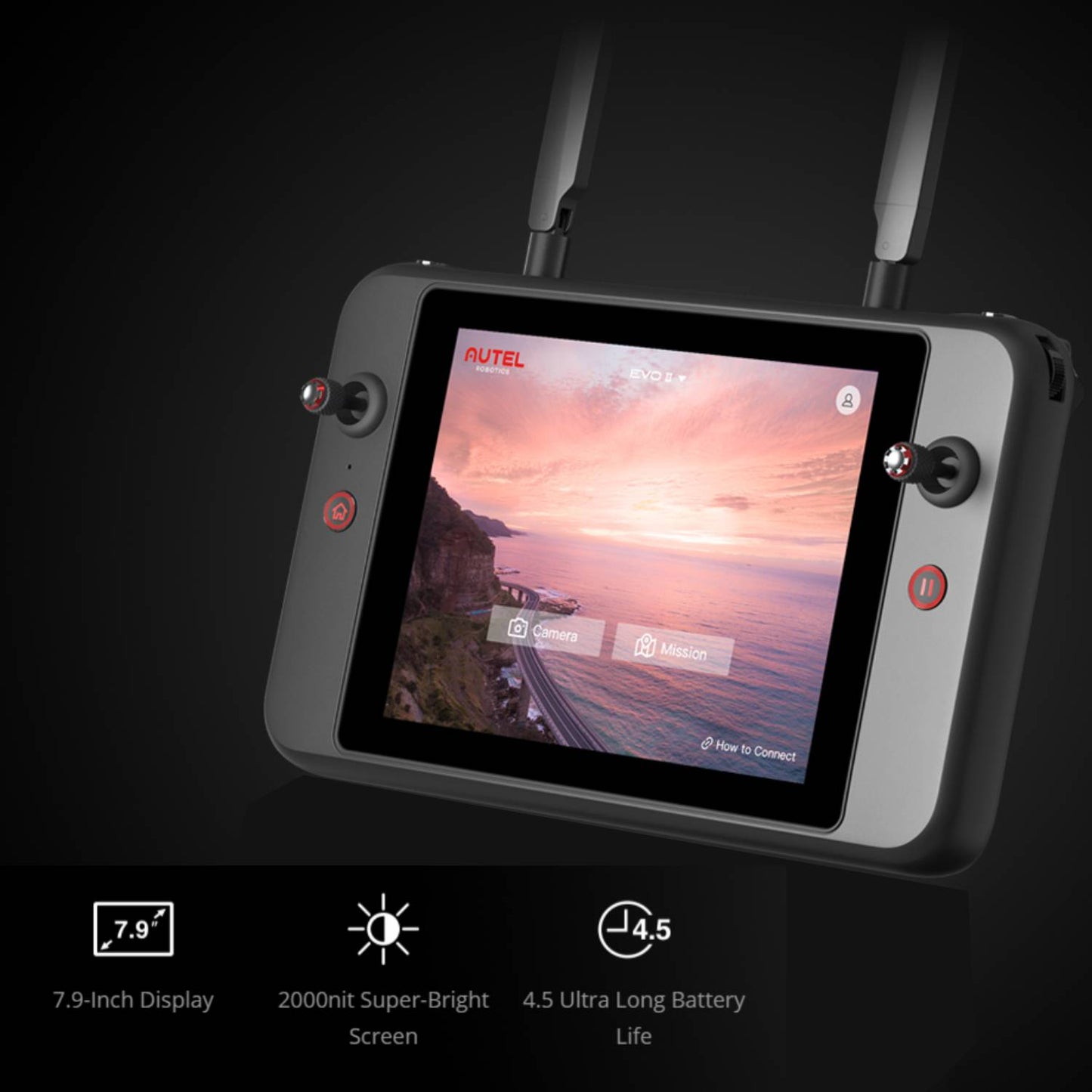

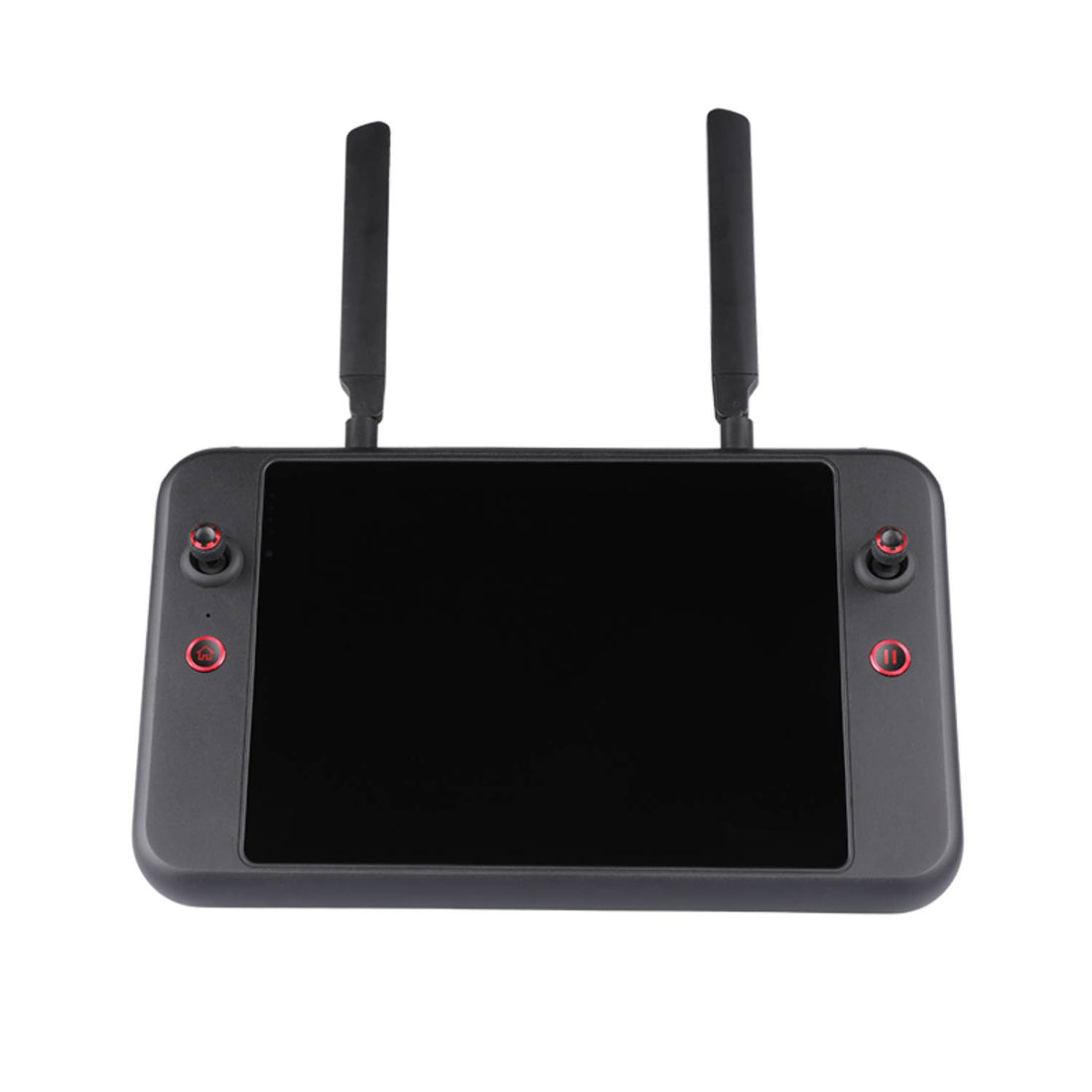

Enterprise Smart Controller
All EVO II Enterprise Bundles are equipped with Autel's 7.9" 2000-nit Smart Controller for maximum viewing when operating.
Learn More>> 7.9" Autel Smart Controller
Failsafe & Automatically Return Home
EVO 2 Pro RTK will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.

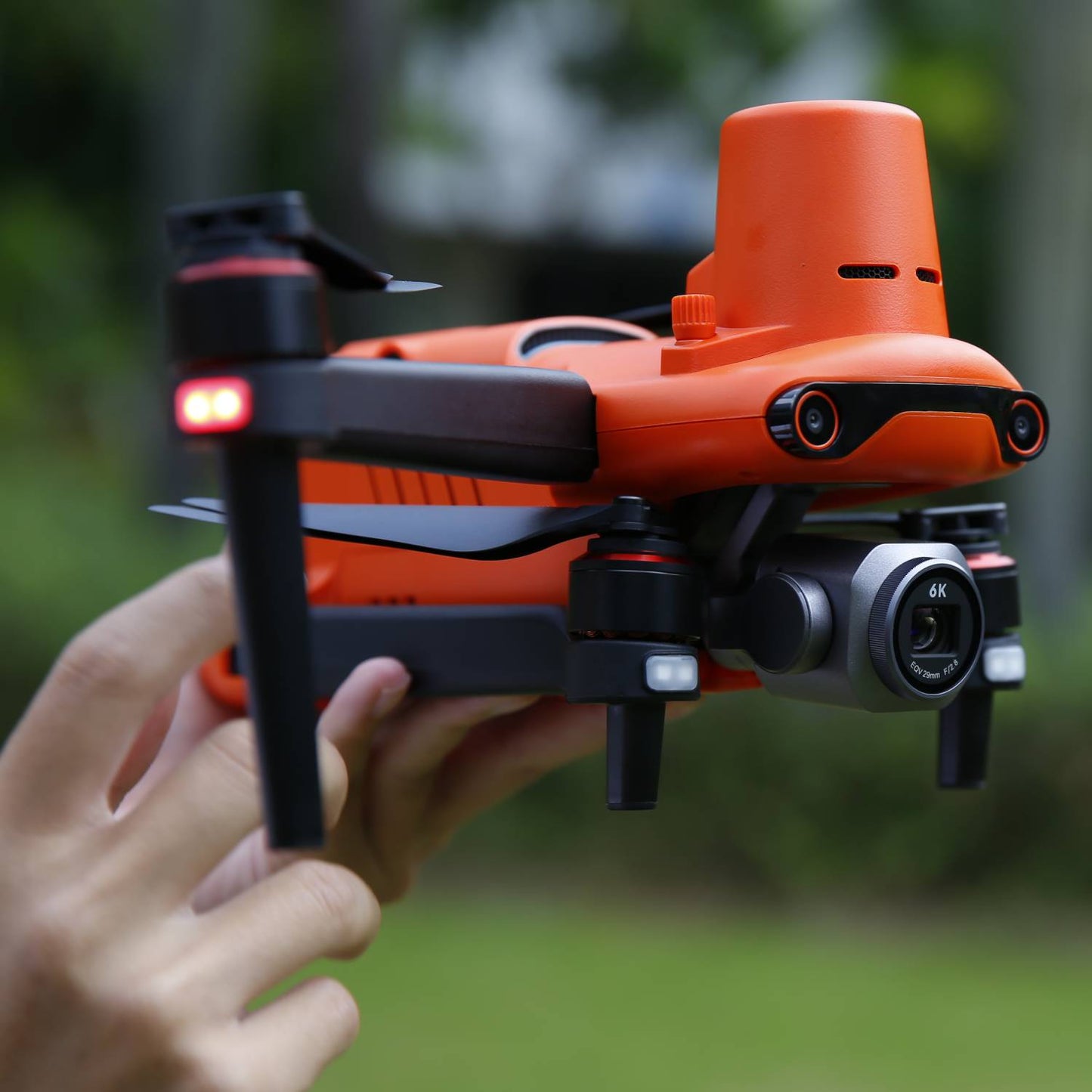

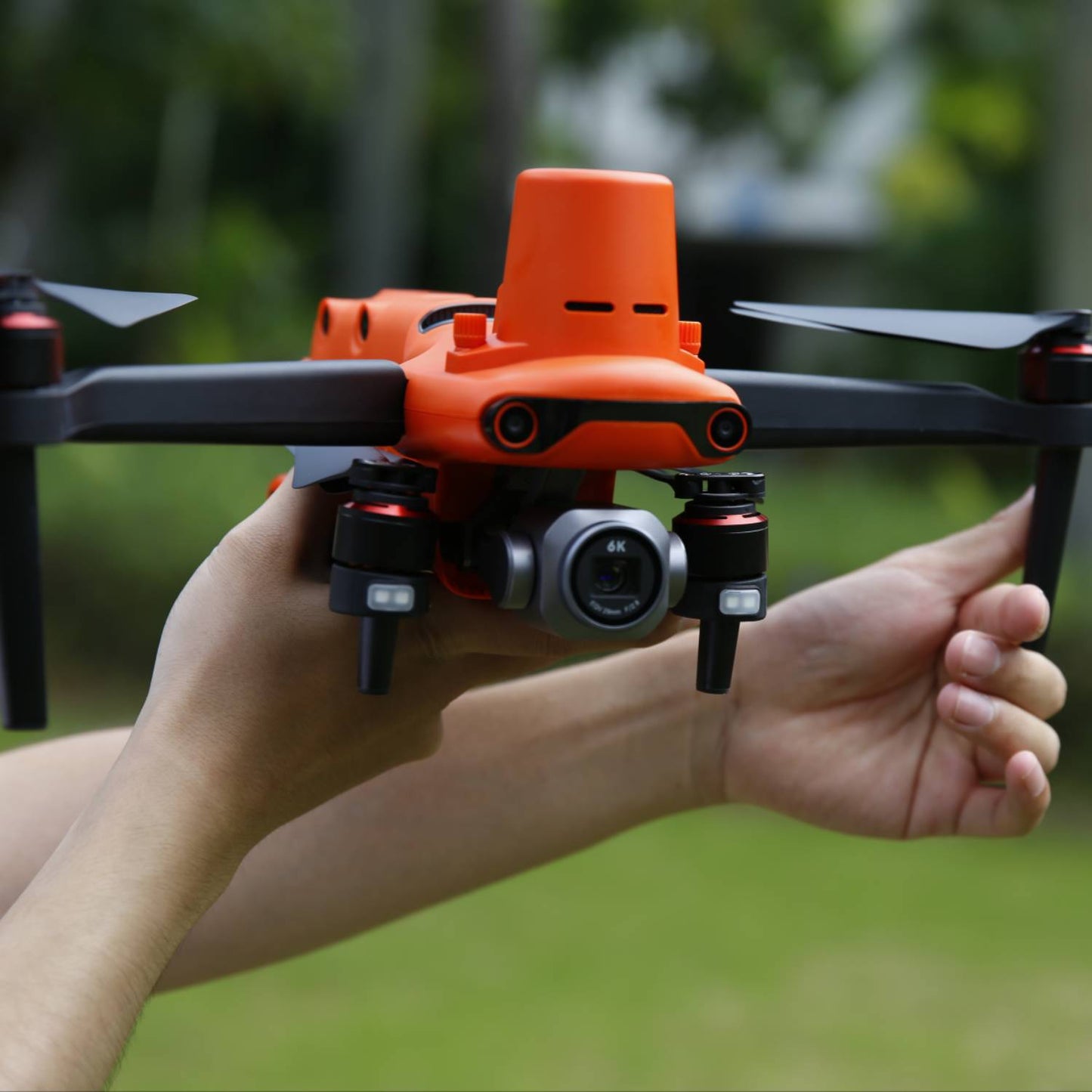

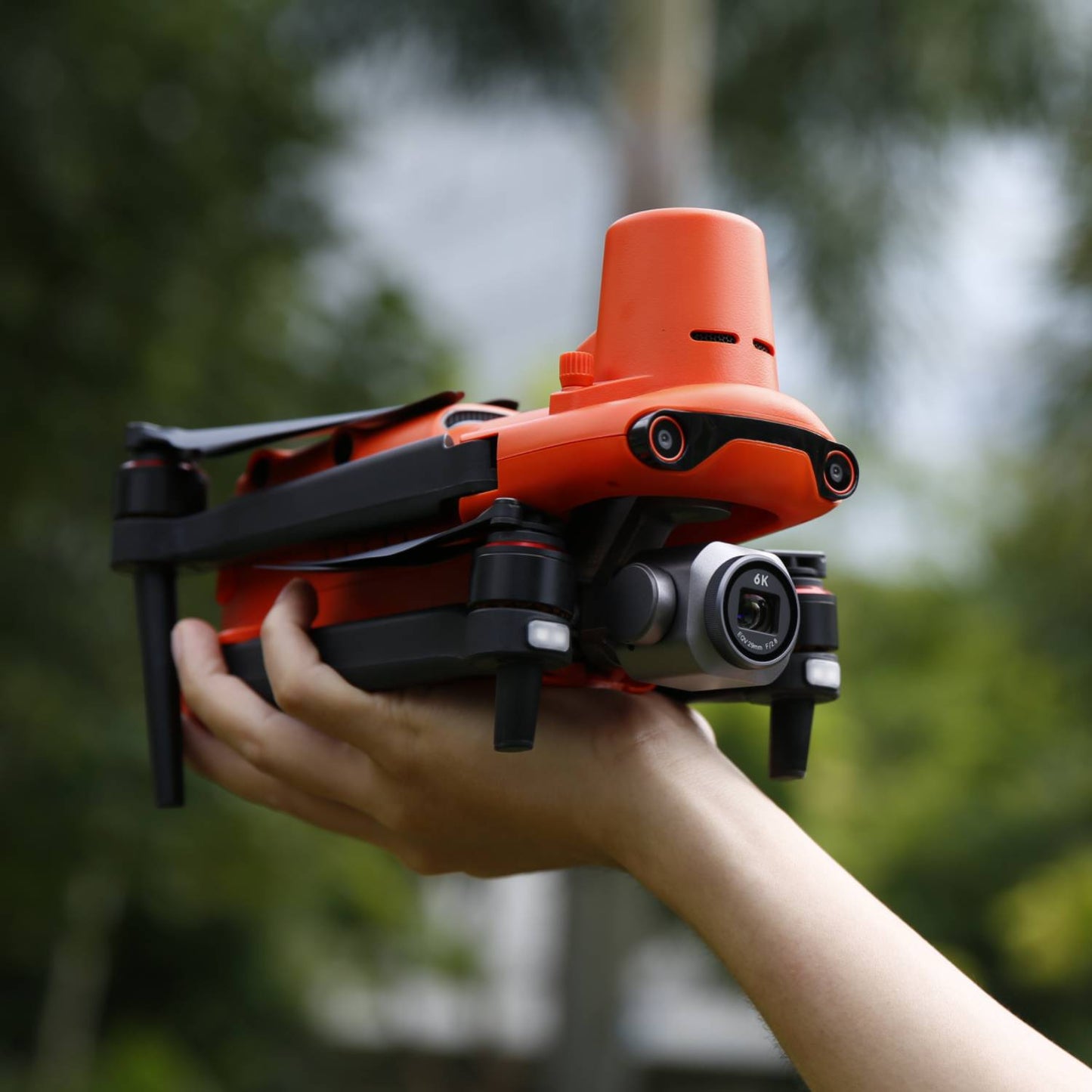

Light, Efficient And Reliable
The EVO II RTK series inherits the foldable design of the original EVO II series, making it compact, light, portable and ready to fly in just a matter of seconds. The powerful flight performance gives you a more efficient and stable flight, even in harsh conditions. Alongside a 9km maximum transmission range, the aircraft offers a flight time of up to 36 minutes and can reach a top speed of up to 20m/s, making it the perfect flying companion for your daily missions
-
-
Autel EVO II RTK Series Application Field
-
Camera Gimbal Aircraft Obstacle Avoidance Remote Controller and Image Transmission Battery Camera Gimbal Aircraft Obstacle Avoidance Remote Controller and Image Transmission Battery EVO II Pro RTK Camera Specifications
Sensor 1" CMOS
Effective Pixels: 20 MP
Performance temperature: -10~60°CLens FOV: about 82°
35mm Format Equivalent: 28.6 mm @ f/2.8
Aperture: f/2.8–f/11
Focus range: 1m to infinity (with auto focus)ISO Range Video: 100-6400
Photos: 100-12800"Shutter Speed Electronic Shutter: 8 ~ 1/8000s Digital Zoom 1 - 8 times Photo Mode Single shot;
Continuous shooting (AEB/Burst): 3, 5, 3 by default;
Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S;
Pure night shot: support 4K Jpeg;
HDR: Support 4K Jpeg;
Long exposure: up to 8s;Photo Resolution 5472x3648 (3:2)
5472x3076 (16:9)
3840x2160 (16:9)Photo Format JPG(default); DNG Video Resolution 6K 5472x3076 p30/p25/p24
5K 4800x2700 p60/p50/p48/p30/p25/p24
4K 3840x2160 p60/p50/p48/p30/p25/p24
2.7K 2720x1528 p120/p60/p50/p48/p30/p25/p24
1080P 1920x1080 p120/p60/p50/p48/p30/p25/p24Effective Frame 5472×3648 Video Format MOV(default); MP4 Codecs H.264 / H.265 Max Video Bitrate 120Mbps Support File System FAT32(≤ 32 GB)
exFAT(> 32 GB)Support Memory Card Type Class4 / Class10 / U3
Capacity：4G / 8G / 16G / 32G / 128GGimbal
Gimbal Three-axis stabilization Mechanical Range Tilt: -135° to +45°
Heading: -100° to +100°Controllable Range Tilt: -120° to +30°
Heading: -90° to +90°
Maximum Control Speed (Tilt) 300°/s Angle Jitter ±0.005° Aircraft
Weight (with propeller and battery) 1237g±0.5g Wheelbase 397 mm Maximum Take-off Altitude 6000 m Max Ascent Speed 5 m/s（automatic flight）
8 m/s（manual control）Max Descent Speed 4 m/s Max Horizontal Flight Speed 72 km/h（positioning mode） Max Tilt Angle 33°（positioning mode） Max Angular Velocity 120°/s Max Flight Time 36 minutes Operating Temperature Range 0℃ to 40℃ Maximum Resistance to Wind 39-46 mph (Level 8) Operating Frequency 2.400 GHz to 2.4835 GHz Transmission Power (2.4G) FCC：≤26 dBm
ISED：≤26 dBm
CE：≤20 dBm
RCM：≤20 dBm
SRRC：≤20dBmHovering Accuracy When RTK is enabled and working normally:
Vertical: ±0.1 m; Horizontal: ±0.1 m
RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally);
±0.5 m (when GNSS positioning works normally) Level: ±0.3 m (when the visual positioning is working normally);
±1.5 m (when GNSS positioning works normally)Image Position Compensation The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF ​​coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively. Sensing System (Obstacle Avoidance)
Sensing System Omnidirectional Obstacle Sensing Forward Precision Measurement Range: 0.5-20 m
Detectable Range: 0.5-40m
Effective Sensing Speed: <15m/s
FOV: Horizontal: 60°, Vertical: 80°Backward Precision Measurement Range: 0.5-16 m
Detectable Range: 0.5-32m
Effective Sensing Speed: <12m/s
FOV: Horizontal: 60°, Vertical: 80°Upward Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 60°, Vertical: 50°Downward Precision Measurement Range: 0.5-11 m
Detectable Range: 0.5-22m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 90°, Vertical: 70°Sides Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <10m/s
FOV: Horizontal: 60°, Vertical: 50°Operating Environment Above: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground has rich textures and sufficient lighting conditions (> 15 lux, indoor fluorescent lamp is normally irradiated by the environment); the surface is made of diffuse reflective material and the reflectivity is> 20% (such as walls, trees, people, etc.) Remote Controller and Image Transmission
Operating Frequency 2.400 GHz to 2.4835 GHz Max Transmission Distance FCC：9 km（without interference or obstruction）
CE：5 km（without interference or obstruction）Real-time Image Transmission Quality 720p@30fps / 1080p@30fps Maximum Bit Rate of Real-time Image Transmission 40Mbps Transmission Power (2.4G) FCC：≤26 dBm
ISED：≤26 dBm
CE：≤20 dBm
RCM：≤20 dBm
SRRC：≤20dBmDisplay screen 3.26" OLED
854（W） * 480（H）Pixel
Directly preview the video without connecting a mobile phoneRemote Controller Battery 5000mAh Run Time 3 hours Charging Time 2 hours fast charge Supported Mobile Device Size Max Length: 3.30" (84mm)
Max Thickness: 0.51" (13mm)Supported USB Port Types Lightning, Micro USB (Type-B), USB-C Working current/voltage 1.7A@3.7V Intelligent Flight Battery
Capacity 7100 mAh Voltage 11.55 V Max Charging Voltage 13.2 V Battery Type LiPo 3S Energy 82 Wh Net Weight 0.81 lbs (365 grams) Charging Temperature Range 41°F to 104°F (5°C to 40°C) Storage Temperature and Humidity -10~30℃，65±20%RH Recommended Storage Temperature 22-28℃ Max Charging Power 93W Charging Time 90 minutes Intelligent Flight Battery Manager
Voltage 13.2 V Charging Temperature Range 5℃ to 45℃ Charger
Input 100-240 V, 50/60 Hz, 1.5A Output 13.2 V = 5 A 5V=3A 9V=2A 12V=1.5A Voltage 13.2±0.1V Rated Power 66W -
