Autel Robotics Live Deck 2 (Only Supported EVO II V3 Series/NOT support Max series now)
Autel Robotics Live Deck 2 (Only Supported EVO II V3 Series/NOT support Max series now)
- 1080P/60FPS Video Stream
- Three Auto-Switch Bands
- 7.5 Miles Transmission Range
- 5-Hour Battery Life
- IP 43 Resistance
- Working Frequencies | 2.4GHz/5.8GHz/900MHz
Fast Delivered by Sat, Dec 28 - Mon, Dec 30 Free Ship from USA
Fast, Free Shipping & No Extra Tax
30-Day Return or Replacement
12-Month Free Warranty
Lifetime Customer Support
- Overview
- SPECS
- In the box
- Videos
- Documents
-
Broadcast with Live Deck 2
Transmit real-time HD video to a wide-variety of devices, allowing cross-departmental teams enhanced situational awareness and communication which can lead to quicker and better decision making.(Support all EVO II V3 drones.)
-
1080P/60FPS Video Stream -
7.5 Miles Transmission Range -
Three Auto-Switch Bands -
IP43 Resistance
-
1080P/60FPS Video Stream -
7.5 Miles Transmission Range -
Three Auto-Switch Bands -
IP43 Resistance
Multi-Band Strong Transmission
Based on the SkyLink 2.0 image transmission system, Live Deck 2 can communicate with aircraft via 2.4GHz/5.8GHz/900MHz working frequencies. Adopted with a three-in-one antenna, the performance of the transmission, anti-EMI, low latency have improved greatly.
- Advanced Signal
Anti-Interference System - Do not let interference hinder your mission success. SkyLink 2.0 provides an updated and advanced anti-interference capability with its advanced algorithms and frequency hopping, you can always obtain consistent information with uninterrupted operation/workflow in difficult working environments.
-
- 2.4GHz
- 5.8GHz
- 900Mhz
- * 900MHz working frequency is only applicable for FCC countries.
Multi-Band Strong Transmission
Based on the SkyLink 2.0 image transmission system, Live Deck 2 can communicate with aircraft via 2.4GHz/5.8GHz/900MHz working frequencies. Adopted with a three-in-one antenna, the performance of the transmission, anti-EMI, low latency have improved greatly.
Multi-Band Strong Transmission
Do not let interference hinder your mission success. SkyLink 2.0 provides an updated and advanced anti-interference capability with its advanced algorithms and frequency hopping, you can always obtain consistent information with uninterrupted operation/workflow in difficult working environments.
- 2.4GHz
- 5.8GHz
- 900Mhz
* 900MHz working frequency is only applicable for FCC countries.
-
Connect with Multiple Phones
The Live Deck 2 can offer HD video streams up to 4 additional phones for advanced mission flexibility by Wi-Fi. No longer do you need a TV in the back of the squad car to broadcast the drone view.
-
Informational Security
The Live Deck 2 is a closed loop system. There are no servers, no external connection points. This provides maximum security over online options.
-
Buy, Set, and Forget
No accounts or subscription needed. Simply turn on the Live Deck 2 and match it with your EVO II V3 within a minute and enjoy the compatibility for good.
-
No Internet Needed
The Live Deck 2 does not need cell service. Can be operated with your V3 drone offline in remote areas.
-
Connect with Multiple Phones
The Live Deck 2 can offer HD video streams up to 4 additional phones for advanced mission flexibility by Wi-Fi. No longer do you need a TV in the back of the squad car to broadcast the drone view.
-
Informational Security
The Live Deck 2 is a closed loop system. There are no servers, no external connection points. This provides maximum security over online options.
-
Buy, Set, and Forget
No accounts or subscription needed. Simply turn on the Live Deck 2 and match it with your EVO II V3 within a minute and enjoy the compatibility for good.
-
No Internet Needed
The Live Deck 2 does not need cell service. Can be operated with your V3 drone offline in remote areas.
Stream Anywhere
The Live Deck 2 supports multiple video output options, including HDMI, Wi-Fi *, and Ethernet, enabling users to view clear visuals to the device of their choosing.
5-Hour Battery Life
Powered by a 6200mAh lithium battery, Live Deck 2 can run for up to 5 hours on a single charge. Once depleted, juice up anywhere using the micro USB port or a portable battery pack.
-
-
Weight 424.5g Dimensions 152*111*23.2mm (antennas folded) 223.9*152*23.3mm (antennas unfolded) Ingress Protection IP43 Operating Frequency 902-928MHz(FCC) 2.400-2.4835GHz 5.725-5.850GHz(Non-Japan) 5.650-5.755GHz(Japan Only) Transmitter Power (EIRP) 900MHz: FCC《33dBm 2.4GHz: FCC/NCC《=33dBm; CE/MIC/SRRC/KC《=20dBm 5.8GHz/5.7GHz: FCC/SRRC/NCC《=33dBm; KC《=20dBm; CE《=14dBm Max Transmission Distance (unobstructed, free of interference) 12km Operating time 5h Operating Current/Voltage 1.3A/3.85V (not connected to smartphone) Battery Type Li-Po Battery Capacity 6200mAh Rated Power 5 W Operating Temperature 14°F~104°F (-10°C~40°C) Operating Humidity 95%RH HDMI 1080p@60 fps Ethernet 100M Supported Aircrafts EVO II Pro V3 EVO II Dual 640T V3 EVO II RTK Series V3 EVO II Enterprise V3 -

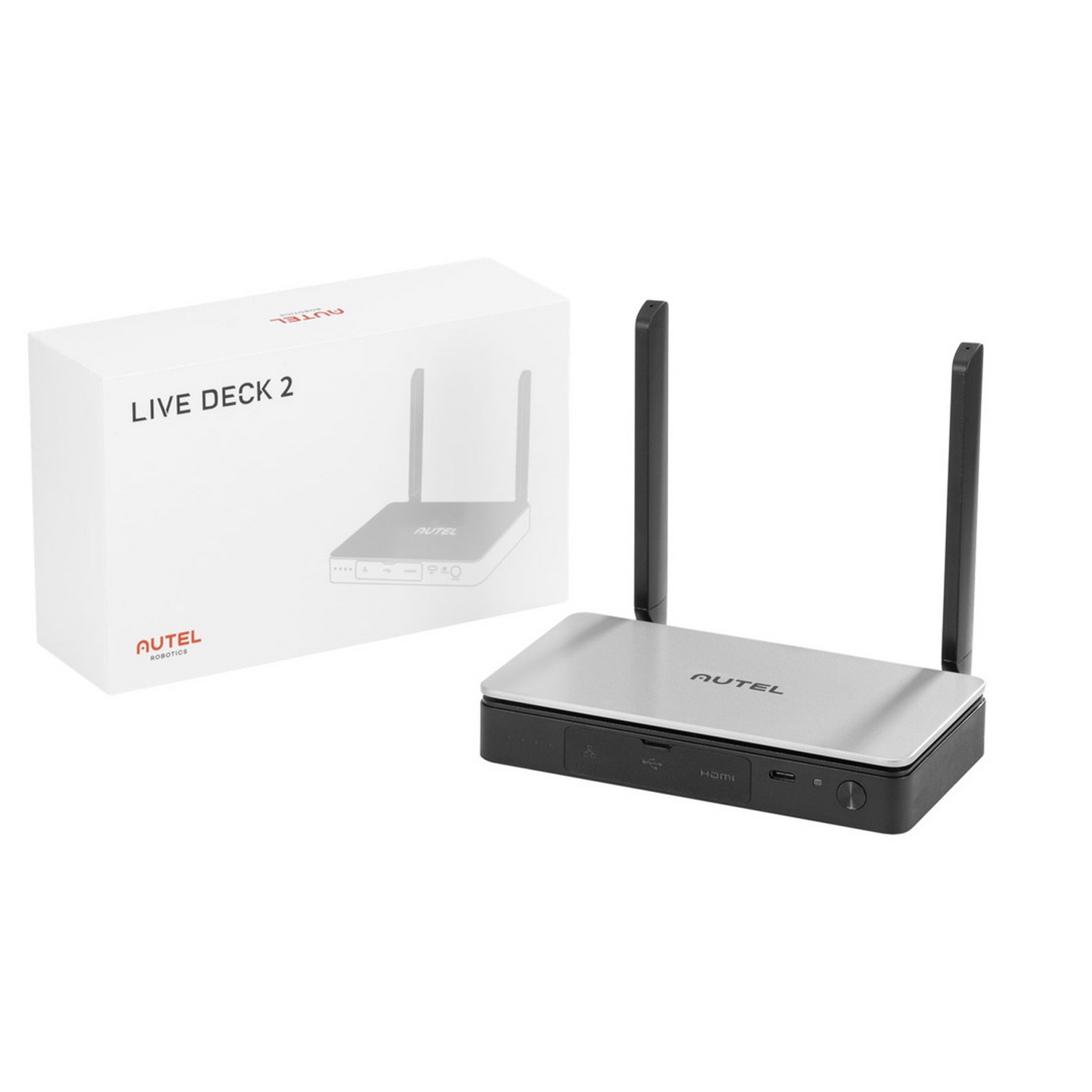

Autel Live Deck 2 Package List
- Live Deck 2
- Pair of SMA Threaded Antennas
-
*If you need certification from other countries or regions, please contact us.
