Autel Robotics EVO II Dual 640T RTK V3 Thermal Drone Enterprise Bundle
Autel Robotics EVO II Dual 640T RTK V3 Thermal Drone Enterprise Bundle
- Remote ID Updated
- 7.9" Smart Controller V3
- 15km Image Transmission
- SkyLink 2.0
- 50MP Picture/0.8" CMOS Sensor
- 640*512 Thermal Imaging Resolution
- 10 Thermal Color Palettes
- 360° Obstacle Avoidance
- Dynamic Track 2.1
- ADS-B Signal Receiver
- 38 Mins Flight Time
Fast Delivered by Wed, Dec 25 - Fri, Dec 27 Free Ship from USA
Fast, Free Shipping & No Extra Tax
30-Day Return or Replacement
12-Month Free Warranty
Lifetime Customer Support
- Overview
- specification
- package
- Documents
-
EVO II Dual 640T V3
Autel EVO 2 Dual 640T V3 infrared drone ias an industry-first drone combining infrared imaging camera with 8K video camera. With thermal resolution up to 640x512 and an 8k sensor EVO 2 becomes a workhorse. First responders, contractors, and business owners finally have a compact and portable tool that gives them the data they have been asking for.
-
Dual Camera
Thermal | Visual Camera -
Thermal Camera
640*512 Resolution -
50MP
Picture -
15km
Transmission Range -
360°
Obstacle Avoidance -
Carbon Fiber
Arms -
38 Minutes
Flight Time -
7.9"
Smart Controller V3
-
Dual Camera
Thermal | Visual Camera -
Thermal Camera
640*512 Resolution -
50MP
Pictures -
15km
Transmission Range -
360°
Obstacle Avoidance -
Carbon Fiber
Arms -
38 Minutes
Flight Time -
7.9"
Smart Controller V3
Thermal Drone
Equipped with a 640 x 512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, Autel 640T V3 is easier than ever to observe distant targets. The system uses a new image processing algorithm, making thermal details clearer and more discernible than other options with similar resolution and hardware..
-
-
640*512 High Resolution
The EVO II 640T infrared camera is equipped with a high-resolution 640*512 infrared sensor, allowing for exceptional pixel density to capture more details and thermal information.
-
16x Digital Zoom
EVO II 640T infrared camera boasts a powerful 16x digital zoom capability, enabling users to magnify details without getting close to the target.
-
13mm focal length lens
This well-chosen focal length strikes a balance between target size and detail clarity, allowing users to obtain satisfactory infrared images in different application scenarios.
-
-
-
640*512 High Resolution
The EVO II 640T infrared camera is equipped with a high-resolution 640*512 infrared sensor, allowing for exceptional pixel density to capture more details and thermal information.
-
16x Digital Zoom
EVO II 640T infrared camera boasts a powerful 16x digital zoom capability, enabling users to magnify details without getting close to the target.
-
13mm focal length lens
This well-chosen focal length strikes a balance between target size and detail clarity, allowing users to obtain satisfactory infrared images in different application scenarios.
DRI Ranges
See a specific subject's identity, activity, or personal items.
Multiple Temperature Measurement Modes
-
-
Central, Spot, And Regional Temperature Measurement
EVO II 640T V3 Central temperature measurement: View real-time display of the temperature in the center area of the screen. Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time. Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
-
-
Temperature Alarm And Image Enhancement
Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold. Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified. Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.
-
-
-
10 Thermal Color Palettes
White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation |Heat Detection
-
-
Picture-in-Picture Display Mode
Visual and thermal imagery of 640T V3 are combined to help users quickly interpret data and aid in critical decision making.
-
-
-
Powerful Infrared Thermal Analysis Tool
IRPC TOOL: This free temperature measurement analysis tool is developed specifically for the 640T Series, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.
-
-
Central, Spot, And Regional Temperature Measurement
Central temperature measurement: View real-time display of the temperature in the center area of the screen. Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time. Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
-
-
10 Thermal Color Palettes
White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation |Heat Detection
-
-
Picture-in-Picture Display Mode
Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision making.
-
-
Temperature Alarm With Isotherm And Image Enhancement
Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold. Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified. Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.
-
-
Powerful Infrared Thermal Analysis Tool
IRPC TOOL: This free temperature measurement analysis tool is developed specifically for the 640T, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.
50MP Ultra-Sensitive Camera
The EVO II Dual 640T V3's RYYB sensor features the Moonlight Algorithm 2.0 that provides excellent noise reduction in limited lighting conditions, further enhancing its 50 megapixel camera to give users more detail for better forensics and analysis.
-
-
0.8" Sensor Size
The EVO II Dual 640T V3's 0.8" RYYB CMOS offers up to 144%~233% more surface area when compared to 1/2" or 1/2.3" competitors for maximum details in high-contrast lighting conditions.
-
RYYB Sensor Technology
RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.
-
PDAF+CDAF Autofocus System
Never lose sights of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.
-
-
-
0.8" Sensor Size
The EVO II Dual 640T V3's 0.8" RYYB CMOS offers up to 144%~233% more surface area when compared to 1/2" or 1/2.3" competitors for maximum details in high-contrast lighting conditions.
-
RYYB Sensor Technology
RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.
-
PDAF+CDAF Autofocus System
Never lose sights of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.
-
-
-
Get The Full Scene
The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely.providing long-distance image acquisition and detailed insig
-
-
4K HDR for Greater Dynamic Range
4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.
-
-
Get The Full Scene
The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely.
-
-
4K HDR for Greater Dynamic Range
4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.
360° Obstacle Avoidance
Autel Robotics EVO II Dual 640T V3 is equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.
Practical and Convenience Features
-
Deploy Rapidly
Deploy in under a minute. The EVO II 640T V3 can go from its case to the air in 45 seconds.
-
No Fly Zones*
EVO II Dual 640T V3 does not have any no fly zones and will not prevent the pilot from taking off.
-
No Forced Updates**
EVO 2 Dual 640T V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.
-
Non-ITAR
More export freedoms as the EVO II Dual 640T V3 is not under US's International Traffic in Arms Regulations.
-
Deploy Rapidly
Deploy in under a minute. The EVO II 640T V3 can go from its case to the air in 45 seconds.
-
No Fly Zones*
EVO II Dual 640T V3 does not have any no fly zones and will not prevent the pilot from taking off.
-
No Forced Updates
EVO 2 Dual 640T V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.
-
Non-ITAR
More export freedoms as the EVO II Dual 640T V3 is not under US's International Traffic in Arms Regulations|Traffic in Arms Regulations.
*Please fly safely and consult your local laws and regulations. Autel Robotics is not liable for any unauthorized flights.
**It’s required to update the latest firmware and app to enjoy comprehensive warranty. More information please refer to warranty policy.
Industry Leading Performance
-
38 minutes
Maximum Flight Time
-
9.3 miles (15km)
Maximum Transmission Range
-
27 mph (12m/s)
Maximum Flight Speed
-
45 mph (20m/s)
Maximum Flight Speed
-
2 lbs (920g)
Maximum Lift Capability
-
38 minutes
Maximum Flight Time
-
9.3 miles (15km)
Maximum Transmission Range
-
27 mph (12m/s)
Maximum Flight Speed
-
45 mph (20m/s)
Maximum Flight Speed
-
2 lbs
(920g)Maximum Lift Capability
Autel SkyLink 2.0 Video Transmission
SkyLink 2.0 is built into the EVO II Dual 640T V3 chipset, expanding the possibilities for your most critical workflows.
-
9+ Miles Do more because you can fly further away
-
QHD Incredible video resolution within a mile, meeting most common use cases.
-
2.4GHz / 5.8GHz / 900MHz Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
-
* 900MHz is only applicable for FCC countries.
-
9+ Miles
Do more because you can fly further away.
-
QHD
Incredible video resolution within a mile, meeting most common use cases.
-
2.4GHz / 5.8GHz / 900MHz
Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
-
* 900MHz is only applicable for FCC countries.
EVO II - AI Enhanced Dynamic Track
EVO II Dual smart tracking uses deep learning algorithms to automatically track the selected subject while avoiding obstacles during flight. The function can track the subject in three modes: behind, side-by-side, or fixed position.
Auto go home & Accurate Landing
EVO 2 Dual 640T V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.
Autel Smart Controller V3
Smart Controller V3's 7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9 miles away and enhances anti-interference abilities with triple-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.
-
-
- 7.9-Inch HD Touch Screen
-
- -4 °F to 104 °F Temperature Range
-
- 2000 nits Maximum Brightness
-
- IP43 Resistance
-
-
-
7.9-Inch
HD Touch Screen
-
-
-4 °F to 104 °F
Temperature Range
-
-
2000nits
Maximum Brightness
-
-
IP43
Resistance
Improvements of 640T V3 and 640T V2.
Model
Visible Light Camera Visible Light Camera Photo Resolution 48MP 50MP Visible Light Camera Sensor 0.5"(1/2)
Sensor Size0.8"(1/1.28)
Sensor SizeAutofocus / PDAF+CDAF Image Transmisson Version Autel Skylink Autel Skylink 2.0 RC Smart Controller V2 Smart Controller V3 Transmission 9km(FCC) 15km(FCC) Operating frequency 2.4GHz-5.8GHz 2.4GHz/5.8GHz/900MHz Display screen 720p@30fps / 1080p@30fps 2048 x 1536 60fps Battery Capacity 5000 mAh 5800 mAh Operating time 3 hours - ~3 hours (Max. Brightness)
- ~4.5 hours (50% Brightness)
Live Stream / Support Live Deck 2 Enterprise Bundle Accessories
-
Spotlight
Beams a powerful, long-distance aerial light when searching or shooting at night.
-
Strobe
Indicate the location of the aircraft at night to avoid air traffic accidents.
-
Speaker
Enables more effective on-site communication through long-distance telephony and audio loops.
-
-
Spotlight Beams a powerful, long-distance aerial light when searching or shooting at night.
-
-
Strobe Indicate the location of the aircraft at night to avoid air traffic accidents.
-
-
Speaker Enables more effective on-site communication through long-distance telephony and audio loops.
Centimeter-Level Positioning
Autel Robtoics EVO II Dual 640T RTK V3 introduces a brand-new RTK module, which provides real-time centimeter-level positioning data, and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports an RTK base station and NTRIP RTK network, which help to achieve accurate and stable data acquisition in complex operation environments.
Autel Robtoics EVO II Dual 640T RTK V3 introduces a brand-new RTK module, which provides real-time centimeter-level positioning data, and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports an RTK base station and NTRIP RTK network, which help to achieve accurate and stable data acquisition in complex operation environments.
-
-
RTK Horizontal Positioning Accuracy: 1cm+1ppm
-
-
RTK Vertical Positioning Accuracy: 1.5cm+1ppm
-
-
No GCP Required
Dual 640T RTK V3 can connect to an NTRIP network and does not need GCPs to provide centimeter-grade accuracy.
-
-
-
3rd Party Base Station Support
EVO II Dual 640T RTK Series V3 supports all NTRIP-compatible base stations.
-
-
-
No GCP Required
Dual 640T RTK V3 can connect to an NTRIP network and does not need GCPs to provide centimeter-grade accuracy.
-
-
-
3rd Party Base Station Support
EVO II Dual 640T RTK Series V3 supports all NTRIP-compatible base stations.
-
Autel Explorer For Mapping
-
-
-
Multi-NTRIP Profile Saving
For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.
-
-
Photo Replication
For repeatable missions, you can record the drone's previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.
-
-
Multi-Battery Missions
The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don't have to manually input new a flight plan for every new location.
-
-
-
-
Multi-NTRIP Profile Saving
For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.
-
-
Photo Replication
For repeatable missions, you can record the drone's previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.
-
-
Multi-Battery Missions
The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don't have to manually input new a flight plan for every new location.
-
Thermal Imaging Function
-
Picture-in-Picture Mode
Visual and thermal imagery are combined to help users quickly interpret data and critical decision making. From top to bottom are "Picture in Picture Mode", "infraed More", and "visible Light Mode"
-
Spot Temperature Measurement
Tap the screen, and the temperature of the selected object will be displayed in real time.
-
Regional Temperature Measurement
Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
The temperature measurement frame can be dragged to any position on the screen.
-
Temperature Warning
Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set thresholds
Note: The temperature alarm takes effects only in Regional temperature measurement mode
10 Thermal Color Palettes
White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron bow | Lava | Arctic | Searing | Gradation | Heat Detection
-
Picture-in-Picture Mode
Visual and thermal imagery are combined to help users quickly interpret data and critical decision making. From top to bottom are "Picture in Picture Mode", "infraed More", and "visible Light Mode"
-
Spot Temperature Measurement
Tap the screen, and the temperature of the selected object will be displayed in real time.
-
Regional Temperature Measurement
Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
The temperature measurement frame can be dragged to any position on the screen.
-
Temperature Warning
Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set thresholds
Note: The temperature alarm takes effects only in Regional temperature measurement mode
10 Thermal Color Palettes
White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron bow | Lava | Arctic | Searing | Gradation | Heat Detection

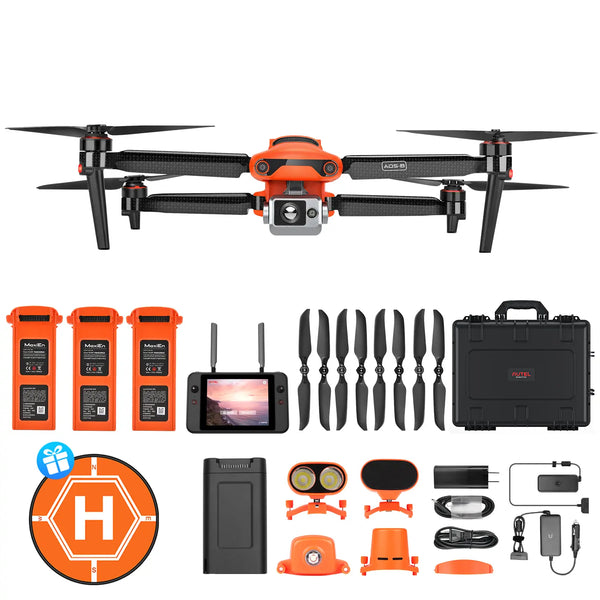

Autel EVO II Dual 640T RTK V3 Enterprise Bundle Package List
-
-
EVO II Dual 640T V3 Techinical Specifications
Aircraft Camera(Thermal & Visual light) Gimbal Aircraft Obstacle Avoidance Remote Controller Battery Charger Multi-Charger Aircraft Camera(Thermal & Visual light) Gimbal Obstacle Avoidance Remote Controller Battery Charger Multi-Charger Aircraft Takeoff weight (With propellers and battery) 2.67 lbs (1209 g) Max Takeoff Weight 4.4 lbs (1999 g) Size(L*W*H) Folded(L x W x H): 230*130*108 mm (9.1*5.1*4.3 inches)
Unfolded(L x W x H): 457*558*108 mm (18*22*4.3 inches)Max. rotation speed 9000 rpm Wheelbase 397 mm Maximum Service Ceiling Above Sea Level 5000 m Max ascent speed - Novice mode:3 m/s
- Standard: 5 m/s
- Ludicrous: 8 m/s
Max descent speed - Novice mode:3 m/s
- Standard: 5 m/s
- Ludicrous: 4 m/s
Maximum horizontal flight speed (no wind near sea level) - Novice mode:3 m/s
- Standard: 10 m/s
- Ludicrous: 20 m/s
Maximum flight altitude 800 meters (Altitude limit in the App) Max flight distance (no wind) 22 km Max angular velocity 120°/s Max tilt angle - Novice mode: 15°
- Standard: 30°
- Ludicrous: 33°
Max flight time (no wind) 38 minutes Max hovering time (no wind) 33 minutes Operating temperature range 14 °F to 104 °F (-10℃ ~ 40℃) Maximum resistance to wind Fresh breeze Hovering accuracy Vertical: ±0.1 m (when the visual positioning is working normally);
±0.5 m (when GNSS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally);
±1.5 m (when GNSS works normally)GNSS GPS/Beidou/Glonass/Gallieo Internal storage 8GB Max.SD storage Support 256GB (UHS-3 or Class 10) Thermal Camera Sensor Uncooled VOx Microbolometer Lens FOV H33°V26°
Focal length 13mmZoom 1 - 16x Pixel size 12 µm Wavelength range 8-14 µm Temperature range High gain mode: -20° to +150°
Low gain mode: 0° to +550°Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
@Environmental temperature-20℃~60℃Accurate temperature measurement distance 2-20 meters Video resolution 640x512@25fps Video format MOV / MP4 (Support H.264/H.265) Camera resolution Infrared mode: 640*512
Picture-in-picture mode: 1920*1080, 1280*720Photo mode Single shot
Burst shooting: 3/5 frames, 3 is the default
Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60sPhoto format JPG (with irg file) Visible Light Camera Sensor 1/1.28"(0.8") CMOS
Effective Pixels: 50 MPLens FOV:85°
35 mm format equivalent focal length: 23 mm
Aperture:f/1.9
Focus range: 0.5 m to infinity (with auto focus)ISO Range Video: 100-64000
Photo: 100-6400Shutter Speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame ratesDigital Zoom 1-16x (up to 4x lossless zoom) Maximum photo size 8192*6144(4:3)
4096*30 72(4:3)
3840x2160(16:9)Image Format JPG(default)/DNG/JPG+DNG Video format MOV/MP4 Video resolution 3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24Max bitrate 80Mbps Supported file system FAT32/exFAT Gimbal Gimbal 3-axis stabilization Mechanical Range Tilt: -135° to +45°;
Pan: -100° to +100°Controllable Range Pitch: -90° to +30°
Yaw: -90° to +90°Max Control Speed (Tilt) 300°/s Angular Vibration Range ±0.005° Sensing System (Obstacle Avoidance) Sensing System Omnidirectional Binocular Obstacle Sensing System Sensing system type Omnidirectional sensing system Forward Accurate measurement range: 0.5-18 m
Effective sensing speed:<12m/s
Viewing angle: Horizontal: 60°,
Vertical: 80°Backward Accurate measurement range: 0.5-16 m
Effective sensing speed:<12m/s
Viewing angle: Horizontal: 60°,
Vertical: 80°Upward Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: Horizontal: 65°,
Vertical: 50°Downward Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: Horizontal: 100°,
Vertical: 80°Left and right Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: Horizontal: 60°,
Vertical: 50°Operating Environment Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15)
Upward: Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)
Downward:Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)Remote Controller Operating frequency 902-928MHz(FCC Only)
2.400 to 2.4835GHz
5.725 to 5.850GHzTransmission power (E.I.R.P) FCC:≤33dBm
CE:≤20dBm@2.4G, ≤14dBm@5.8G
SRRC:≤20dBm@2.4G, ≤33dBm@5.8G/5.7GMax Transmission Distance
(unobstructed, free of interference)FCC: 9.3 miles (15 km)
CE: 5 miles (8 km)Display screen 2048x1536 60fps Battery 5800mAh Operating time ~3 hours (Max. Brightness)
~4.5 hours (50% Brightness)Charging time 120 min Internal Storage 128GB Battery Capacity 7100 mAh Voltage 11.55V Battery type LiPo 3S Energy 82 Wh Weight 365g Charging temperature range 5℃ to 45℃ Storage temperature and humidity -10~30℃，65±20%RH Recommended storage temperature 22-28℃ Max charging power 93W Charging time 90 minutes Charger Input 100-240 V, 50/60 Hz, 1.5A Output 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A Voltage 13.2±0.1V Rated power 66W Multi-Charger Voltage 13.2V Charging temperature range 5℃ to 45℃ -

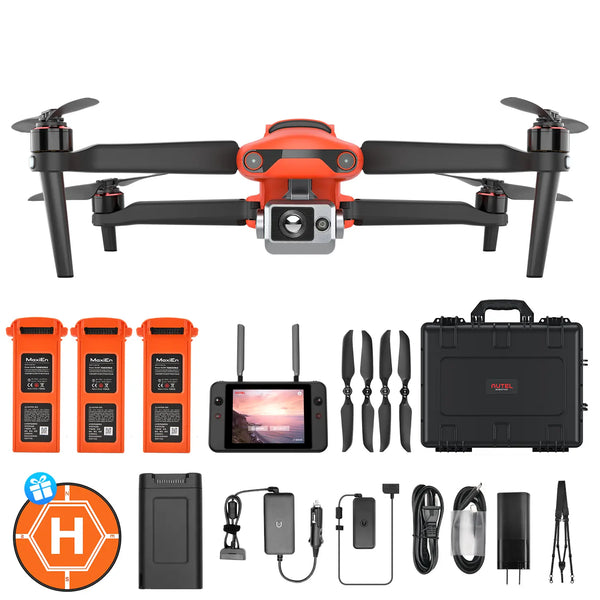

Autel EVO II Dual 640T RTK V3 Enterprise Bundle Package List
-
*If you need certification from other countries or regions, please contact us.
