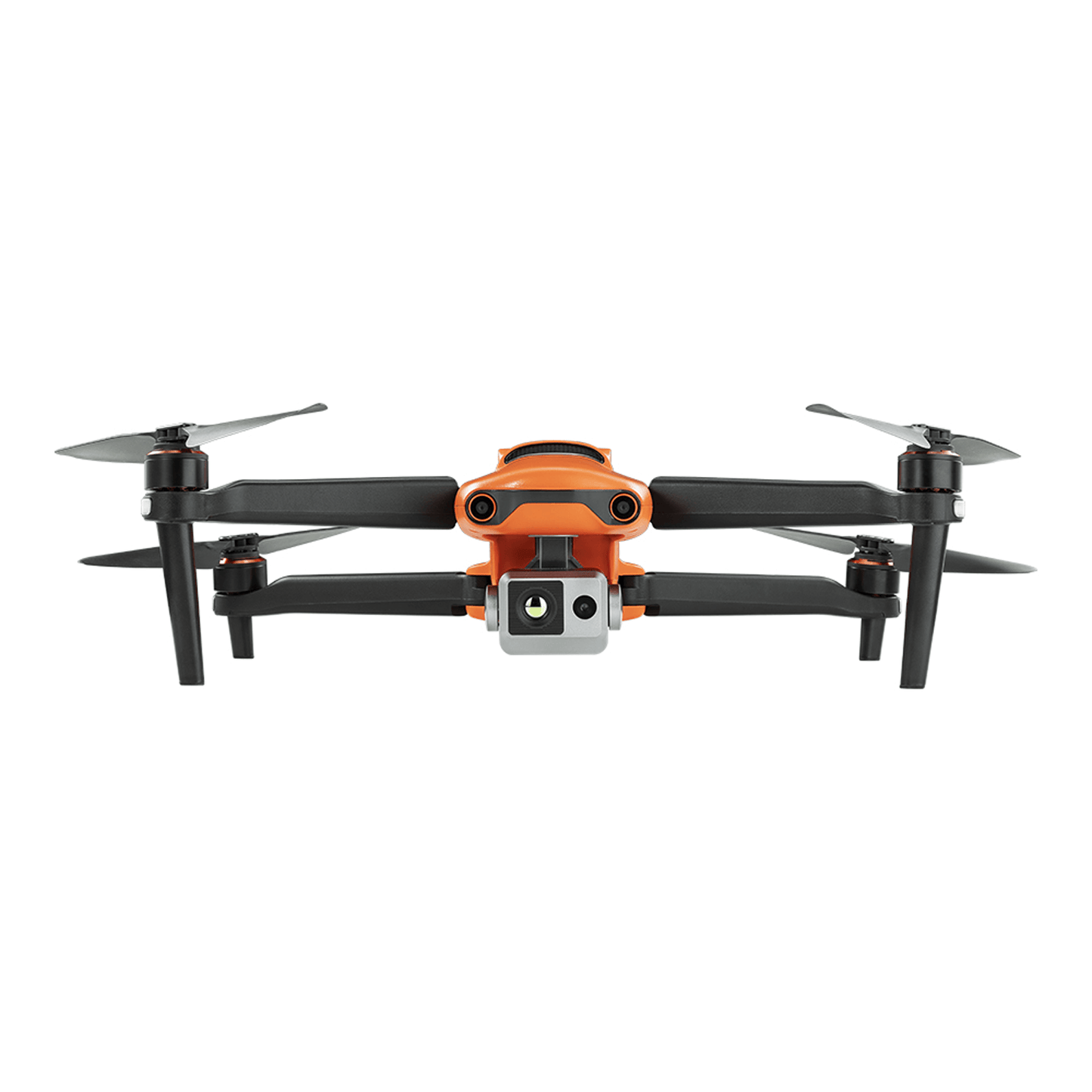

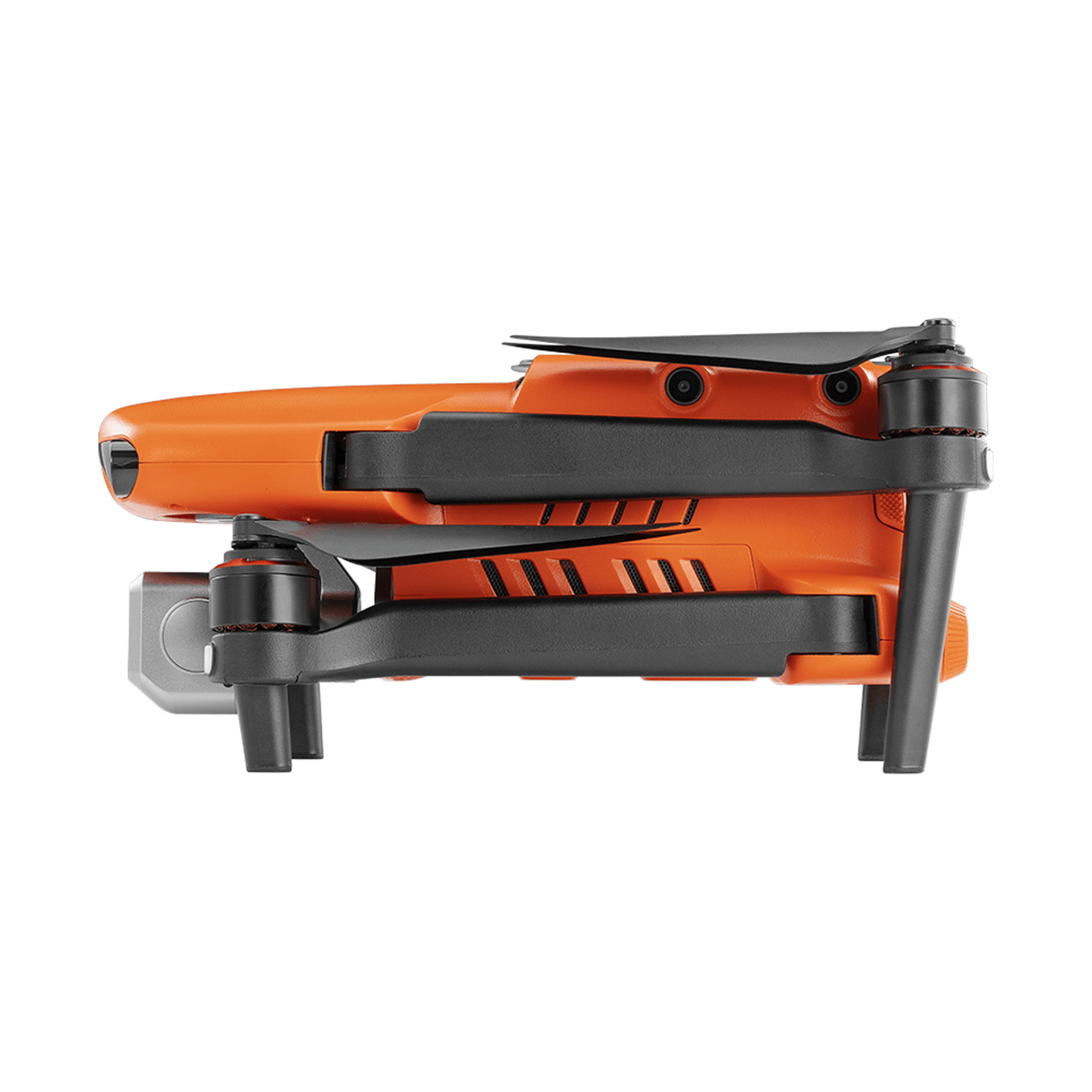

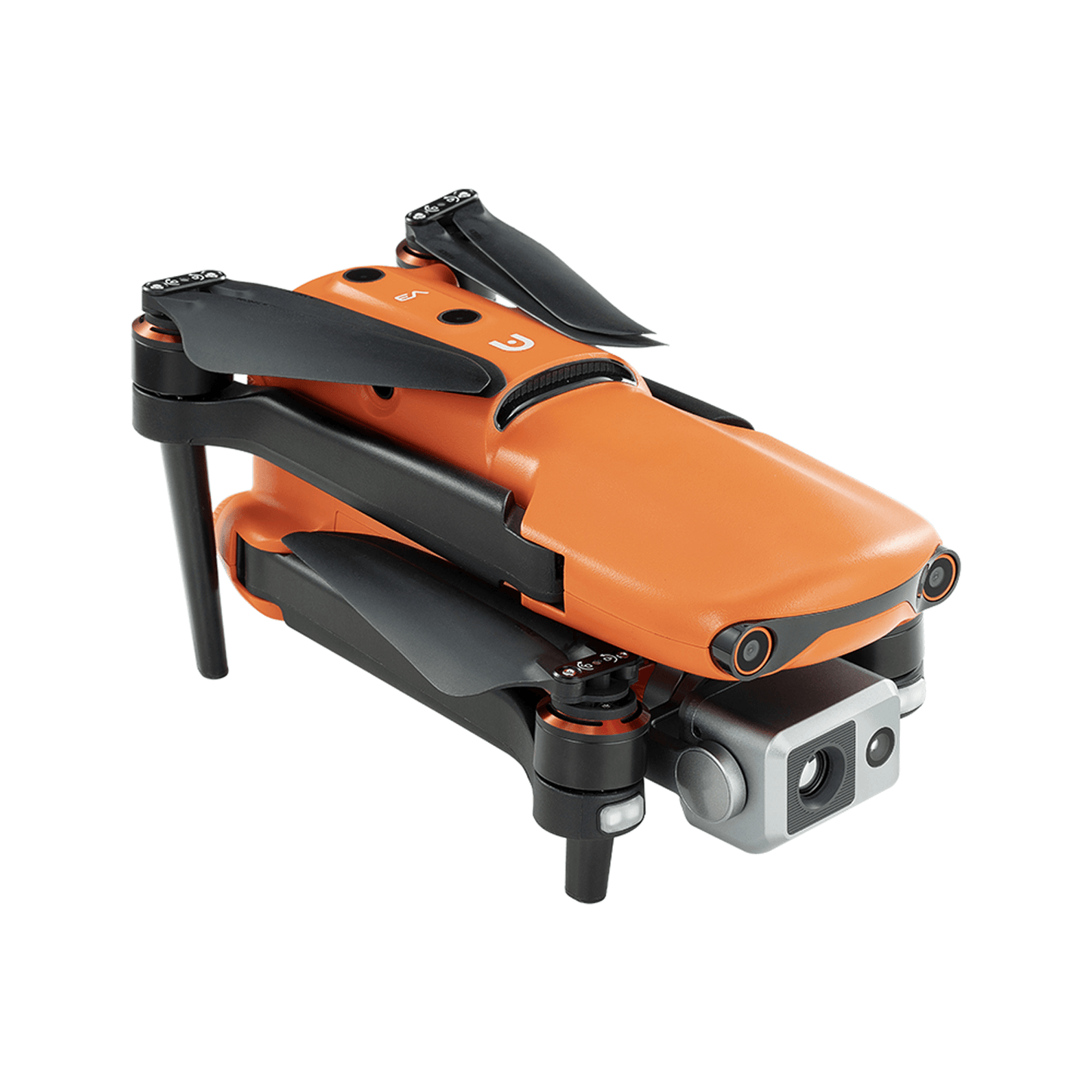

Autel Robotics EVO II Dual 640T V3 Thermal Drone - Rugged Bundle

$4,799.00

Autel Robotics EVO II 640T V3 3*Batteries Bundle

Autel Robotics EVO II Dual 640T V3 Thermal Drone - Rugged Bundle

Name: Autel Robotics EVO II Dual 640T V3 Thermal Drone - Rugged Bundle
Brand: Autel Robotics
SKU: B-N156-01+B-Z142-00
Price: 4799.0 USD
Availability: InStock
Rating: 4.82 (33 reviews)

$4,799.00

In Stock - Ships within 12 hrs

Save $200 OFF

Easter Sales: Get it now for $4,599.00

Discount automatically applied!

Buy Now and Get a FREE Propeller Guard & Landing Pad
Remote ID Updated
7.9" Smart Controller V3
15km Image Transmission
SkyLink 2.0
50MP Picture/0.8" CMOS Sensor
640*512 Thermal Imaging Resolution
10 Thermal Color Palettes
360° Obstacle Avoidance
Dynamic Track 2.1
38 Mins Flight Time
Note: It CANNOT be equipped with RTK modules, speakers and other accessories

Orange

Variant: Orange

Select Option

Orange

$4,799.00

Free Gift

EVO II Drone Landing Pad x1

$0 $18

EVO II Propeller Guards(pair) x1

$0 $20

Grey

$4,799.00

Variant: Rugged Bundle

640T V3

Rugged Bundle

640T V3

Enterprise Bundle

Quantity

Fast Delivered by Tue, Apr 29 - Thu, May 01 Free Ship from USA

Service

Fast, Free Shipping & No Extra Tax

30-Day Return or Replacement

12-Month Free Warranty

Lifetime Customer Support

Pay with Ease

Trusted Delivery

Overview
specification
Package
Documents
Faqs

EVO II Dual 640T V3

Autel Robotics EVO II Dual 640T V3 is equipped with a 640 x 512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easier than ever to observe distant targets. The system uses a new image processing algorithm, making thermal details clearer and more discernible than other options with similar resolution and hardware.
- Dual Camera
  Thermal | Visual Camera
- Thermal Camera
  640*512 Resolution
- 50MP
- 15km
  Transmission Range
- 360°
  Obstacle Avoidance
- Carbon Fiber
  Arms
- 38 Minutes
  Flight Time
- 7.9"
  Smart Controller V3
- Dual Camera
  Thermal | Visual Camera
- Thermal Camera
  640*512 Resolution
- 50MP
  Pictures
- 15km
  Transmission Range
- 360°
  Obstacle Avoidance
- Carbon Fiber
  Arms
- 38 Minutes
  Flight Time
- 7.9"
  Smart Controller V3
640T V3 Thermal Camera
- - 640*512 High Resolution

    The EVO II 640T infrared camera is equipped with a high-resolution 640*512 infrared sensor, allowing for exceptional pixel density to capture more details and thermal information.
  - 16x Digital Zoom

    EVO II 640T infrared camera boasts a powerful 16x digital zoom capability, enabling users to magnify details without getting close to the target.
  - 13mm focal length lens

    This well-chosen focal length strikes a balance between target size and detail clarity, allowing users to obtain satisfactory infrared images in different application scenarios.
- - 640*512 High Resolution

    The EVO II 640T infrared camera is equipped with a high-resolution 640*512 infrared sensor, allowing for exceptional pixel density to capture more details and thermal information.
  - 16x Digital Zoom

    EVO II 640T infrared camera boasts a powerful 16x digital zoom capability, enabling users to magnify details without getting close to the target.
  - 13mm focal length lens

    This well-chosen focal length strikes a balance between target size and detail clarity, allowing users to obtain satisfactory infrared images in different application scenarios.
Multiple Temperature Measurement Modes
- - Central, Spot, And Regional Temperature Measurement

    EVO II 640T V3 Central temperature measurement: View real-time display of the temperature in the center area of the screen. Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time. Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
- - Temperature Alarm And Image Enhancement

    Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold. Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified. Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.

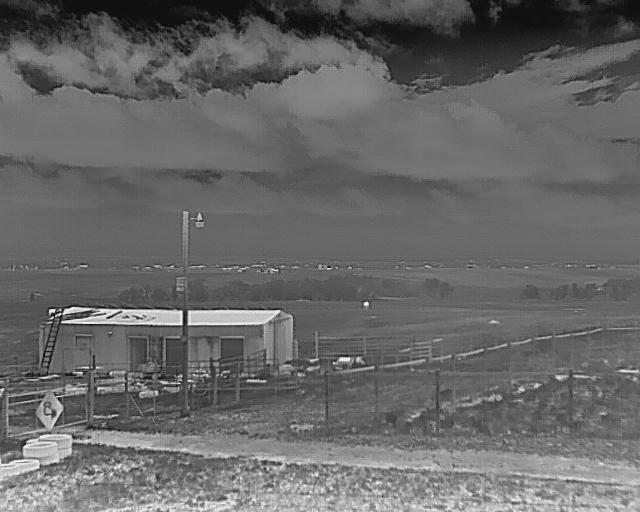

- - - 10 Thermal Color Palettes

      White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation |Heat Detection

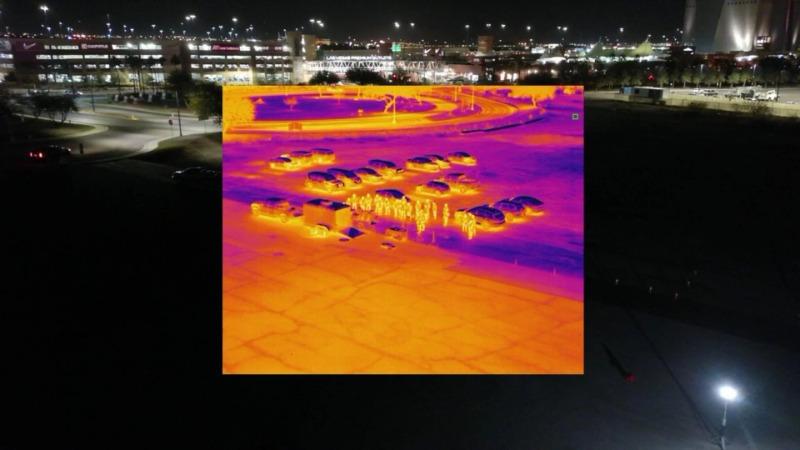

  - - Picture-in-Picture Display Mode

      Visual and thermal imagery of 640T V3 are combined to help users quickly interpret data and aid in critical decision making.
- - Powerful Infrared Thermal Analysis Tool

    IRPC TOOL: This free temperature measurement analysis tool is developed specifically for the 640T Series, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.
- - Central, Spot, And Regional Temperature Measurement

    Central temperature measurement: View real-time display of the temperature in the center area of the screen. Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time. Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
- - 10 Thermal Color Palettes

    White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation |Heat Detection
- - Picture-in-Picture Display Mode

    Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision making.
- - Temperature Alarm With Isotherm And Image Enhancement

    Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold. Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified. Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.
- - Powerful Infrared Thermal Analysis Tool

    IRPC TOOL: This free temperature measurement analysis tool is developed specifically for the 640T, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.
50MP Ultra-Sensitive Camera

The EVO II Dual 640T V3's RYYB sensor features the Moonlight Algorithm 2.0 that provides excellent noise reduction in limited lighting conditions, further enhancing its 50 megapixel camera to give users more detail for better forensics and analysis.
- - 0.8" Sensor Size

    The EVO II Dual 640T V3's 0.8" RYYB CMOS offers up to 144%~233% more surface area when compared to 1/2" or 1/2.3" competitors for maximum details in high-contrast lighting conditions.
  - RYYB Sensor Technology

    RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.
  - PDAF+CDAF Autofocus System

    Never lose sights of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.
- - 0.8" Sensor Size

    The EVO II Dual 640T V3's 0.8" RYYB CMOS offers up to 144%~233% more surface area when compared to 1/2" or 1/2.3" competitors for maximum details in high-contrast lighting conditions.
  - RYYB Sensor Technology

    RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.
  - PDAF+CDAF Autofocus System

    Never lose sights of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.
- - Get The Full Scene

    The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely.providing long-distance image acquisition and detailed insig
- - 4K HDR for Greater Dynamic Range

    4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.
- - Get The Full Scene

    The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely.
- - 4K HDR for Greater Dynamic Range

    4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.
Autel SkyLink 2.0 Video Transmission

SkyLink 2.0 is built into the EVO II Dual 640T V3 chipset, expanding the possibilities for your most critical workflows.
- 9+ Miles

  Do more because you can fly further away
- QHD

  Incredible video resolution within a mile, meeting most common use cases.
- 2.4GHz / 5.8GHz / 900MHz

  Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
- * 900MHz is only applicable for FCC countries.
- 9+ Miles

  Do more because you can fly further away.
- QHD

  Incredible video resolution within a mile, meeting most common use cases.
- 2.4GHz / 5.8GHz / 900MHz

  Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
- * 900MHz is only applicable for FCC countries.
360° Obstacle Avoidance

Autel Robotics EVO II Dual 640T V3 is equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.
Autel EVO II Dual 640T 360° Obstacle Avoidance
EVO II - AI Enhanced Dynamic Track

EVO II Dual smart tracking uses deep learning algorithms to automatically track the selected subject while avoiding obstacles during flight. The function can track the subject in three modes: behind, side-by-side, or fixed position.
EVO II - AI Enhanced Dynamic Track 2.1
Auto go home & Accurate Landing

EVO 2 Dual 640T V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.
Auto evo ii dual 640t v3 go home & Accurate Landing
Industry Leading Flight Performance
- 38 minutes

  Maximum Flight
  Time
- 9.3 miles (15km)

  Maximum Transmission
  Range
- 27 mph (12m/s)

  Maximum Wind
  Resistance
- 45 mph (20m/s)

  Maximum Flight
  Speed
- 2 lbs (920g)

  Maximum Lift
  Capability
- 38 minutes

  Maximum
  FlightTime
- 9.3 miles (15km)

  Maximum Transmission Range
- 27 mph (12m/s)

  Maximum
  Wind Resistance
- 45 mph (20m/s)

  Maximum
  Flight Speed
- 2 lbs
  (920g)

  Maximum
  Lift Capability

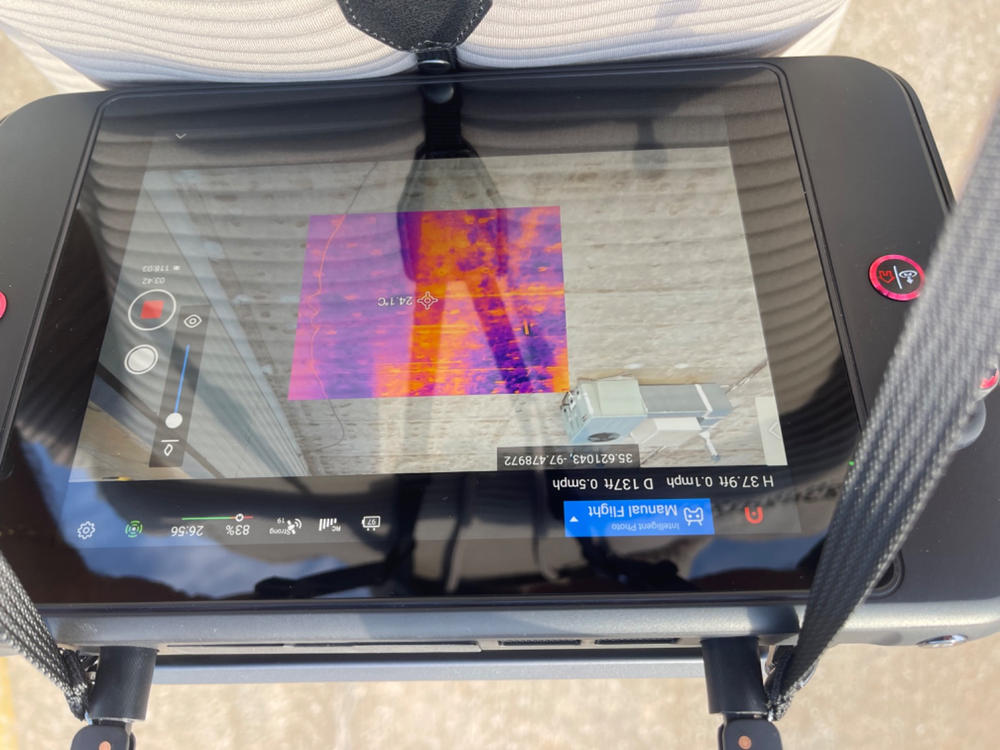

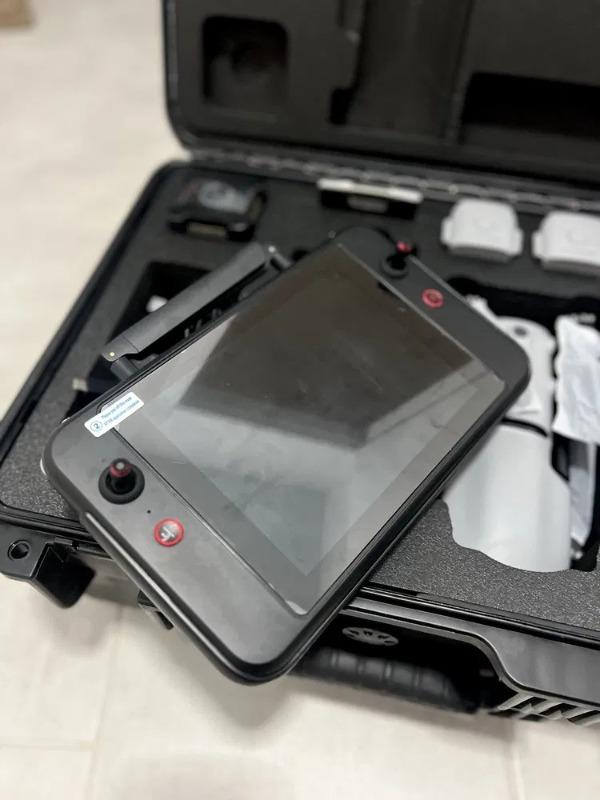

Autel Smart Controller V3

Smart Controller V3's 7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9 miles away and enhances anti-interference abilities with triple-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.
- - - 7.9-Inch HD Touch Screen
  - - -4 °F to 104 °F Temperature Range
  - - 2000 nits Maximum Brightness
  - - IP43 Resistance
- - 7.9-Inch
    HD Touch Screen
- - -4 °F to 104 °F
    Temperature Range
- - 2000nits
    Maximum Brightness
- - IP43
    Resistance

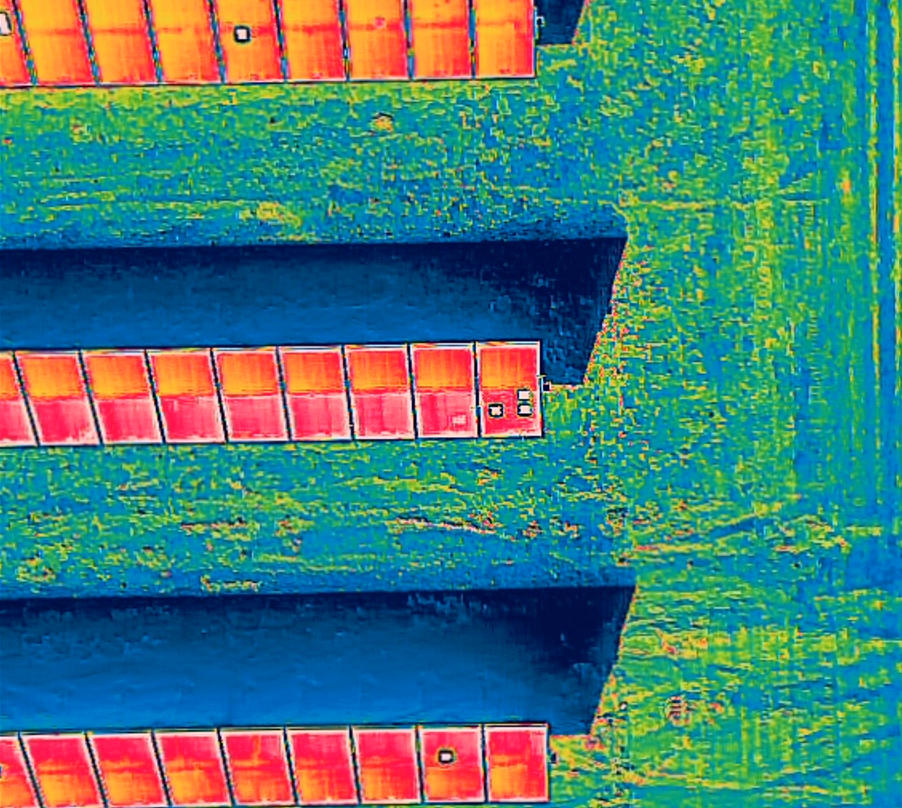

Thermal Imaging Function
- Picture-in-Picture Mode

  Visual and thermal imagery are combined to help users quickly interpret data and critical decision making. From top to bottom are "Picture in Picture Mode", "infraed More", and "visible Light Mode"
- Spot Temperature Measurement

  Tap the screen, and the temperature of the selected object will be displayed in real time.
- Regional Temperature Measurement

  Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.

  The temperature measurement frame can be dragged to any position on the screen.
- Temperature Warning

  Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set thresholds

  Note: The temperature alarm takes effects only in Regional temperature measurement mode
10 Thermal Color Palettes

White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron bow | Lava | Arctic | Searing | Gradation | Heat Detection
- Picture-in-Picture Mode

  Visual and thermal imagery are combined to help users quickly interpret data and critical decision making. From top to bottom are "Picture in Picture Mode", "infraed More", and "visible Light Mode"
- Spot Temperature Measurement

  Tap the screen, and the temperature of the selected object will be displayed in real time.
- Regional Temperature Measurement

  Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.

  The temperature measurement frame can be dragged to any position on the screen.
- Temperature Warning

  Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set thresholds

  Note: The temperature alarm takes effects only in Regional temperature measurement mode
- 10 Thermal Color Palettes

  White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron bow | Lava | Arctic | Searing | Gradation | Heat Detection

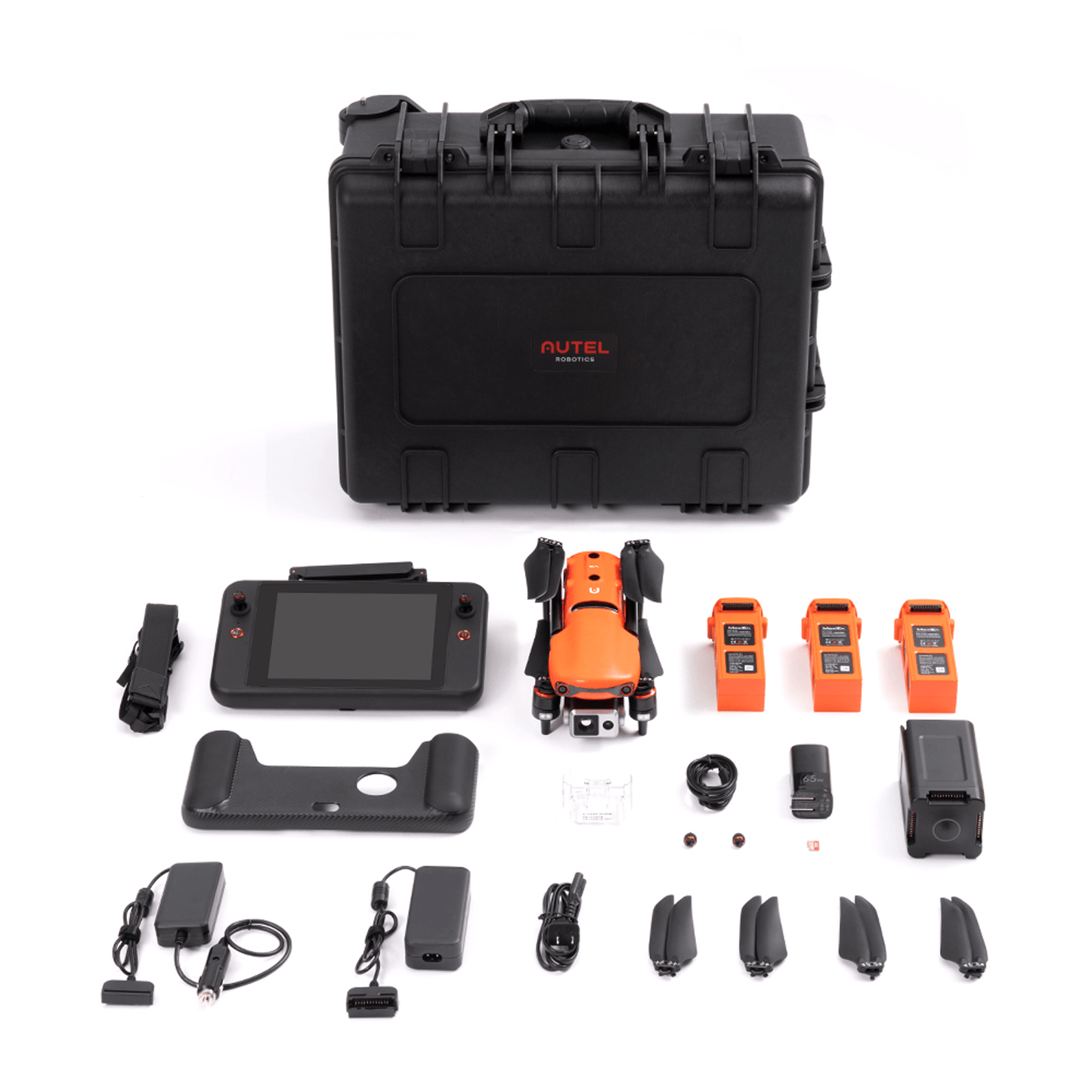

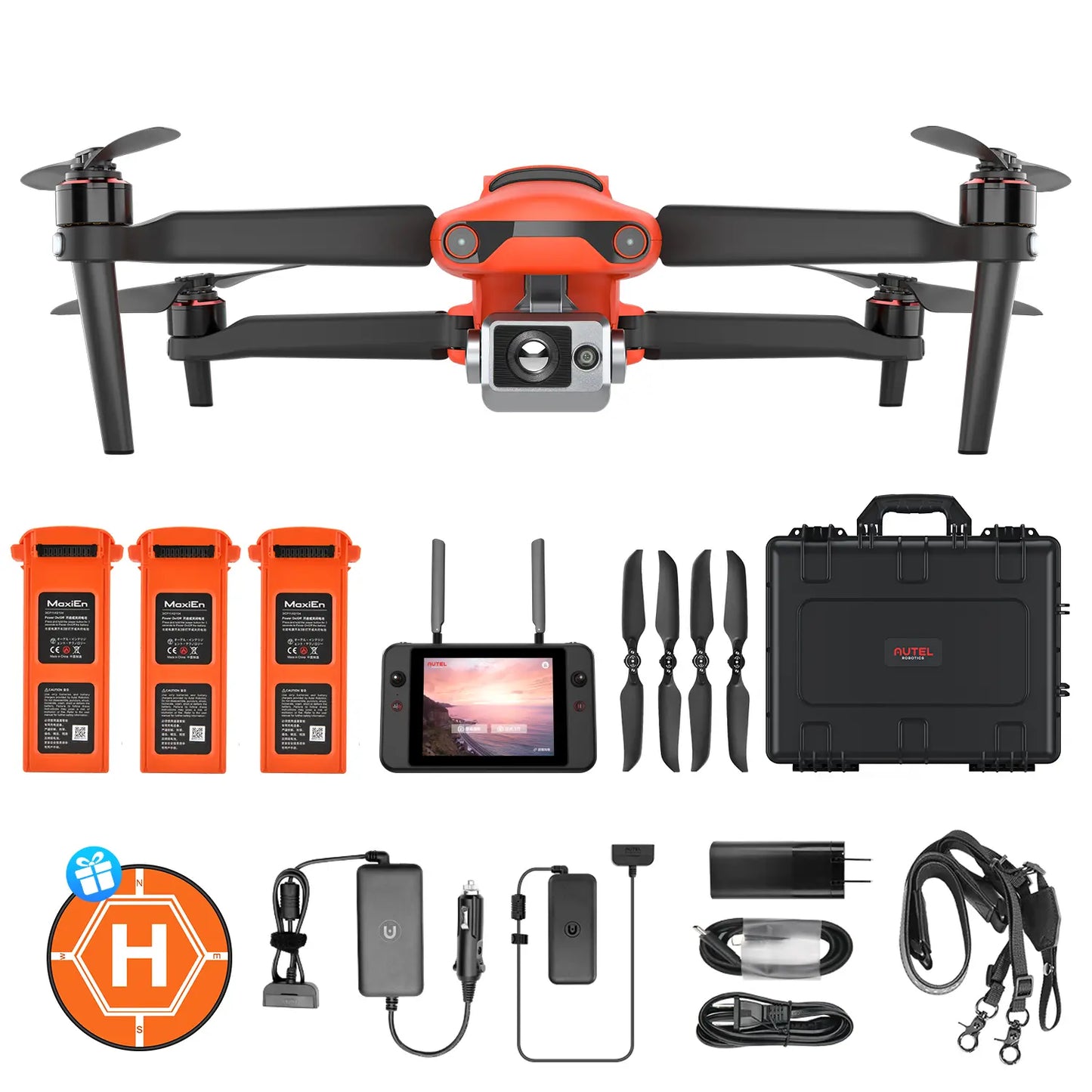

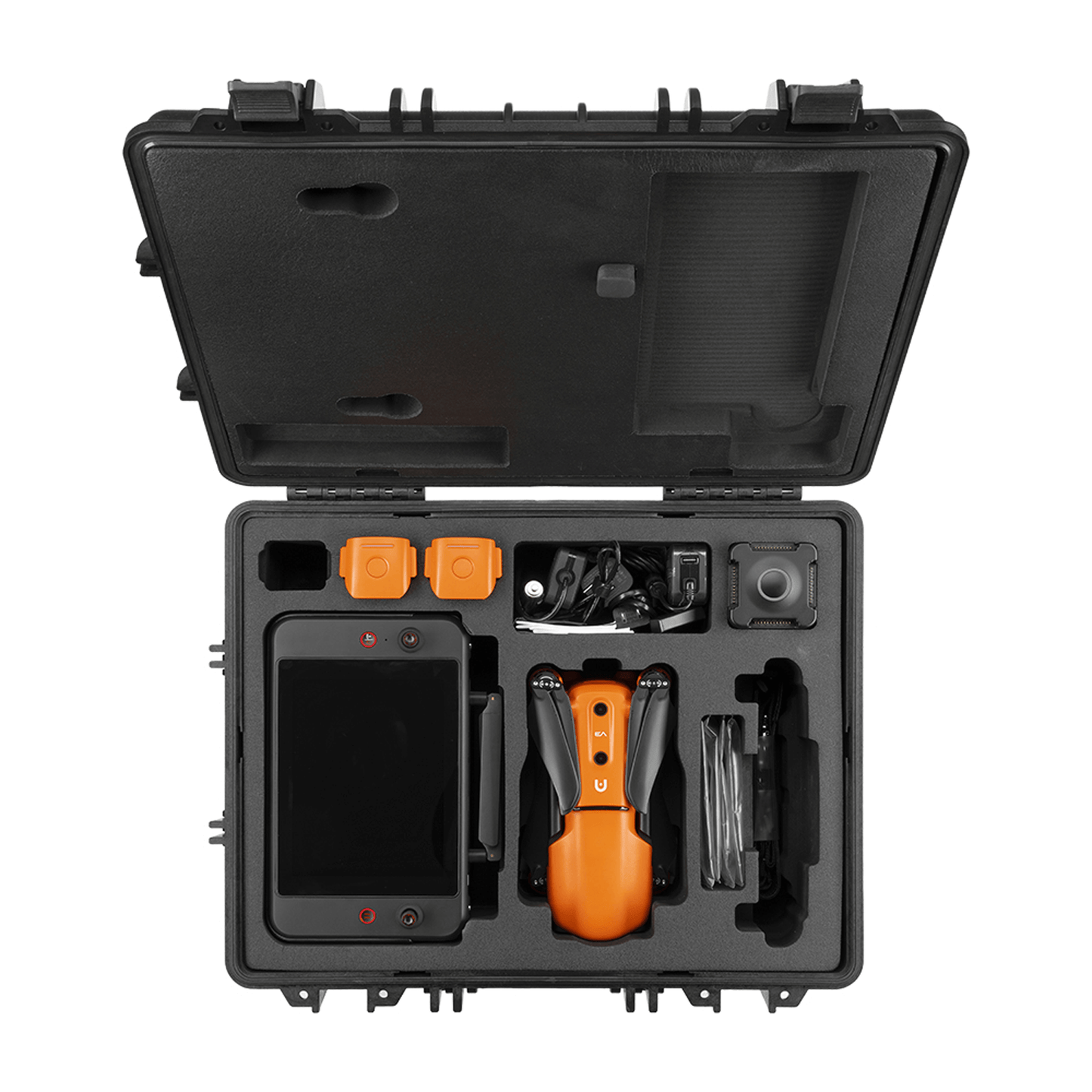

Autel EVO II Dual 640T V3 Rugged Bundle Pacakge List

EVO II Dual 640T V3 Techinical Specifications

Aircraft	Camera(Thermal & Visual light)	Gimbal	Aircraft	Obstacle Avoidance
Remote Controller	Battery	Charger	Multi-Charger

Aircraft	Camera(Thermal & Visual light)	Gimbal	Obstacle Avoidance
Remote Controller	Battery	Charger	Multi-Charger

Aircraft
Takeoff weight (With propellers and battery)	2.67 lbs (1209 g)
Max Takeoff Weight	4.4 lbs (1999 g)
*Size(LWH)*	Folded(L x W x H): 230130108 mm (9.15.14.3 inches) Unfolded(L x W x H): 457558108 mm (18224.3 inches)
Wheelbase	397 mm
Maximum Takeoff Altitude	7000 m
Max ascent speed	8 m/s (Ludicrous)
Max descent speed	4 m/s (Ludicrous)
Max horizontal flight speed	20m/s (Ludicrous)
Max flight distance (no wind)	22 km
Max angular velocity	120°/s
Max tilt angle	33° (Ludicrous)
Max flight time (no wind)	38 min
Max hovering time (no wind)	33 min
Operating temperature range	14 °F to 104 °F (-10℃ ~ 40℃)
Maximum resistance to wind	12 m/s (Take-off and landing)
Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz
Transmission power (E.I.R.P)	900MB FCC/ ISED：≤31dBm 2.4G FCC/ ISED：≤32dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G FCC/ISED/SRRC/MIC：≤33dBm CE/ RCM：≤14dBm
Hovering accuracy	Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
GNSS	GPS/Beidou/Glonass/Gallieo
Internal storage	8GB
Max.SD storage	Support 256GB (UHS-3 or Class 10)
Thermal Camera
Sensor	Uncooled VOx Microbolometer
Lens	FOV H33°V26° Focal length 13mm
Zoom	1 - 16x
Pixel size	12 µm
Wavelength range	8-14 µm
Temperature range	High gain mode: -20° to +150° Low gain mode: 0° to +550°
Temperature measurement accuracy	±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃
Accurate temperature measurement distance	2-20 meters
Video resolution	640x512@25fps
Video format	MOV / MP4 (Support H.264/H.265)
Camera resolution	Infrared mode: 640512 Picture-in-picture mode: 19201080, 1280*720
Photo mode	Single shot Burst shooting: 3/5 frames, 3 is the default Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
Photo format	JPG (with irg file)
Visible Light Camera
Sensor	1/1.28"(0.8") CMOS Effective Pixels: 50 MP
Lens	FOV:85° 35 mm format equivalent focal length: 23 mm Aperture:f/1.9 Focus range: 0.5 m to infinity (with auto focus)
ISO Range	Video: 100-64000 Photo: 100-6400
Shutter Speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
Digital Zoom	1-16x (up to 4x lossless zoom)
Maximum photo size	81926144(4:3) 409630 72(4:3) 3840x2160(16:9)
Image Format	JPG(default)/DNG/JPG+DNG
Video format	MOV/MP4
Video resolution	3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24
Max bitrate	80Mbps
Supported file system	FAT32/exFAT
Gimbal
Gimbal	3-axis stabilization
Mechanical Range	Tilt: -135° to +45°; Pan: -100° to +100°
Controllable Range	Pitch: -90° to +30° Yaw: -90° to +90°
Max Control Speed (Tilt)	300°/s
Angular Vibration Range	±0.005°
Sensing System (Obstacle Avoidance)
Sensing System	Omnidirectional Binocular Obstacle Sensing System
Sensing system type	Omnidirectional sensing system
Forward	Accurate measurement range: 0.5-18 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
Backward	Accurate measurement range: 0.5-16 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
Upward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 65°, Vertical: 50°
Downward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 100°, Vertical: 80°
Left and right	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 60°, Vertical: 50°
Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.) Downward:Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)
Remote Controller
Operating frequency	902-928MHz(FCC Only) 2.400 to 2.4835GHz 5.725 to 5.850GHz
Transmission power (E.I.R.P)	FCC:≤33dBm CE:≤20dBm@2.4G, ≤14dBm@5.8G SRRC:≤20dBm@2.4G, ≤33dBm@5.8G/5.7G
Max Transmission Distance (unobstructed, free of interference)	FCC: 9.3 miles (15 km) CE: 5 miles (8 km)
Display screen	2048x1536 60fps
Battery	5800mAh
Operating time	~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
Charging time	120 min
Internal Storage	128GB
Battery
Capacity	7100 mAh
Voltage	11.55V
Battery type	LiPo 3S
Energy	82 Wh
Weight	365g
Charging temperature range	5℃ to 45℃
Storage temperature and humidity	-10~30℃，65±20%RH
Recommended storage temperature	22-28℃
Max charging power	93W
Charging time	90 minutes
Charger
Input	100-240 V, 50/60 Hz, 1.5A
Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage	13.2±0.1V
Rated power	66W
Multi-Charger
Voltage	13.2V
Charging temperature range	5℃ to 45℃

Autel EVO II Dual 640T V3 Rugged Bundle Pacakge List

Name	Download
EVO II Dual 640T V3 Brochure - EN.pdf
EVO II Dual 640T V3 Quick Guide - EN.pdf
EVO II Series Disclaimer and Safety Guidelines - EN.pdf
EVO II Dual Reports - FCC.pdf
EVO II Dual Certificates - FCC.pdf
Autel Smart Controller V3 Brochure
Specs For Autel Smart Controller V3
Autel Live Deck 2 Brochure
Specs For Autel Live Deck 2

Autel Robotics EVO II 640T V3 Quick Questions & Quick Answers

Q: Can the aircraft be connected to a TF card?

A: Yes, and the aircraft comes built-in with 8GB internal memory.

Q: How many ports does the remote controller have?

A: There is a Micro USB port and a Type-A port at the bottom of the remote controller which is used for connecting external devices and charging.

Q: Does the remote controller have custom buttons?

A: There are two customizable buttons on the back of the remote controller, and 4 functions can be customized through the APP.

Q: What is the effective image transmission distance?

A: Under the FCC standard, the maximum image transmission distance is 9 miles; under the CE standard, the maximum image transmission distance is 5 miles.

Q: Does EVO II Dual 640T support temperature measurement?

A: Support. And provide a temperature analysis tool IR PC TOOL.

Q: What factors will affect the temperature measurement accuracy of EVO II Dual 640T?

A:
1. The influence of the atmosphere: the higher the temperature and humidity of the atmosphere, the greater the temperature measurement error.
2. The distance between the camera and the measured object: the farther the distance, the greater the temperature measurement error.
3. The emissivity and background temperature of the object: When the surface emissivity of the measured object is low and the background temperature is high, it will cause a large temperature measurement error.

Q: Can the battery be used in a low temperature environment?

A: Use the battery in a low temperature environment, the battery life will be reduced, please arrange the flight time reasonably. For the best performance of the battery, it is recommended to keep the battery temperature above 15 °C before flying.

Q: Can the downward fill light be switched on manually?

A: It can be turned on or off manually, or it can be automatically turned on or off according to environmental conditions.

Q: How to upgrade the firmware?

A: You can download the firmware package manually through the official website, or update the firmware through the Autel Explorer application.
