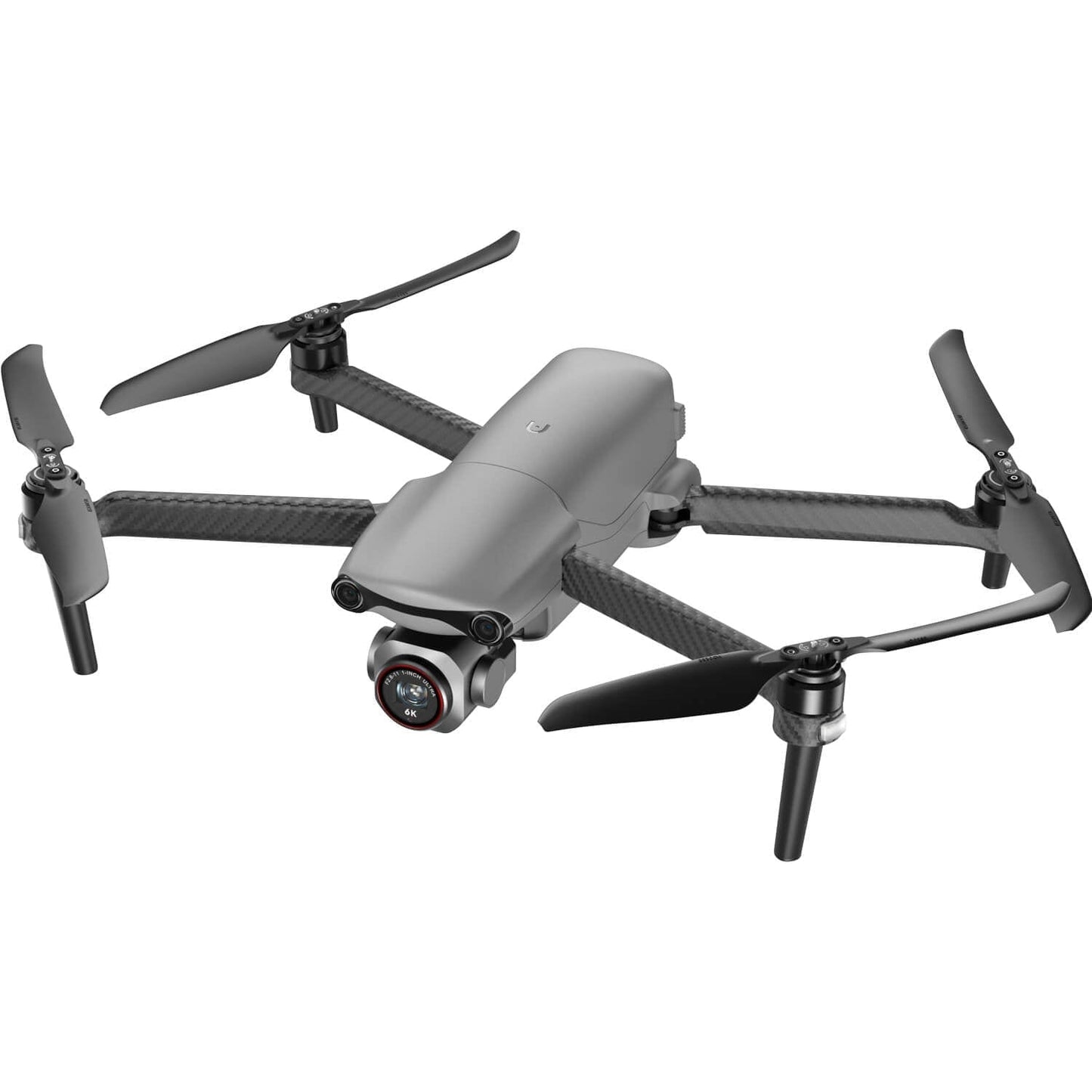

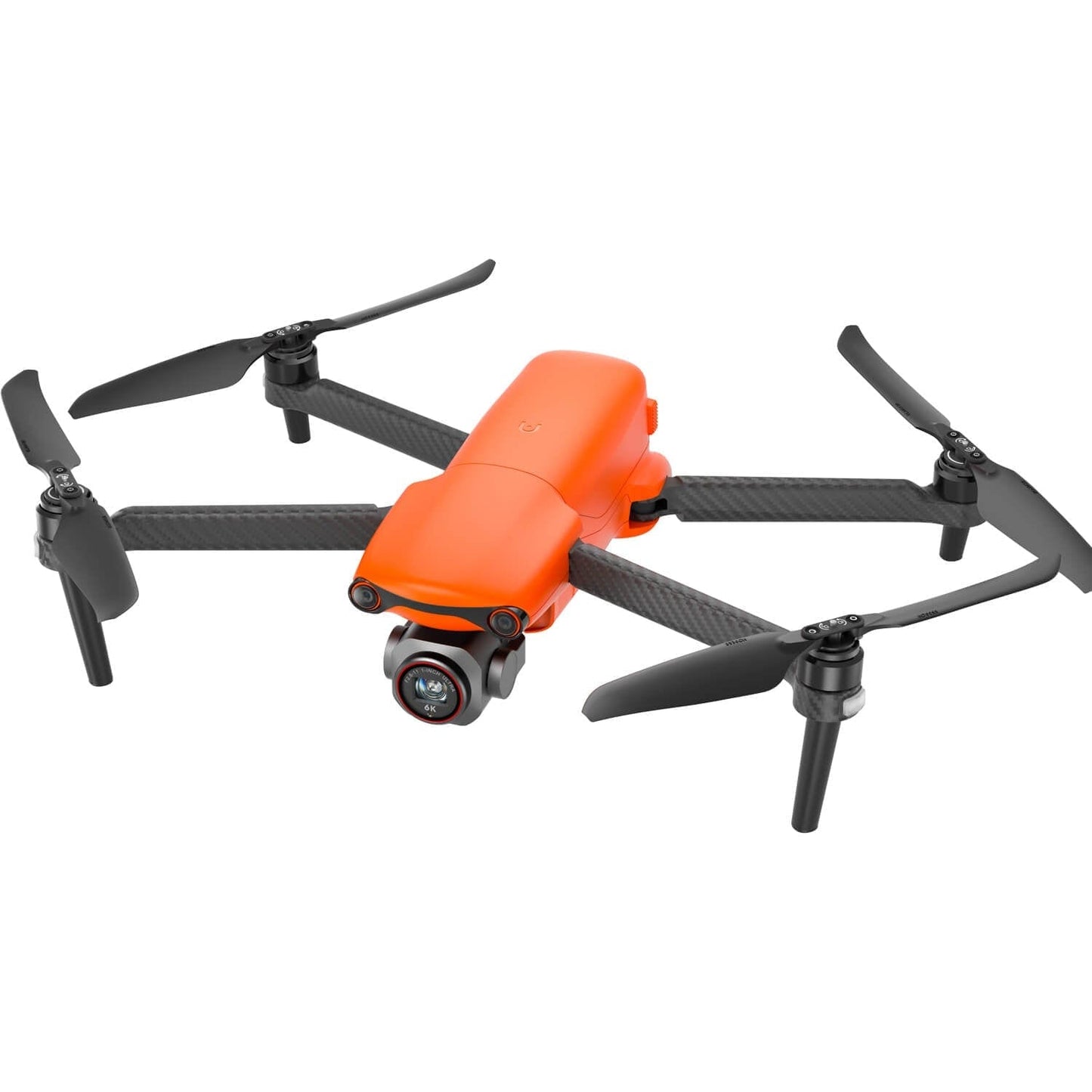

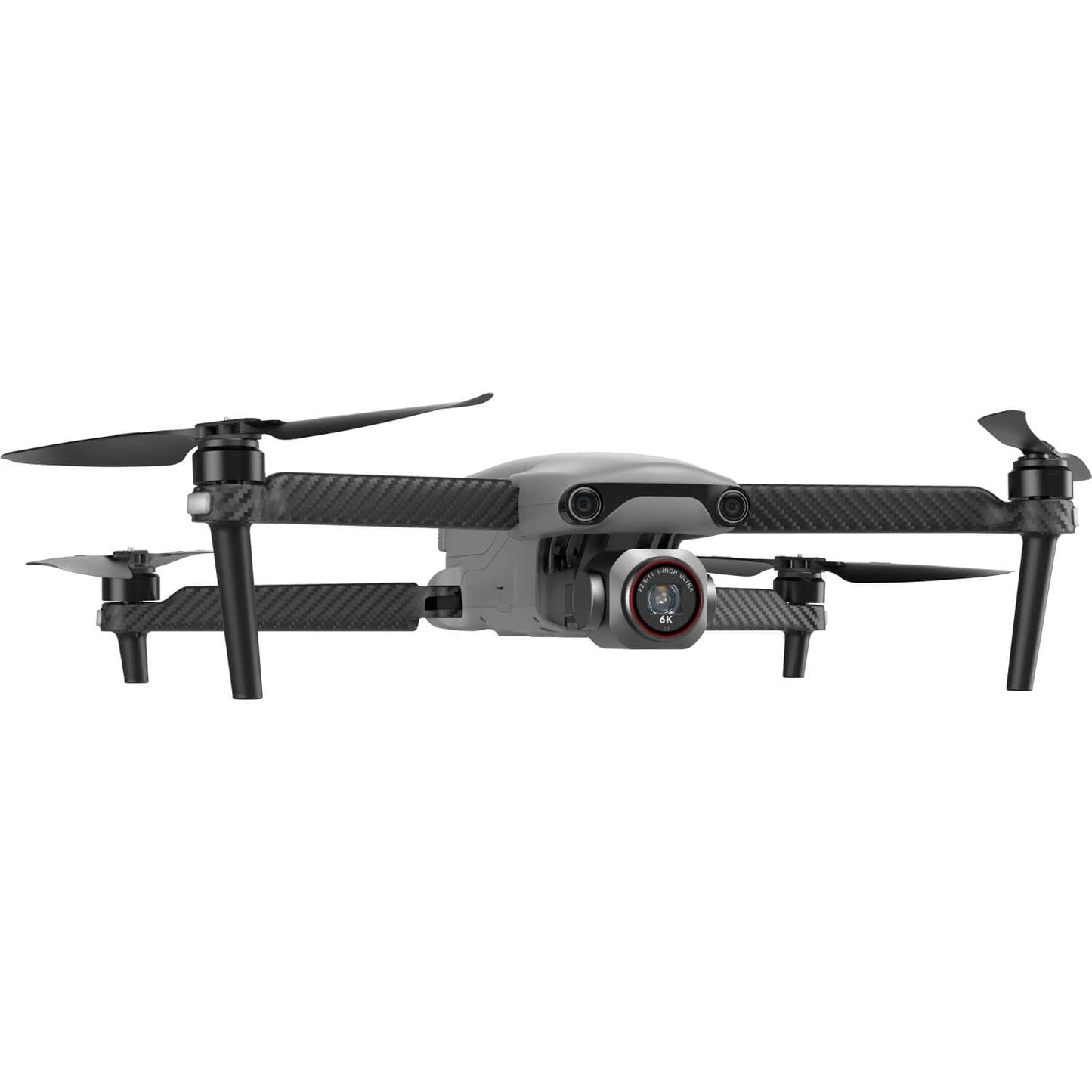

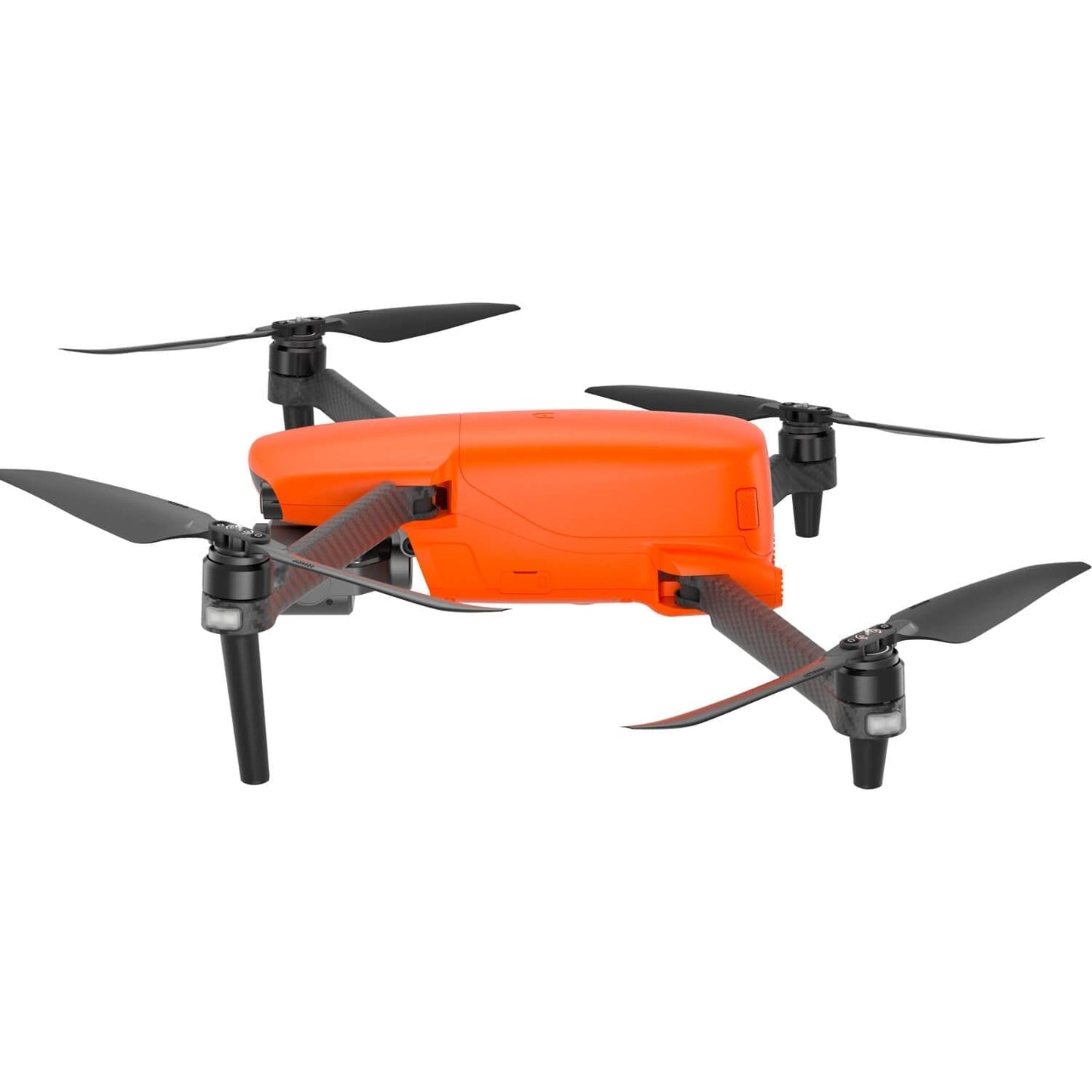

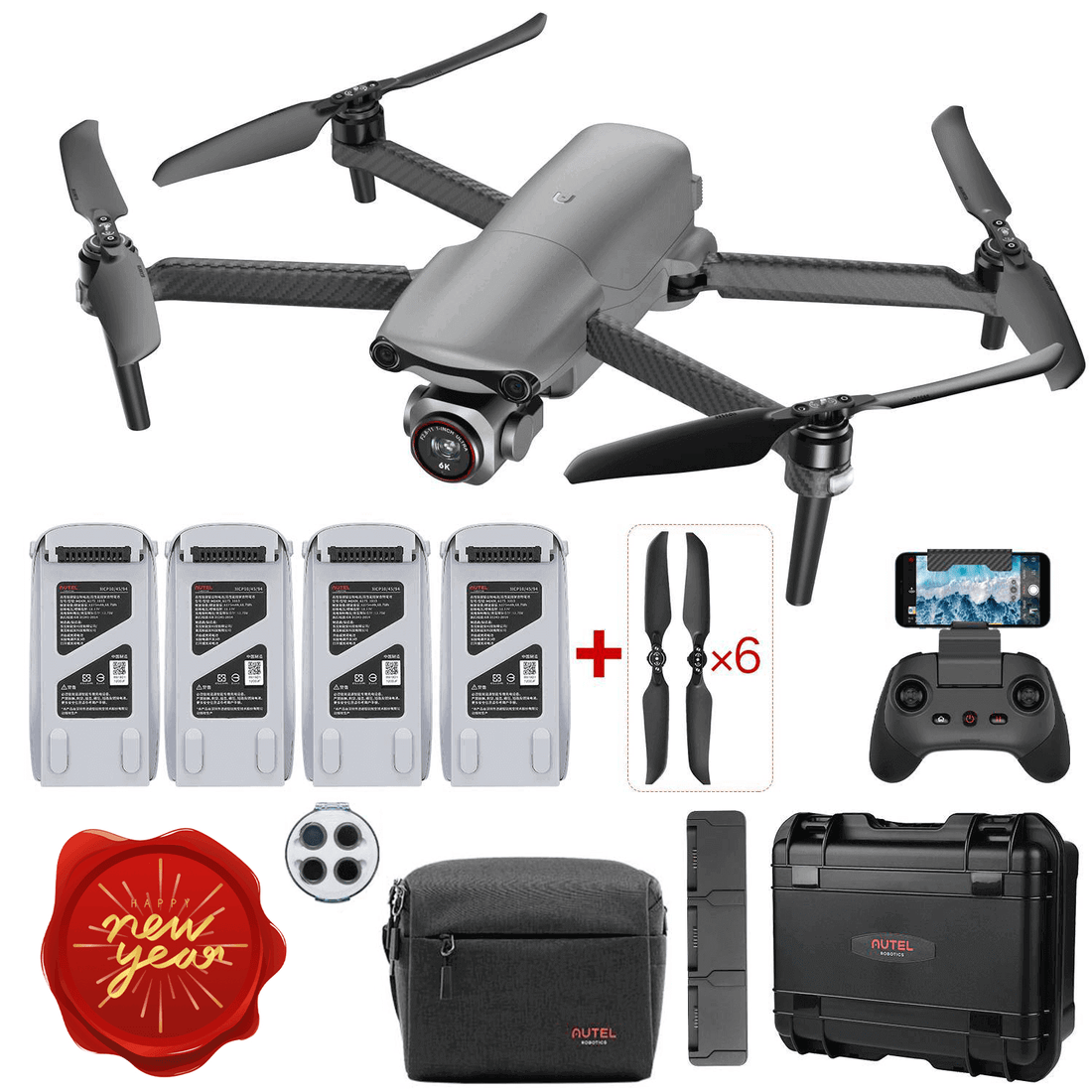

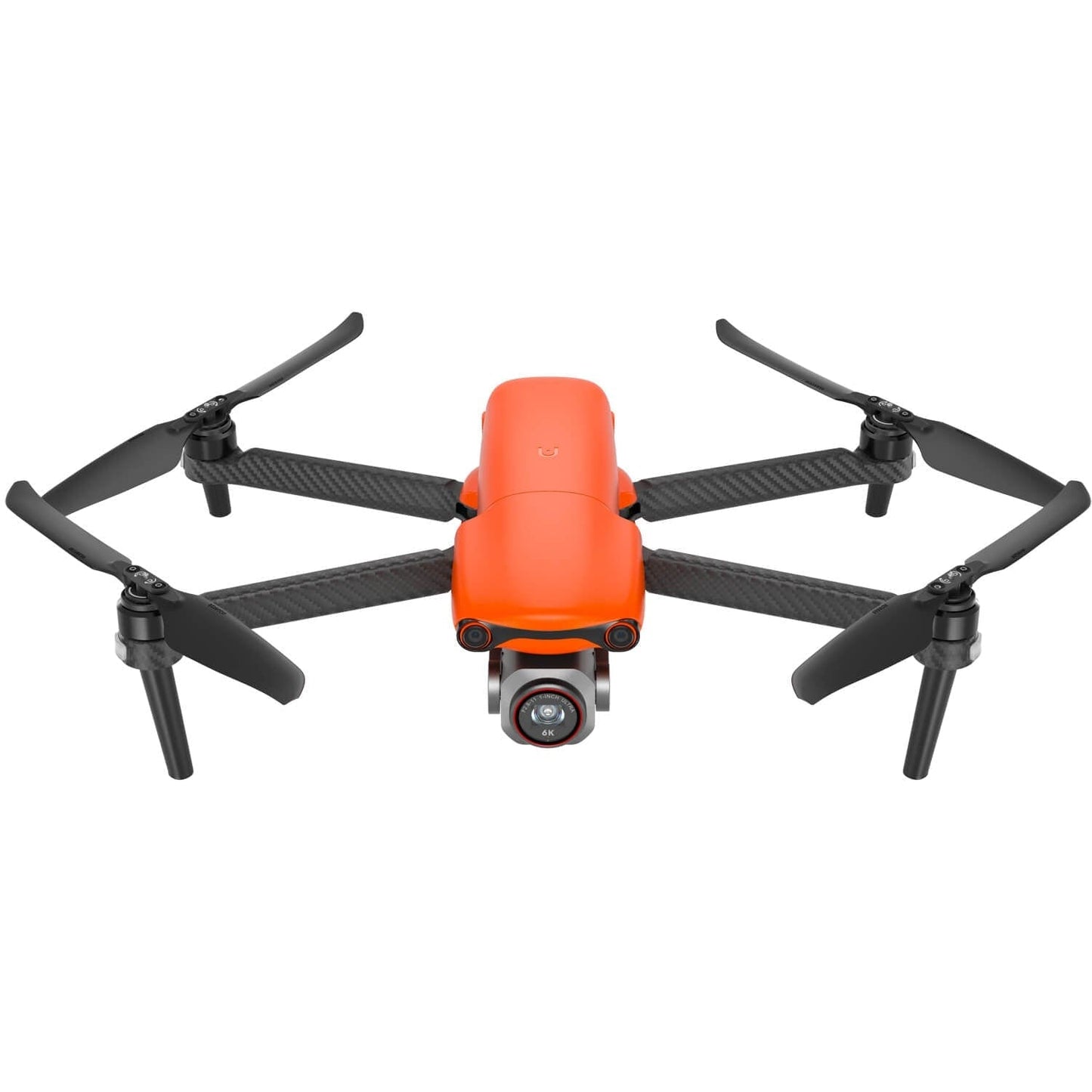

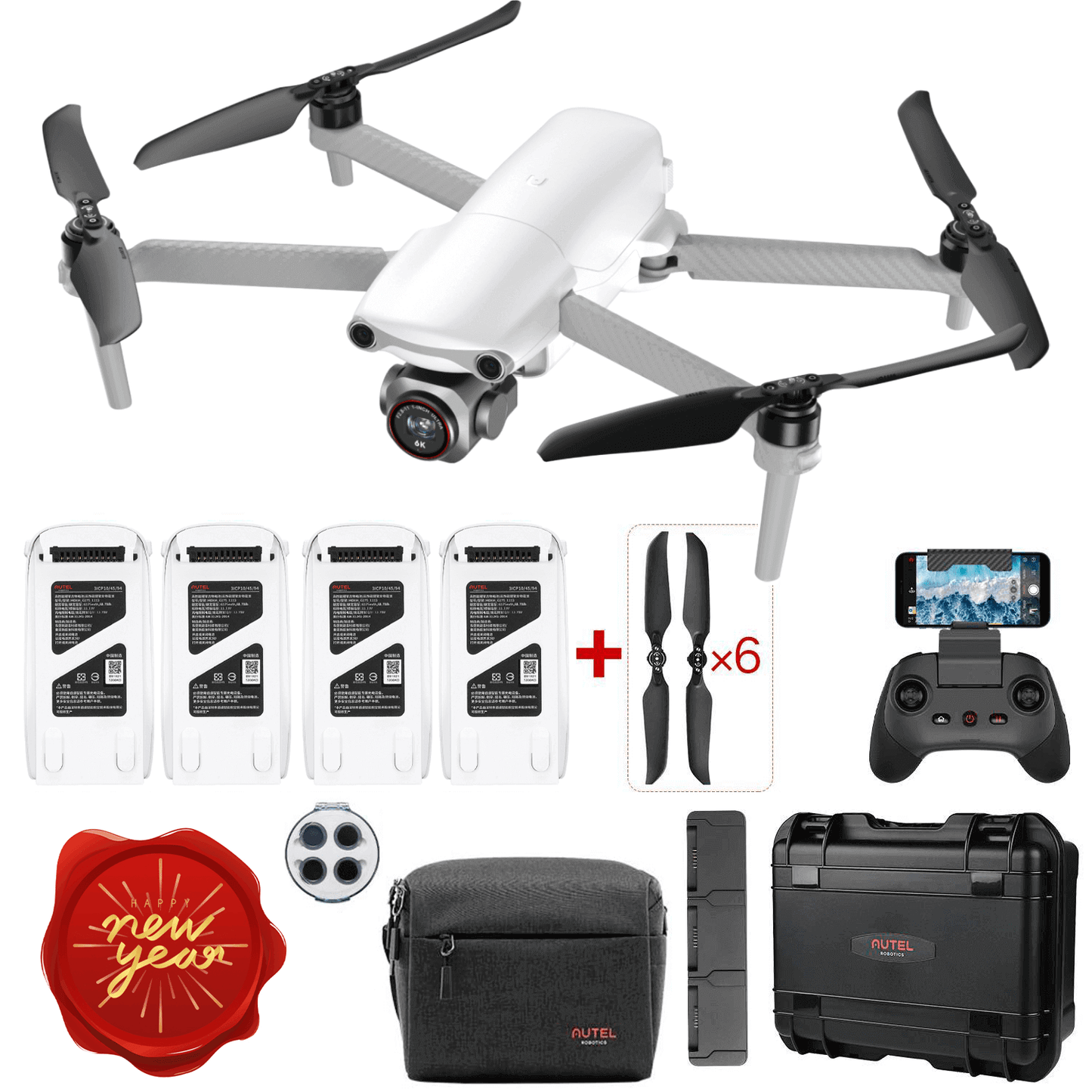

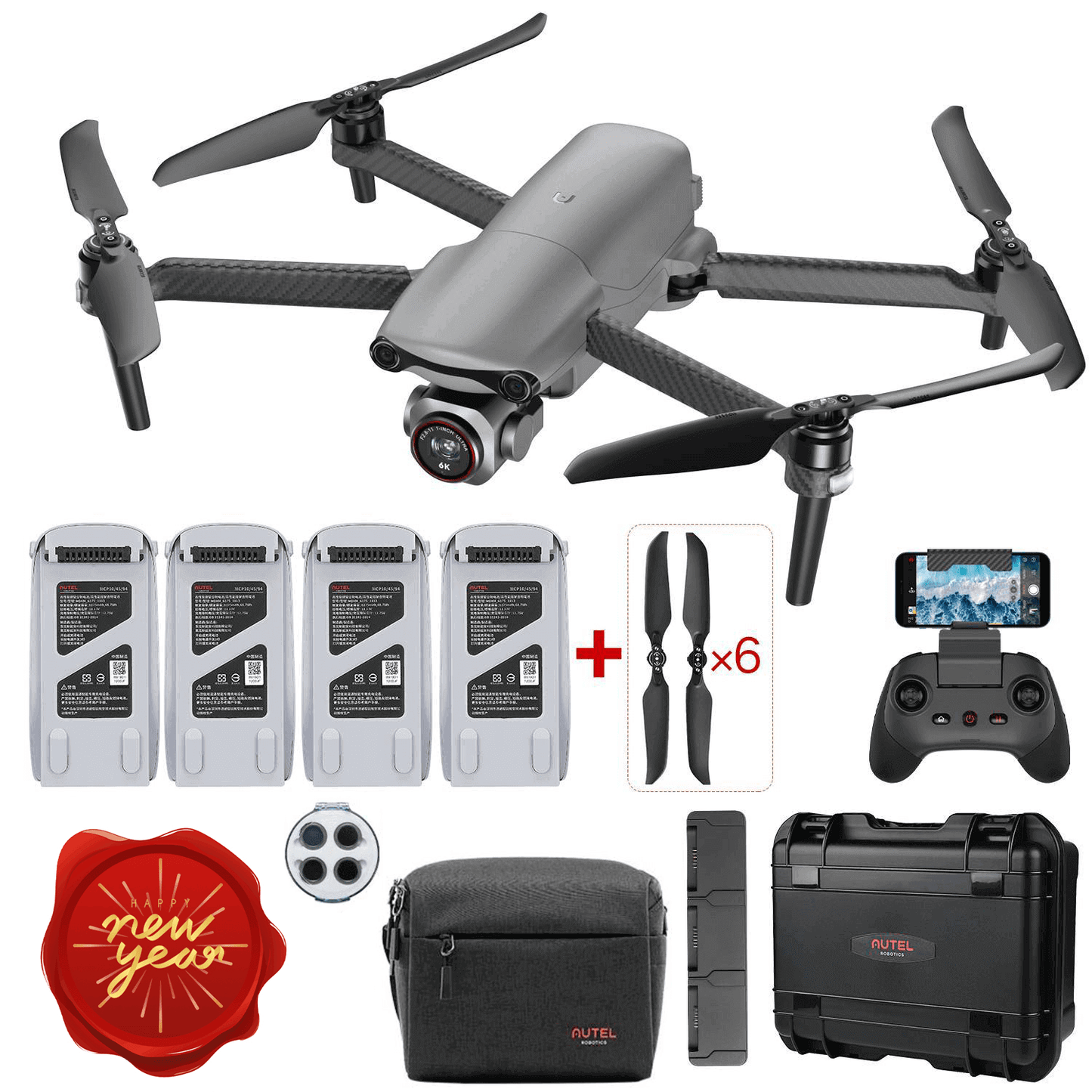

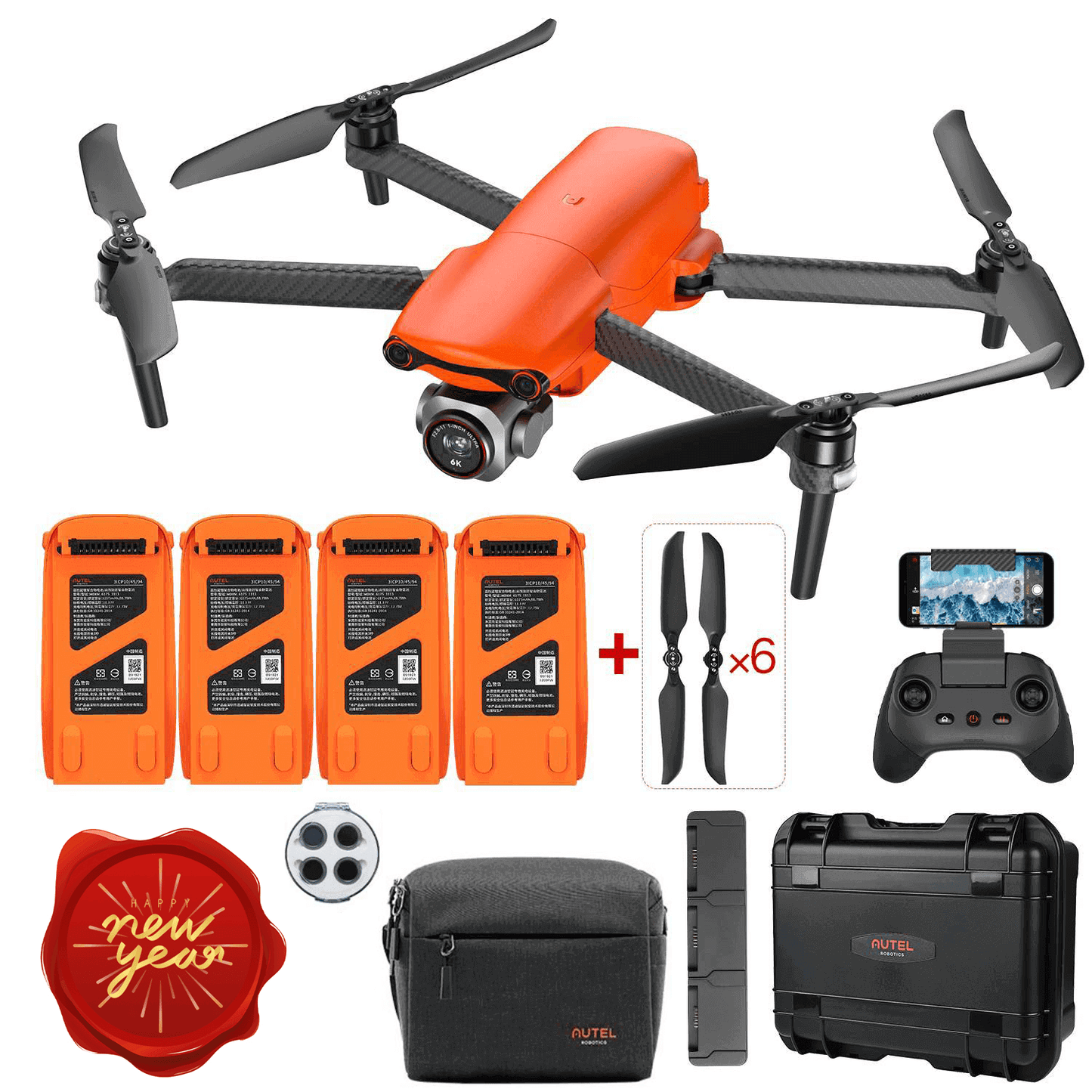

Autel Robotics EVO Lite+ Drone Premium Rugged Bundle
Autel Robotics EVO Lite+ Drone Premium Rugged Bundle
- No Geofencing
- 1-Inch CMOS Sensor
- 6K Video & 20MP Photo
- 12km Video Transmission
- Obstacle Sensing in 3 Directions
- 40-Min Max Flight Time
- Overview
- Specs
- In the box
- Videos
- Download
-

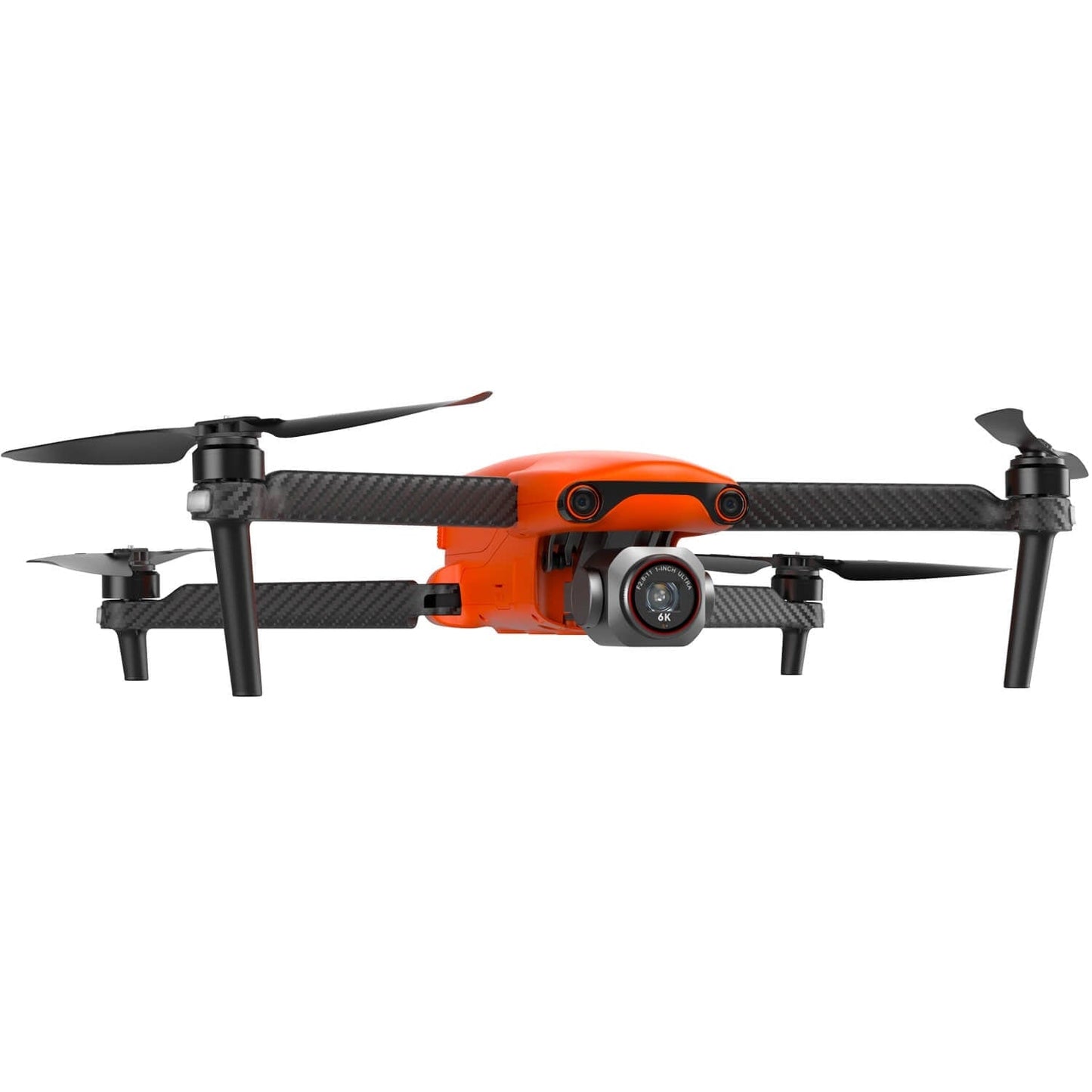

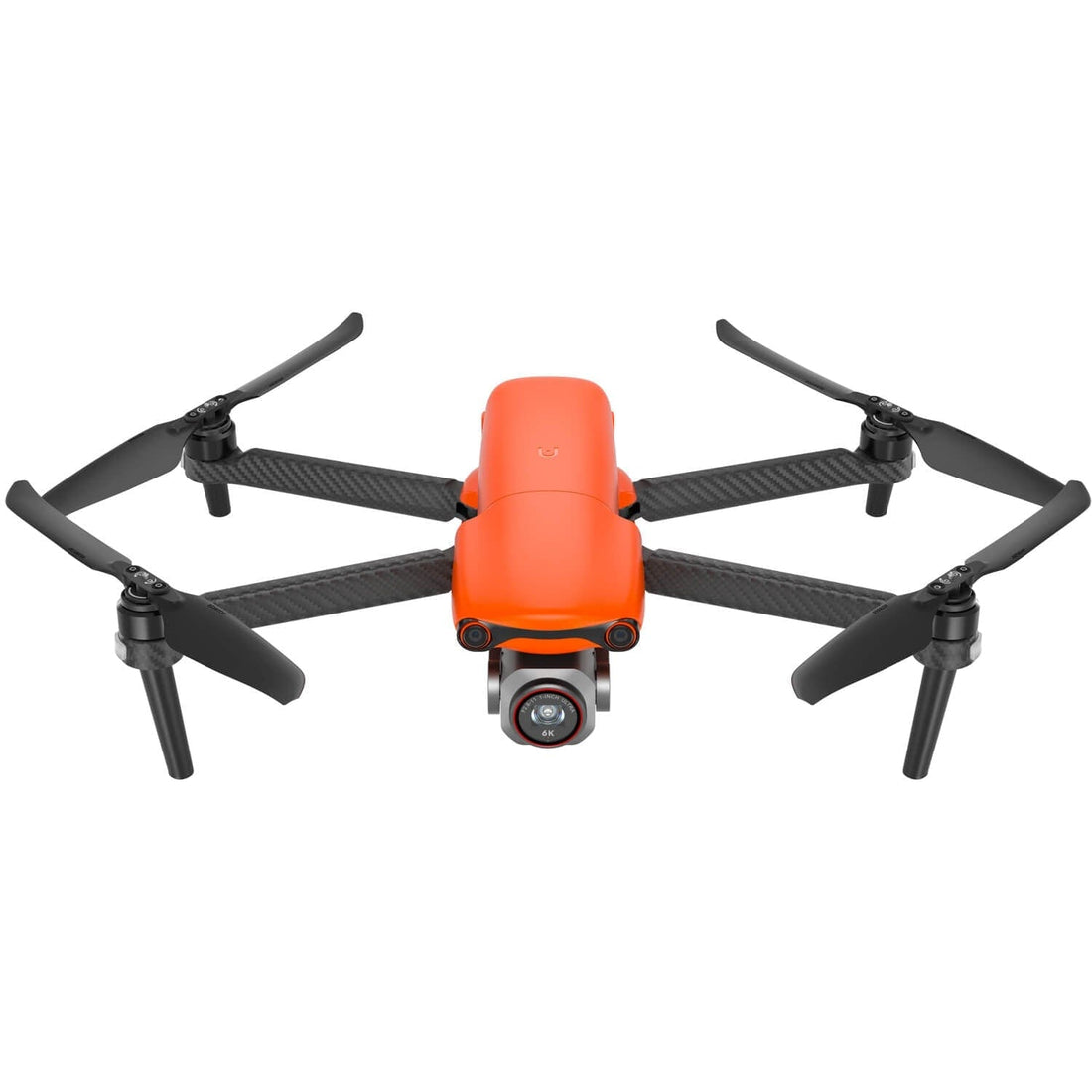

Autel EVO Lite+ Drone
The Autel EVO Lite+ Drone is specially equipped with an intelligent moonlight algorithm, which works with the 20MP camera and 1" CMOS sensor to capture vibrant nighttime details, even at high ISOs. Whether you shoot hi-res stills or HDR video up to 6K resolution, the Lite+ allows for manual control over exposure and depth of field, letting you adjust the aperture between f/2.8 to f/11. The Lite+ can also automatically balance overexposure and underexposure, ensuring your images and videos remain clear.
Piloting the EVO Lite+ to capture this footage is made to be comfortable and intuitive with an included gamepad-style controller that uses your existing smartphone with the Autel SkyLink and Fly apps. As you fly, you can view what the drone sees from up to 7.4 miles away in 1080p resolution utilizing dual-band connectivity. You can even view what's around the Lite+ by using the wide-angle cameras that are utilized for obstacle avoidance.
1" CMOS
Imaging Sensor
20MP
Photos
6K/30fps
HDR Video
3-Axis
Mechanical Gimbal
40 Mins
Flight Time
7.4 Miles
Transmission Distance

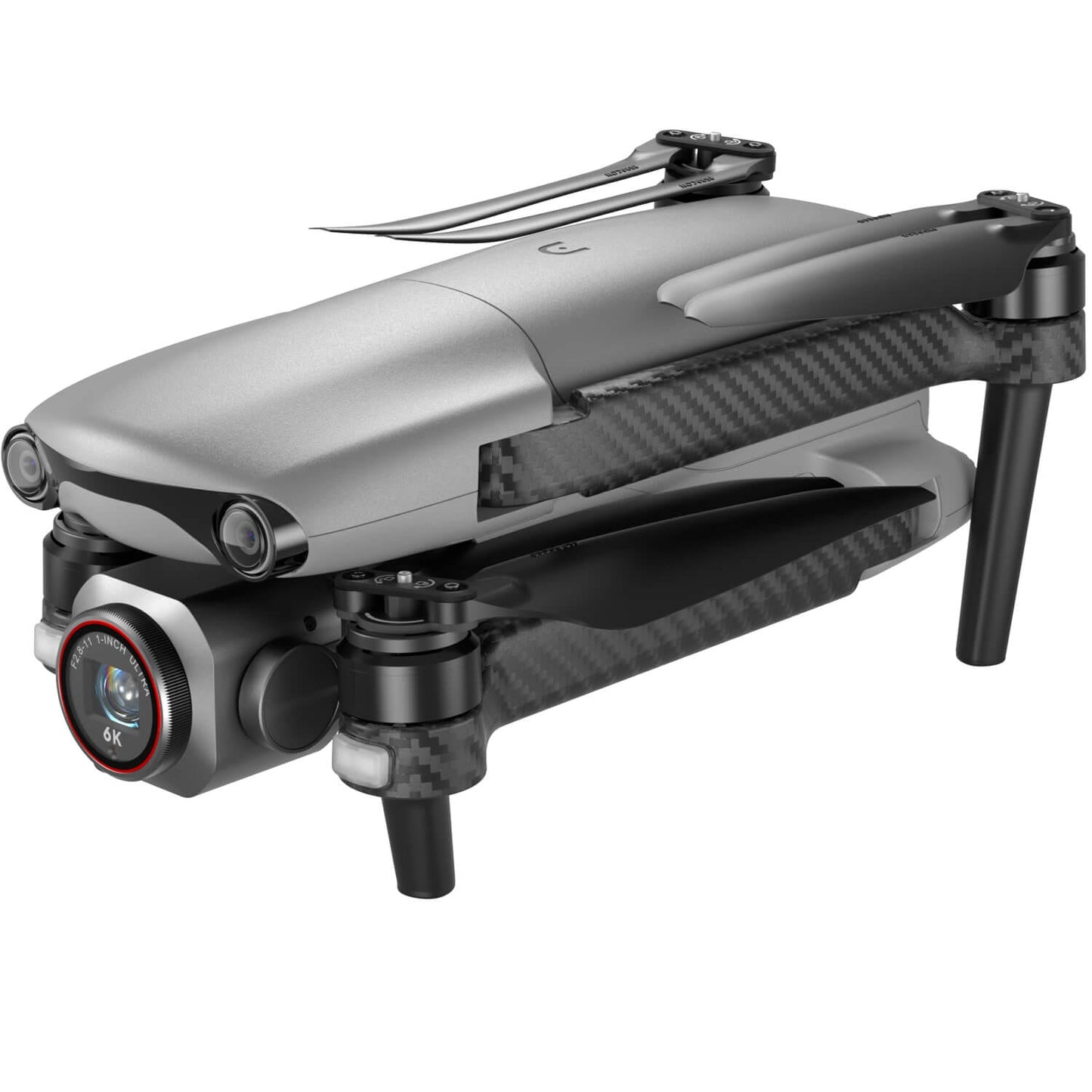

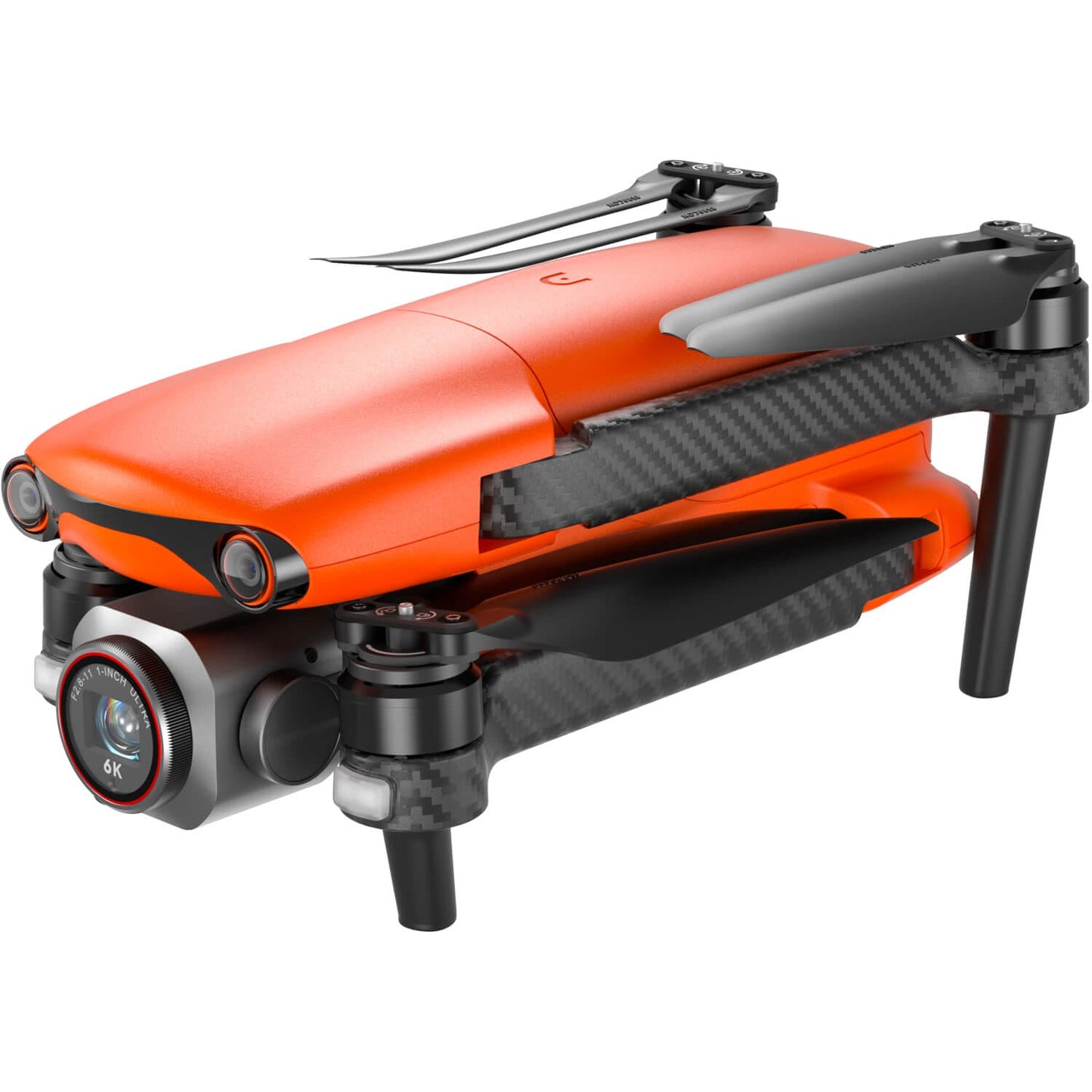

Compact & Foldable Design
The propellers and arms of the Autel EVO Lite+ conveniently fold into a tight package that makes traveling with your drone easier.
1" CMOS Sensor with 20MP Camera
Autel drone EVO Lite+ is equipped with a 1-inch image sensor, a 20MP camera, and a large 2.4μm pixels that can record 6K/30fps and 4K/60fps video. In addition, the Autel EVO Lite+ Drone is specially equipped with an intelligent moonlight algorithm that can capture crisp, vibrant details at night with low noise — even when the ISO is cranked up high.
Adjustable Aperture From f/2.8-f/11
Flex your creativity with an adjustable aperture from f/2.8-f/11, giving you the ability to alter exposure and depth of field in imaginative ways that show off your unique artistic style.
1" CMOS 20MP
Imaging Sensor
2.4μm（ Bin2）
Pixel size
6K/30FPS Video
8-bit HDR
3-Axis
Mechanical Gimbal
RGGB Sensor
Color Filter
F2.8~F11
Adjustable Aperture
Take Back The Night.
Capture the allure of the world, even as it darkens. Thanks to Autel's intelligent moonlight algorithm, the EVO Lite+ can capture vibrant nighttime details, even at high ISOs.
HDR: Darker Shadows. Brighter Highlights.
With HDR on, the EVO Lite+ drone wiill snap several photos at different exposures and automatically stitch them together- resulting in a photo with more contrast and dynamic range.
Restore Natural Colors
Automatically balance overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.
Defog Mode
Whether you're flying over a gloomy hilltop at dawn or hovering at the base of a waterfall, the EVO Lite+ enable you cut through the haze with a fog penetration function that automatically adjusts the camera's vibrance settings to make your footage look crisp and clear.
Cinematic Shots With A Single Click
Create dramatic, professional-level shots at the touch of a button with four automatic shooting modes. Add a soundtrack and filters in the Autel Sky app to make your video even more epic, allowing you to produce unforgettable results whether you're a veteran pilot or completely new to the drone game.
SkyPortrait - Blur the background automatically for additional cinematic effect/Portrait
Take the ultimate selfie with the press of a single button. When engaged, SkyPortrait will raise your EVO Lite into the air where it will snap a photo, automatically adjusting the lens to include everyone. You can even have the Lite automatically blur out the background to focus only on you and your friends for additional cinematic effect/Portrait.
Dynamic Track 2.1: Master Subject Tracking
Recruit your EVO Lite+ drone to automatically follow any person, animal, or vehicle so you can focus on your activities while your EVO Lite+ handles the cinematic side.
MovieMaster: Quick And Easy Movies
Apply your favorite templates from the Autel Sky app for quick and easy movie-making, allowing you to drastically reduce the tedious editing process so you can share your creations in minutes.
Snap And Share In Seconds
Done shooting? Simply place your smartphone close to the EVO Lite+ to upload photos and videos at a speedy rate of 160Mbps using the Autel Sky app.
SonarSound: Hear Everything
Record voices and ambient sounds on the ground through the smartphone, allowing you to bring your videos to life even when your drone is miles above.
Fly Safer With 3-Way Obstacle Avoidance
Not commonly seen in drones of this size, the EVO Lite+ 6K drone incorporates an advanced obstacle avoidance system to keep it safe while flying. With 3-way binocular vision sensors that enable the drone to perceive obstructions in front of it, behind it, and below it. If anything comes into the Lite's path, it will automatically brake and hover to avoid a collision.
12KM 2.7K/30FPS Video Transmission
Autel EVO Lite+ drone features Autel's most advanced Autel SkyLink image transmission system yet, delivering an ultra-smooth, clear, and reliable image feed while flying farther. The EVO lite+ has a video transmission distance of up to 7.4miles (12 km), the transmission quality of 2.7K/30FPS.
2.4/5.2G/5.8Hz Three Frequency
Reliable Signal, Smooth Flight
The EVO Lite+ drone supports 2.4/5.8GHz three-frequency communication and automatically switches to the best channel with the lowest interference in real-time. This significantly improves the aircraft's anti-interference ability in challenging environments, increasing flight safety.
40 Minutes Flight Time
More Battery. More Time. More Creativity.
The EVO Lite+ can fly continuously for 40 minutes, which means plenty of time to experiment with creative angles and dream up inventive shots.
-
Lite Aircraft
Takeoff weight 820g Dimensions
(including blades)Folded: 210×104×85mm
Unfolded: 430×517×85mmWheelbase 368mm Max ascent speed 8m/s (sport), 5m/s (normal), 3m/s (stable) Max descent speed 4m/s (sport), 3m/s (normal), 2m/s (stable) Max Level Flight Speed
(no wind, near sea level)19m/s (sport), 10m/s (normal), 5m/s (stable) Max Takeoff Altitude 4000m Max Flight Time (no wind) 40min Max Hovering Time (no wind) 38min Max Flight Distance (no wind) 24km Max Wind Resistance Level 7 Max Tilt Angle 33°(movement), 25°(normal), 25°(stable) Max Angular Velocity 200°(movement), 120°(normal), 60°(stable) Operating Temperature -10°C ~ 40°C Operating frequency 2.400-2.4835GHz
5.725-5.850GHz
5.150-5.250GHzTransmission Power (EIRP) FCC:≤30dBm GNSS GPS Hovering Accuracy Vertical:±0.1m (when the visual positioning is active), ±0.5m (with GPS positioning);
Horizontal:±0.3m (when the visual positioning is active), ±1.5m (with GPS positioning);Built-in storage 6GB SD storage Max. support 256GB（UHS-3 rating required） Gimbal
Lite Lite+ Stabilization 4-axis
(horizontal/vertical/tilt/rotation shooting)3-axis Mechanical Range Pitch: -135°~45°
Roll: -45°~45°
Yaw: -90°~90°
Rotate: -400°~400°Pitch: -135°~45°
Roll: -45°~45°
Yaw: -90°~90°Controllable Range Pitch: -90°~30°
Yaw: -80°~80°
Rotate: -360°~360°Pitch: -90°~30°
Yaw: -80°~80°Max Control Speed (pitch) 30°/s 30°/s Angular Vibration Range ±0.003° ±0.003° Perception System
Forward Accurate measurement range: 0.5~18m
Effective sensing speed:<12m/s
FOV: horizontal<70°, vertical <88°Backward Accurate measurement range：0.5~18m
Effective sensing speed：<12m/s
FOV：Horizontal<40°,Vertical<30°Downward Accurate measurement range: 0.5~22m
Visual hovering range: 0.5~40m
FOV: horizontal<40°, vertical <30°Operating environment Forward, backward:
Surface with clear pattern and adequate lighting(lux> 15)
Downward:
Surface with clear pattern and adequate lighting(lux> 15);
Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)Camera
EVO Lite EVO Lite+ Sensor CMOS: 1/1.28 inch
Effective pixels: 50M
Pixel size: 1.22μm*1.22μmCMOS: 1 inch
Effective pixels: 20M
Pixel size: 2.4μm*2.4μmLens FOV: 85°
Equivalent focal length: 23mm
Aperture: f/1.9
Focus range: 0.5m ~ ∞
Focus mode: PDAF+CDAF/MFFOV: 82°
Equivalent focal length: 29mm
Aperture: f/2.8 ~ f11
Focus range: 0.5m ~ ∞
Focus mode: CDAF/MFShooting mode Automatic mode (P gear): EV adjustable, ISO/Shutter automatic
Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable
Shutter priority (S file): Shutter/EV adjustable, ISO automaticAutomatic mode (P gear): EV is adjustable, Shutter/Aperture is not adjustable, ISO is automatic or adjustable. Manual mode (M gear): ISO/Shutter/Aperture is adjustable, EV is not adjustable.
Shutter priority (S file): Shutter/EV adjustable, Aperture automatic, ISO automatic or adjustable.
Aperture priority (A gear): Aperture/EV adjustable, Shutter automatic, ISO automatic or adjustable.ISO range Video: ISO100 ~ ISO6400
Photo: ISO100 ~ ISO6400
Night scene mode: ISO up to 64000Video: ISO100 ~ ISO6400
Photo: ISO100 ~ ISO6400
Night scene mode: ISO up to 64000Shutter speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame ratesPhoto mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame ratesPortrait blur Real-time image transmission portrait blur and photo portrait blur Real-time image transmission portrait blur and photo portrait blur Defog mode Support Support Zoom Range Digital zoom: 1 ~ 16 times
Lossless zoom: 4K: 2 times; 1080p: 4 times
Note:
4K: more than 2 times the digital, the following is lossless
1080P: more than 4 times the digital, the following is losslessDigital zoom: 1 ~ 16 times
Lossless zoom: 4K: 1.3 times; 1080p: 3 times
Note:
6K: Digital zoom
4K: more than 1.3 times the digital, the following is lossless
1080P: more than 3 times the digital, the following is losslessPhoto format JPG / DNG / JPG+DNG JPG（10bit） / DNG(12bit) / JPG+DNG Photo resolution 50MP：8192x6144（4:3）
12.5MP（default）：4096x3072（4:3）
4K：3840x2160（16:9）5472x3648 (3:2，default)
5472x3076 (16:9)
3840x2160 (16:9)Photo shooting mode Single shot
Burst shooing: 3/5
Auto exposure bracketing(AEB): 3/5 shots
Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s)
HDR imaging: 8192x6144/4096x3072/3840x2160
HyperLight: 8192x6144/4096x3072/3840x2160Single shot
Burst shooing: 3/5
Auto exposure bracketing(AEB): 3/5 shots
Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG minimum 5s)
HDR imaging: 5472x3648/3840x2160
HyperLight: 5472x3648/3840x2160Video coding format H265/H264 H265/H264 Video resolution 3840x2160 p60/50/48/30/25/24
2720x1528 p60/50/48/30/25/24
1920x1080 p120/60/50/48/30/25/24
HDR:
3840x2160 p30/25/24
2720x1528 p30/25/24
1920x1080 P60/50/48/30/25/245472x3076 p30/25/24
3840x2160 p60/50/48/30/25/24
2720x1528 p60/50/48/30/25/24
1920x1080 p120/60/50/48/30/25/24
HDR:
3840x2160 p30/25/24
2720x1528 p60/50/48/30/25/24
1920x1080 p60/50/48/30/25/24Max bitrate 120Mbps 120Mbps Timelapse Original image:3840*2160，JPG/DNG
Video: 4K P25Original image：5472*3076/3840*2160，JPG/DNG
Video：5.4K/4K P25Panorama Horizontal/Vertical/Wide-angle/Spherical
Original image: 4096*3072，JPG/DNGHorizontal/Vertical/Wide-angle/Spherical
Original image: 5472*3648, JPG/DNGSupported file system Fat32、exFat Fat32、exFat Video format MP4/MOV MP4/MOV WIFI transfer 20MB/s 20MB/s Remote controllor and image transmission
Operating frequency 2.400-2.4835GHz
5.725-5.850GHz
5.150-5.250GHzMax transmission distance
(unobstructed, free of interference)FCC：12km Operating temperature 0°C ~40°C Transmission power (EIRP) FCC：≤30dBm Battery capacity 3930mAh Max battery life ~ 3.5h (when connected to a mobile phone)
~ 2.5h (when not connected to mobile phone)Interface type Type C Transmission system Autel SkyLink Realtime transmission quality Transmission distance<1km：2.7K 30fps
Transmission distance>1km：720P 30fpsTransmission bitrate 90Mbps Transmission delay ≤200ms Adapter
Input 100-240V/50-60HZ Output 12.75V==5A Rated power 63.75W Aaircraft Battery
Capacity 6175mAh Voltage 11.13V Max charging voltage 12.75V Battery Type Li-Po 3S Energy 68.7Wh Charging temperature 5~45℃ Single battery charging time 90min Max charging power 78W App
Mobile App Autel Sky Mobile system required iOS 12.0 and above
Android 8.0 and above -
-
