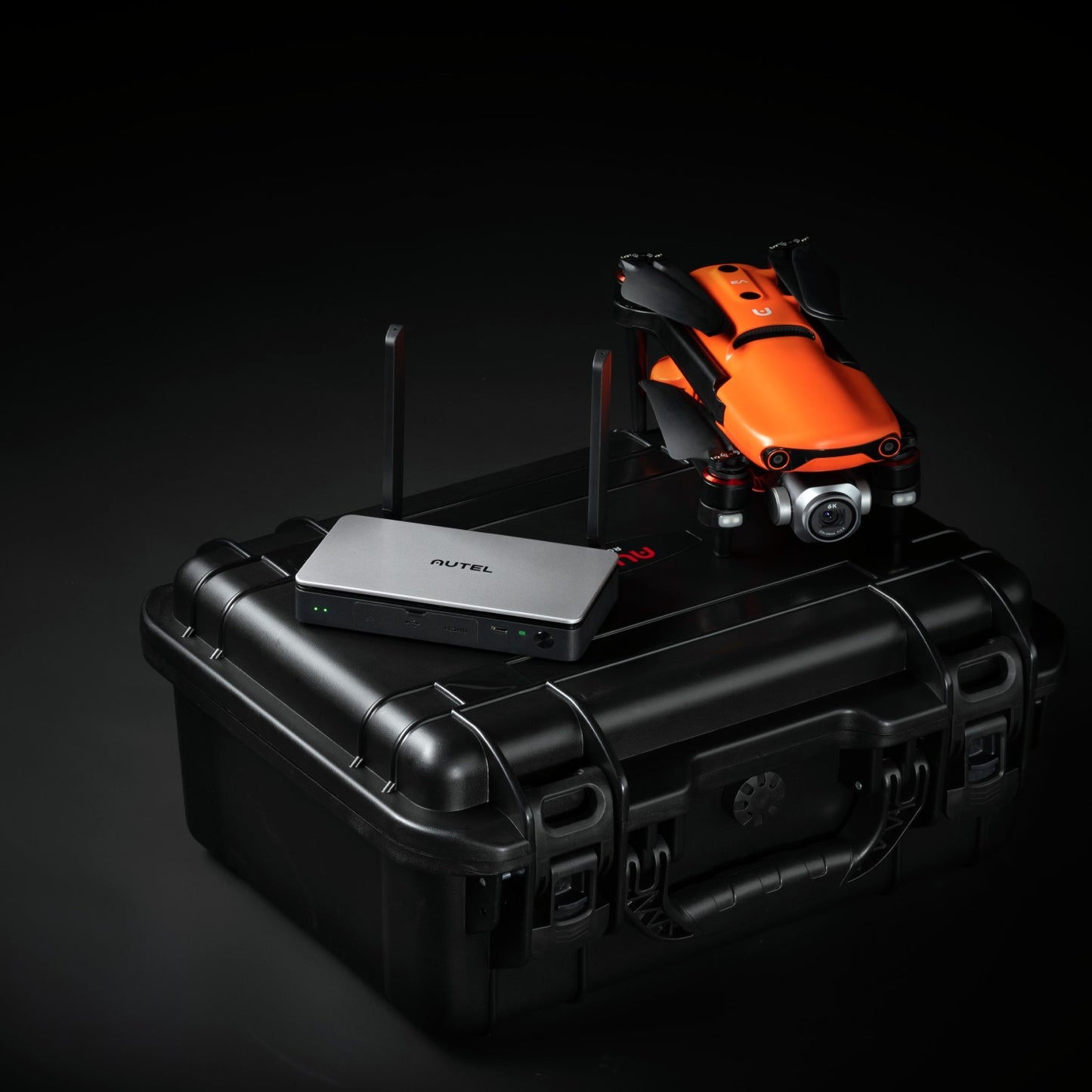

Autel Robotics EVO II Pro V3 Camera Drone Live Stream Bundle
Autel Robotics EVO II Pro V3 Camera Drone Live Stream Bundle
- Remote ID Updated
- Free Landing Pad
- Live Transmission Kit with Live Deck 2
- 1080P/60FPS Video Stream
- 7.5 Miles Transmission Range(Live Deck 2)
- 5-Hour Battery Life
- 6.4" Smart Controller SE
- 15km(9.3 miles) Image Transmission
- 12-bit DNG
- 360° Obstacle Avoidance
- Dynamic Track 2.1
- 40 Mins Flight Time
Fast Delivered by Sat, Dec 28 - Mon, Dec 30 Free Ship from USA
Fast, Free Shipping & No Extra Tax
30-Day Return or Replacement
12-Month Free Warranty
Lifetime Customer Support
- Overview
- Live Deck 2
- Video
- SPECS

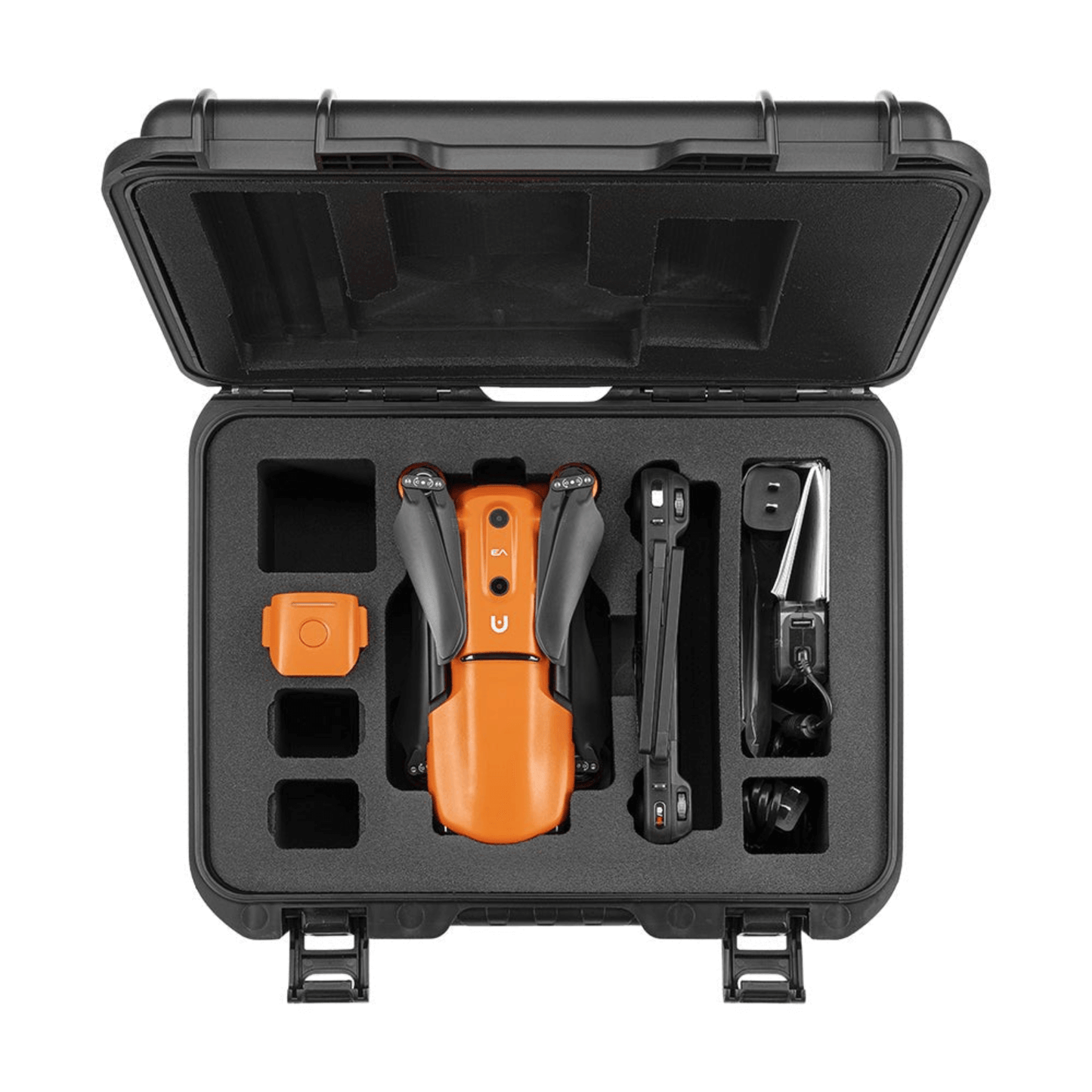

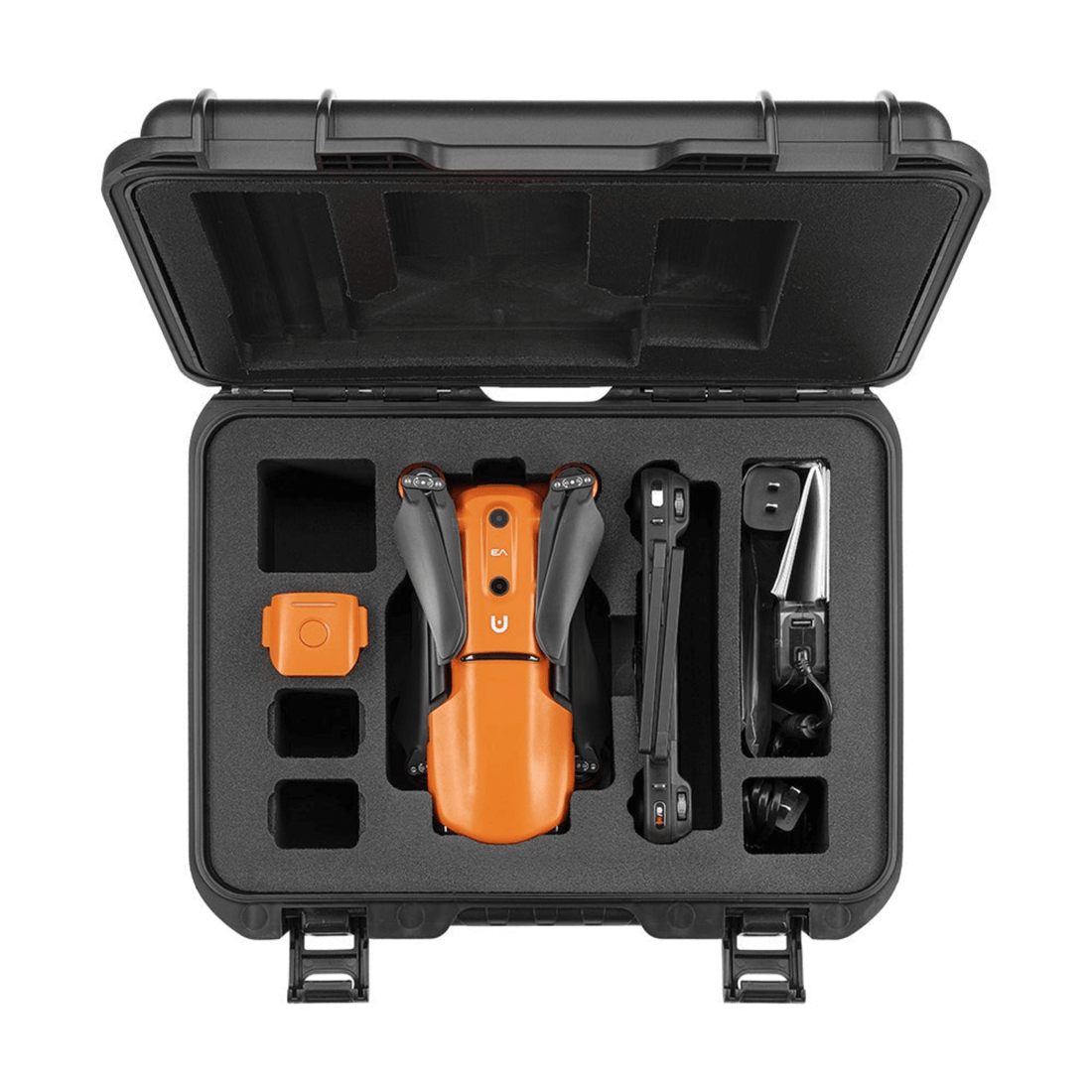

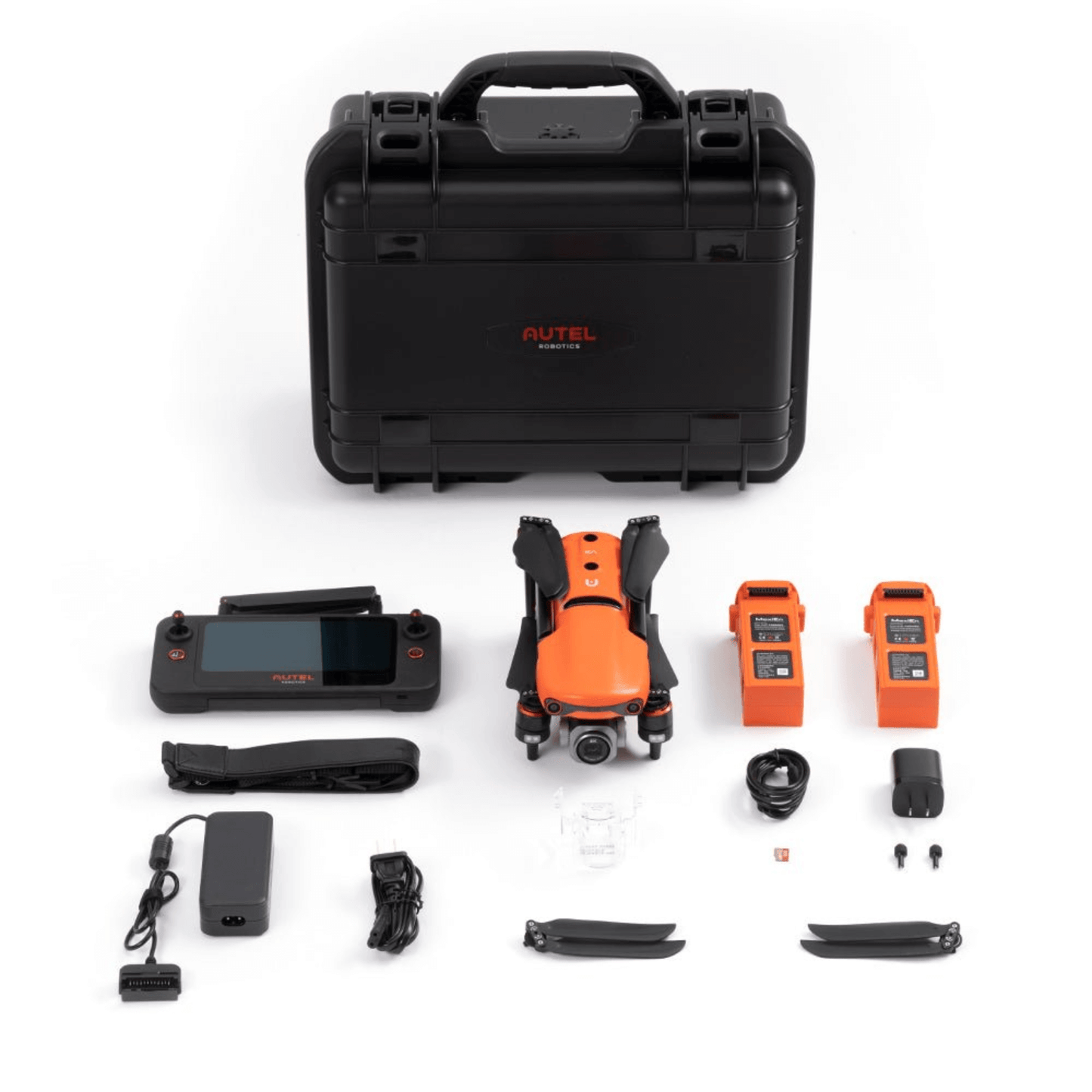

- In the box
- Downloads
-

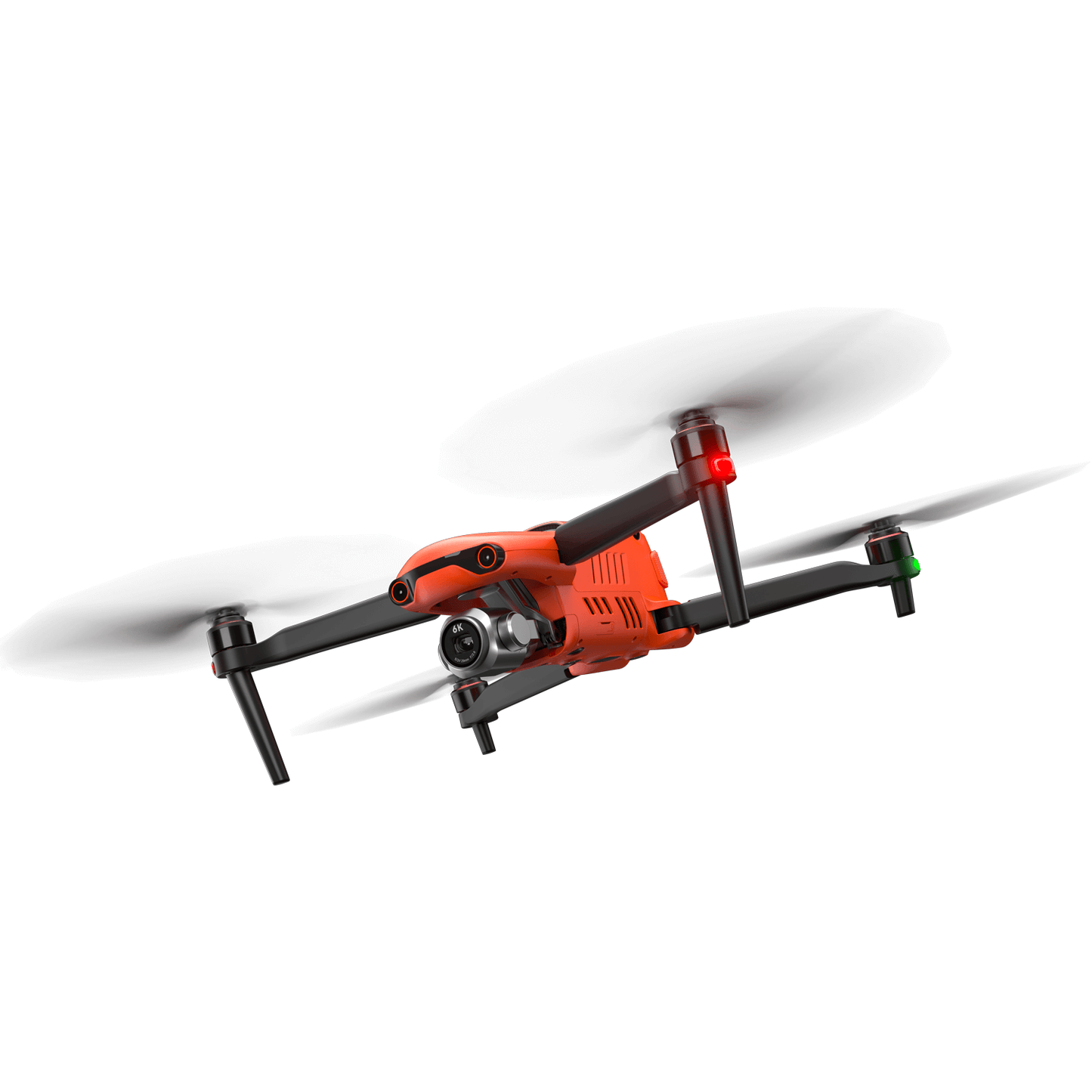

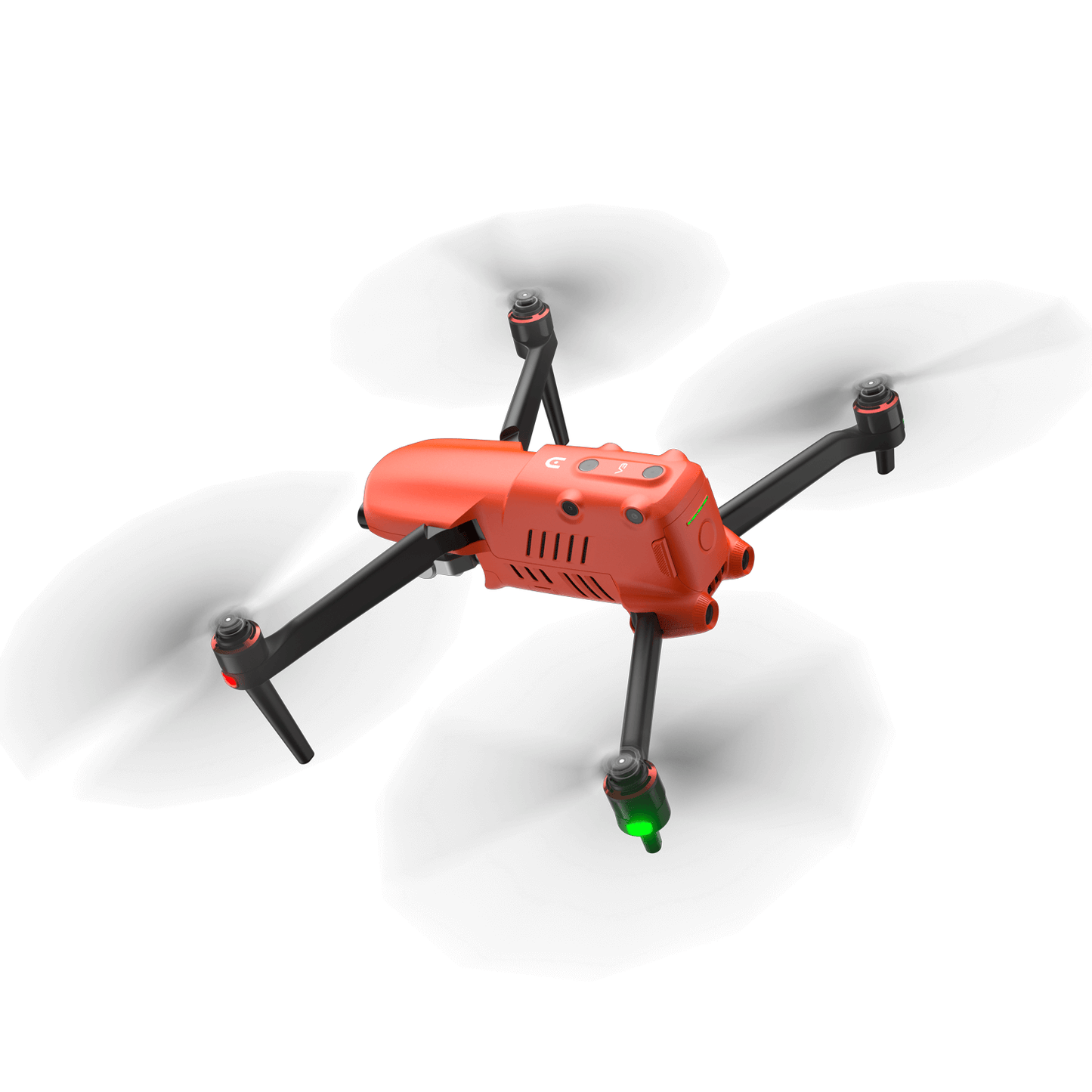

EVO II Pro V3
Autel EVO II Pro V3 is a camera drone equipped with Sony's latest 20 megapixel 1-inch CMOS image sensor. With this powerful sensor, the EVO II Pro V3 can capture video at resolutions of up to 6K, with improved dynamic range, noise suppression, and higher frame rates.
Additionally, the lens on this drone has an adjustable aperture range of f2.8 to f11 and a maximum ISO of 44000, which gives photographers greater control and creative freedom when taking pictures or shooting video.
-
1 inch
CMOS Sensor -
6K/30fps
Videos -
Moonlight
Algorithm 2.0 -
15km
Transmission Range -
360°
Obstacle Avoidance -
Dynamic Track
2.1 -
40 Minutes
Flight Time -
6.4"
Smart Controller SE
Excel in Night
-
Moonlight Algorithm 2.0 Autel Robotics EVO 2 Pro V3 comes with Autel's Moonlight Algorithm 2.0, which provides additional noise reduction for improved image quality. Combined with its upgraded CMOS sensor, this drone is capable of capturing clear images and video even in low light conditions or at night.
All New 6K 1" CMOS
Autel Robotics EVO II Pro V3 6K drone camera with 1-inch sensor captures incredibly smooth 6K Ultra HD video and 20MP photos. And An adjustable aperture from f/2.8 to f/11 giving you wide-ranging adjustment over how much light gets into the camera.
1" CMOS
Imaging Sensor
20MP
Photos Resolution
6K/30fps
HDR Video
f/2.8-f/11
Adjustable Aperture
12-bit DNG
Post-production Flexibility
100-44000
ISO Range
-
4K HDR
With 4K HDR capabilities, the Autel Robotics EVO II Pro V3 can capture greater detail in both highlights and shadows. This means that it can produce higher-quality images and video, even in the most demanding environments.
-
12-bit DNG
2023 Autel Robotics EVO II Pro V3 is capable of taking 12-bit DNG photos, which enables it to capture up to 68.6 billion colors. With 64 times the color rendering power of 10-bit, this drone provides greater flexibility in post-production, allowing photographers to fine-tune their images and achieve the desired look and feel.

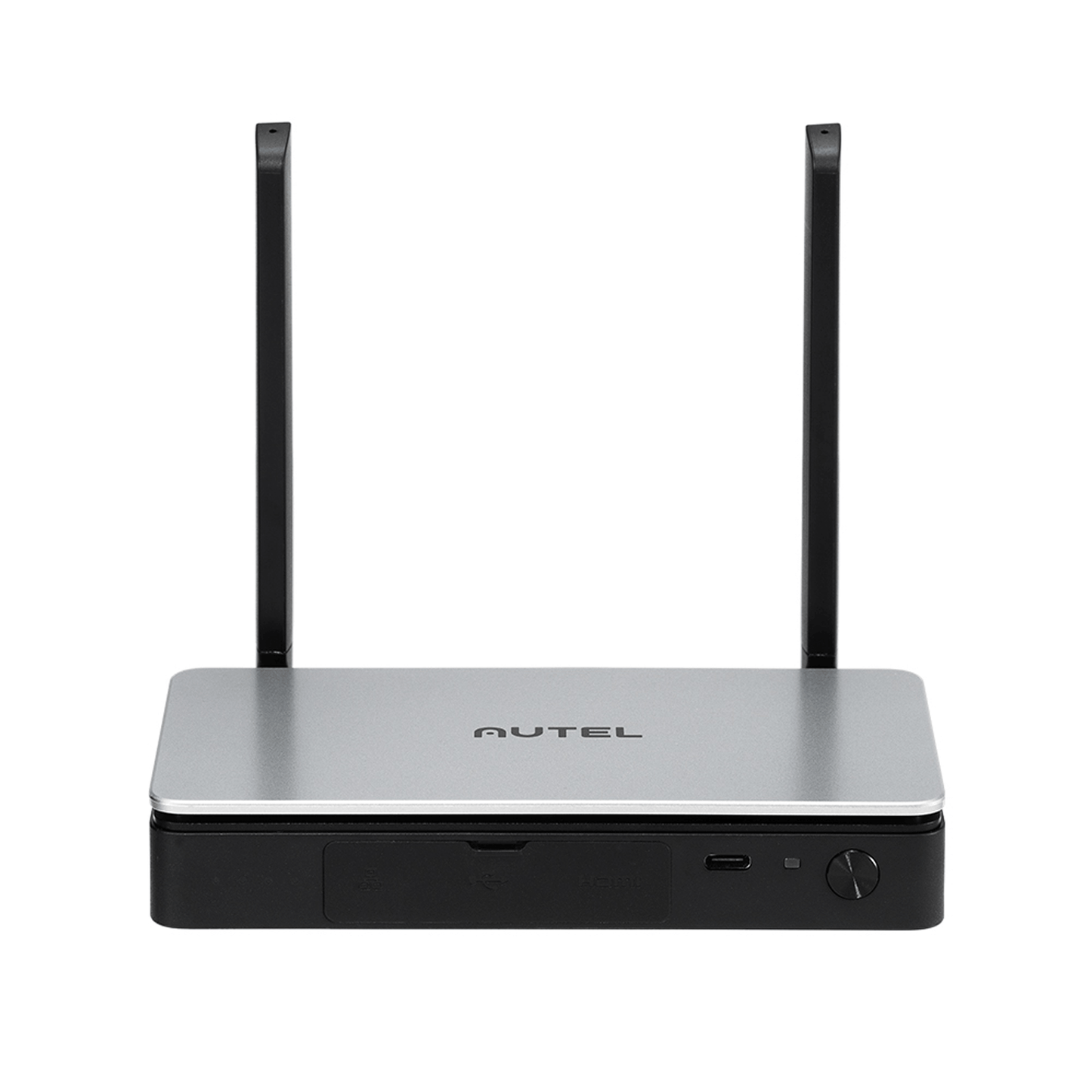

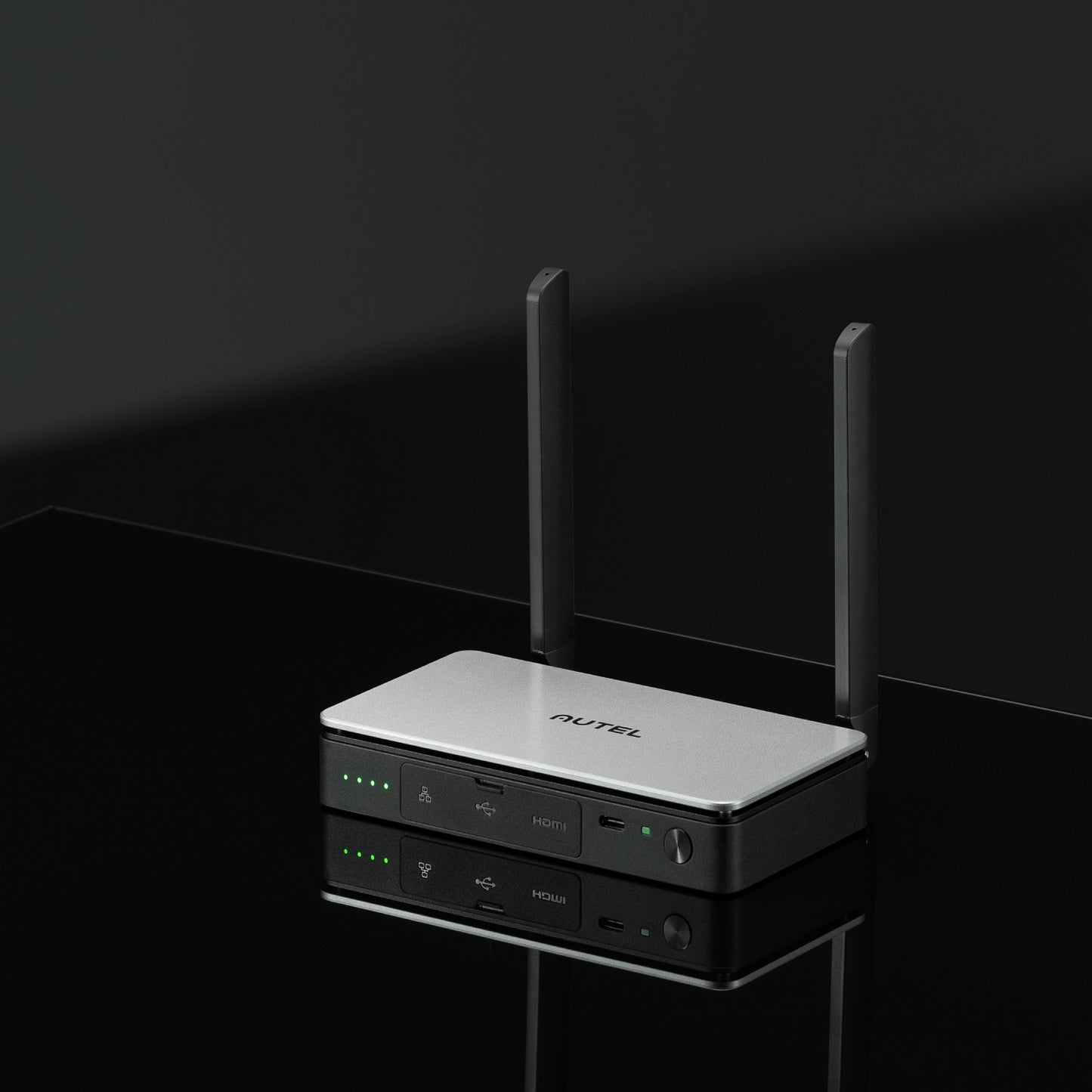

Live Deck 2: Stream Anywhere
The EVO II Pro V3 supports multi-port HDMI real-time output, making it ideal for projection monitoring and live streaming with Live Deck 2.
-
-
1080P/60FPS
Video Stream
-
-
-
Three Auto-Switch Bands
-
-
-
Transmission Range
-
-
-
IP43
Resistance
-
Broadcast With Live Deck 2
-
-
Strong Multi-Band Transmission
Based on the SkyLink 2.0 image transmission system, Live Deck 2 can communicate with aircraft via 2.4GHz/5.8GHz/900MHz working frequencies. Upgraded with a three-in-one antenna, experience improved transmission performance, anti-EMI, and low latency.
-
Advanced Signal Anti-Interference System
Do not let interference hinder your mission success. SkyLink 2.0 provides an updated and advanced anti-interference capability with its advanced algorithms and frequency hopping, you can always obtain consistent information with uninterrupted operation/ workflow in difficult working envionments.
-
- 2.4GHz
- 5.8GHz
- 900MHz
-
*900MHz working frequency is only applicable for FCC countries.
-
Intelligent Modes
HyperlapseSmart OrbitDynamic TrackAutel SkyLink 2.0 Video Transmission
Autel Robotics EVO II Pro V3 chipset comes with SkyLink 2.0 technology, which expands the possibilities for your most critical workflows. This feature provides a reliable and stable connection between the drone and the controller, even in challenging environments with high interference or signal loss.
-
9+ Miles
Do more because you can fly further away.
-
QHD
Incredible video resolution within a mile, meeting most common use cases.
-
2.4GHz / 5.8GHz / 900MHz
Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
-
* 900MHz is only applicable for FCC countries.
Dynamic Track 2.0
Autel Robotics EVO II Pro V3 is equipped with advanced object tracking technology that allows it to model the location and speed of targets simultaneously, predict their trajectory accurately, avoid obstacles during flight, and track them continuously.

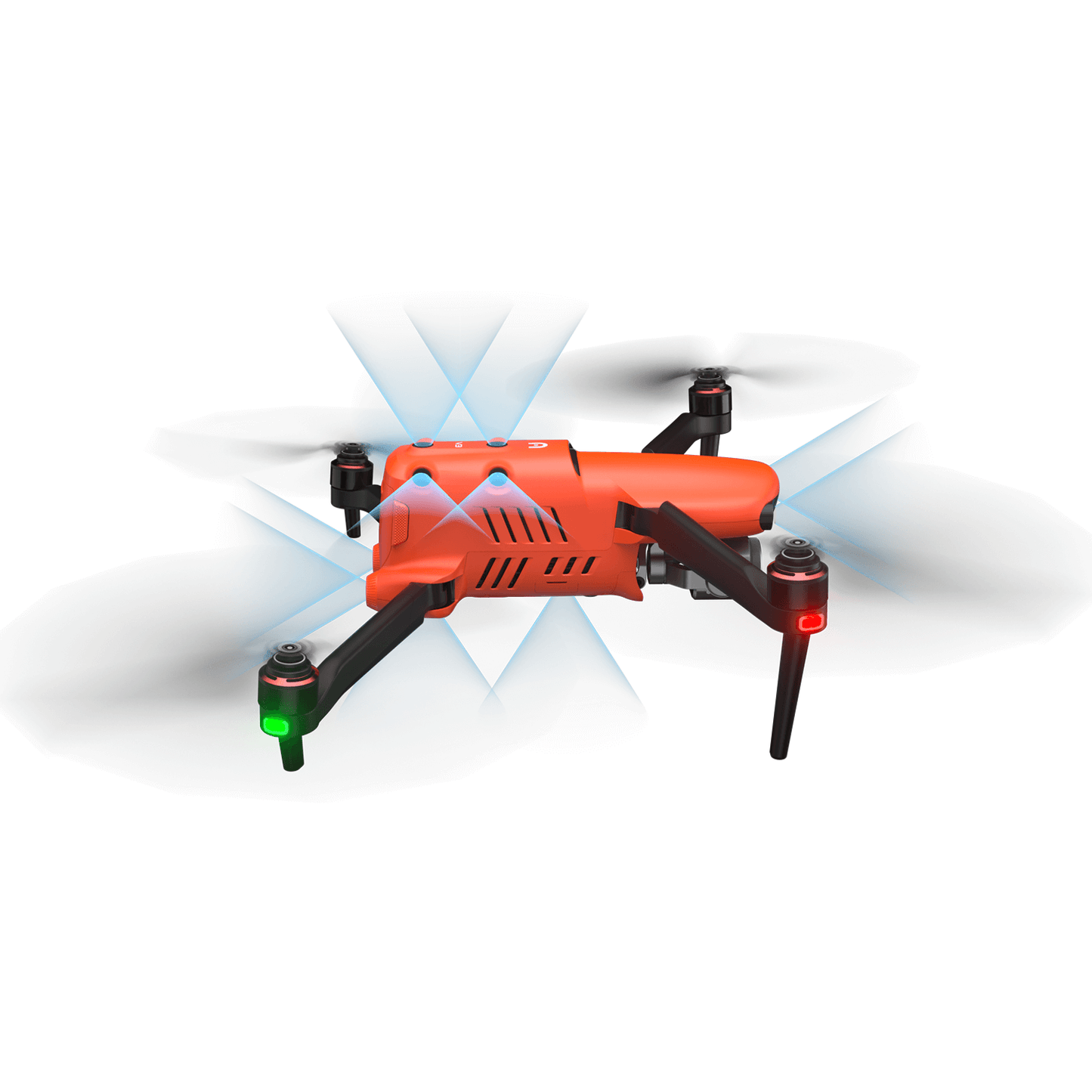

360° Obstacle Avoidance
Autel Robotics EVO II Pro V3 Drone is equipped with front, rear, left, right, top, and bottom binocular vision sensing systems that use image data to calculate the distance between the aircraft and potential obstacles.
Mission Planner
By using these planners, EVO II Pro V3 pilots can plan and execute missions autonomously, saving time and effort. Once the images are captured, users can upload them to their preferred 3D mapping software to generate accurate and detailed maps. With the EVO II Pro V3's mission planners, pilots can achieve their goals more efficiently and accurately.
-
Flight Route Options -
Demo Screen
Saft Flight
The Autel Robotics EVO II Pro V3 Drone comes with advanced safety features that ensure a safe and reliable flight experience. In the event of a low battery level or communication loss, the drone will automatically return to the home point, ensuring a safe landing. Additionally, the EVO II Pro V3 is equipped with a bottom binocular vision camera that creates a density depth map. This feature enables the drone to calculate the flatness and angles of the landing area, ensuring a precise and safe landing.
Flight Performance
Autel EVO II Pro V3 drone is equipped with a powerful 7100mAh rechargeable battery, which provides up to 40 minutes of flight time in forward motion and up to 35 minutes at a hover. With a range of up to 15 kilometers (9.3 miles).
-
40minutes
Maximum Flight Time
-
9.3miles (15km)
Maximum Transmission Range
-
27mph (12m/s)
Maximum Wind Resistance
-
45mph (20m/s)
Maximum Flight Speed

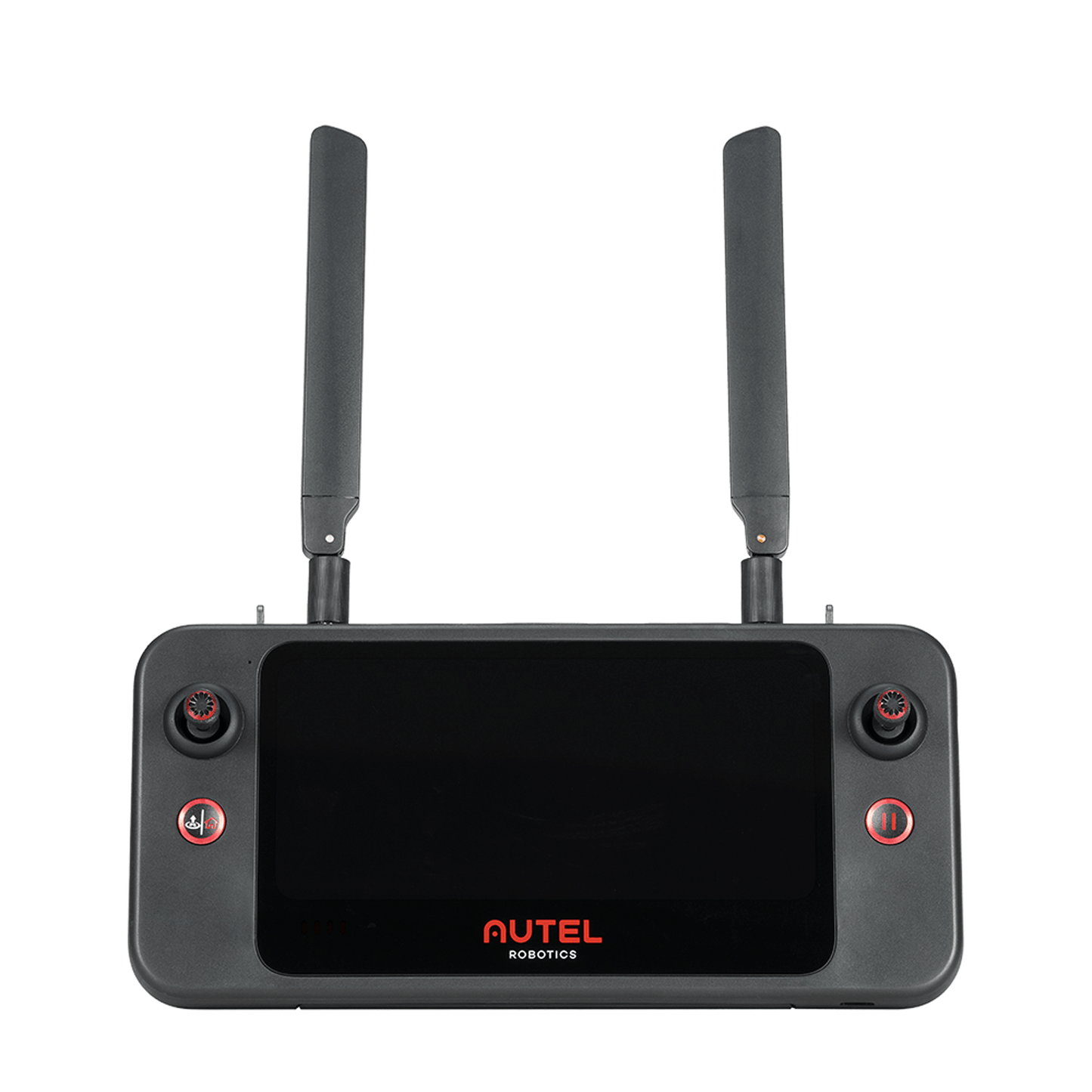

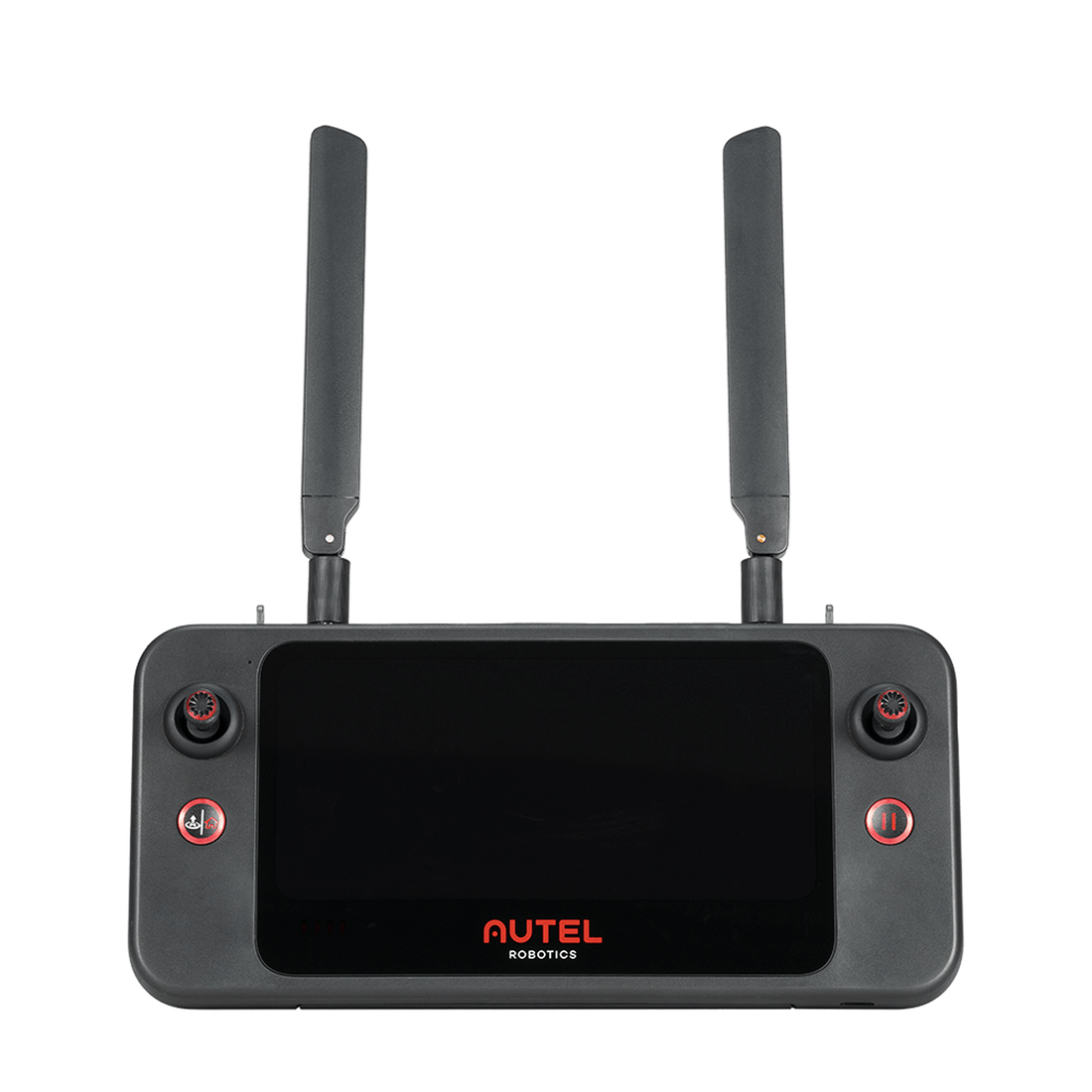

Autel Smart Controller SE
The Smart Controller SE is equipped with a 6.4-inch OLED touch screen and a powerful 8-core processor for high-definition image transmission. With SkyLink 2.0 transmission technology, you can operate the EVO II Pro V3 from up to 15km away, while triple-band frequency hopping enhances anti-interference capabilities.
-
- 6.4-Inch
OLED Screen
- 6.4-Inch
-
- 1900mAh
Removable Battery
- 1900mAh
-
- 9.3 Miles
Transmission Range
- 9.3 Miles
-
- Support
3rd Party Apps
- Support
-
- Max. ISO 440000(Night Mode)
- Autel Skylink 2.0
- 6.4-inch Smart Controller SE
- 15km Tansmission (FCC)
- 2.4GHz/5.8GHz/900MHz
- GPS/GLONASS/Galileo/BeiDou Four systems to search satellite simultaneously
-
- Max. ISO 6400
- GPS/GLONASS/Galileo/BeiDou Two system to search satellite simultaneously
- Autel SkyLink
- Traditional RC
- 9KM Transmission
- 2.4GHz/5.8GHz
Autel Robotics EVO II Pro V3
Autel EVO II Pro V3 is a camera drone equipped with Sony's latest 20 megapixel 1-inch CMOS image sensor. With this powerful sensor, the EVO II Pro V3 can capture video at resolutions of up to 6K, with improved dynamic range, noise suppression, and higher frame rates. Additionally, the lens on this drone has an adjustable aperture range of f2.8 to f11 and a maximum ISO of 44000, which gives photographers greater control and creative freedom when taking pictures or shooting video.
-
1 inch
CMOS Sensor -
6K/30fps
Videos -
Moonlight
Algorithm 2.0 -
15km
Transmission Range -
360°
Obstacle Avoidance -
Dynamic Track
2.1 -
40 Minutes
Flight Time -
6.4"
Smart Controller SE
Excel in Low Light
-
Moonlight Algorithm 2.0 EVO II Pro V3 comes with Autel's Moonlight Algorithm 2.0, which provides additional noise reduction for improved image quality. Combined with its upgraded CMOS sensor, this drone is capable of capturing clear images and video even in low light conditions or at night.
All New 6K 1" CMOS
Autel Robotics EVO II Pro V3 6K drone camera with 1-inch sensor captures incredibly smooth 6K Ultra HD video and 20MP photos. And An adjustable aperture from f/2.8 to f/11 giving you wide-ranging adjustment over how much light gets into the camera.
As for resolution, the 6K camera can achieve up to 5472 x 3648 in still and 6K/ 30fps, 4K/ 60fps in video. Also with a bit rate of up to 120 Mbps.
1" CMOS
Imaging Sensor
20MP
Photos Resolution
6K/30fps
HDR Video
f/2.8-f/11
Adjustable Aperture
12-bit DNG
Post-production Flexibility
100-44000
ISO range
-
4K HDR With 4K HDR capabilities, the Autel Robotics EVO II Pro V3 can capture greater detail in both highlights and shadows. This means that it can produce higher-quality images and video, even in the most demanding environments.
Whether you're filming in bright sunlight or dimly lit areas, this feature ensures that your footage will be crisp and clear, with accurate color representation and dynamic range.
-
12-bit DNG The Autel Robotics EVO II Pro V3 is capable of taking 12-bit DNG photos, which enables it to capture up to 68.6 billion colors. With 64 times the color rendering power of 10-bit, this drone provides greater flexibility in post-production, allowing photographers to fine-tune their images and achieve the desired look and feel.
Live Deck 2: Stream Anywhere
The EVO II Pro V3 supports multi-port HDMI real-time output, making it ideal for projection monitoring and live streaming with Live Deck 2.
-
-
1080P/60FPS
Video Stream
-
-
-
Three
Auto-Switch Bands
-
-
-
Transmission Range
-
-
-
5-Hour
Battery Life
-
-
-
IP43
Resistance
-
Broadcast With Live Deck 2
-
-
Strong Multi-Band Transmission
Based on the SkyLink 2.0 image transmission system, Live Deck 2 can communicate with aircraft via 2.4GHz/5.8GHz/900MHz working frequencies. Upgraded with a three-in-one antenna, experience improved transmission performance, anti-EMI, and low latency.
-
Advanced Signal Anti-Interference System
Do not let interference hinder your mission success. SkyLink 2.0 provides an updated and advanced anti-interference capability with its advanced algorithms and frequency hopping, you can always obtain consistent information with uninterrupted operation/ workflow in difficult working envionments.
-
- 2.4GHz
- 5.8GHz
- 900MHz
-
*900MHz working frequency is only applicable for FCC countries.
-
Panoroma
With its advanced AI algorithms, the Autel EVO II Pro V3 can automatically stitch together images to create stunning panoramic shots that are both seamless and distortion-free. Whether you're capturing breathtaking landscapes or surveying a construction site, the drone's panoramic shooting capabilities make it an ideal choice for anyone looking to capture the big picture
Intelligent Mode
HyperlapseSmart OrbitDynamic TrackAutel SkyLink 2.0 Video Transmission
The Autel Robotics EVO II Pro V3 chipset comes with SkyLink 2.0 technology, which expands the possibilities for your most critical workflows. This feature provides a reliable and stable connection between the drone and the controller, even in challenging environments with high interference or signal loss. With SkyLink 2.0, pilots can focus on their tasks and achieve their goals without worrying about connectivity issues, which makes it an essential feature for professional applications that require high levels of precision and efficiency.
-
9+ Miles
Do more because you can fly further away.
-
QHD
Incredible video resolution within a mile, meeting most common use cases.
-
2.4GHz / 5.8GHz / 900MHz
Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
-
* 900MHz is only applicable for FCC countries.
Dynamic Track 2.0
The Autel Robotics EVO II Pro V3 is equipped with advanced object tracking technology that allows it to model the location and speed of targets simultaneously, predict their trajectory accurately, avoid obstacles during flight, and track them continuously. This feature can identify up to 64 objects at the same time, providing pilots with a comprehensive view of their surroundings. Moreover, the function can track the subject in three modes: behind, side-by-side, or fixed position, giving pilots greater flexibility and control when capturing footage.
360° Obstacle Avoidance
Autel Robotics EVO II Pro V3 Drone is equipped with front, rear, left, right, top, and bottom binocular vision sensing systems that use image data to calculate the distance between the aircraft and potential obstacles. This feature enables the drone to detect potential hazards at up to 30m away and accurately control its speed to avoid collisions. With this advanced obstacle avoidance technology, pilots can navigate through challenging environments and capture footage with confidence, knowing that the drone is capable of avoiding obstacles on its own.
Mission Planner
The Autel Robotics EVO II Pro V3 comes with two mission planners: Rectangular and Polygon. These mission planners are particularly useful for professionals who need to capture a large number of images in a rectangular or polygonal area. By using these planners, pilots can plan and execute missions autonomously, saving time and effort. Once the images are captured, users can upload them to their preferred 3D mapping software to generate accurate and detailed maps. With the EVO II Pro V3's mission planners, pilots can achieve their goals more efficiently and accurately.
-
Flight Route Options -
Demo Screen
-
ATH(Auto Reture Home) -
Hover -
Land Off
Flight Performance
Autel EVO II Pro V3 drone is equipped with a powerful 7100mAh rechargeable battery, which provides up to 40 minutes of flight time in forward motion and up to 35 minutes at a hover. With a range of up to 15 kilometers (9.3 miles), pilots can explore vast areas and capture stunning aerial footage without the need for frequent battery changes or recharges. The EVO II Pro V3 also boasts a top speed of up to 45 miles per hour, making it an ideal choice for professionals who need to cover large distances quickly.
-
40minutes
Maximum Flight Time
-
9.3miles (15km)
Maximum Transmission Range
-
27mph (12m/s)
Maximum Wind Resistance
-
45mph (20m/s)
Maximum Flight Speed
Autel Smart Controller SE
The Smart Controller SE is equipped with a 6.4-inch OLED touch screen and a powerful 8-core processor for high-definition image transmission. With SkyLink 2.0 transmission technology, you can operate the EVO II Pro V3 from up to 15km away, while triple-band frequency hopping enhances anti-interference capabilities. The customized Android system also allows for flexibility with 3rd party apps. Plus, with an IP43 rating, the Smart Controller SE delivers reliable performance in all weather conditions.
-
-
- 6.4-Inch OLED Screen
-
- Removable Battery
-
- 9.3 Miles Transmission Range
-
- 14°F to 104°F Operating Temperature
-
- 3rd Party Apps
-
Max. ISO 6400 Max. ISO 440000(Night Mode) GPS/GLONASS/Galileo/BeiDou Two systems to search satellite simultaneously GPS/GLONASS/Galileo/BeiDou Four systems to search satellite simultaneously - Autel SkyLink
- 2.4GHz/5.8GHz
- 9km Transmission (FCC)
- Autel Skylink 2.0
- 2.4GHz/5.8GHz/900MHz
- 15km Tansmission(FCC)
Traditional RC 6.4-inch Smart Controller SE -
-

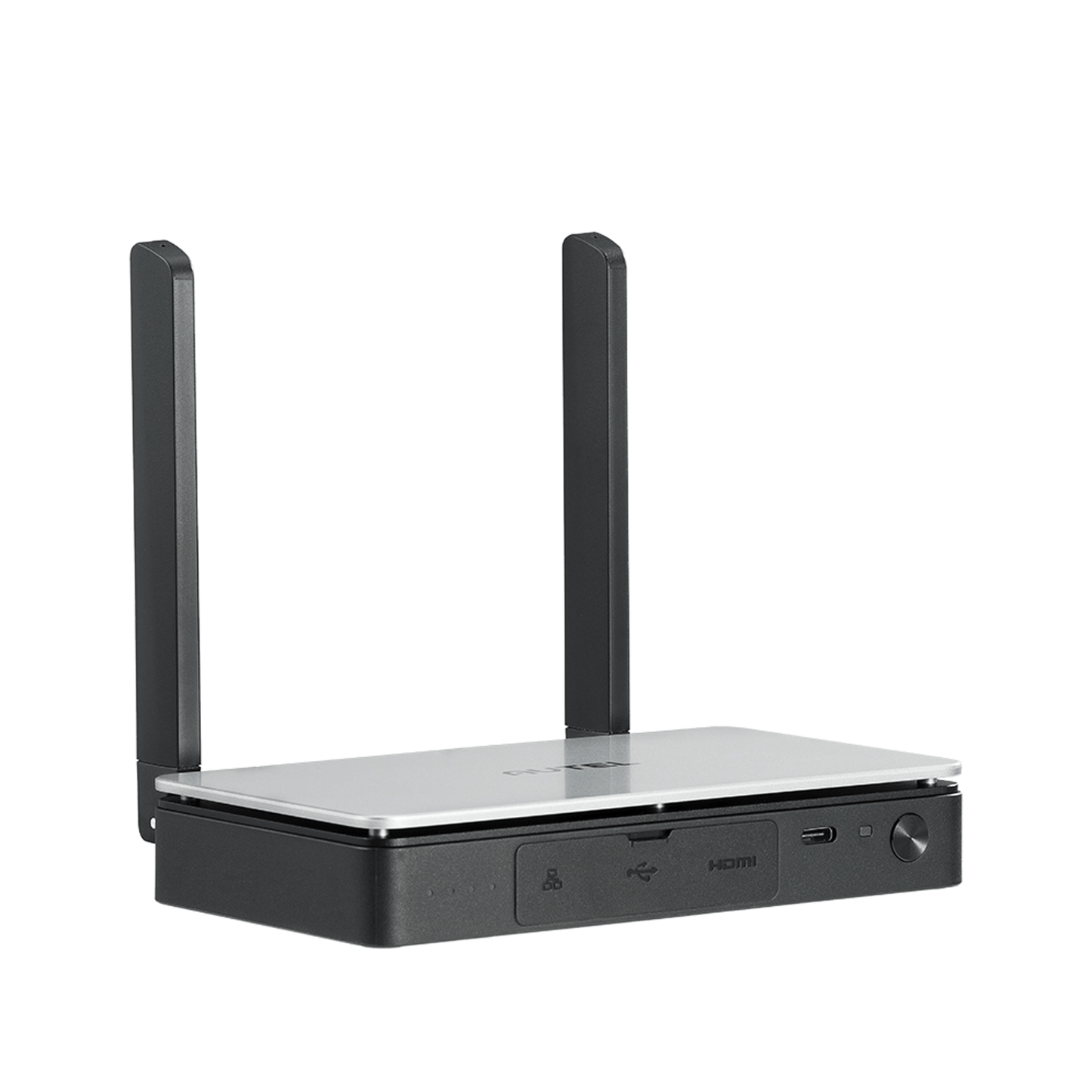

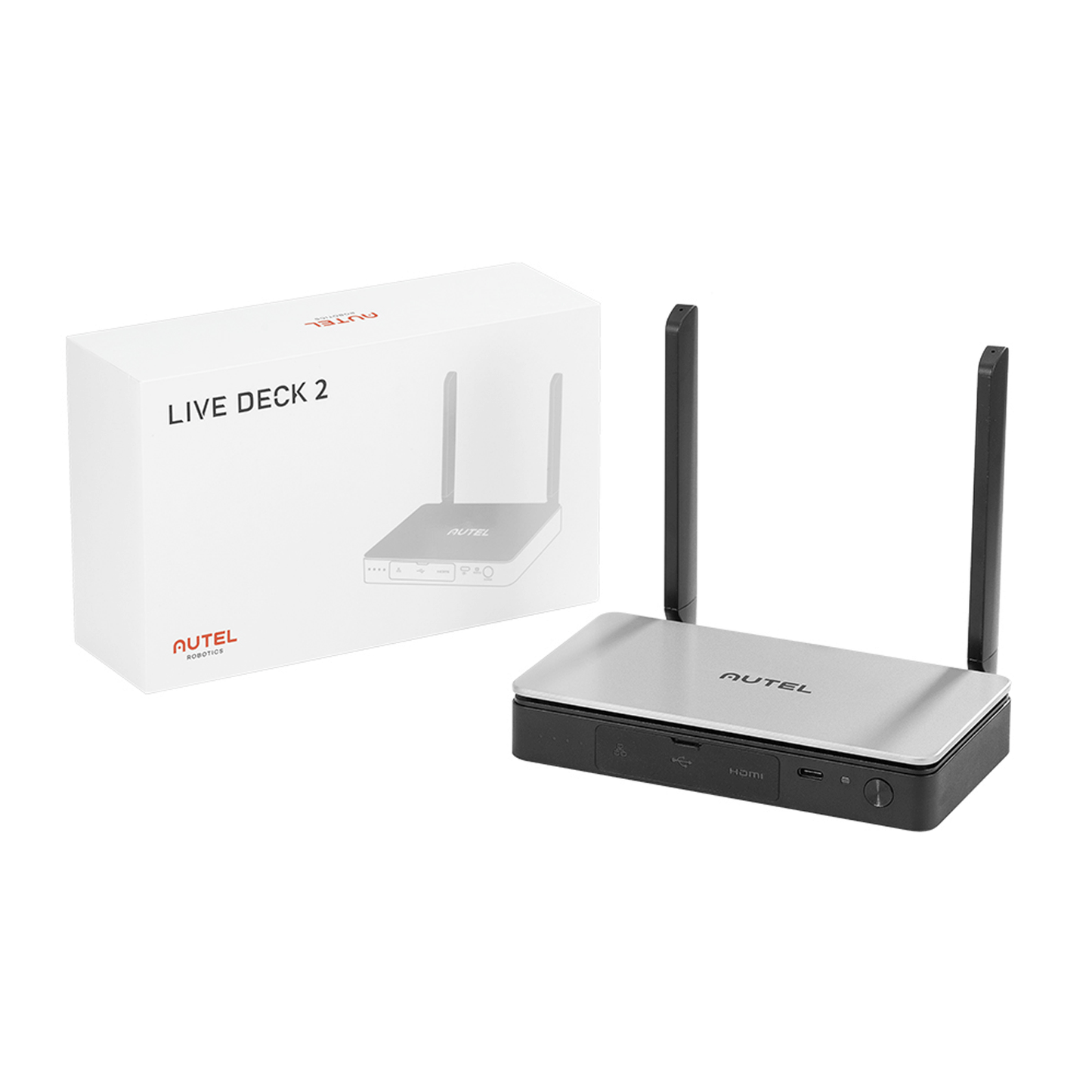

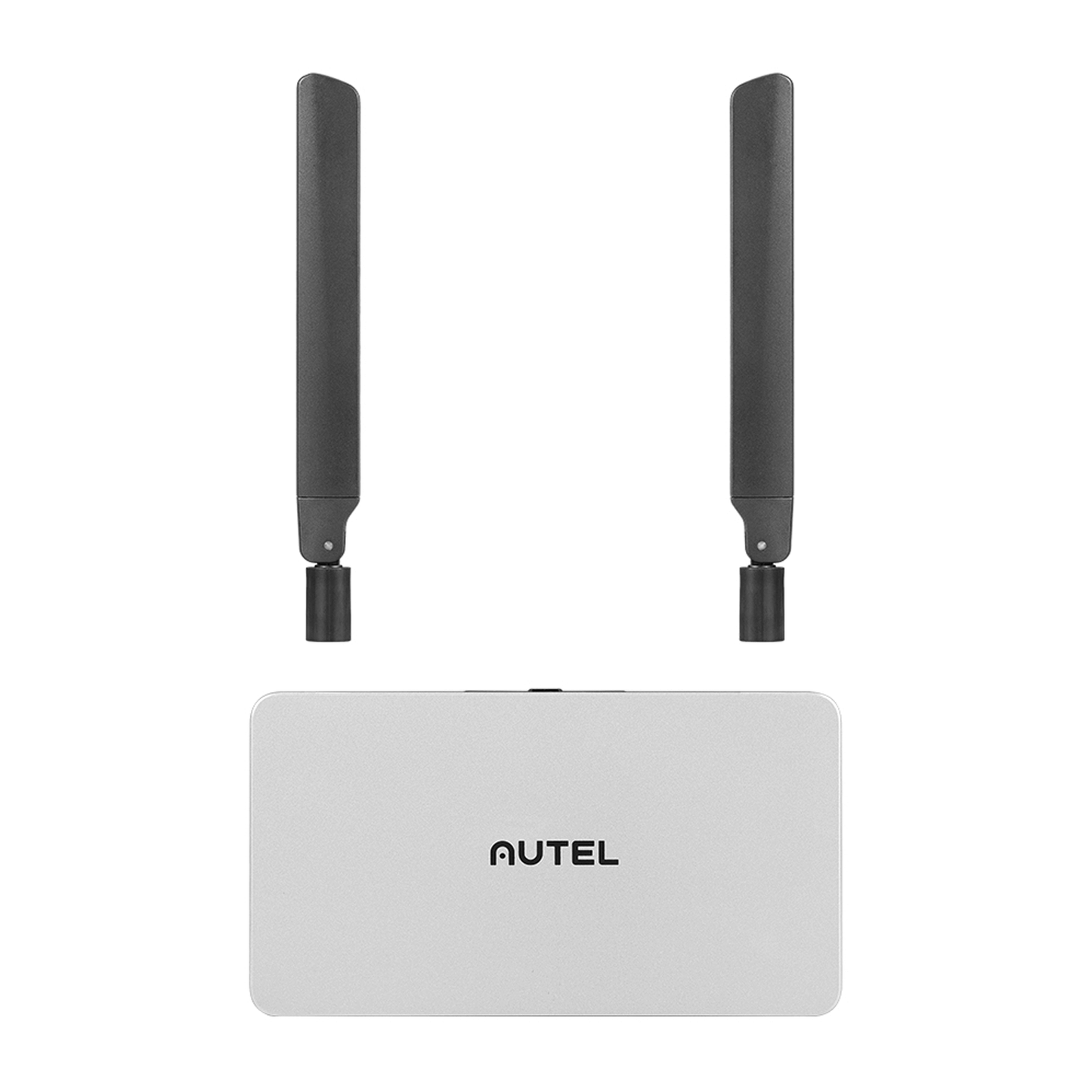

Broadcast with Live Deck 2
Transmit real-time HD video to a wide-variety of devices, allowing cross-departmental teams enhanced situational awareness and communication which can lead to quicker and better decision making.(Support all EVO II V3 drones.)
-
1080P/60FPS Video Stream -
7.5 Miles Transmission Range -
Three Auto-Switch Bands -
IP43 Resistance
-
1080P/60FPS Video Stream -
7.5 Miles Transmission Range -
Three Auto-Switch Bands -
IP43 Resistance
Multi-Band Strong Transmission
Based on the SkyLink 2.0 image transmission system, Live Deck 2 can communicate with aircraft via 2.4GHz/5.8GHz/900MHz working frequencies. Adopted with a three-in-one antenna, the performance of the transmission, anti-EMI, low latency have improved greatly.
- Advanced Signal
Anti-Interference System - Do not let interference hinder your mission success. SkyLink 2.0 provides an updated and advanced anti-interference capability with its advanced algorithms and frequency hopping, you can always obtain consistent information with uninterrupted operation/workflow in difficult working environments.
-
- 2.4GHz
- 5.8GHz
- 900Mhz
- * 900MHz working frequency is only applicable for FCC countries.
Multi-Band Strong Transmission
Based on the SkyLink 2.0 image transmission system, Live Deck 2 can communicate with aircraft via 2.4GHz/5.8GHz/900MHz working frequencies. Adopted with a three-in-one antenna, the performance of the transmission, anti-EMI, low latency have improved greatly.
Multi-Band Strong Transmission
Do not let interference hinder your mission success. SkyLink 2.0 provides an updated and advanced anti-interference capability with its advanced algorithms and frequency hopping, you can always obtain consistent information with uninterrupted operation/workflow in difficult working environments.
- 2.4GHz
- 5.8GHz
- 900Mhz
* 900MHz working frequency is only applicable for FCC countries.
-
Connect with Multiple Phones
The Live Deck 2 can offer HD video streams up to 4 additional phones for advanced mission flexibility by Wi-Fi. No longer do you need a TV in the back of the squad car to broadcast the drone view.
-
Informational Security
The Live Deck 2 is a closed loop system. There are no servers, no external connection points. This provides maximum security over online options.
-
Buy, Set, and Forget
No accounts or subscription needed. Simply turn on the Live Deck 2 and match it with your EVO II V3 within a minute and enjoy the compatibility for good.
-
No Internet Needed
The Live Deck 2 does not need cell service. Can be operated with your V3 drone offline in remote areas.
-
Connect with Multiple Phones
The Live Deck 2 can offer HD video streams up to 4 additional phones for advanced mission flexibility by Wi-Fi. No longer do you need a TV in the back of the squad car to broadcast the drone view.
-
Informational Security
The Live Deck 2 is a closed loop system. There are no servers, no external connection points. This provides maximum security over online options.
-
Buy, Set, and Forget
No accounts or subscription needed. Simply turn on the Live Deck 2 and match it with your EVO II V3 within a minute and enjoy the compatibility for good.
-
No Internet Needed
The Live Deck 2 does not need cell service. Can be operated with your V3 drone offline in remote areas.
Stream Anywhere
The Live Deck 2 supports multiple video output options, including HDMI, Wi-Fi *, and Ethernet, enabling users to view clear visuals to the device of their choosing.
5-Hour Battery Life
Powered by a 6200mAh lithium battery, Live Deck 2 can run for up to 5 hours on a single charge. Once depleted, juice up anywhere using the micro USB port or a portable battery pack.
Weight 424.5g Dimensions 152*111*23.2mm (antennas folded) 223.9*152*23.3mm (antennas unfolded) Ingress Protection IP43 Operating Frequency 902-928MHz(FCC) 2.400-2.4835GHz 5.725-5.850GHz(Non-Japan) 5.650-5.755GHz(Japan Only) Transmitter Power (EIRP) 900MHz: FCC《33dBm 2.4GHz: FCC/NCC《=33dBm; CE/MIC/SRRC/KC《=20dBm 5.8GHz/5.7GHz: FCC/SRRC/NCC《=33dBm; KC《=20dBm; CE《=14dBm Max Transmission Distance (unobstructed, free of interference) 12km Operating time 5h Operating Current/Voltage 1.3A/3.85V (not connected to smartphone) Battery Type Li-Po Battery Capacity 6200mAh Rated Power 5 W Operating Temperature 14°F~104°F (-10°C~40°C) Operating Humidity 95%RH HDMI 1080p@60 fps Ethernet 100M Supported Aircrafts EVO II Pro V3 EVO II Dual 640T V3 EVO II RTK Series V3 EVO II Enterprise V3 -
-
Autel Live Deck 2 Tutorial
-
Camera(Thermal & Visual light) Gimbal Aircraft Obstacle Avoidance Remote Controller Battery Charger Multi-Charger Camera(Thermal & Visual light) Gimbal Aircraft Obstacle Avoidance Remote Controller Battery Charger Multi-Charger Camera
Sensor 1" CMOS
Effective Pixels: 20 MPLens FOV: 82°
Equivalent focal length: 29 mm
Aperture: f/2.8 - f/11
Focus range: 0.5 m to infinityISO Range Video: 100-44000
Photo: 100-6400Shutter Speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame ratesZoom 1 ~ 16x (Max. 3x lossless zoom) Photo mode - Single shot: Burst shooting: 3/5 frames
- Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
- Time Lapse:
JPG:2s/5s/7s/10s/20s/30s/60s
DNG:5s/7s/10s/20s/30s/60s - HyperLight: support (under 4K JPEG format)
- Long exposure:Max. 8s
- HDR imaging: support (under 4K JPEG format)
Maximum photo size 5472*3648 (3:2)
5472*3076 (16:9)
3840*2160 (16:9)
Image Format JPG (default) / DNG / JPG+DNG Photo mode 5472x3076P30/P25/P24
3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24Video format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) Max bitrate 120Mbps Supported file system FAT32/exFAT Gimbal
Gimbal 3-axis stabilization Mechanical range Tilt: -135° to +45°;
Pan: -100° to +100°Controllable rotation range Tilt: -90° to +30°;
Pan: -90° to +90°Max control speed (Tilt) 300°/s Angular Vibration Range ±0.005° Aircraft
Takeoff Weight 2.62 lbs (1187 g) Max takeoff weight 4.41 lbs (1999 g) Wheelbase 15.63 inches (397 mm) Size(L*W*H) 9.1*5.1*4.3 inches (folded);
18*22*4.3 inches (unfolded)
Maximum Takeoff Altitude 7000 m Max ascent speed 8 m/s (Ludicrous) Max descent speed 4 m/s (Ludicrous) Max horizontal flight speed 20m/s (Ludicrous) Max flight distance (no wind) 25 km Max tilt angle 33° (Ludicrous) Max angular velocity 120°/s Max flight time (no wind) 40 min Max hovering time (no wind) 35 min Operating temperature range 14°F to 104°F (-10℃ ~ 40℃) Maximum resistance to wind 27mph, 12 m/s (Take-off and landing) Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)Transmission power 900M FCC/ ISED:≤31dBm 2.4G
FCC/ ISED:≤32dBm
SRRC/CE/MIC/RCM:≤20dBm 5.8G (non-Japan) ; 5.7G (Japan)
FCC/ISED/SRRC/MIC:≤33dBm
CE/ RCM:≤14dBmHovering accuracy Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally)GNSS GPS/Beidou/Glonass/Gallieo Internal storage 8GB SD storage max. support 256GB (UHS-3 or Class 10) Sensing System (Obstacle Avoidance)
Sensing System Omnidirectional Obstacle Sensing Forward Precision Measurement Range: 0.5-20 m
Detectable Range: 0.5-40m
Effective Sensing Speed: <15m/s
FOV: Horizontal: 60°, Vertical: 80°Backward Precision Measurement Range: 0.5-16 m
Detectable Range: 0.5-32m
Effective Sensing Speed: <12m/s
FOV: Horizontal: 60°, Vertical: 80°Upward Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 60°, Vertical: 50°Downward Precision Measurement Range: 0.5-11 m
Detectable Range: 0.5-22m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 90°, Vertical: 70°Sides Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <10m/s
FOV: Horizontal: 60°, Vertical: 50°Operating Environment Forward, Backward, Upward and Sides: Surface with clear pattern and adequate lighting (lux > 20)
Downward: Surface with clear pattern and adequate lighting (lux > 20)
Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)Remote Controller and Transmission
Operating Frequency - 902-928MHz (FCC Only)
- 2.400-2.4835GHz
- 5.725-5.850GHz (non-Japan)
- 5.650-5.755GHz (Japan Only)
Max Transmission Distance FCC: 15 km
CE: 8 kmOperating Temperature Range 14°F to 104°F (-10°C to 40°C) Transmission Power (EIRP) - FCC:≤33dBm
- CE:≤20dBm@2.4G,≤14dBm@5.8G
- SRRC:≤20dBm@2.4G,≤33dBm@5.8G/5.7G
Real-Time Transmission Quality 2340x1080 60fps Max Bitrate of Real-time Transmission 40Mbps Remote Controller Battery 1900mAh Operating Current/Voltage 1.7A @ 3.7V Charging Temperature Range 32°F to 104°F (0 to 40°C) Supported USB Port Types Lightning, Micro USB (Type-B), USB-C Operating Hours ~2 hours (Max. Brightness)
~4 hours (50% Brightness)OLED Brightness 800 nit Charging time 90 minutes Internal Storage ROM 128GB + expandable storage via micro-SD card Battery
Capacity 7100 mAh Battery Type LiPo 3S Battery Energy 82 Wh Voltage 11.55 V Max Charging Voltage 13.2 V Charging Temperature Range 41°F to 104°F (5°C to 40°C) Max Charging Power 92 W Net Weight 0.81 lbs (365g)
Charger
Input 100-240 V, 50/60 Hz, 1.5A Output 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A Voltage 13.2±0.1V Rated power 66W Multi-Charger
Voltage 13.2 V Charging temperature range 5℃ to 45℃ -
Autel EVO II Pro V3 Orange Package List
Autel EVO II Pro V3 Grey Package List
